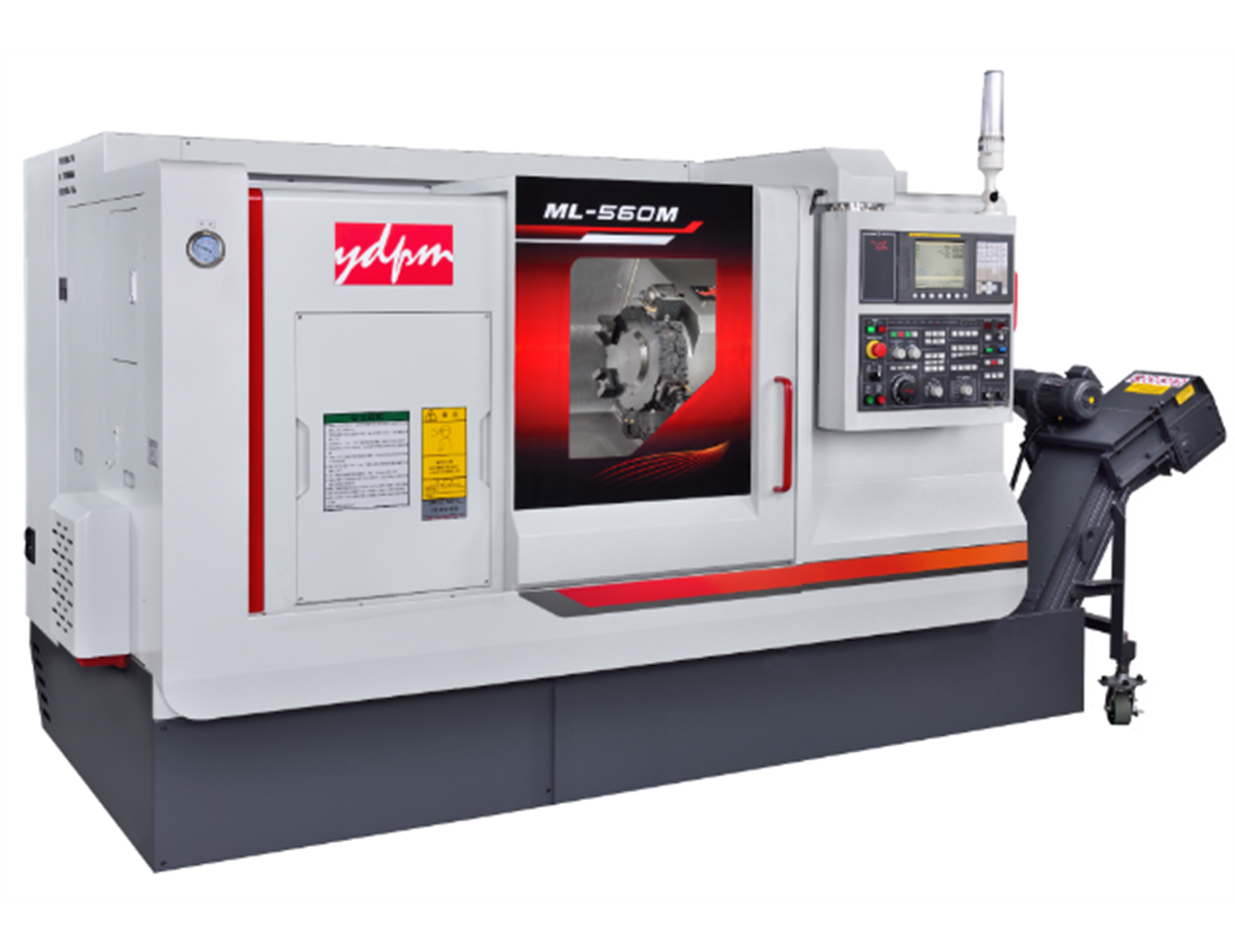

Yida Ydpm BML-560S Box Way CNC Lathes (BML-560S)

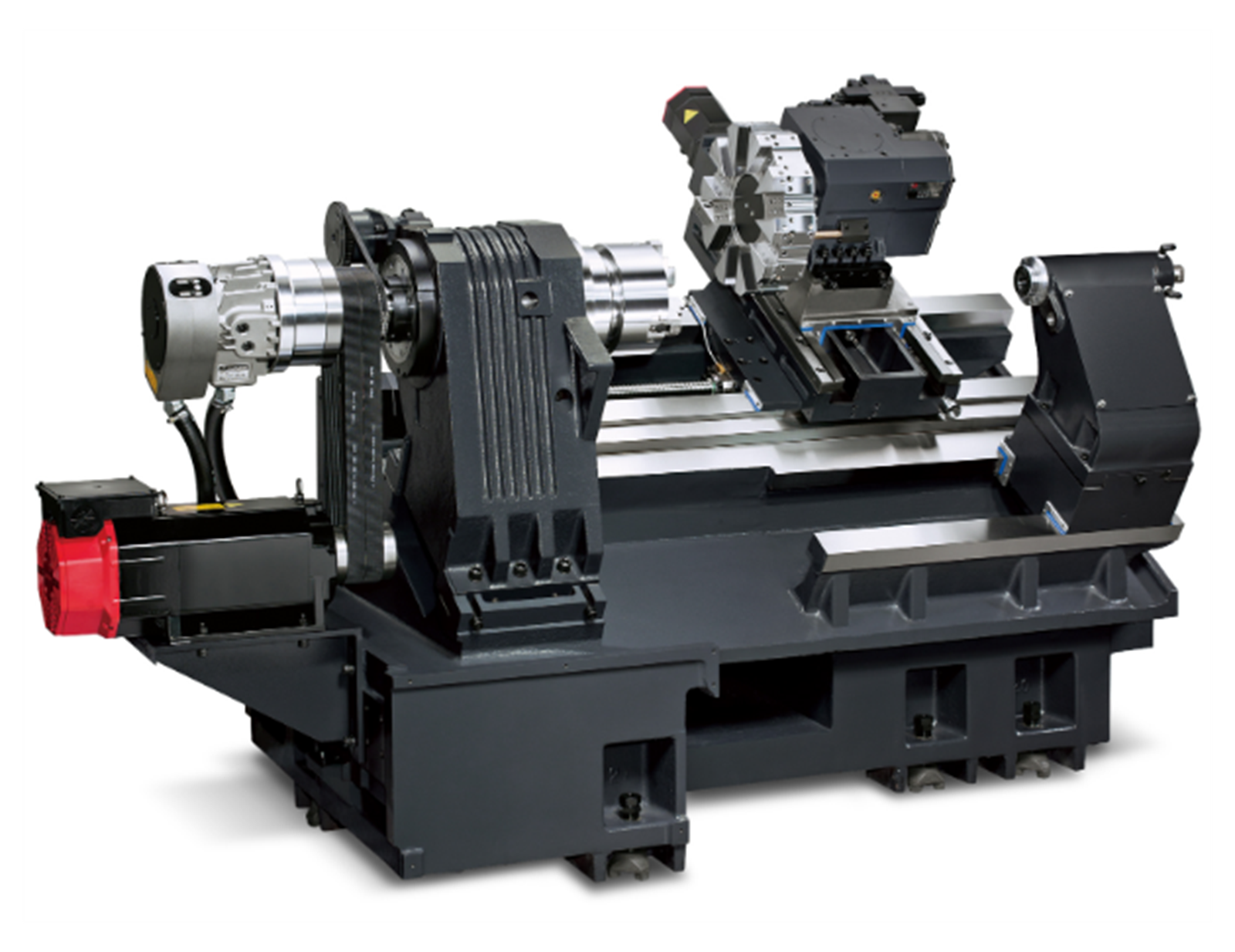

CS-Axis Function
The CS-axis function in combination with the live tooling turret enable the machine to perform milling, dirlling, and tapping operations with only a single setup.
CS-axis is equipped with a rotary encoder for high orientating accuracy.

Capacity

BML-560S	Standard C axis
Swing over bed	Ø560 mm
Swing over saddle	Ø420 mm
Distance between centers	652 mm
Max. machining dia.	Ø320 mm Ø300 mm
Max. machining length	320 mm
Slant angle of bed	30°

Travels

BML-560S	Standard        C axis
X-axis	190(160+30) mm190(150+40) mm
Z-axis	360 mm
C-axis (optional)	360° (0.001°)

Spindle

BML-560S
Spindle speeds	STD. 4500(A2-6) rpm, OPT. 6000 (A2-5)
Spindle nose	STD. A2-6, OPT. A2-5
Spindle bore dia.	STD. Ø62 mm.,OPT. Ø79 (A2-6), Ø56 (A2-5)
Front bearing inner dia.	STD. Ø100 mm. (A2-6), OPT. Ø80(A2-5)
Draw bar dia.	STD. Ø52 mm., OPT. Ø66, Ø45

Turret

BML-560S	Standard	C axis
Type	STD. Servo; OPT. Hydraulic	Live tooling (VDI30)
Station	STD. 10 pcs., OPT. 8, 12 pcs.	12 pcs.
Model	STD. YDPM YT-200, OPT. LS-160ALS-160SP
Square tool shank	STD. 25x25 mm., OPT. 20x20 mm. (12T)
Boring bar shank diameter	STD. Ø40 mm., OPT. Ø32 mm. (12T)
Indexing time (0-180°)	1.7 (8T) / 2.1 (10T) / 2.4 (12T)	0.85 sec.

Chuck

BML-560S
Chuck Diameter	STD. 8", OPT. 6"

BML-560 Capacity, Travels, Spindle, Chuck, Turret

ITEM		Unit	BML-5608
			Standard	C axis
Capacity	Swing over bed	mm	0560
	Swing over saddle	mm	0420
	Distance between centers	mm	652
	Max.machining dia.	mm	0320	0300
	Max.machininglength	mm	320
	Slant angle of bed		30°
Travels	X-axis	mm	190(160+30)	190(150+40)
	Y-axis	mm	-
	Z-axis	mm	360
	C-axis	mm	-	360' (0.001')
	W-axis	mm	-
Spindle	Spindle speeds	rpm	STD 4500(A2-6);OPT6000 (A2-5)
	Spindle nose		STD A2-6;OPTA2-5
	Spindle bore dia.	mm	STD :062;OPT:079 (A2-6). 056 (A2-5)
	Front bearing inner dia.	mm	STD 0100 (A2-6).OPT:080(A2-5)
	Draw bar dia.	mm	STD:052; OPT: 066,045
Chuck	Chuck diameter	inch	STD:8" ;OPT: 6"
Turret	Type		STD:Servo OPT:hydraulic	Live tooling (VDl30)
	Station	pcs	ST0:10;OPT:8.12	12
	Model		STD YDPMYT-200; OPT:LS-160A	LS-160SP
	Square tool shank	mm
			STD:25x25.OPT:20x20 (12T)
	Boring bar shank diameter	mm	STD:040,OPT:032 (12T)
	Indexing time (0-180°)	sec	1.7(8T)/2.1(1OT)/2.4(12T)	085
