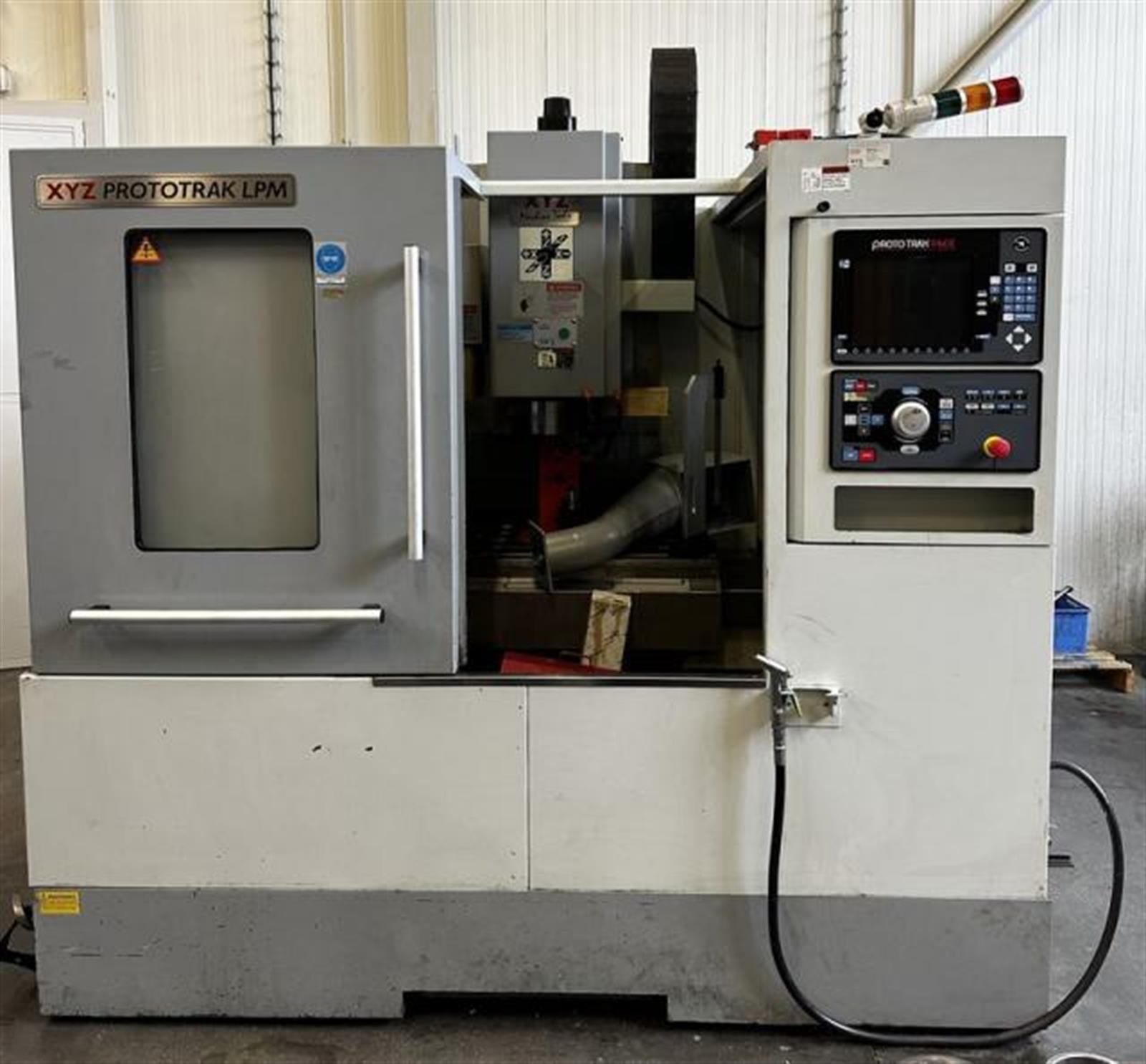

XYZ Prototrak LPM Machining center - vertical (XYZ Prototrak LPM Machining center - vertical)

The machine is in good technical condition. Table clamping surface: 900x500 mm X axis: 787 mm Y axis: 470 mm Z axis: 533 mm Spindle speed: 1 - 8000 /min. Number of controlled axes: 3 Center cooling: no Spindle clamping cone: BT 40 Machine weight: 4200 kg Max. table load: 450 kg Spindle working diameter: 69 mm Max. weight of the tool: 7 kg. Upon prior agreement, the possibility of a tour in progress.

Axis X	787 mm
Axis Y	470 mm
Axis Z	533 mm
Rotary table (4th axis)	no
Type of CNC
Table length	900 mm
Table width	500 mm
Max. part weight	450 kg
Spindle taper	BT 40
Max. spindle speed	8000 rpm
-------------------
Weight	4200 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	visible
