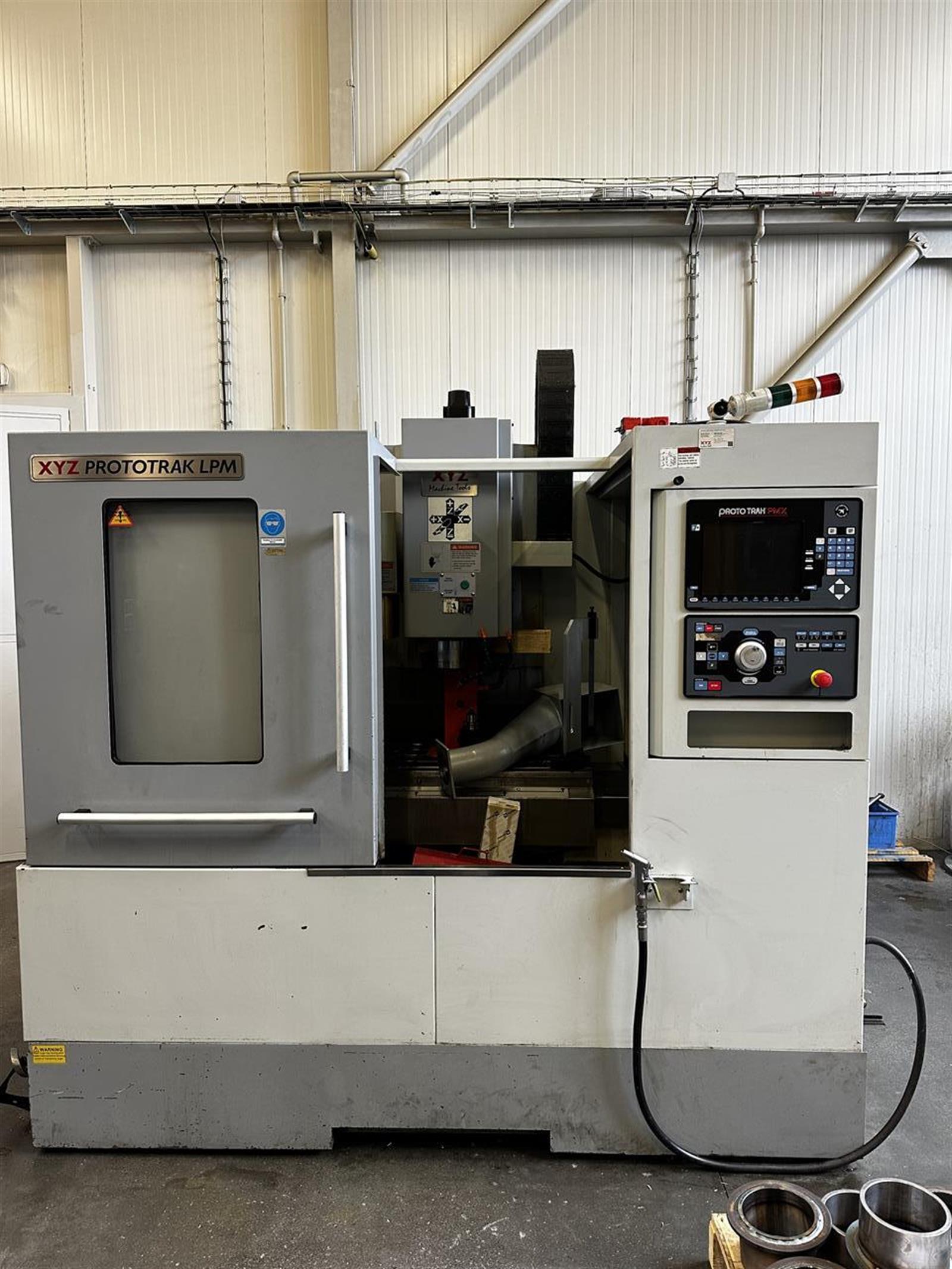

XYZ Machine Tools PROTOTRAK LPM Machining center - vertical (XYZ Machine Tools PROTOTRAK LPM Machining center)

Type: PROTOTRAK LPM
Producer: XYZ Machine Tools
Made in:
Characteristic:
Control system: ProtoTRAK PMX CNC
Length of the working table: 900 mm
Width of the working table: 500 mm
Maximum table load (evenly distributed): 450 kg
Maximum rotary speed of the vertical spindle: 8000 1/min
X-Axis travels: 787 mm
Y-Axis travels: 470 mm
Z-Axis travels: 533 mm
Taper: BT 40
Maximum number of tools: 16 pcs
Maximum tool diameter: 80 mm
Max. tool weight: 7 kg
Machine height: 2616 mm
Machine length: 3988 mm
Machine width: 2235 mm

Axis X	787 mm
Axis Y	470 mm
Axis Z	533 mm
Rotary table (4th axis)	no
Type of CNC	ProtoTRAK PMX CNC
Table length	900 mm
Table width	500 mm
Max. part weight	450 kg
Number of tool pockets	16
Spindle taper	BT 40
Max. spindle speed	8000 rpm
-------------------
Length x width x height	3988.0 × 2235.0 × 2616.0
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
