• Our BGA Rework Station/BGA reballing station are widely used to replace and repair the BGA chip in laptop , mobile phone , xbox 360, ps3,etc.
• The main user is repairing shops and factory to provide the after-sales service and rework.

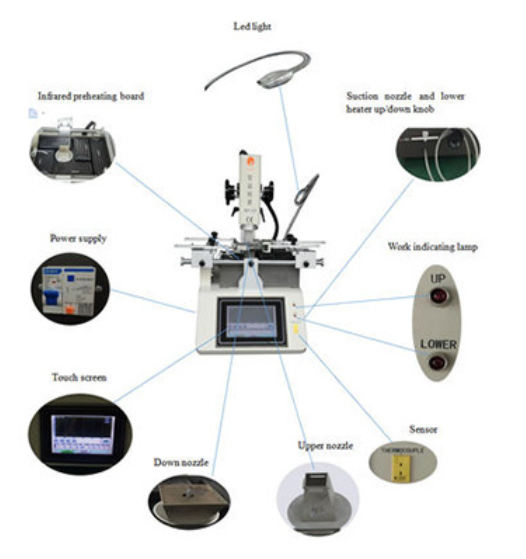

Manual BGA Rework Station
• Model:WDS-520
• Repair Success Rate:More Than 99%
• Using The Industriak Touche Screen
• Independent 3 Heating Zones, Hot Air Heating/ Infrared Preheat.(temperature accuracy ± 2°C)
• With CE Certification
Main Features
Operation System
• Manual mode.
• Can solder, desolder, mount, pick and replace chip.
• User-friendly.
Strict Temperature Control System
• 8 segments rising temperature/constant time/ temperature rising slope, it can save hundreds of groups temperature curve.
• It adopts high accuracy K-type thermocouple close-loop control.
• The external sensor can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time.
Safety Sustem
• With CE cetification
• With automatic power-off protection device when abnormal accident happens and double over-temp protection fuction.
