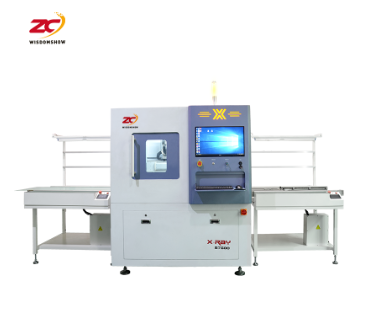

S7600 Online X Ray Inspection Machine High Precision With Software Control
The system of this series of equipment is mainly composed of seven parts: micro-focus X-ray source, image imaging unit, computer image processing system, mechanical system, electrical control system, safety protection system, and warning system. It integrates modern non-destructive testing, computer software technology, image acquisition and processing technology, mechanical transmission technology, and AI algorithm, covering four major technical fields of optics, machinery, electricity, and computing. Through the difference in X-ray absorption by different materials or thicknesses, the internal structure of the object is imaged and then internal defects are detected. It can observe high-definition detection images of the product in real time, determine whether there are defects inside and the type and level of defects. At the same time, according to user customization needs, the AI algorithm can automatically determine defects to ensure the accuracy and objectivity of the assessment.
In manufacturing, X - ray inspection machine plays a crucial role. It uses X - ray technology to penetrate objects and create detailed images of their internal structures. For electronics, it can detect hidden solder joints, ensuring that they are properly formed and free from defects such as voids or short circuits. This is vital as faulty solder joints can lead to product malfunctions.
In the automotive industry, the X - ray inspection machine can examine the integrity of critical components like engine parts and safety - related components. It can spot cracks, inclusions, or other internal flaws that are not visible to the naked eye. This helps in maintaining high - quality standards and enhancing vehicle safety.
The operation of the X - ray inspection machine is relatively straightforward. Samples are placed within its scanning area, and the machine emits X - rays. The resulting images are then displayed on a monitor, allowing technicians to analyze them with ease. It offers high - resolution imaging, enabling the detection of even the tiniest of defects.
Furthermore, modern X - ray inspection machines are often equipped with advanced software. This software can enhance image quality, perform automated defect recognition, and generate detailed reports for quality control and documentation purposes.
