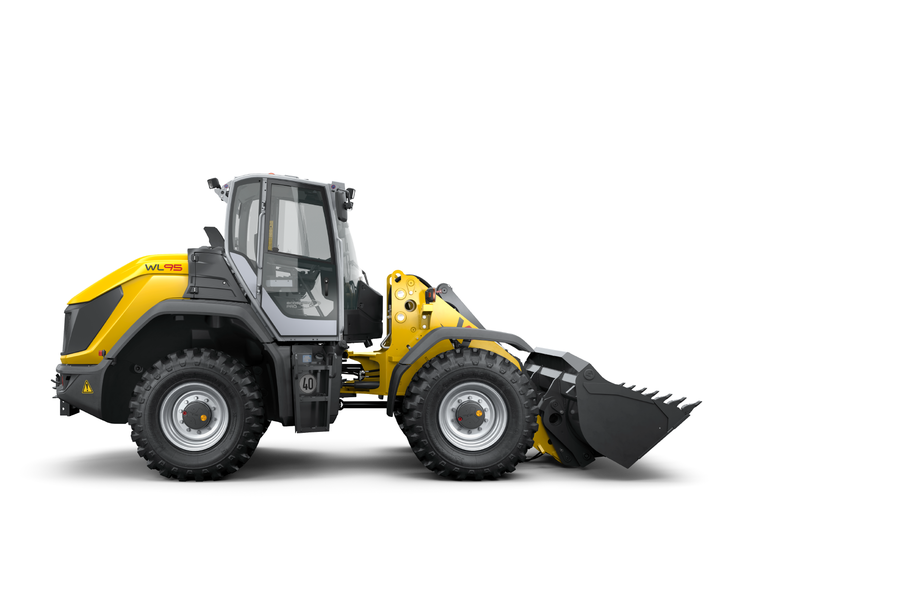

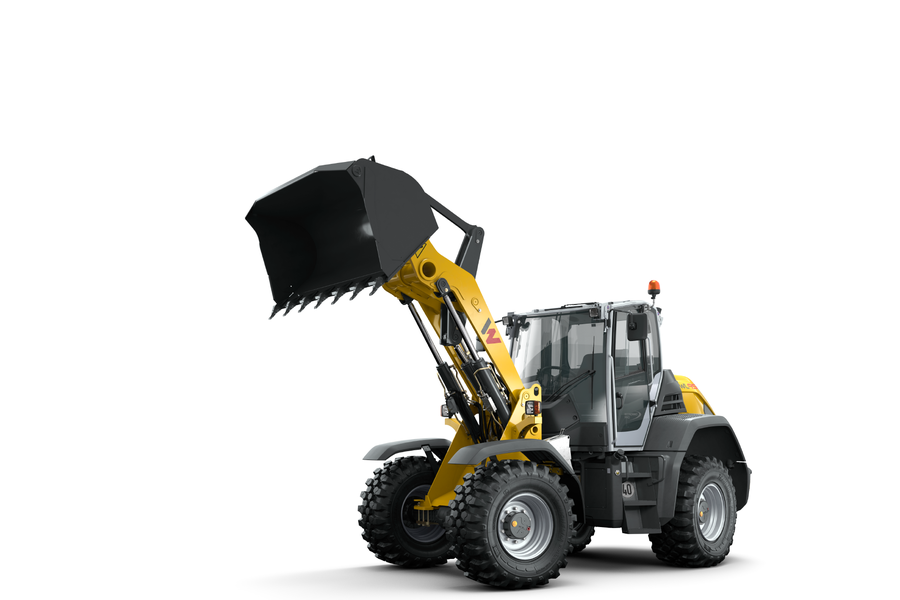

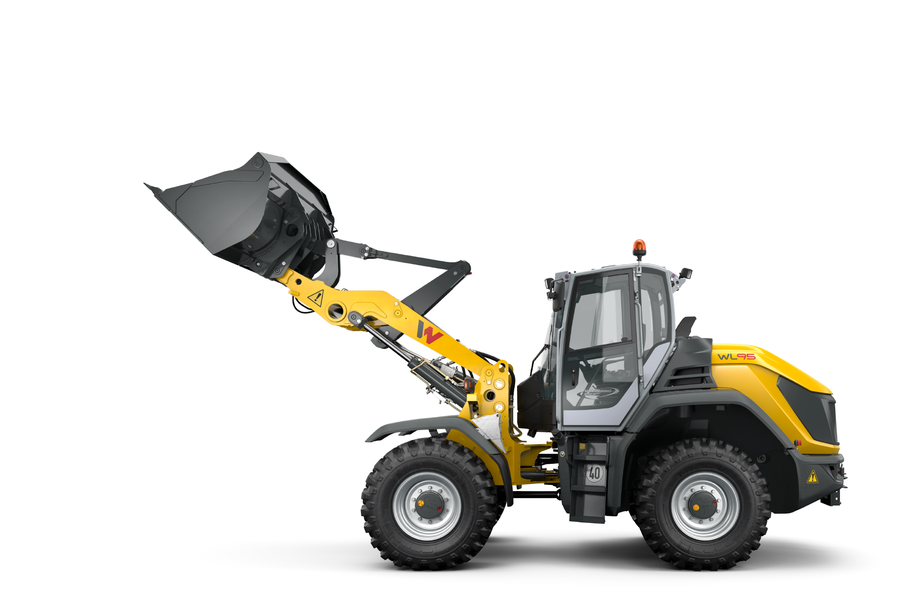

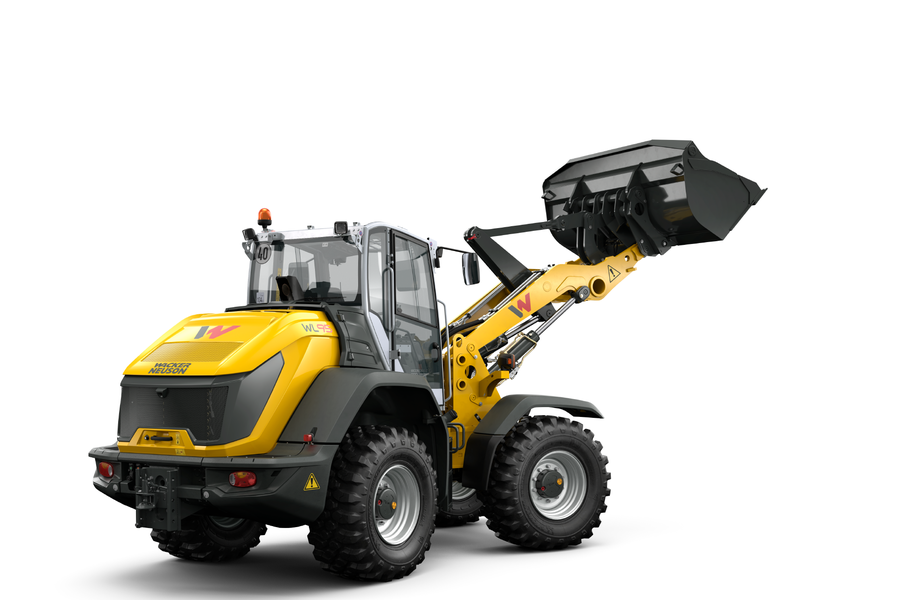

Wheel loader WL95: Work comfortably and safer

The WL95 wheel loader offers the operator maximum working comfort: a large and comfortable cab, a multi-function joystick and simple hydraulic oil volume adjustment via jog dial. The roominess and overall layout of the cab, as well as the ergonomically arranged operating controls, allow for safer and fatigue-free work. The machine is equipped with the variable hydrostatic transmission ecospeed Pro, which is just as compact and energy-efficient as traditional drive systems, but achieves significantly higher tractive forces and travel speeds. The WL95 accelerates variably and evenly with ecospeed Pro and up to 40 km/h without interruptions in tractive force.

Eco Speed Pro: continuously variable hydrostatic transmission

• The Ecospeed Pro is a continuously variable hydrostatic transmission that achieves higher tractive forces and travel speeds than previously developed solutions. This is achieved while retaining all the advantages of previous travel drives in terms of compactness, energy efficiency, and operator comfort. Eco Speed PRO allows for speeds of up to 40 km/h without shifting. This results in a comfortable driving style, since no tractive force interruptions occur nor can shifting jerks be felt.

30/40 km/h speed

• With the appropriate engine, the machine can reach a speed of 30 or 40 km/h. This allows the machine to move from A to B more quickly, saving time and increasing efficiency.

Automatic air-conditioning system

• The automatic air conditioning system ensures a pleasant working climate inside the cab when outside temperatures are warm. A conventional air conditioning system usually only cools at one level, which can be regulated by the strength of the fan. The automatic climate control system works with cab sensors and reduces or increases the interior temperature according to the operator's specifications. This ensures a consistent climate and brings the advantage that the air conditioning in the cab can be better adapted to the outside temperatures.
• The air conditioning system increases comfort enabling the operator to work without fatigue as it reduces the strain on the operator in warm outside temperatures.
• The control panel for the system is located in the roof lining above the display, and the air nozzles are well distributed throughout the cab, ensuring optimum air circulation.

Clear 7-inch digital display

• The most important functions are always kept in view: With the digital display, the operator always maintains a clear overview of the machine. In addition to standard displays such as temperature, tank filling, or operating hours, active functions, such as active electrical functions, the continuous operation of the 3rd control circuit or the activated differential lock are displayed
• Placed at the top right of the cab, the operator always has a good view of the display without it obstructing the view.
• The various functions and settings are controlled via the jog dial, which makes operation simple and convenient for the operator.

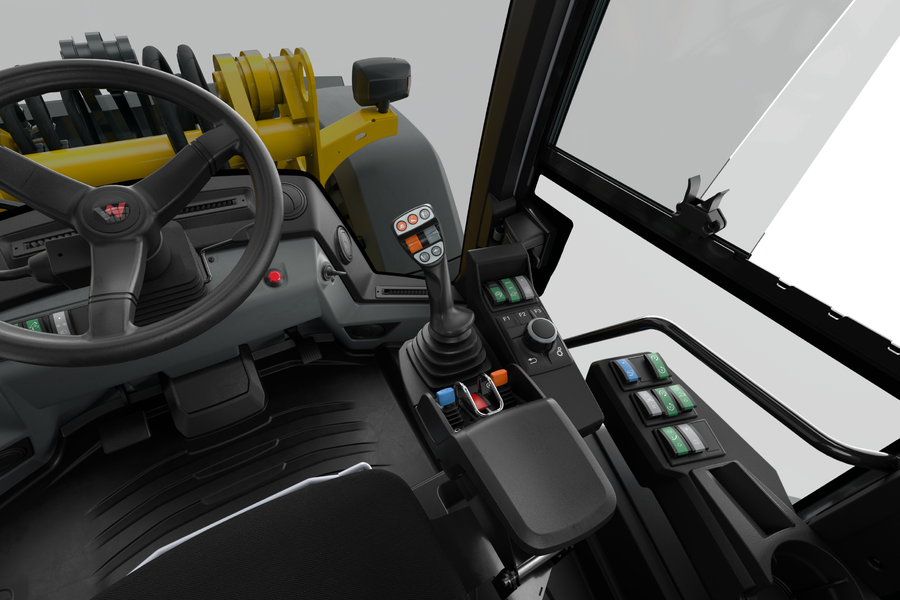

Joystick console spring-mounted on the operator's seat

• The joystick console is mounted on the operator's seat and is cushioned against vibrations. If the operator's seat is adjusted to the operator's needs, the joystick console is also adjusted accordingly and always has the perfect position, a plus in comfort and ergonomics for the operator.
• The joystick console and the operator's seat form a single unit. This means that the operator's arm position is not changed while working with the machine. This increases comfort for the operator allowing them to work for longer without fatigue.

Safety

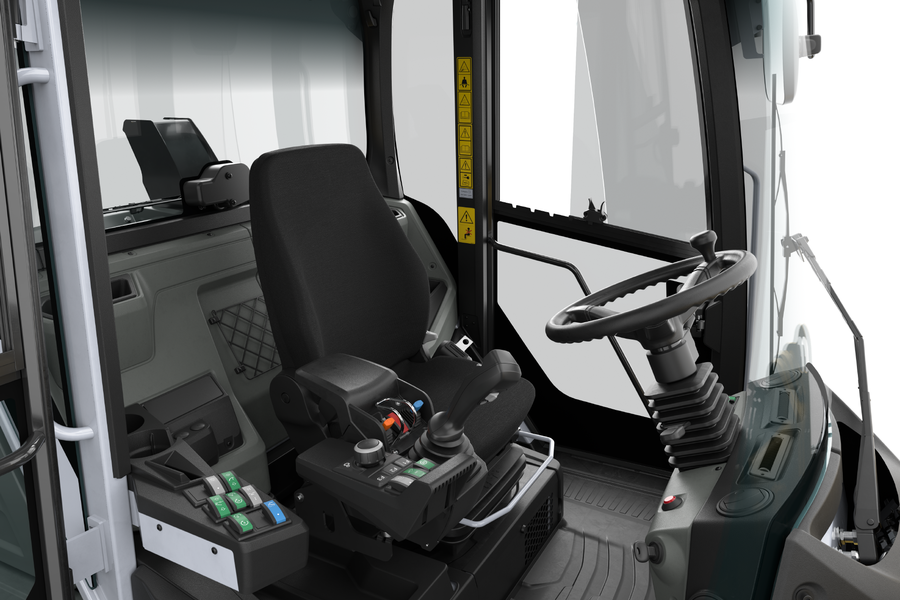

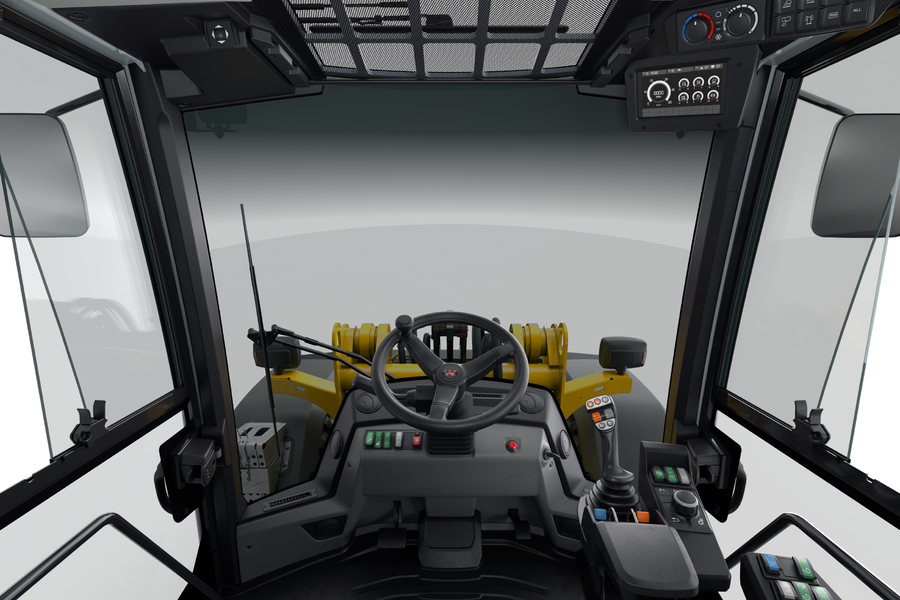

Comfortable Cab

• The spacious and comfortable cab meets the current European Machinery Directive in accordance with ROPS and FOPS protection and offers plenty of headroom and freedom of movement. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings, which in turn increases occupational safety as the operator always has the machine surroundings within view.
• The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
• The cab impresses with outstanding ergonomics, generous space and many individual adjustment options for the operator. The cab provides protection from wind, weather, and external environmental conditions. This allows fatigue-free work even over a longer period of time.

Efficiency

Inch brake pedal: Engine output where it is needed.

• 1. No pressure on inch brake pedal: full power for the drive system 2. Slightly depressed inch-brake pedal: speed is reduced, more power to the work hydraulics. 3. Firmly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed inch-brake pedal: the wheel loader stands still, full power to the work hydraulics.
• The advantages of the inch-brake pedal are obvious: less wear on the operating brake and optimum power distribution of the engine output.

Flexible trailer operation

• The machine can tow a trailer thanks to the optional ball hitch. Depending on the model, an automatic trailer hitch (fixed or height-adjustable), a height-adjustable ball-head trailer hitch, or an Auto-Hitch trailer hitch are available. The weight of the trailer depends on the machine size or weight.
• To safely move trailer loads, there is both a two-line pneumatic brake as well as a hydraulic trailer brake.
• The ability to tow a trailer expands the machine's range of applications and offers more flexibility, as no additional towing vehicle is needed. This makes the machine multifunctional.

Rear hydraulic connections

• The machine can be equipped with rear hydraulic connections (single or double-acting). This increases the machine's range of applications because rear hydraulic attachments or tipper trailers can also be operated.
• The various rear hydraulic options expand the machine's range of applications and offer more flexibility in use. One machine can be used multifunctionally for different activities, no additional vehicles or machines are needed.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

Mechanical-output details

Mechanical Details

Engine

Hydraulic

Operating fluids

Chassis

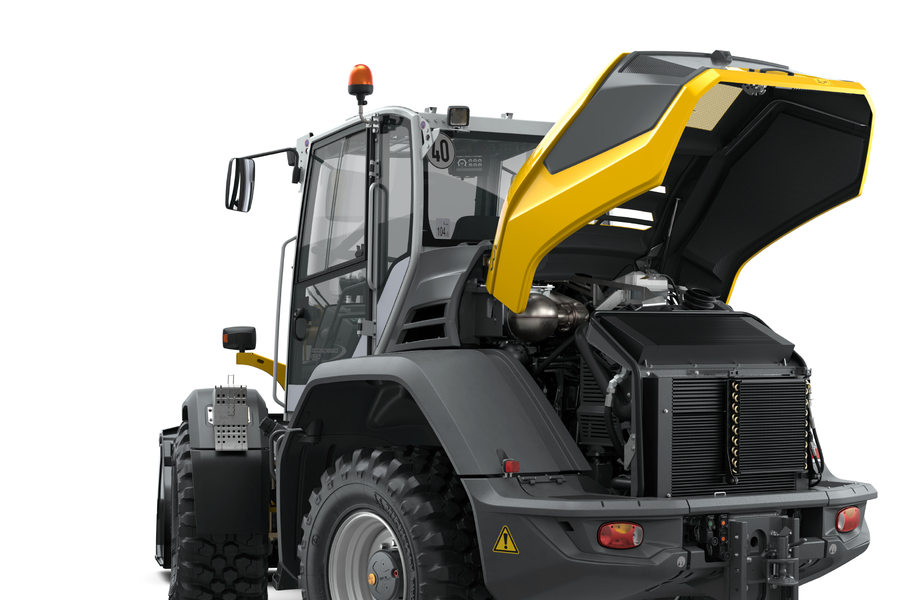

Engine

• Deutz TCD 3.6 S5, 100 kW / 136 HP, EU: Stage V

• Hydraulic articulated steering with pendulum axle, pendulum angle (axle) ± 12°
• Steering cylinder: 2

• 500 / 70 R24 Michelin BIBLOAD ET40

Operator's cab

• Comfort 2-door cab, ROPS/FOPS Level 2
• Air conditioning with automatic climate control
• Sliding windows in both doors
• Roof window with wiper
• Radio
• 7″ color display for all important machine information
• Rear-view camera
• Heated rear window

Operator's seat

• Fully damped comfort seat with safety belt, weight, back and height adjustment

Lighting

• Lighting according to StVZO
• LED working lights, 4in front, 2 in rear on cab roof

Drive system

• Axle: PA1900 planetary axle
• Drive: hydrostatic via transfer case and universal joint shaft
• Differential lock: 100 % front and rear axle
• Speed: 20 km/h
• Travel speeds: 3 | 7 km/h / 15 km/h / 20 km/h (Optional 40)
• Operating brake: Multiple-disc brake on front axle acting on rear axle via universal joint shaft.
• Parking brake: Electro-hydraulic multi-disc brake with spring suspension in the front axle, acting on the rear axle via universal joint shaft

Loadıng system

• Loading swing arm lifting height 3820 mm
• Quickhitch facility according to ISO 23727 (Volvo TPV system) hydraulic
• Kinematics: Z
• Lifting cylinder 2
• Tipping cylinder 1
• Automatic bucket return

Hydraulics

• Electrically pre-controlled joystick with direction switch and integrated button for differential lock
• 3rd Front control circuit electrically pilot-controlled via joystick proportional
• Oil quantity adjustment via jog dial
• Pressure relief of hydraulic connections on loading swing arm

• EquipCare 36 months
• Reversing fan
