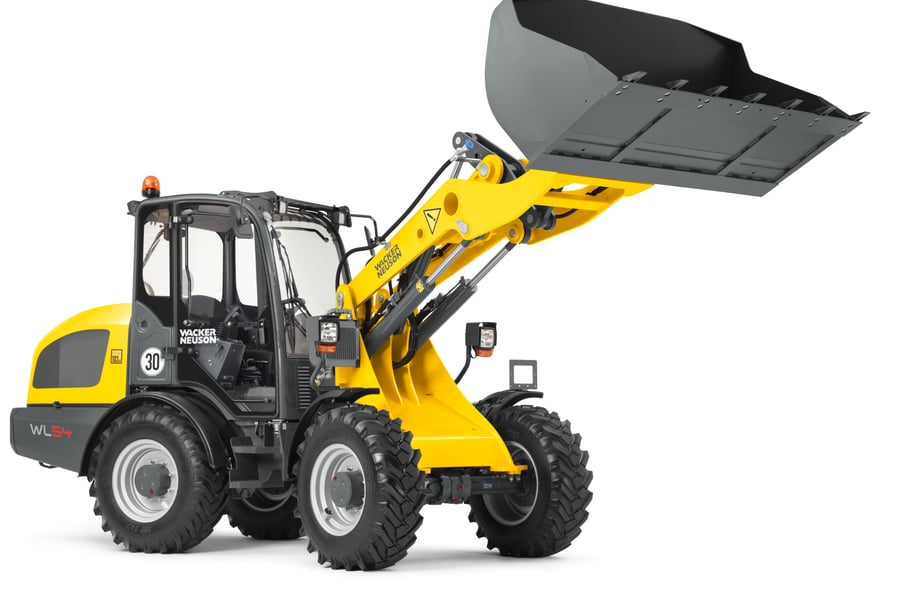

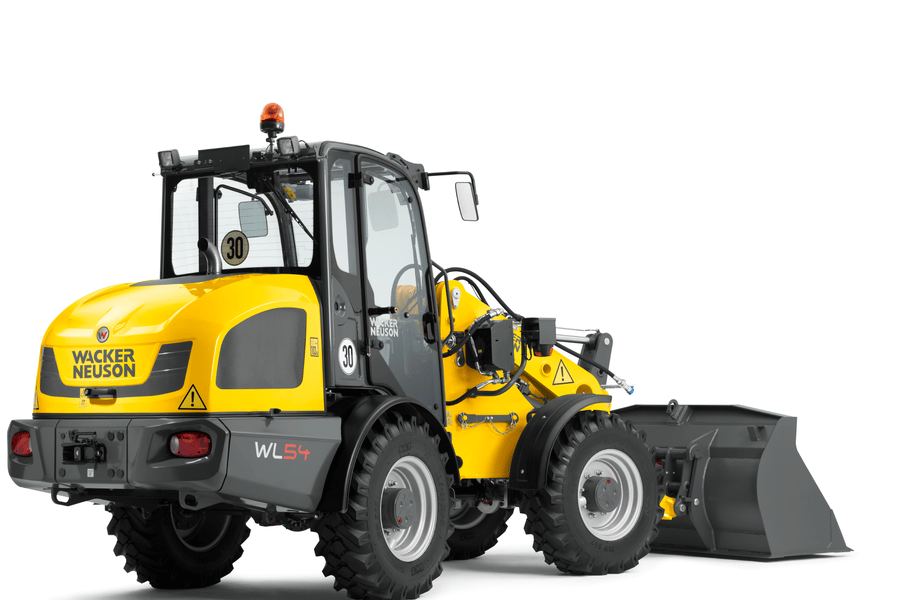

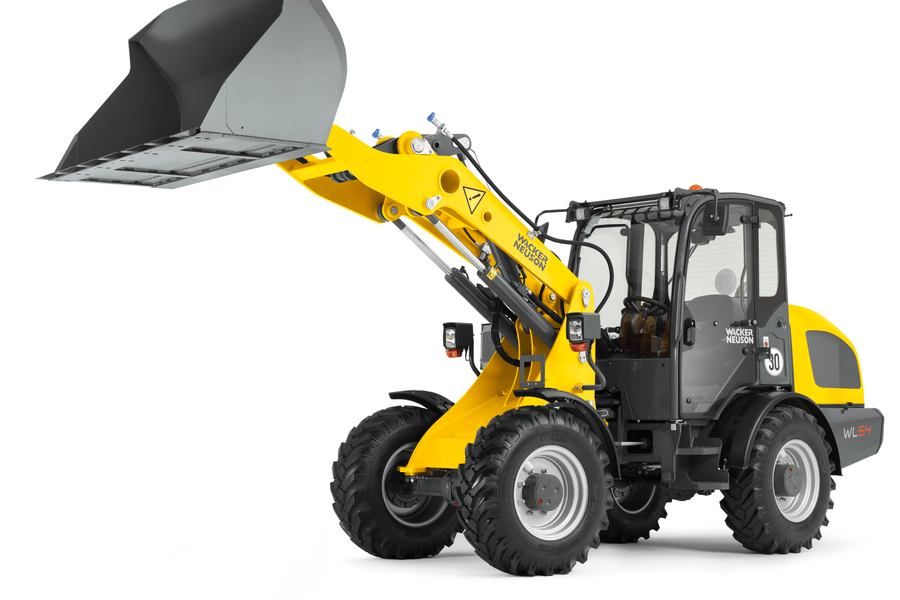

Wheel loader WL54: Robust design and impressive performance

The efficient WL54 wheel loader offers an impressive high economic efficiency and power. It maneuvers quickly, saving time, thus offering first-class work performance. The wheel loader WL54 achieves this with its high lifting and breakout forces as well as high stability – all at a convincing price-performance ratio.



Maximum traction thanks to articulated pendulum joint

• Because of the articulated pendulum joint with 12° oscillating angle, all four wheels retain excellent traction, even on uneven ground conditions and the operator maintains optimal control. This increases the productivity of the entire machine system.
• The large articulation and pendulum angle ensures high traction on the ground, making the machine easy to maneuver. As a result, there is no collision between the front and rear sections of the machine in confined conditions.
• And because the front and rear carriages can oscillate independently of each other, the operator can sensitively react to any unevenness. This increases operator comfort and enables fatigue-free work over longer periods.

High-quality powder coating

• Compared to conventional wet painting, powder coating significantly extends the service life of the machine and is environmentally friendly at the same time.
• The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

100 % connectible differential lock

• The connectible 100% differential lock provides maximum traction and thrusting power when needed. It also keeps tire wear low. This increases the efficiency of the machine.
• During normal operation the differential lock is deactivated, this provides safety, low wear and, as a result, saves in operating costs.

High hydraulic performance

• A Wacker Neuson wheel loader always has enough hydraulic output and is thus suited for the operation of many different attachments, which in turn makes a great variety of applications areas possible.
• The flexible combination with various attachments reduces the total fleet and thus the total cost of ownership (TCO).
• Compact machines with high hydraulic output save money, as it is not necessary to immediately procure or use a bigger machine.

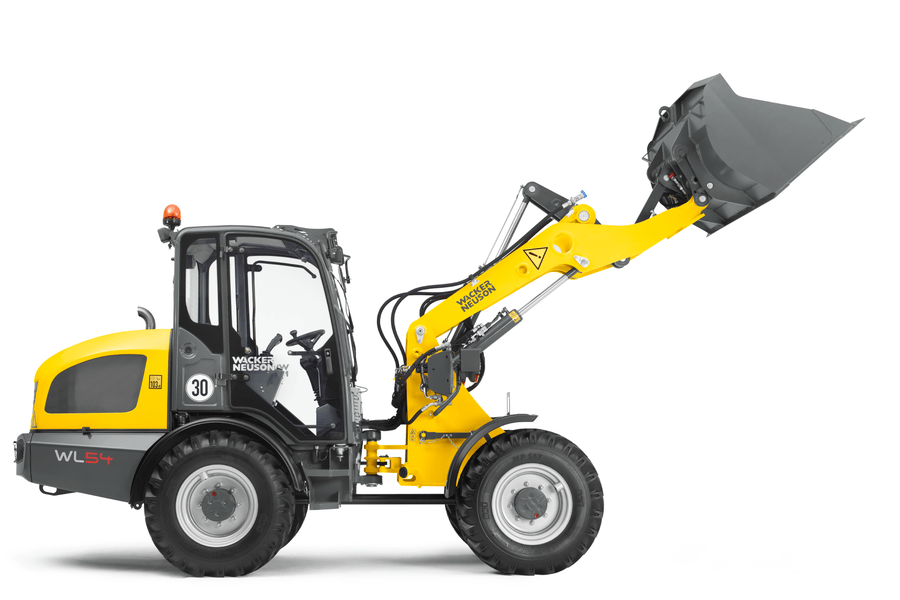

Large lifting height

• The load arm is designed especially long, which makes large lift heights possible. This way, e.g. filling containers with a fixed height or getting over the high sides of a truck is also possible with comparably compact machines.
• The range of the machine is increased, loading a truck in 2. Series is possible. This increases the range of applications for the machine.

Safety

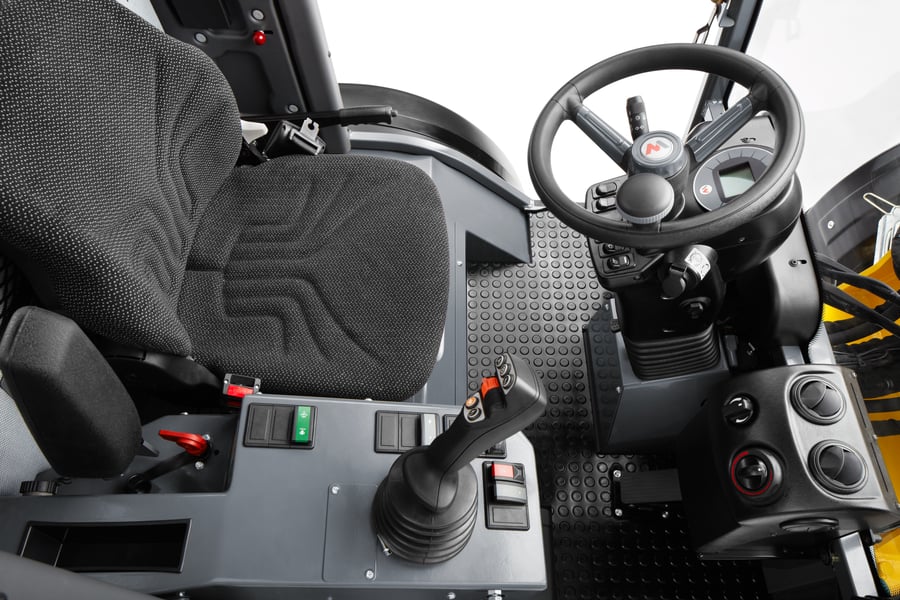

Comfortable Cab

• The spacious and comfortable cab meets the current European Machinery Directive in accordance with ROPS and FOPS protection and offers plenty of headroom and freedom of movement. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings, which in turn increases occupational safety as the operator always has the machine surroundings within view.

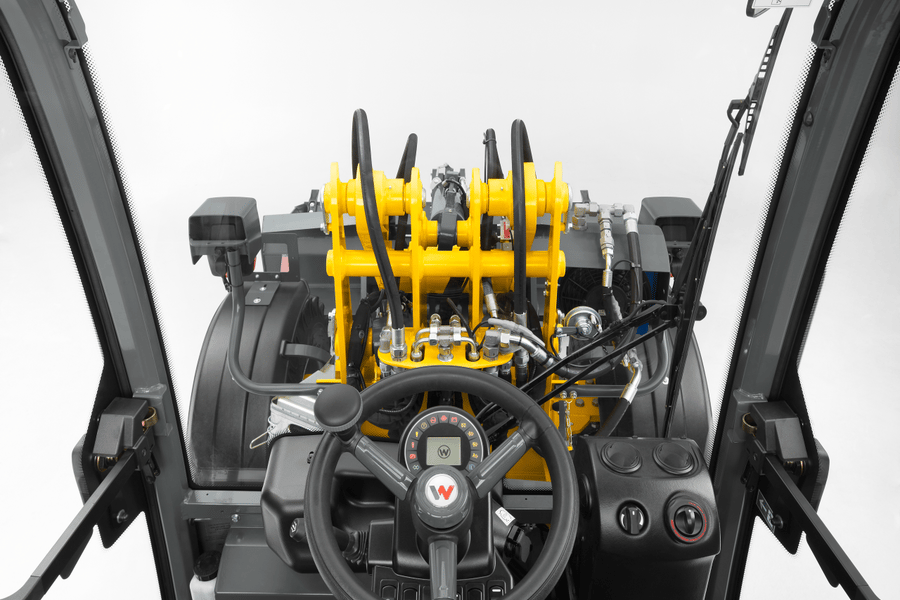

• The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
• The cab impresses with outstanding ergonomics, generous space and many individual adjustment options for the operator. The cab provides protection from wind, weather, and external environmental conditions. This allows fatigue-free work even over a longer period of time.

Maintenance

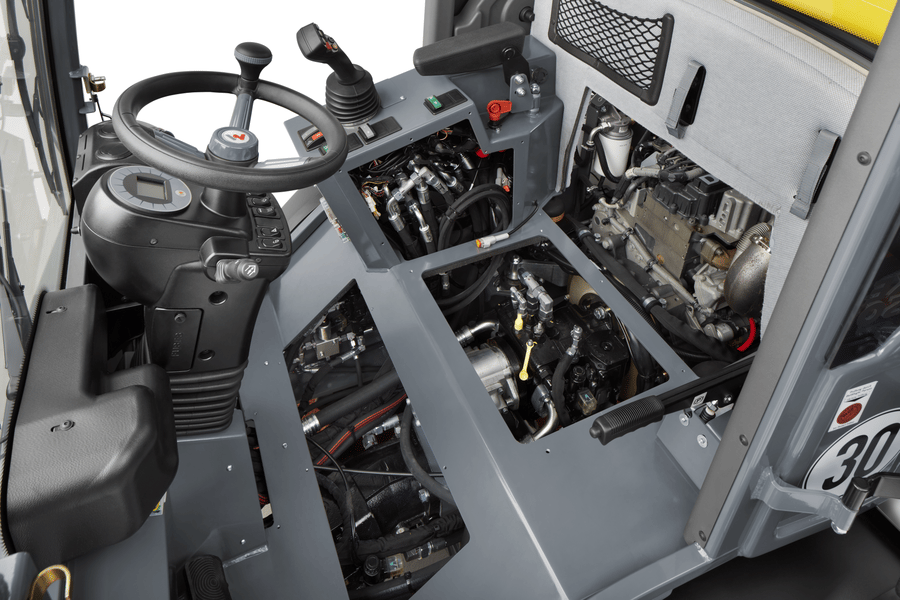

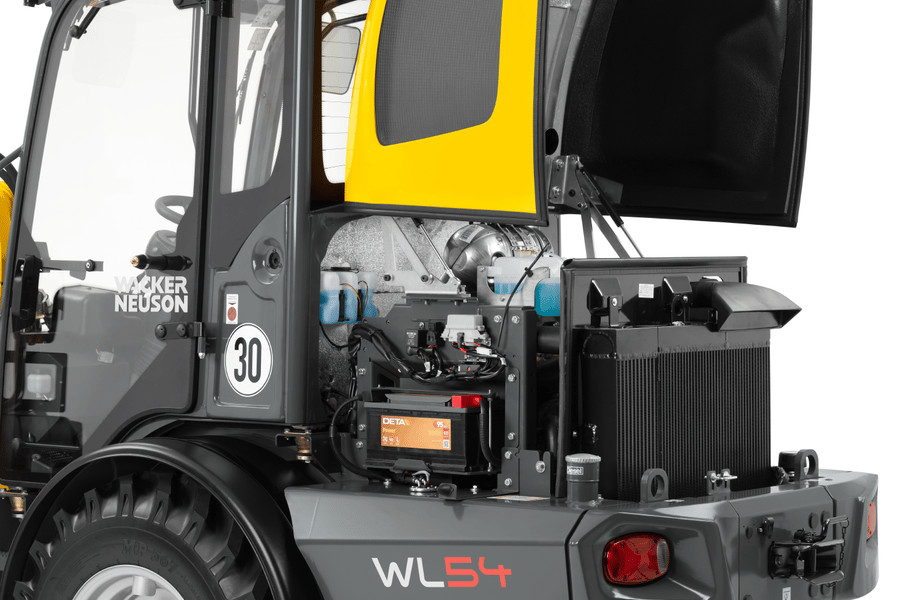

Easily accessible machine components.

• Regularly lubricating all lubrication points is essential for the correct and effective maintenance and thereby the value retention of the machine. To save time and make work easier, the lubrication points on Wacker Neuson wheel loaders are always in an easily accessible position.
• Since the lubrication points are easily accessible, the machine is lubricated more often than if the lubrication points are located in a position that is difficult to access. This in turn increases the longevity of the machine and increases value retention.

Split hydraulic hoses

• Wacker Neuson wheel loaders are designed with short hydraulic hose lengths in mind, and the hoses are split at several points. Therefore, if a hydraulic hose needs replacing, only the affected part will need to be replaced, not the entire hose in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.

Efficiency

Inch brake pedal: Engine output where it is needed.

• 1. No pressure on inch brake pedal: full power for the drive system 2. Slightly depressed inch-brake pedal: speed is reduced, more power to the work hydraulics. 3. Firmly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed inch-brake pedal: the wheel loader stands still, full power to the work hydraulics.
• The advantages of the inch-brake pedal are obvious: less wear on the operating brake and optimum power distribution of the engine output.

Rear hydraulic connections

• The machine can be equipped with rear hydraulic connections (single or double-acting). This increases the machine's range of applications because rear hydraulic attachments or tipper trailers can also be operated.
• The various rear hydraulic options expand the machine's range of applications and offer more flexibility in use. One machine can be used multifunctionally for different activities, no additional vehicles or machines are needed.

Performance

30 km/h speed

• With the appropriate engine, the machine reaches a speed up to 30 km/h. This allows the machine to move from A to B more quickly, saving time and increasing efficiency.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.















Mechanical-output details

Travel speed	20 km/h
Travel speed stage 1	7 km/h
Travel speed stage 2	20 km/h
Travel speed (Option)	30 km/h

Mechanical Details

Operating weight	5,800 kg
Bucket capacity	0.9 m3

Engine

Tank capacity

82 l

Hydraulic

Operating pressure	210 bar
Flow rate	58 l/min
Tank capacity	66 l

Chassis

Operating pressure

450 bar

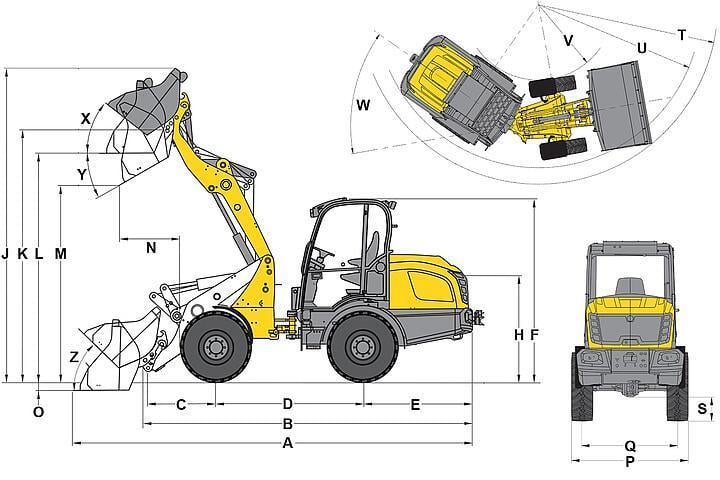

A	Total length	5,760 mm
B	Total length without bucket	4,828 mm
C	Bucket pivot point (to center of axle)	991 mm
D	Wheel base	2,150 mm
E	Rear overhang	1,531 mm
F	Height with operator's canopy raised	2,495 mm
F	Height with cab raised	2,553 mm
H	Seat height	1,495 mm
J	Total working height	4,561 mm
K	Bucket pivot point (max. lift height)	3,671 mm
L	Load-over height	3,335 mm
M	Dumping height	2,864 mm
N	Reach (at M)	870 mm
O	Digging depth	114 mm
P	Total width	1,847 mm
Q	Track width	1,522 mm
S	Ground clearance	352 mm
T	Maximum radius	4,242 mm
U	Radius on the outer edge	3,785 mm
V	Inner radius	1,674 mm
W	Articulation angle	42 °
X	Rollback angle at max. lift height	38 °
Y	Dumping angle	28 °
Z	Rollback angle on ground	44 °
-		12.5-18 ET-50

Engine

• Deutz TD 2.9 L4 S5, 55.4 kW / 75 HP, Stage V

Steering system

• Hydraulic articulated pendulum steering, pendulum angle ± 12°
• Steering cylinder: 1

Tires

• 12.5-18 ET-50

Drive system

• Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
• Operating brake: Drum brake (combined with parking brake)
• Central service and parking brake in the drive train acts on all 4 wheels
• 100% differential lock, electro-hydraulically connectable on front and rear axle

Hydraulics

• 3rd control circuit in front DN12, operation via lever including detent (single)
• Hydraulic oil cooler
• Floating position for lift and tipping cylinders
• Lock for steering valve

Operator's cab

• Operator's canopy high ROPS/FOPS-tested, including front and rear window
• Fully damped comfort seat with safety belt, weight, back and height adjustment
• Adjustable steering column
• Right armrest
• Joystick with motion direction control and integrated touch button for differential lock
• Work lights, 2 in front and 2 in rear
• Operating hour meter
• Fuel display

Other

• Hydraulic quickhitch system for attachments
• Lighting system according to StVZO Road Traffic Licensing Regulation, TÜV [Technical Inspection Association] certificate for driving on public roads
• Cast rear counterweight
• Bucket status display
• Self-rescue coupling
• Telematics Europe 36 months



V-shaped snowplow

High tipping - lightweight material bucket

Stone bucket

Side dump bucket

Dozing bucket

Fork and grab - large

Large shear grab

Logging grab - Sickle shaped

Logging grab - Fork shape

Hydraulically adjustable pallet fork with adjustable tines

Hydraulic adjustable pallet fork with lateral displacement

Hydraulically adjustable pallet fork with lateral displacement and adjustable tines

Pallet fork

Fold-down pallet fork

Material slide

Dozer blade laser 6-way

Rotary sieve

Digging bucket with interchangeable blade

Digging bucket with ripper teeth

4 in 1 bucket with interchangeable blade

4 in 1 bucket with two interchangeable blades

4-in-1 bucket with ripper teeth

4 in 1 bucket with teeth and interchangeable blade

Round light materials bucket

Round, lightweight bucket with interchangeable blade

Concrete mixing bucket

Sweeper 30 dual

Sweeper 25

Sweeper 20

Sweeper

High pressure washer

Snowplow

Large spreader

Small spreader

Waste container
