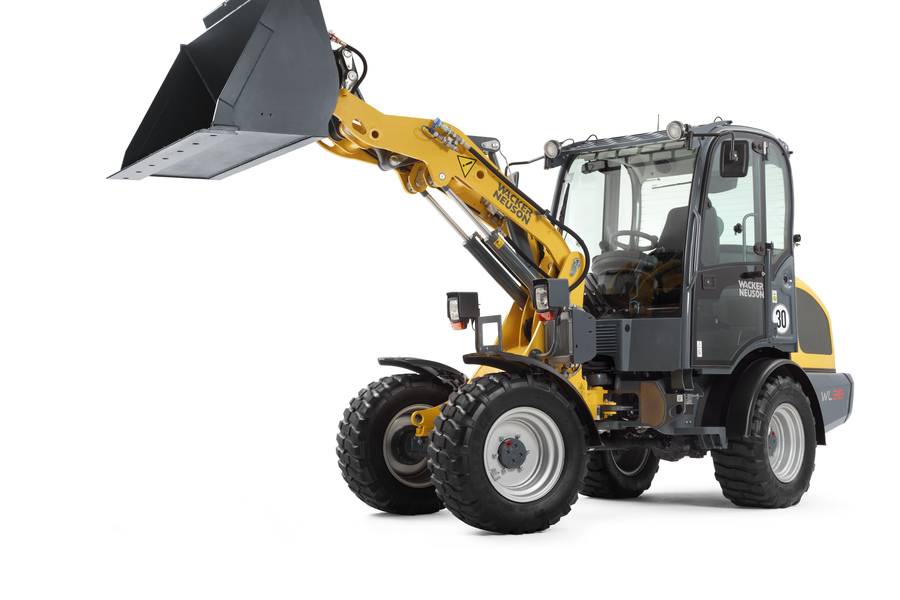

Wheel loader WL38: The plus in performance and comfort

The WL38 wheel loader offers with an extraordinarily high hydraulic output and various motors you can select – both the best values in its performance class. With the P-Z kinematics, the WL38 offers high breakout forces and first-class parallel guidance. All this combined makes for impressive performance, allowing the flexible use of attachments. The machine is ideally equipped for different work tasks. The cab, with its extremely generous design, offers the operator extra comfort and ergonomics and makes working with the machine easy.



Ergonomic cockpit

• Plenty of legroom, clearly arranged controls, comfortable operator’s seat, and optimal view of the attachment. A work area that motivates the operator and fully supports them.
• The coordinated equipment increases comfort and allows the operator to work optimally with the machine for longer periods of time.

High hydraulic performance

• A Wacker Neuson wheel loader always has enough hydraulic output and is thus suited for the operation of many different attachments, which in turn makes a great variety of applications areas possible.
• The flexible combination with various attachments reduces the total fleet and thus the total cost of ownership (TCO).
• Compact machines with high hydraulic output save money, as it is not necessary to immediately procure or use a bigger machine.

The wheel loader as an attachment carrier

• The tasks for wheel loaders are varied and so are the attachments from Wacker Neuson. With our comprehensive and sophisticated product range of attachments, any model can become a multifunctional machine.
• The investment asset “wheel loader” can be used for a variety of task areas and is thus very economical.
• The machine can be used all year round (e.g. even for winter service), relying on many different attachments depending on the application.

Variety of equipment

• The Wacker Neuson wheel loaders have comprehensive and high-quality standard components. In addition, the engine, drive system, operator's cab, or hydraulics can be individually configured depending on application and model. It is always guaranteed that the machine meets individual requirements and preferences.

Joystick console spring-mounted on the operator's seat

• The joystick console is mounted on the operator's seat and is cushioned against vibrations. If the operator's seat is adjusted to the operator's needs, the joystick console is also adjusted accordingly and always has the perfect position, a plus in comfort and ergonomics for the operator.
• The joystick console and the operator's seat form a single unit. This means that the operator's arm position is not changed while working with the machine. This increases comfort for the operator allowing them to work for longer without fatigue.

Quality

High-quality powder coating

• Compared to conventional wet painting, powder coating significantly extends the service life of the machine and is environmentally friendly at the same time.
• The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

Variety

Optimum tires

• The right tires for a wheel loader play an important role in actual use. If the tires are optimally matched to the ground and the area of application, the driver can work with the machine without any problems.
• Choosing the right tires provides maximum traction as well as minimal wear, which saves money because tires don't need to be changed frequently.
• To achieve optimal performance on any subbase, seven treads are available for selection depending on model: EM tread, AS tread, SureTrax tread, RP tread, MPT tread, multi-use tread and Bibload tread. This ensures the maximum flexibility of the machine ex work.

Selectable operator's cab

• Depending on the machine, different operator's cabs are available: fixed operator's canopy, fold-down operator's canopy EPS, hydraulically lowerable EPS Plus and different cab versions. Selecting the right operator's cab allows maximum flexibility for a great variety of applications and framework conditions.

High-flow, high-performance hydraulics:

• The machine can be optionally equipped with high-flow, high-performance hydraulics. This enables the operation of front attachments that have a high oil requirement (such as a snow blower). This increases the machine's range of applications, as even compact machines can be used to operate sophisticated attachments.
• The High Flow high-performance hydraulics increase the range of applications of the machine, since even compact machines can be used to operate sophisticated attachments that require a lot of oil.

Safety

Comfortable Cab

• The spacious and comfortable cab meets the current European Machinery Directive in accordance with ROPS and FOPS protection and offers plenty of headroom and freedom of movement. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings, which in turn increases occupational safety as the operator always has the machine surroundings within view.
• The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
• The cab impresses with outstanding ergonomics, generous space and many individual adjustment options for the operator. The cab provides protection from wind, weather, and external environmental conditions. This allows fatigue-free work even over a longer period of time.

Maintenance

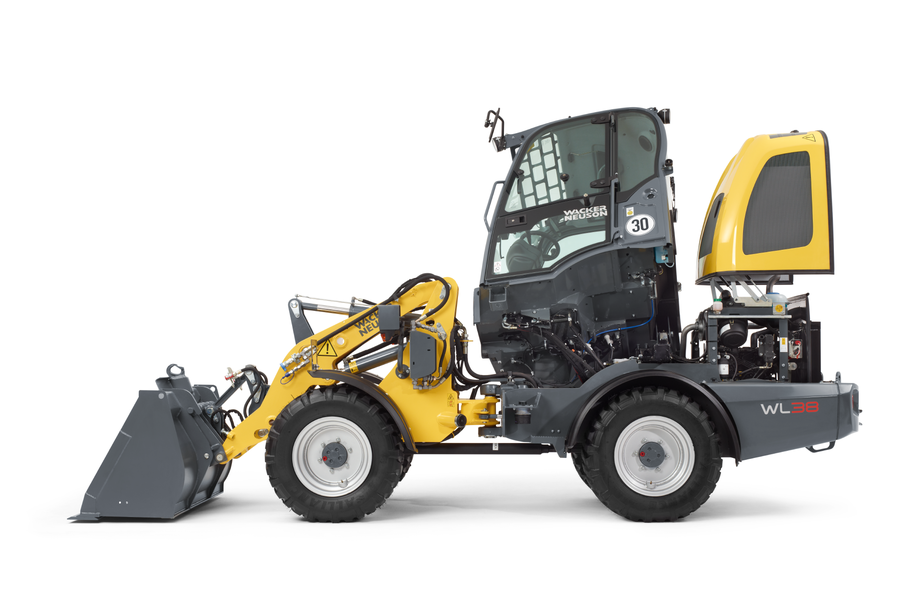

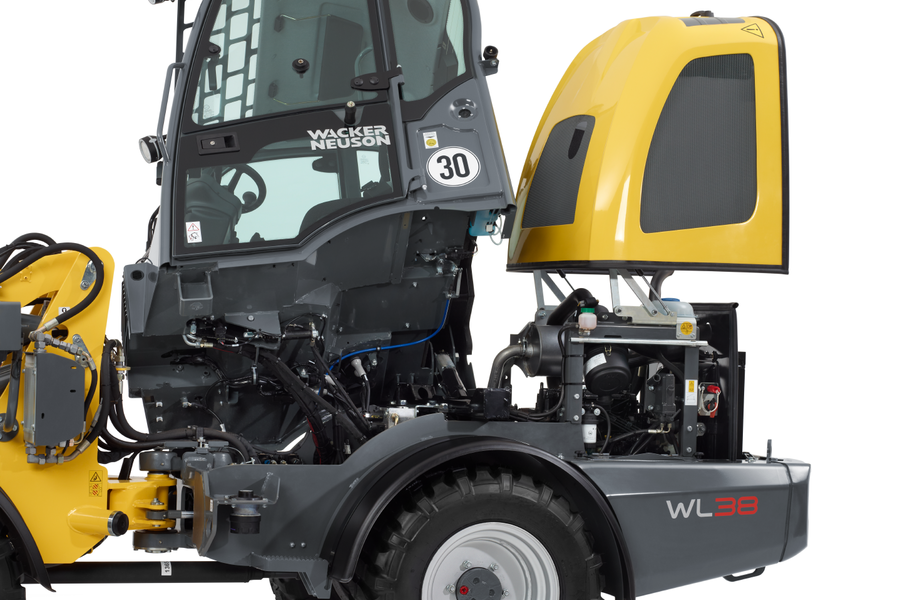

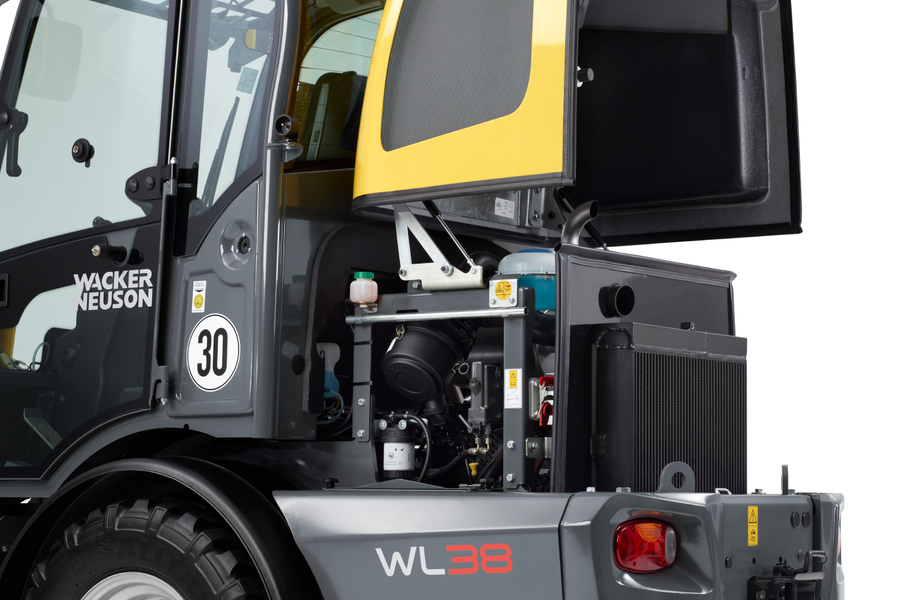

Tiltable cabin and optimal service access

• The cab can be tilted to the side. This allows easy access to the engine, hydraulic system, and electronics. This considerably simplifies checking and maintaining the machine. This in turn results in reduced machine downtimes and thus lower operating costs.
• Quick and easy serviceability automatically maximize the availability of the machine. This in turn reduces total operating costs.

Easily accessible machine components.

• Regularly lubricating all lubrication points is essential for the correct and effective maintenance and thereby the value retention of the machine. To save time and make work easier, the lubrication points on Wacker Neuson wheel loaders are always in an easily accessible position.
• Since the lubrication points are easily accessible, the machine is lubricated more often than if the lubrication points are located in a position that is difficult to access. This in turn increases the longevity of the machine and increases value retention.

Split hydraulic hoses

• Wacker Neuson wheel loaders are designed with short hydraulic hose lengths in mind, and the hoses are split at several points. Therefore, if a hydraulic hose needs replacing, only the affected part will need to be replaced, not the entire hose in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.

Efficiency

Inch brake pedal: Engine output where it is needed.

• 1. No pressure on inch brake pedal: full power for the drive system 2. Slightly depressed inch-brake pedal: speed is reduced, more power to the work hydraulics. 3. Firmly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed inch-brake pedal: the wheel loader stands still, full power to the work hydraulics.
• The advantages of the inch-brake pedal are obvious: less wear on the operating brake and optimum power distribution of the engine output.

Rear hydraulic connections

• The machine can be equipped with rear hydraulic connections (single or double-acting). This increases the machine's range of applications because rear hydraulic attachments or tipper trailers can also be operated.
• The various rear hydraulic options expand the machine's range of applications and offer more flexibility in use. One machine can be used multifunctionally for different activities, no additional vehicles or machines are needed.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.



























Mechanical-output details

Travel speed	20 km/h
Travel speed stage 1	7 km/h
Travel speed stage 2	20 km/h
Travel speed (Option)	30 km/h

Mechanical Details

Operating weight	4,200 kg
Bucket capacity	0.64 m3

Engine

Tank capacity

65 l

Hydraulic

Operating pressure	210 bar
Flow rate	56 l/min
Tank capacity	50 l

Chassis

Operating pressure

445 bar

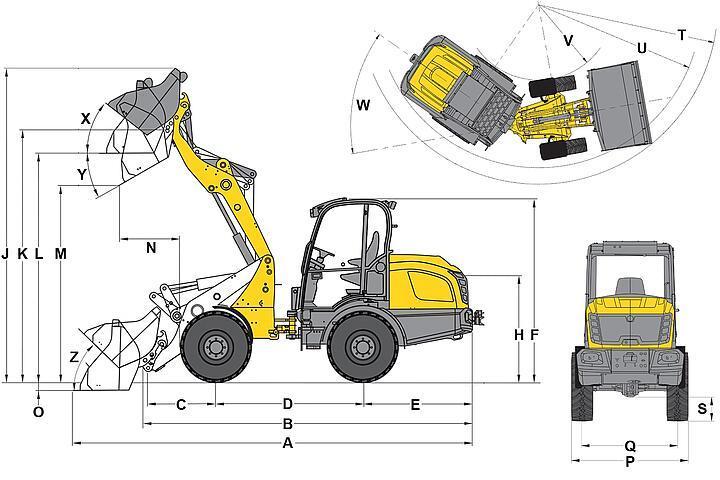

A	Total length	5,138 mm
B	Total length without bucket	4,344 mm
C	Bucket pivot point (to center of axle)	675 mm
D	Wheel base	2,045 mm
E	Rear overhang	1,516 mm
F	Height with cab	2,371 mm
F	Height with cab raised	2,548 mm
H	Seat height	1,204 mm
J	Total working height	3,828 mm
K	Bucket pivot point (max. lift height)	3,251 mm
L	Load-over height	2,892 mm
M	Dumping height	2,379 mm
N	Reach (at M)	270 mm
O	Digging depth	120 mm
P	Total width	1,570 mm
Q	Track width	1,200 mm
S	Ground clearance	312 mm
T	Maximum radius	3,652 mm
U	Radius on the outer edge	3,317 mm
V	Inner radius	1,640 mm
W	Articulation angle	45 °
X	Rollback angle at max. lift height	43 °
Y	Dumping angle	42 °
Z	Rollback angle on ground	41 °
-		15.5/55 R 18 EM ET0

Engine

• Deutz TD 2.9 L4 S5, 45 kW / 61 HP, Stage V

Steering system

• Hydraulic articulated pendulum steering, pendulum angle ± 12°
• Steering cylinder: 1

Tires

15.5/55 R 18 EM ET0
Drive system

• Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
• Operating brake: Drum brake (combined with parking brake)
• Central service and parking brake in the drive train acts on all 4 wheels
• 100% differential lock, electro-hydraulically connectable on front and rear axle

Hydraulics

• 3rd control circuit front electronically proportionally and parallel via joystick
• Hydraulic oil cooler
• Floating position for lift cylinder
• Lock for 3rd control circuit via switch

Operator's cab

• High comfort cab with heater and fan, laterally tiltable, roll-over protective structure / FOPS-tested
• Fully damped comfort seat with safety belt, weight, back and height adjustment
• Adjustable steering wheel (tilt)
• Right armrest
• Hydraulically controlled joystick with forward-reverse control and integrated touch button for differential lock
• Work lights, 2 in front and 2 in rear
• Operating hour meter
• Fuel display
• Combination box, including warning triangle and first aid kit

Other

• Hydraulic quickhitch system for attachments
• Lighting system according to StVZO Road Traffic Licensing Regulation, TÜV [Technical Inspection Association] certificate for driving on public roads
• Tool box in the rear of the vehicle incl. tool set and hand lever grease gun
• Lockable tank cap
• Cast rear counterweight
• Bucket status display
• Self-rescue coupling
• Telematics Europe 36 months



V-shaped snowplow

High tipping - lightweight material bucket

Stone bucket

Side dump bucket

Dozing bucket

Fork and grab - large

Large shear grab

Logging grab - Sickle shaped

Logging grab - Fork shape

Hydraulically adjustable pallet fork with adjustable tines

Hydraulic adjustable pallet fork with lateral displacement

Hydraulically adjustable pallet fork with lateral displacement and adjustable tines

Pallet fork with rotating device

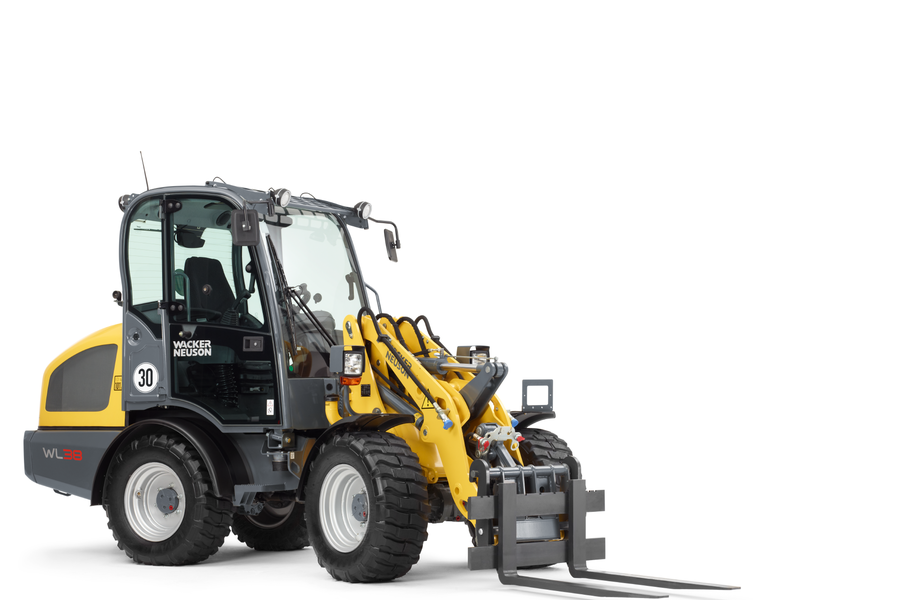

Pallet fork

Fold-down pallet fork

Dozer blade laser 6-way

Pot grabber

Surface planer

Earth auger

Stump grinder

Cutter

Asphalt milling unit

Rotary sieve

Digging bucket with interchangeable blade

Digging bucket with ripper teeth

4 in 1 bucket with interchangeable blade

4-in-1 bucket with ripper teeth

Square light materials bucket

Round light materials bucket

Round, lightweight bucket with interchangeable blade

Concrete mixing bucket

Flail mower with collection tray

Fence mower

Double-blade mowing unit

Flail mulcher

Sweeper 30 dual

Sweeper 580 dual

Sweeper 25

Sweeper 20

Sweeper

High pressure washer

Wild herb brush

Snowplow

Snow blower model 550

Large spreader

Small spreader

Waste container
