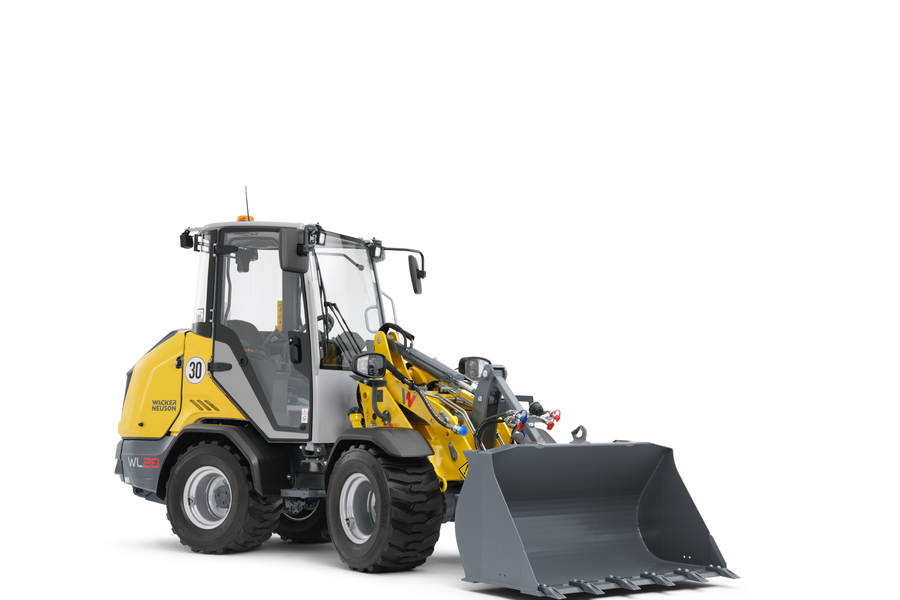

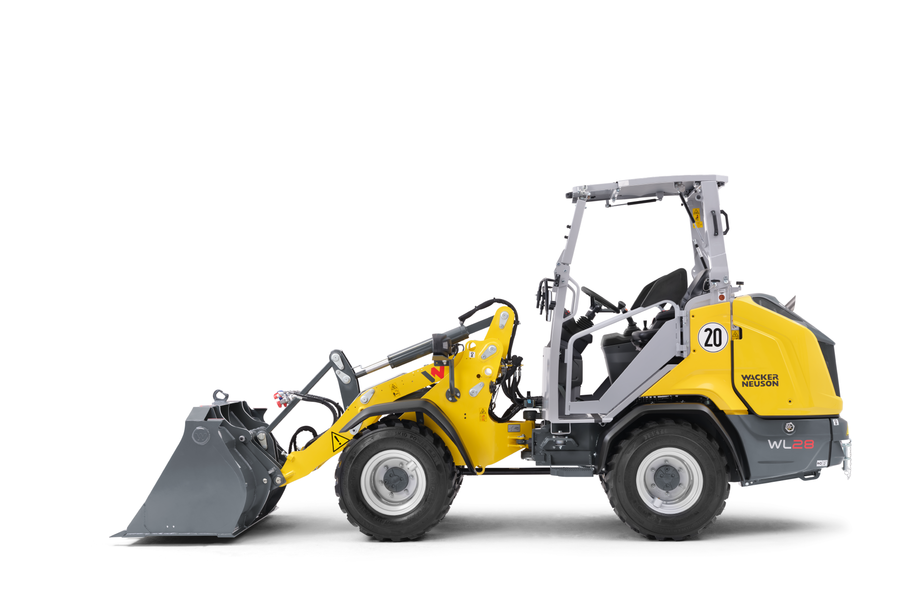

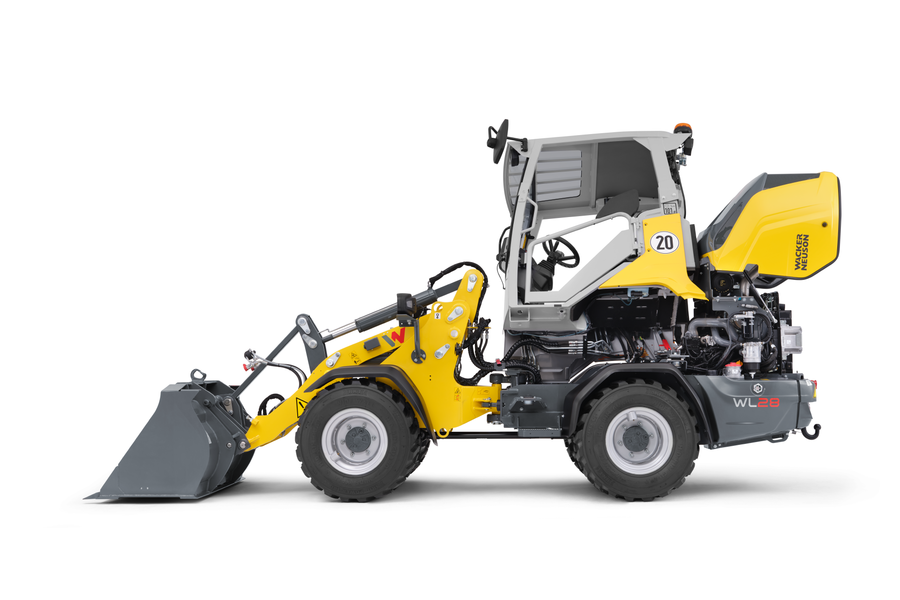

Wheel Loader WL28: Compact and Powerful

Transporting heavy loads through tight spaces is the ideal operational area for the WL28 wheel loader. It can easily handle pallets of paving stones or other material up to 1.6 metric tons. The electronically-controlled travel drive with various travel modes enables extremely productive work using the machine. The low-designed cab ensures excellent visibility and high tipping loads. Because of the outstanding visibility, the machine offers exceptional safety during operation. The low operating weight also allows the WL28 to be transported on a car trailer.

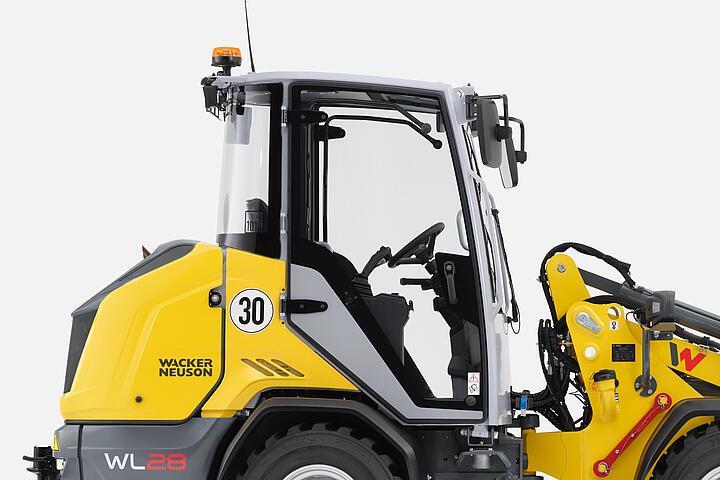

Comfort cab

• The comfort cab has been optimized to meet the needs of the operator and enables safe and fatigue-free working: 4-pillar design, deep-drawn windows, and panoramic rear window for optimal all-round visibility. Heating with optimized air circulation and air conditioning for constant, comfortable temperatures. Ergonomically arranged controls, new interior, and reduced vibrations and noise in the cab increase comfort for the operator.
• The amount of space in the cab is pioneering for vert compact wheel loaders. The air conditioning system can be integrated into the cab without additional superstructure. There is a choice between two different joysticks depending on the equipment and configuration. The coming-home lighting ensures additional comfort and safety.
• The cab is also suitable for taller operators, which isn't always the case for very compact wheel loaders. The pleasant working climate reduces operator fatigue. The optimized access with non-slip steps ensures that the operator can get in and out safely.

Electronically regulated drive system

• Drive and work smarter! With the electronically-controlled drive system, the machine can be driven and used as needed. Four different driving modes were implemented by Wacker Neuson specifically for this purpose. Auto mode and Eco mode are always available as standard. Either attachment mode or M-Drive mode can be optionally selected. This offers maximum flexibility for the operator as they can configure the machine according to their needs.
• Electronic control reduces losses in the drive system and ensures higher efficiency and increased effectiveness, compared to existing solutions. Lower power requirements enable driving at low speeds. A perfectly coordinated package of protective measures also ensures reliable and long-lasting operation of the machine.

Electric parking brake

• The electric parking brake is applied automatically when the machine is stationary, the direction of travel is set to neutral or the operator leaves the seat. The parking brake is released automatically when the machine is restarted using the accelerator pedal. This provides increased safety and comfort for the operator and their working environment. The machine can therefore be operated very efficiently thanks to the electric parking brake.
• The electric parking brake can also be activated or deactivated manually by pressing a switch. The operator is always in control and can work with the machine according to his own needs and preferences.

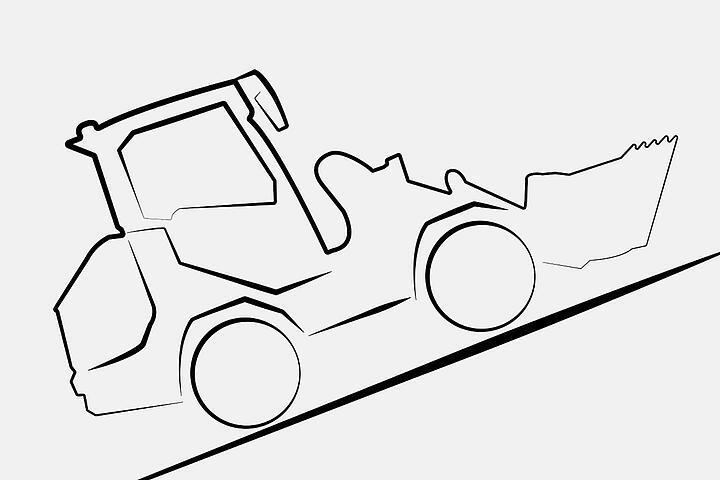

• The electric parking brake offers both a comfortable auto-hold and hill-hold function. This prevents the machine from rolling away unintentionally and thus increases safety when working.

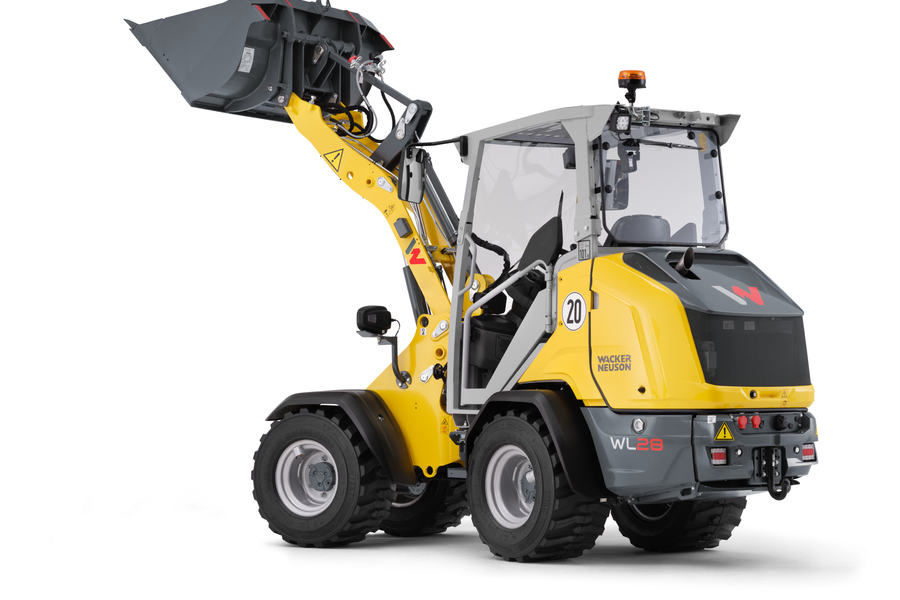

High productivity thanks to the low front carriage

• The low front carriage makes high tipping loads and break out forces possible; this way, the maximum load per work cycle can be moved.

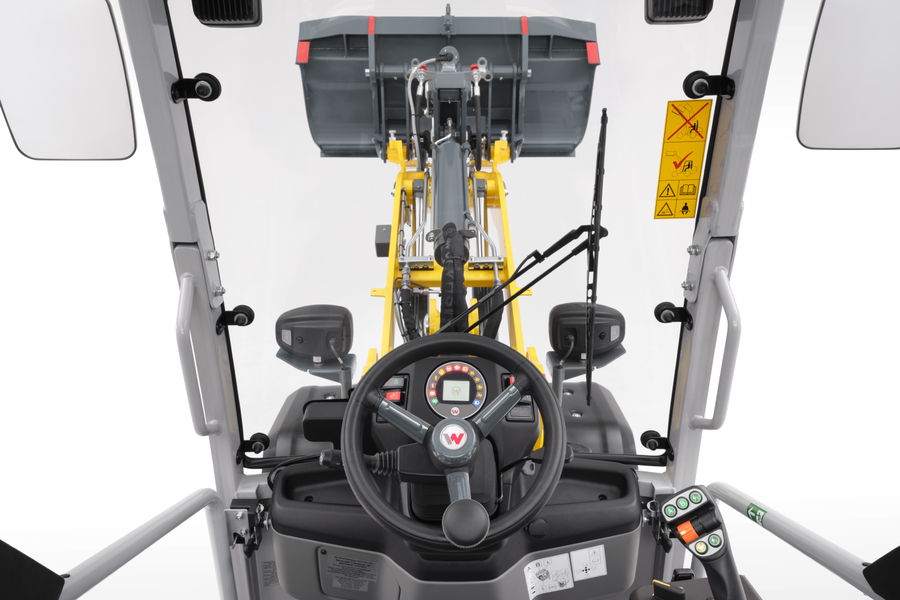

• The low front carriage provides for an outstanding overview of the attachment, the immediate work area and the entire surroundings of the machine, which guarantees safe working with the machine.

The auxiliary hydraulics at the front on the load arm are protected by piping (3rd control circuit, 4th control circuit, overflow line, unpressurized return line, depending on the model). That is a unique selling point in the compact wheel loader class. Wear and tear is minimized and, as a result, the service life of the machine is increased.

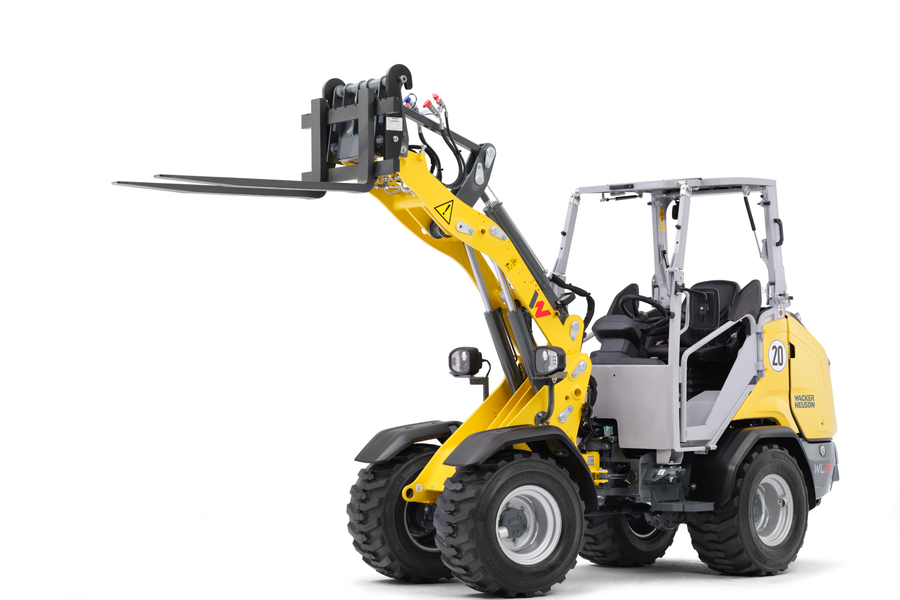

The wheel loader as an attachment carrier

• The tasks for wheel loaders are varied and so are the attachments from Wacker Neuson. With our comprehensive and sophisticated product range of attachments, any model can become a multifunctional machine.
• The investment asset “wheel loader” can be used for a variety of task areas and is thus very economical.
• The machine can be used all year round (e.g. even for winter service), relying on many different attachments depending on the application.

Quality

High-quality powder coating

• Compared to conventional wet painting, powder coating significantly extends the service life of the machine and is environmentally friendly at the same time.
• The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

Two powerful lifting cylinders

• Two powerful lift cylinders ensure that the load distribution is always optimally changed over to the load arm. Also, the overall loading system gains stability, which supports the operator in application.
• In combination with two lift cylinders, the torsion-resistant load arm prevents, to the greatest extent possible, damage to the loading system caused by torsion. This reduces possible service costs and the value retention of the machine is increased.

Safety

EPS folding overhead guard (Easy Protection System)

• Compact wheel loaders can be equipped with the fold-down operator's canopy EPS (Easy Protection System). This complies with the current European Machinery Directive according to ROPS and FOPS protection. With a few hand movements, the EPS can be prepared manually for a low clearance height.
• EPS increases the flexibility of the machine, as it can even pass through low passages. Also, the application areas of the machine are expanded. In other cases where several machines might have to be used, just one machine can get the work done. At the same time, the operator’s safety remains guaranteed.

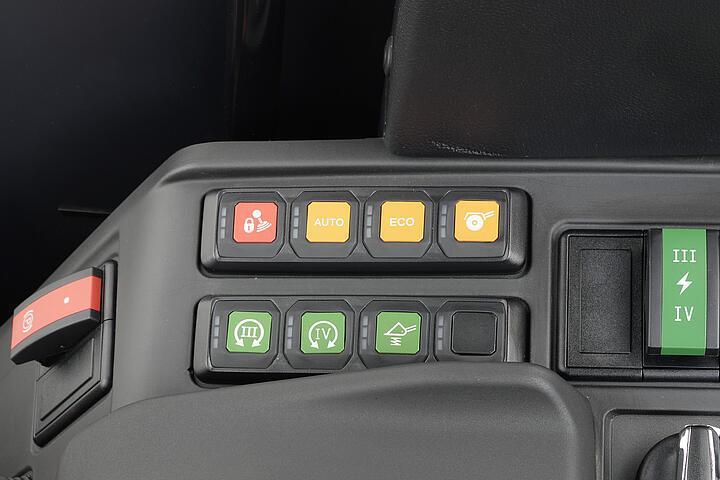

Color-coded operating concept

• All control elements are within easy reach and the operator always has the most important machine information in view via the optimally positioned display. The switches and controls are divided into different color groupings: Gray = electrical, Red = safety, Blue/Orange = drive system, Green = hydraulics. This ensures quick recognition and orientation at all times.
• The standardized Wacker Neuson operating philosophy and the color-coded operating concept enable the operator to operate the machine intuitively. The quick orientation makes it easier for new or alternating operators to work with the machine and also increases work safety at the same time.

Maintenance

Tiltable cabin and optimal service access

• The cab can be tilted to the side. This allows easy access to the engine, hydraulic system, and electronics. This considerably simplifies checking and maintaining the machine. This in turn results in reduced machine downtimes and thus lower operating costs.
• Quick and easy serviceability automatically maximize the availability of the machine. This in turn reduces total operating costs.

Easily accessible machine components.

• Regularly lubricating all lubrication points is essential for the correct and effective maintenance and thereby the value retention of the machine. To save time and make work easier, the lubrication points on Wacker Neuson wheel loaders are always in an easily accessible position.
• Since the lubrication points are easily accessible, the machine is lubricated more often than if the lubrication points are located in a position that is difficult to access. This in turn increases the longevity of the machine and increases value retention.

Split hydraulic hoses

• Wacker Neuson wheel loaders are designed with short hydraulic hose lengths in mind, and the hoses are split at several points. Therefore, if a hydraulic hose needs replacing, only the affected part will need to be replaced, not the entire hose in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.

Eco-friendliness

Flat-Face Hydraulic Couplings

• Easy exchange of attachments: The flat-face hydraulic couplings are easy to clean and ensure less contamination throughout the hydraulic system. Hardly any leakage occurs when connecting hydraulic hoses, keeping hands, the machine, the attachment and the ground clean.
• Flat-face hydraulic couplers also allow attachments to be connected under pressure, saving time. All coupling types are mounted on the same bulkhead for easy access.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.



























Mechanical-output details

Travel speed	20 km/h
Travel speed (Option)	30 km/h

Mechanical Details

Length	4,420 mm
Width	1,040 mm
Height	2,280 mm
Operating weight	2,740 kg
Tip Load	1,803 kg
Bucket capacity	0.42 m3

Hydraulic

Operating pressure	210 bar
Flow rate max.	36 l/min

Operating fluids

Hydraulic fluid volume	30 l
Fuel Tank capacity	50 l

Chassis

Operating pressure	470 bar
Flow rate	73 l/min



A	Total length	4,520 mm
B	Total length without bucket	3,710 mm
C	Bucket pivot point (to center of axle)	670 mm
D	Wheel base	1,760 mm
E	Rear overhang	1,230 mm
F	Height with operator's canopy (fixed)	2,340 mm
F	Height with fold-down operator's canopy (EPS)	2,395 mm
F	Height with fold-down operator's canopy (EPS), folded down	1,890 mm
F	Height with cab	2,350 mm
H	Seat height	1,350 mm
J	Total working height	3,210 mm
K	Bucket pivot point (max. lift height)	2,560 mm
L	Load-over height	2,240 mm
M	Dumping height	1,700 mm
N	Reach (at M)	520 mm
O	Digging depth	130 mm
P	Total width	1,250 mm
Q	Track width	940 mm
S	Ground clearance	270 mm
T	Maximum radius	3,200 mm
U	Radius on the outer edge	2,800 mm
V	Inner radius	1,510 mm
W	Articulation angle	45 °
X	Rollback angle at max. lift height	47 °
Y	Dumping angle	41 °
Z	Rollback angle on ground	50 °
-		12-16.5 BKT SkidPower ET 0

Engine

• Yanmar 3TNV80FT, 18.4 kW / 25 HP, EU: Stage V

Steering system

• Hydraulically activated articulated pendulum steering
• Steering cylinder: 1

Tires

• 12-16.5 BKT SkidPower ET 0

Operator's cab

• Operator's canopy with ROPS / FOPS tested restraint system, driver's platform can be tilted to the side
• Generous space in all operator's positions
• Ergonomically spacious entry
• Adjustable steering column (tilt and height)

Operator's seat

• Fully damped comfort seat with safety belt, weight, back and height adjustment

Hydraulics

• Mechanically pilot controlled joystick with direction switch
• 3rd Front control circuit via lever with single detent for continuous function

Other

• EquipCare 36 months



V-shaped snowplow

High tipping - lightweight material bucket

Stone bucket

Dozing bucket

Fork and grab - large

Large shear grab

Small shear grab

Logging grab - Sickle shaped

Logging grab - Fork shape

Hydraulically adjustable pallet fork with adjustable tines

Hydraulic adjustable pallet fork with lateral displacement

Hydraulically adjustable pallet fork with lateral displacement and adjustable tines

Pallet fork with rotating device

Pallet fork

Fold-down pallet fork

Dozer blade laser 6-way

Pot grabber

Surface planer

Earth auger

Stump grinder

Branch cutter

Hedge trimmer

Cutter

Rotary sieve

Digging bucket with interchangeable blade

Digging bucket with ripper teeth

4 in 1 bucket with interchangeable blade

4-in-1 bucket with ripper teeth

Square light materials bucket

Concrete mixing bucket

Flail mower with collection tray

Fence mower

Double-blade mowing unit

Flail mulcher

Sweeper 580 dual

Sweeper 25

Sweeper 20

Sweeper

High pressure washer

Wild herb brush

Snowplow

Snowblower model 36L

Small spreader

Waste container
