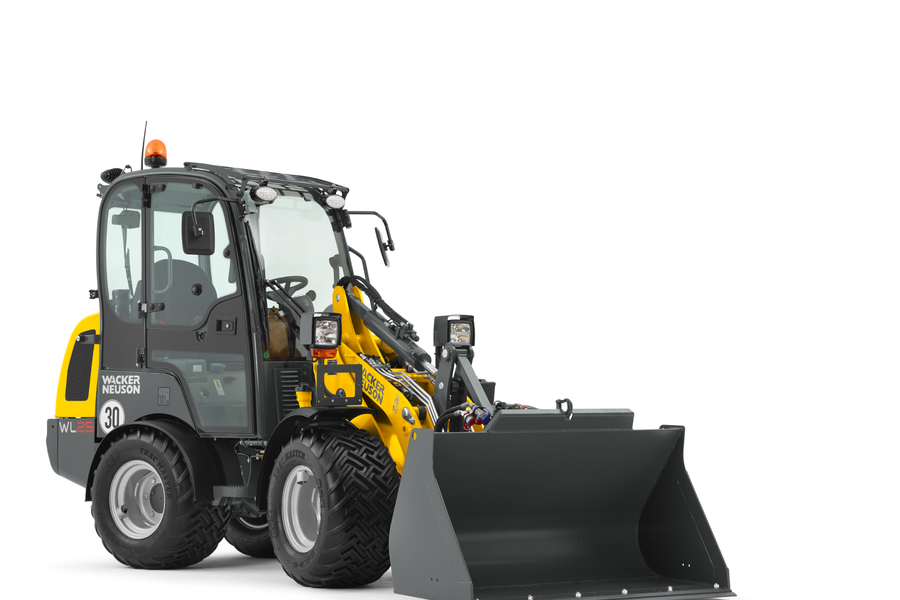

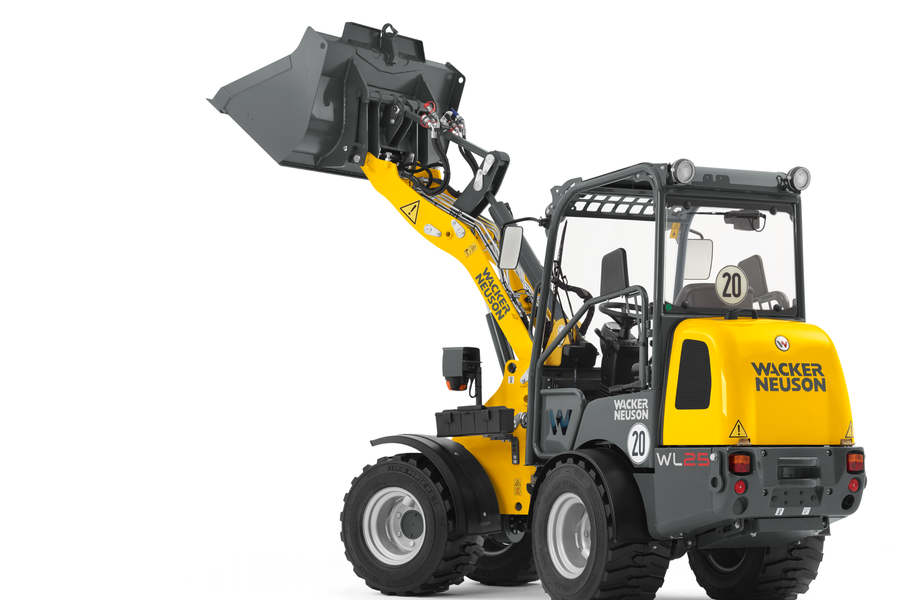

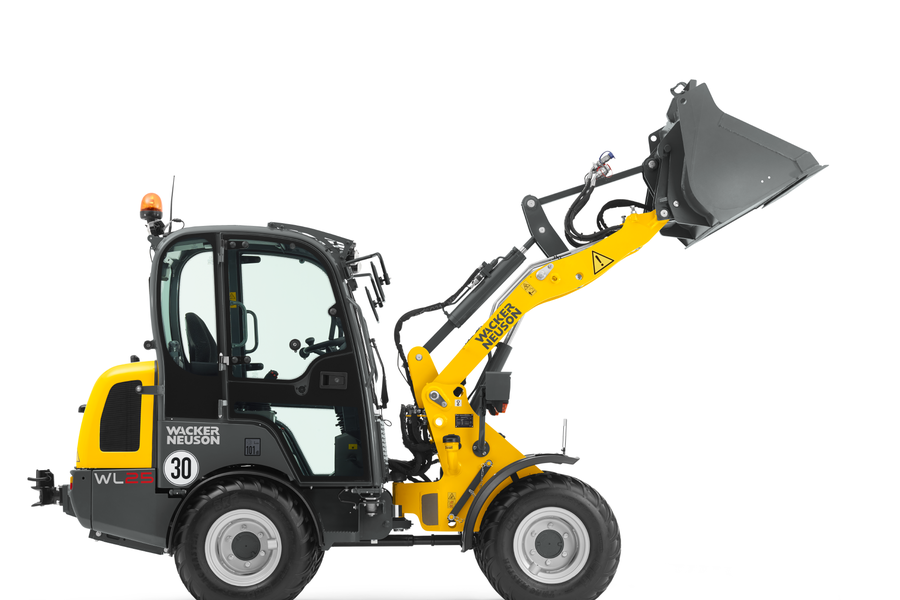

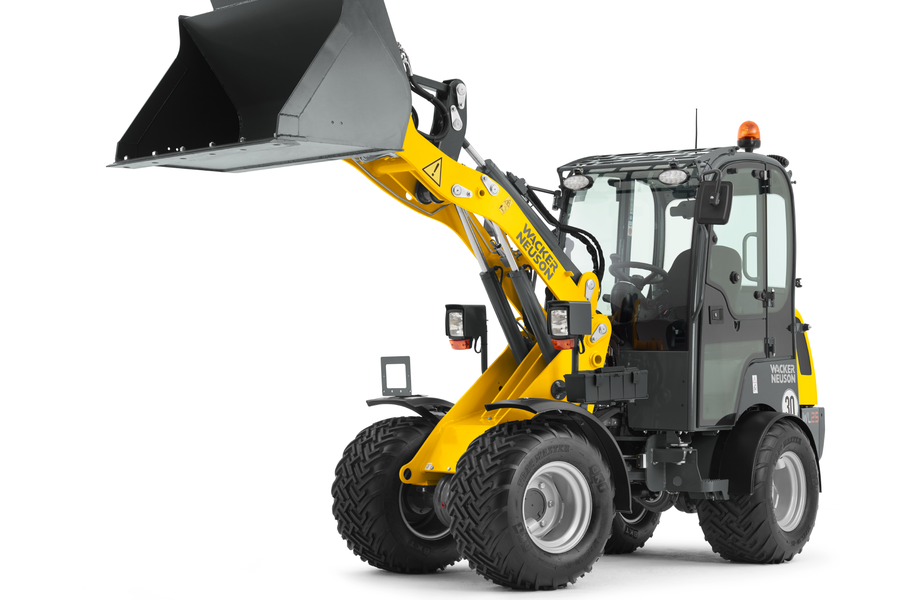

Wheel Loader WL25: The wheel loader for more versatility

Confined spaces require one thing in particular: a high level of flexibility. This is exactly what the Wacker Neuson WL25 wheel loader offers with its three different operator's cabs. You can choose from a cab a fixed operator's canopy or a fold-down operator's canopy. This way, the machine can be adapted individually to the respective work environment.



High productivity thanks to the low front carriage

• The low front carriage makes high tipping loads and break out forces possible; this way, the maximum load per work cycle can be moved.
• The low front carriage provides for an outstanding overview of the attachment, the immediate work area and the entire surroundings of the machine, which guarantees safe working with the machine.
• The auxiliary hydraulics at the front on the load arm are protected by piping (3rd control circuit, 4th control circuit, overflow line, unpressurized return line, depending on the model). That is a unique selling point in the compact wheel loader class. Wear and tear is minimized and, as a result, the service life of the machine is increased.

EPS folding overhead guard (Easy Protection System)

• Compact wheel loaders can be equipped with the fold-down operator's canopy EPS (Easy Protection System). This complies with the current European Machinery Directive according to ROPS and FOPS protection. With a few hand movements, the EPS can be prepared manually for a low clearance height.
• EPS increases the flexibility of the machine, as it can even pass through low passages. Also, the application areas of the machine are expanded. In other cases where several machines might have to be used, just one machine can get the work done. At the same time, the operator’s safety remains guaranteed.

Tiltable cabin and optimal service access

• The cab can be tilted to the side. This allows easy access to the engine, hydraulic system, and electronics. This considerably simplifies checking and maintaining the machine. This in turn results in reduced machine downtimes and thus lower operating costs.
• Quick and easy serviceability automatically maximize the availability of the machine. This in turn reduces total operating costs.

Maximum traction thanks to articulated pendulum joint

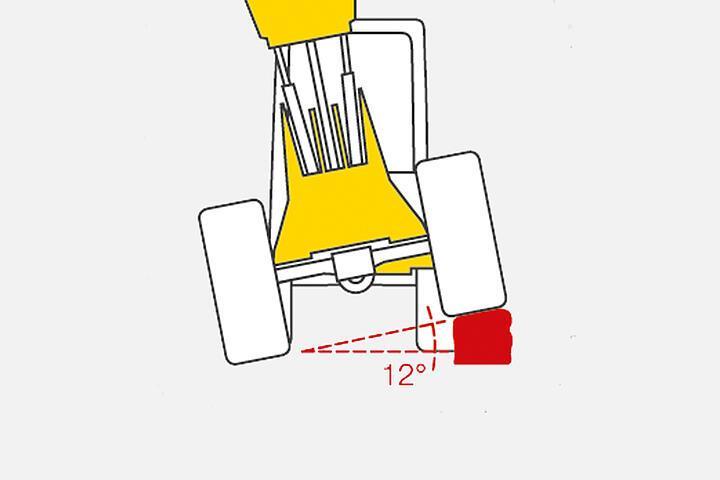

• Because of the articulated pendulum joint with 12° oscillating angle, all four wheels retain excellent traction, even on uneven ground conditions and the operator maintains optimal control. This increases the productivity of the entire machine system.
• The large articulation and pendulum angle ensures high traction on the ground, making the machine easy to maneuver. As a result, there is no collision between the front and rear sections of the machine in confined conditions.
• And because the front and rear carriages can oscillate independently of each other, the operator can sensitively react to any unevenness. This increases operator comfort and enables fatigue-free work over longer periods.

The wheel loader as an attachment carrier

• The tasks for wheel loaders are varied and so are the attachments from Wacker Neuson. With our comprehensive and sophisticated product range of attachments, any model can become a multifunctional machine.
• The investment asset “wheel loader” can be used for a variety of task areas and is thus very economical.
• The machine can be used all year round (e.g. even for winter service), relying on many different attachments depending on the application.

Quality

High-quality powder coating

• Compared to conventional wet painting, powder coating significantly extends the service life of the machine and is environmentally friendly at the same time.
• The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

Two powerful lifting cylinders

• Two powerful lift cylinders ensure that the load distribution is always optimally changed over to the load arm. Also, the overall loading system gains stability, which supports the operator in application.
• In combination with two lift cylinders, the torsion-resistant load arm prevents, to the greatest extent possible, damage to the loading system caused by torsion. This reduces possible service costs and the value retention of the machine is increased.

Performance

100 % connectible differential lock

• The connectible 100% differential lock provides maximum traction and thrusting power when needed. It also keeps tire wear low. This increases the efficiency of the machine.
• During normal operation the differential lock is deactivated, this provides safety, low wear and, as a result, saves in operating costs.

Perfectly tuned kinematics

• The kinematics are adapted to the size of the machine - this ensures optimum force ratios and maximum productivity for each machine.
• The optimal matching and quality of workmanship of the loader boom design and hydraulic cylinders increases the machine's longevity and thus provides added value for the customer by increasing efficiency when working.
• The theoretical maximum possible lifting capacity of the machine is always greater than the actual tipping load. The large hydraulic cylinders thus always offer enough reserves and the cylinders are not operated at maximum.

Compact dimensions for optimal maneuverability

• The compact design of the machine is impressive with its small radius and excellent maneuverability. This means that even work in confined spaces is no problem.
• Compact dimensions and optimum maneuverability ensure a high degree of control. The machine is not unnecessarily wide or long; the space available and the size of the machine are always optimally utilized.

Safety

Comfortable Cab

• The spacious and comfortable cab meets the current European Machinery Directive in accordance with ROPS and FOPS protection and offers plenty of headroom and freedom of movement. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings, which in turn increases occupational safety as the operator always has the machine surroundings within view.
• The cab's full glazing and deeply recessed windows give the operator an excellent view of the attachment and the entire work area. This ensures safety, as the operator always has a clear view of the work environment.
• The cab impresses with outstanding ergonomics, generous space and many individual adjustment options for the operator. The cab provides protection from wind, weather, and external environmental conditions. This allows fatigue-free work even over a longer period of time.

Maintenance

Easily accessible machine components.

• Regularly lubricating all lubrication points is essential for the correct and effective maintenance and thereby the value retention of the machine. To save time and make work easier, the lubrication points on Wacker Neuson wheel loaders are always in an easily accessible position.
• Since the lubrication points are easily accessible, the machine is lubricated more often than if the lubrication points are located in a position that is difficult to access. This in turn increases the longevity of the machine and increases value retention.

Split hydraulic hoses

• Wacker Neuson wheel loaders are designed with short hydraulic hose lengths in mind, and the hoses are split at several points. Therefore, if a hydraulic hose needs replacing, only the affected part will need to be replaced, not the entire hose in the hydraulic circuit. This speeds up repair times enormously and is also cost-efficient.

Efficiency

Inch brake pedal: Engine output where it is needed.

• 1. No pressure on inch brake pedal: full power for the drive system 2. Slightly depressed inch-brake pedal: speed is reduced, more power to the work hydraulics. 3. Firmly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed inch-brake pedal: the wheel loader stands still, full power to the work hydraulics.
• The advantages of the inch-brake pedal are obvious: less wear on the operating brake and optimum power distribution of the engine output.

Rear hydraulic connections

• The machine can be equipped with rear hydraulic connections (single or double-acting). This increases the machine's range of applications because rear hydraulic attachments or tipper trailers can also be operated.
• The various rear hydraulic options expand the machine's range of applications and offer more flexibility in use. One machine can be used multifunctionally for different activities, no additional vehicles or machines are needed.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

































Mechanical-output details

Travel speed	20 km/h
Travel speed stage 1	0 - 7 km/h
Travel speed stage 2	0 - 20 km/h

Mechanical Details

Operating weight	2,380 kg
Bucket capacity	0.3 m3

Engine

Tank capacity

45 l

Hydraulic

Operating pressure	185 bar
Flow rate	45 l/min
Tank capacity	27 l

Operating fluids

Cooling fluid volume	7.5 l
Hydraulic fluid volume	36 l

Chassis

Operating pressure	450 bar
Flow rate	78 l/min
Tires	10 x 16,5



		Ladeanlage Standard	Ladeanlage niedriger Vorderwagen
A	Total length	4,100 mm	4,300 mm
B	Total length without bucket	3,321 mm	3,530 mm
C	Bucket pivot point (to center of axle)	534 mm	670 mm
D	Wheel base	1,623 mm	1,690 mm
E	Rear overhang	1,054 mm	1,054 mm
F	Height with operator's canopy (fixed)	2,245 mm	2,245 mm
F	Height with fold-down operator's canopy (EPS)	2,360 mm	2,360 mm
F	Height with fold-down operator's canopy (EPS), folded down	1,843 mm	1,843 mm
F	Height with cab	2,270 mm	2,270 mm
H	Seat height	1,320 mm	1,320 mm
J	Total working height	3,521 mm	3,190 mm
K	Bucket pivot point (max. lift height)	2,871 mm	2,540 mm
L	Load-over height	2,553 mm	2,220 mm
M	Dumping height	2,022 mm	1,720 mm
N	Reach (at M)	277 mm	503 mm
O	Digging depth	71 mm	150 mm
P	Total width	1,194 mm	1,194 mm
Q	Track width	940 mm	940 mm
S	Ground clearance	230 mm	230 mm
T	Maximum radius	2,911 mm	3,140 mm
U	Radius on the outer edge	2,593 mm	2,730 mm
V	Inner radius	1,343 mm	1,480 mm
W	Articulation angle	45 °	42 °
X	Rollback angle at max. lift height	47 °	47 °
Y	Dumping angle	44 °	41 °
Z	Rollback angle on ground	48 °	50 °
-		10 - 16.5 EM ET0	10 - 16.5 EM ET0

Engine

• Perkins 403 J-11, 18,4 kW / 25 HP, Stage V

Steering system

• Hydraulic articulated pendulum steering, pendulum angle ± 12°
• Steering cylinder: 1

Tires

• 10 - 16.5 EM ET0

Drive system

• Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
• Operating brake: Drum brake (combined with parking brake)
• Central service and parking brake in the drive train acts on all 4 wheels

Hydraulics

• 3rd Control circuit front DN10 incl. single detent, operation via lever
• Hydraulic oil cooler
• Floating position for lift and tipping cylinders
• Lock for steering valve

Operator's cab

• Operator's canopy with ROPS / FOPS tested restraint system, operator's cab can be tilted to the side
• Fully suspended comfort seat with safety belt, weight, back and height adjustment, 60 mm spring travel
• Adjustable steering column
• Right armrest
• Work lights, 2 in front and 2 in rear
• Operating hour meter
• Fuel display

Other

• Hydraulic quickhitch system for attachments
• Lighting equipment according to StVZO (road traffic licensing regulations)
• Lockable tank cap
• Cast rear counterweight
• Bolt self-loading equipment



V-shaped snowplow

High tipping - lightweight material bucket

Stone bucket

Dozing bucket

Fork and grab - large

Large shear grab

Small shear grab

Hydraulically adjustable pallet fork with adjustable tines

Hydraulic adjustable pallet fork with lateral displacement

Hydraulically adjustable pallet fork with lateral displacement and adjustable tines

Pallet fork with rotating device

Pallet fork

Fold-down pallet fork

Pot grabber

Surface planer

Earth auger

Stump grinder

Branch cutter

Hedge trimmer

Cutter

Digging bucket with interchangeable blade

Digging bucket with ripper teeth

4 in 1 bucket with interchangeable blade

4-in-1 bucket with ripper teeth

Square light materials bucket

Concrete mixing bucket

Flail mower with collection tray

Fence mower

Double-blade mowing unit

Flail mulcher

Sweeper 580 dual

Sweeper 25

Sweeper 20

Sweeper

High pressure washer

Wild herb brush

Snowplow

Small spreader

Waste container
