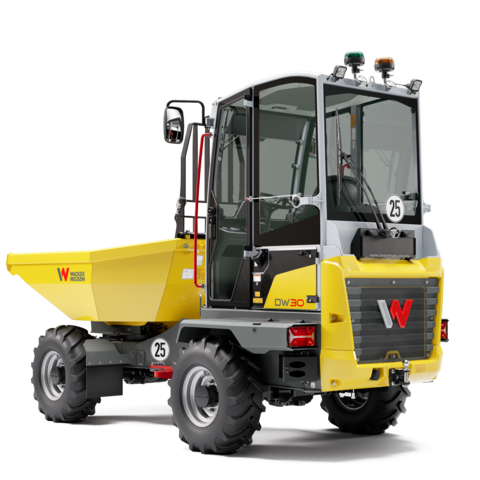

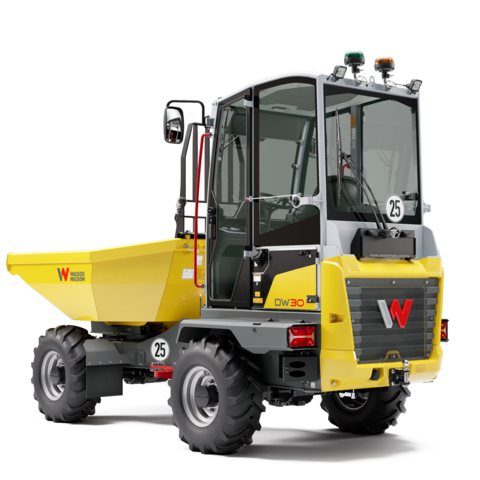

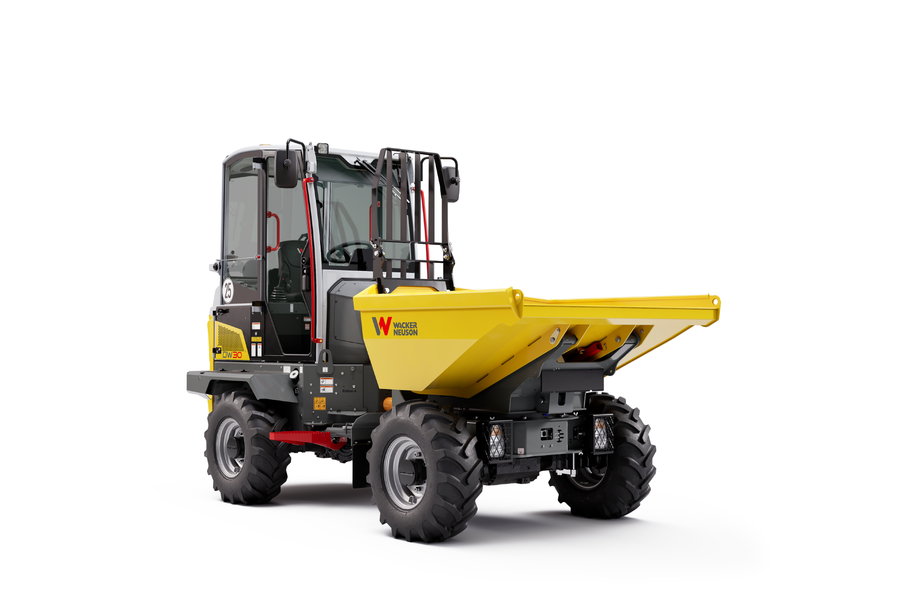

Wheel dumpers DW30: Safe operation, comfortable transportation.

The DW30 provides the ideal harmonization of high safety standards and extensive equipment for many application options. Whether with a cabin or roll bar, with concrete skip or swivel tip skip: it is individually adaptable ex works, making it a real all-rounder for any construction site. It simultaneously provides a 3-ton payload at low dimensions, which means it can be efficiently applied, even in area that are more difficult to access. For the precise placement of materials in concreting works, the optional concrete skip is equipped with a pouring pan. The DW30 provides a very high level of safety equipment both as standard and across all available versions.

Skip monitoring

• Skip monitoring takes over the control of the skip position before driving off and thus prevents consequential damage or accidents.
• Real-time checking of the skip position informs the operator if locking is incomplete and reduces travel speed to 13 km/h to avoid accidents.
• This minimizes the risk of damage or accidents to the machine and the surroundings.

Inclination monitoring

• If the machine is tilted in an unsafe standing position or becomes unstable, the inclination monitoring intervenes and warns the operator.
• An optical and an acoustic signal display both the speed limitation with the skip tilted in an unsafe position as well as an unstable machine position. This should make it clear to the operator that he is exposed to an increased risk of accident if he does not pay attention.

Seat belt monitoring with start release

• The seat belt monitoring system signals visually and acoustically if an attempt is made to start the machine when the operator is not wearing a seat belt. The additional start release prevents start-up in this case.
• The safety during operation is increased once again and improper starting is thus prevented.

Hydrostatic 4-wheel drive

• Just hop on and go: with the hydrostatic drive system, the operator can concentrate on his work without frequent gear shifting.
• A continuously constant tractive force from 0 to the maximum speed and a hydrostatic brake provide for a comfortable driving experience.

Concrete skip

• The optional concrete skip is specially designed for processing concrete, e.g. in road construction. With a special concrete chute and swivel skip, quick and time-saving 180° placement is possible.
• The concrete skip is optimized in its shape for liquid concrete (water mass).
• The concrete trough has also been optimized in its shape for liquid concrete (water measure).

Auto-stop function

• The built-in auto-stop function switches the machine off after 5 minutes without use. This period of time can be adjusted and the operator is notified visually and acoustically before switching off.
• Electrical loads, such as headlights, are also switched off to conserve the machine's battery. Operating costs are reduced, maintenance intervals are extended and resale value increases.
• The resulting reduction in engine running time reduces exhaust emissions/CO2.

Extended maintenance intervals

• The long maintenance intervals of 500 operating hours make possible additional cost savings due to fewer service and maintenance intervals divided over the entire use.

Speed regulation system

• The speed regulation system automatically maintains the speed of the machine where possible, provided it is activated. This way, the operator doesn’t have to concentrate on his speed and can enjoy the comfort of automation.

Articulated pendulum joint

• The articulated pendulum joint adapts to all uneven terrain on the construction site. The operator immediately senses a change in the position and can keep the machine under control.

Translucent headlight protective grating

• Due to the fine structure of the protective grating, it need not be removed for driving on streets and saves valuable time in the sequence of operations.
• Despite the fine design, the protective grating effectively protects against damage to the headlights.

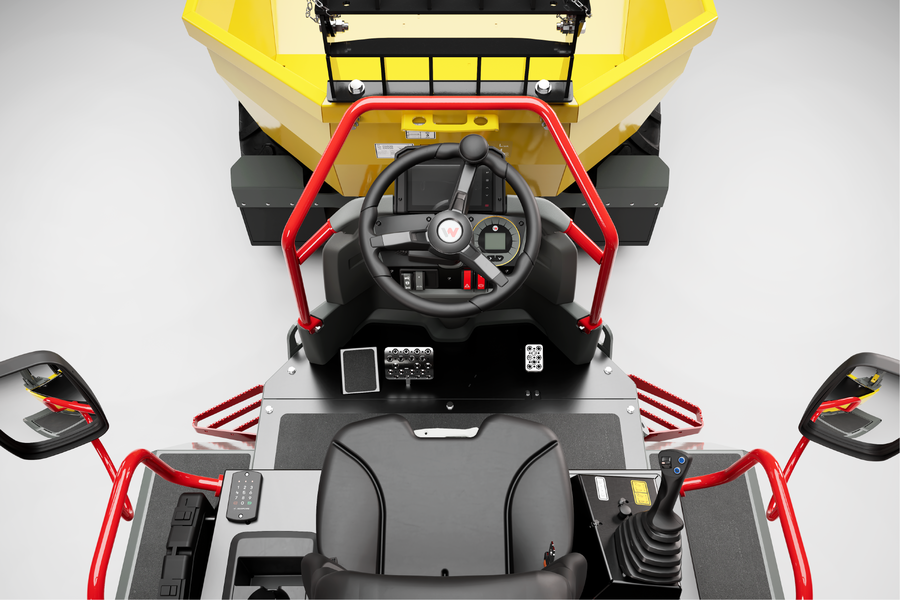

Large control stand

• Very comfortable: the large control stand offers freedom of movement for the legs.
• The wide leg protection provides protection from moving parts or parts of the load while driving.

Mechanical Details

Engine

Standard Components

General

• Payload 3,000 kg
• Hydraulic swivel tip skip (volume struck 1,280 l, heaped 1,750 l, water mass 900 l)
• Skip and incline monitoring
• Seat belt monitoring with orange safety belt
• Outside rearview mirrors

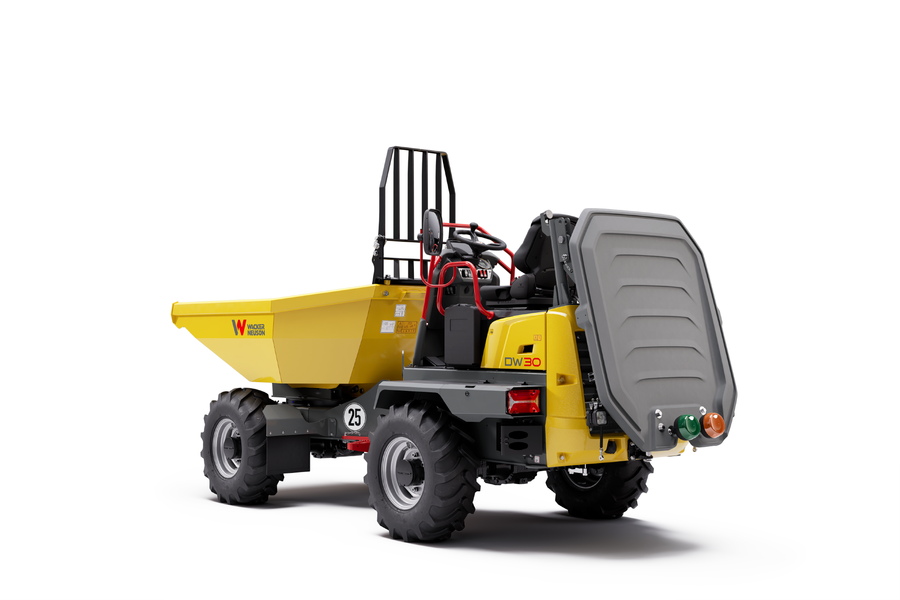

• Fold-down roll over protection system (ROPS) with gas-pressurized spring (transport height folded 1,913 mm)
• Speed: 20 km/h
• Watertight, lockable document box
• Battery main switch very easy to reach from the ground
• Tires 11.5/80-15.3 (Mitas, TS-05) tread with very good traction, also for application in the industrial sector

Engine

• Water-cooled Yanmar diesel engine, model 3TNV76, 3 cylinders / 1,116 ccm, engine output 18.9 kW (25.7 hp), 3,000 rpm (stage 5)

Hydraulics

• Permanent all-wheel drive
• Partially-locked differential on the front axle
• Hydrostatic drive system incl. hydrostatic brake and brake light
• Hydrostatic articulated frame steering (load sensing)
• Electrically operated spring-loaded parking brake

Options

Hydraulics

• Panolin HLP Synt46 (Bio)

Security

• Security 24 C (2000 h)
• Security 36 C (3000 h)
• Security 48 C (4000 h)
• Security 60 C (5000 h)

Paint

• Custom-made paint finish of machine in RAL (only for yellow parts)
• Custom-made paint finish of machine, no RAL (only for yellow parts)
• Special paint cab/canopy/ROPS

Cabin & ROPS

• LED work lights (front and rear)
• Bluetooth radio with hands-free system and USB charging connection (only with cab version)
• Heated imitation leather seat
• Air-conditioning system (only with cab version)
• Seat belt monitoring incl. machine start release
• Weather protection roof (foldable for transport)

General

• 25 km/h
• Work lights in the front & in the rear
• Entry in high visibility color
• Equipment for road traffic (wheel chock, rear license bracket and reverse alarm)
• Concrete skip (swivel tip skip with optimized design for concrete transportation incl. movable delivery chute, water mass 1,200 L)
• EquipCare 36 months (incl. App &# 38; Manager)
• EquipCare Dual ID (only in conjunction with EquipCare)
• Front and rear-view camera (IP69) incl. washing system
• Speed regulating system
• Manufacturing confirmation (document for typification)
• High swivel tip skip (volume struck 1,280 L, heaped 1,750 L, water mass 990 L)
• License bracket front and rear
• Engine 36 kW (stage 5) 403J-E17T, 1,663 ccm, 2,200 rpm
• Skip guard
• Turf tires (33x16-16.1, Galaxy Turf Special)
• (Orange/green) LED rotating beacon
• Special tires/all-terrain tires (11.5/80 -15.3, Mitas TR-03)
• TÜV road approval (Germany)
• Weather protection roof
• Toolbox on both sides (lockable, in fenders)
• Towing device and socket

Editions

Edition A

Basic machine
+ Swivel tip skip
+ Entry in signal color
+ (Orange/green) LED rotating beacon
+ Equipment for road traffic
+ Reverse alarm  (conspicuous broadband tone)
+Towing device
+Toolbox (lockable, both sides in the fenders of the machine)

(Shipping weight +/- 2%: 2,169 kg)

Edition B

Basic machine
+ Swivel tip skip
+ Entry in signal color
+ Imitation leather seat & seat contact switch
+ (Orange) LED rotating beacon
+ Equipment for road traffic
+ Reverse alarm (conspicuous broadband tone)
+Towing device
+ Toolbox (lockable, both sides in the fenders)

(Shipping weight +/- 2%: 2,154 kg)
