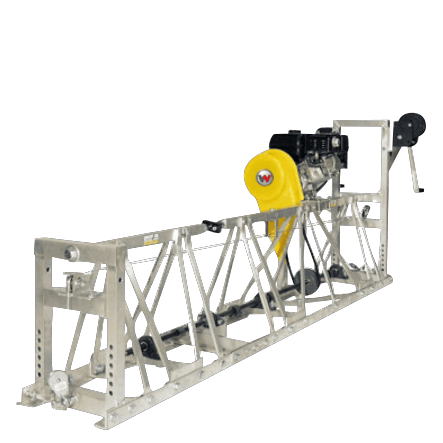

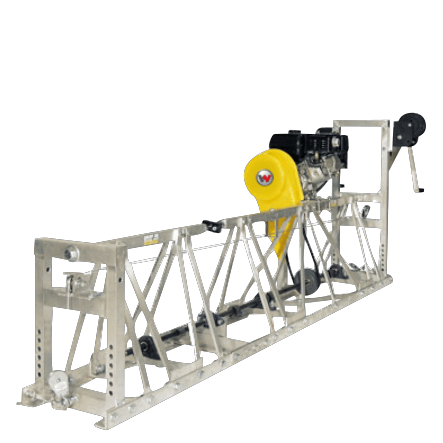

Truss screed: Offer high performance and jobsite productivity

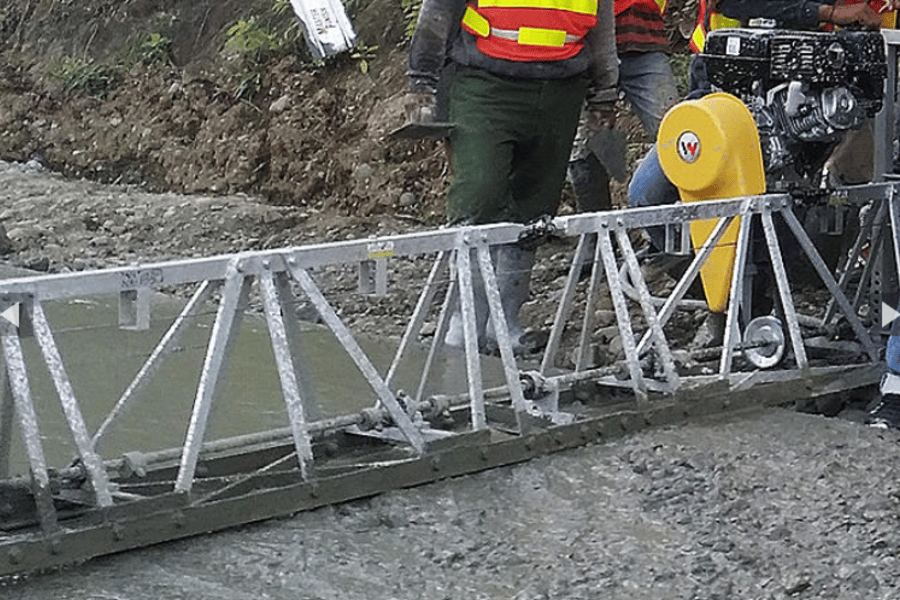

Vibratory truss screeds are designed for precise strike-off and consolidation of concrete surfaces up to 25 cm thick where critical flatness is desired. The bolted construction throughout the screed sections allow for fast assembly without special tools. The T-bolt adjuster provides quick, precise adjustments for flat, crowned or inverted strike-off.

Usable everywhere

• This fully self-contained unit will run on any form such as pipe, wood, block or metal.

-CALIFORNIA Proposition 65 WARNING: The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

​​​​​

Mechanical Details

Engine

This product consists of several components. Please choose their configuration.

HP50A

Power unit 4.8 hp for Truss Screed with width up to 150 cm.

Item Number 5000009508

HPG50A

Power unit 7.9 hp for Truss Screed with width up to 150 cm.

Item Number 5000009509

HC25

Center section for Truss Screed with width 75 cm.

Item Number 5000130376

HC50

Center section for Truss Screed with width 150 cm.

Item Number 5000130377

HC100

Center section for Truss Screed with width 300 cm.

Item Number 5000130378

HE25

End section for Truss Screed with width 75 cm.

Item Number 5000130382

HE50

End section for Truss Screed with width 150 cm.

Item Number 5000130383

HE100

End section for Truss Screed with width 300 cm.

Item Number 5000130384
