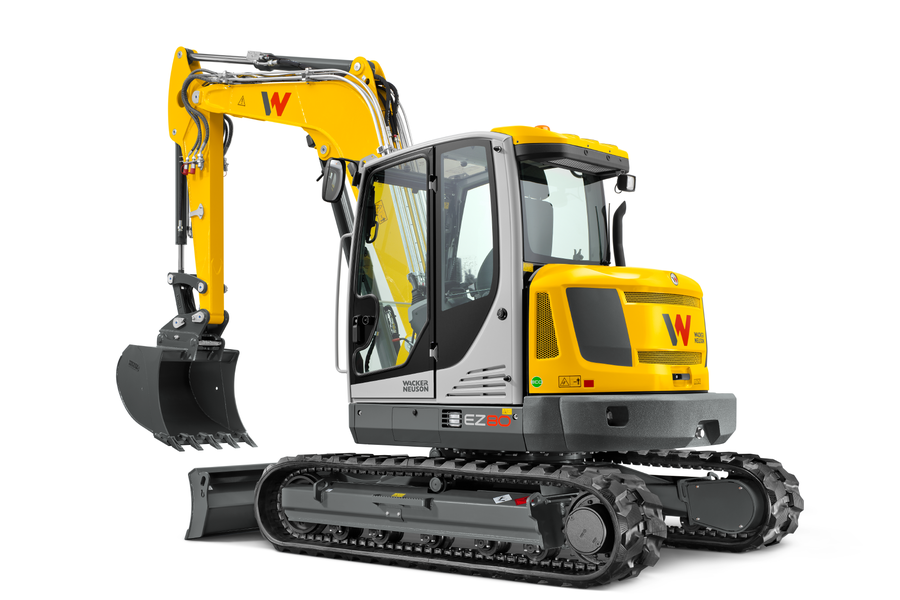

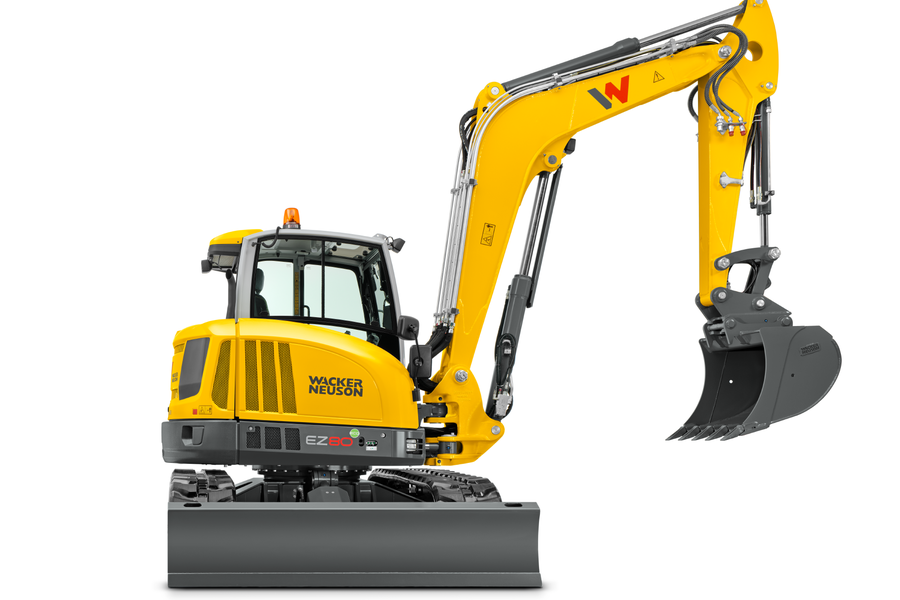

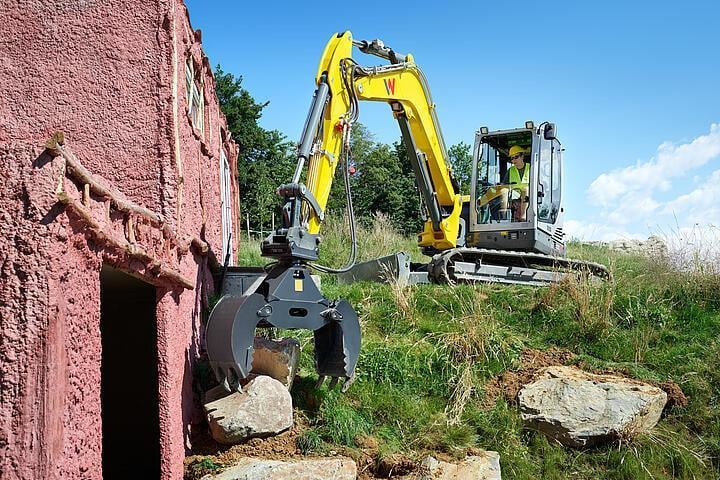

Tracked Zero Tail Excavator EZ80: Compact design and high performance

The EZ80 is the largest Wacker Neuson zero-tail tracked excavator. It combines compact dimensions and low consumption with high performance. With a digging depth of over 4 meters and excellent digging values, excavation work can be completed quickly. Working along walls and other boundaries is no problem because there is no machine rear overhang. Even on narrow urban construction sites, the EZ80 proves itself with its compact dimensions. Moreover, it is impressive due to up to 20% less fuel consumption and thus significantly reduced operating costs.

Powerful drive system with LUDV

• The powerful drive system combines with a load-sensing hydraulic system (LUDV) to deliver quick working cycles, greater application flexibility, and easier control for comfortable and fatigue-free operation of the excavator. No matter what the load to be moved, the control movements on the joystick stay the same. Along with increased operating comfort, this results in a performance plus, while simultaneously reducing fuel consumption.

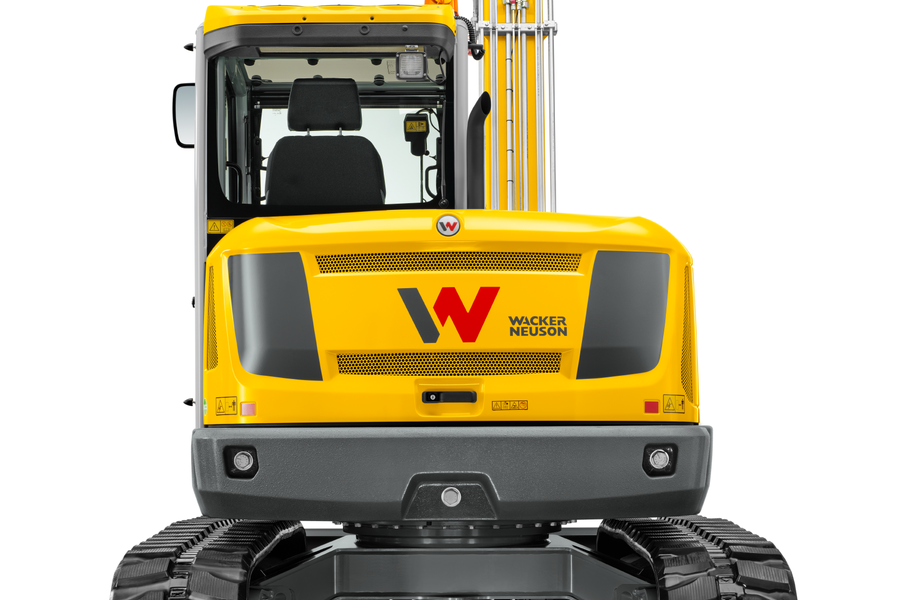

Zero Tail

• When space is limited: Pivot safely, even in the tightest of spaces or right next to the wall - with the Zerotail excavator without rear overhang, no problem.
• Optimal working in limited working conditions, high maneuverability and time savings are guaranteed.

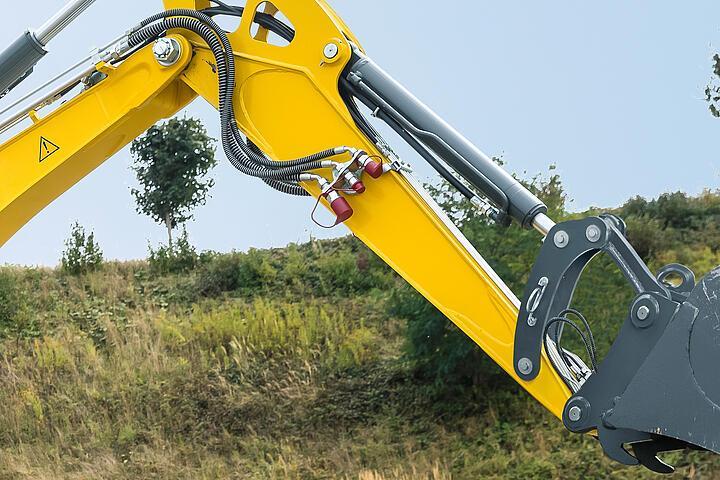

Up to four additional factory-installed control circuits

• The optional additional control circuits allow the excavator to be equipped with a variety of attachments. This increases the applications and utilization of the excavator.

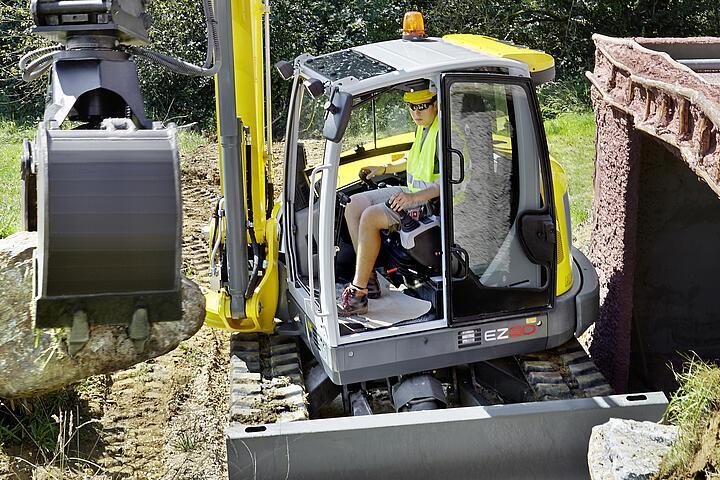

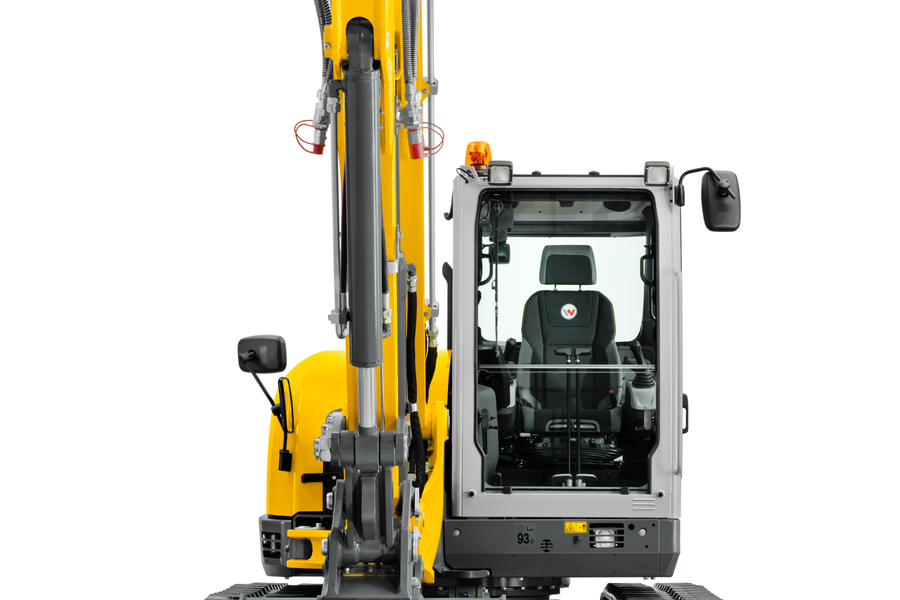

More cab comfort

• The ergonomically optimized operator's cab ensures maximum operating comfort. In addition, an offset arm position, various windshield positions, a sunshade and a large skylight provide optimal visibility. Numerous other equipment options, such as heated seats, automatic air conditioning, a rearview camera with 7-inch display and an air-cushioned operator's seat help to make the workplace even more comfortable.

Compact dimensions

• High level of safety during transportation, cost and time savings. The excavator scores points with a low entry height and reduced external dimensions due to the intelligent component arrangement, providing higher stability thanks to the low center of gravity.
• Whether during transportation or in tight spaces: thanks to its compact design, the excavator can easily be taken to your next job site. And on the construction site, the machine can maneuver anywhere easily and quickly, even in confined spaces - for high efficiency in every application.

Efficiency

Thermal resistance

• The excavator can work under full load up to an ambient temperature of 45°C/113°F. The stable temperature level results in a longer service life for the hydraulic components and increases productivity.
• Lower temperature level - longer life, work without loss of performance.

• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

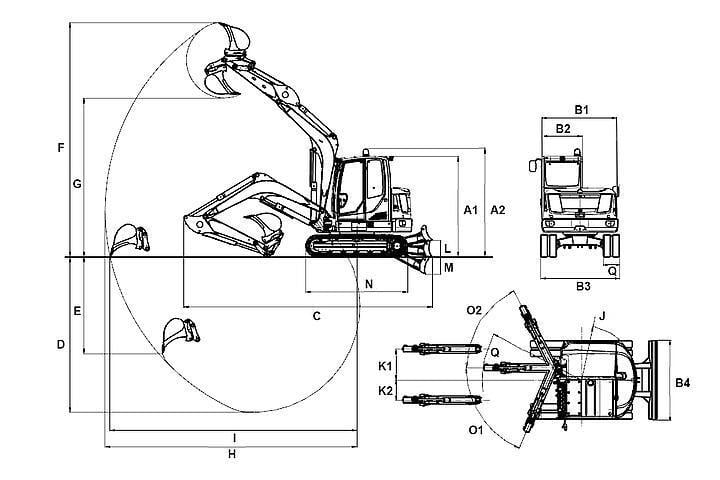

Mechanical-output details

Mechanical Details

Engine

Hydraulic

Operating fluids

Chassis

Shipping and Storage

General

• 450 mm rubber track
• Dozer blade
• LED work light on lifting arm
• LED headlights, front left and one on each side, left and right, in the chassis
• Toolkit, including grease press and operator's manual

Engine

• Liquid-cooled Perkins diesel engine, model 404J-E22T, 4-cylinder/2,216 ccm, net output according to ISO 14396: 42 kW (57.1 hp), nominal speed 2,500 rpm (stage 5)
• Auto idling system

Cab

• Glazed tiltable safety cabin: cabin heating, sliding side window, inward retractable windshield, windshield wiper/washing system, fully-lined cabin interior, pivot console, armrests
• Cabin meets the current ROPS, TOPS and FOPS* regulations
• FOPS protective grating (class 1), *FOPS Level 2 only with additional protective grating
• Radio installation setup (cabling, speakers, antenna)
• Headlamp and beacon cabling
• 3.5” multifunction display for machine monitoring and status display, and the option of adjustable and programmable discharge volumes for the additional control circuits.
• 3 outside rear-view mirrors (left side of cabin, 2x on right side of chassis)
• Sun shade

Hydraulics

• Load-sensing control (LUDV) with variable displacement pump; pump output: 160 L/min
• Hydraulic pilot control via joystick operation
• Valve control according to ISO, DIN, SAE, PCSA and EURO
• Auxiliary hydraulics for 2 travel directions, pipeline up to shovel arm
• Auto 2-speed transmission, 2 driving speeds switched automatically, 2nd gear manually lockable
• Hydraulically dampened drive pedals and forward + reverse travel lever
• Hydraulic oil cooler
• Proportional control for auxiliary hydraulics - AUX I
• Overload warning device - Basi

Ditch or trench cleaning buckets

Backhoe buckets with teeth

Backhoe buckets with blade

Swivel bucket

Hydraulic breakers

EasyLock+

EasyLock+ with Powertilt and load hook

Lehnhoff mechanical

Lehnhoff hydraulic with Powertilt and load hook

Lehnhoff hydraulic with load hook
