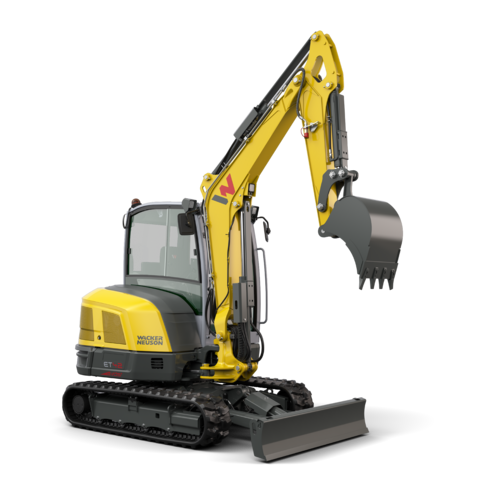

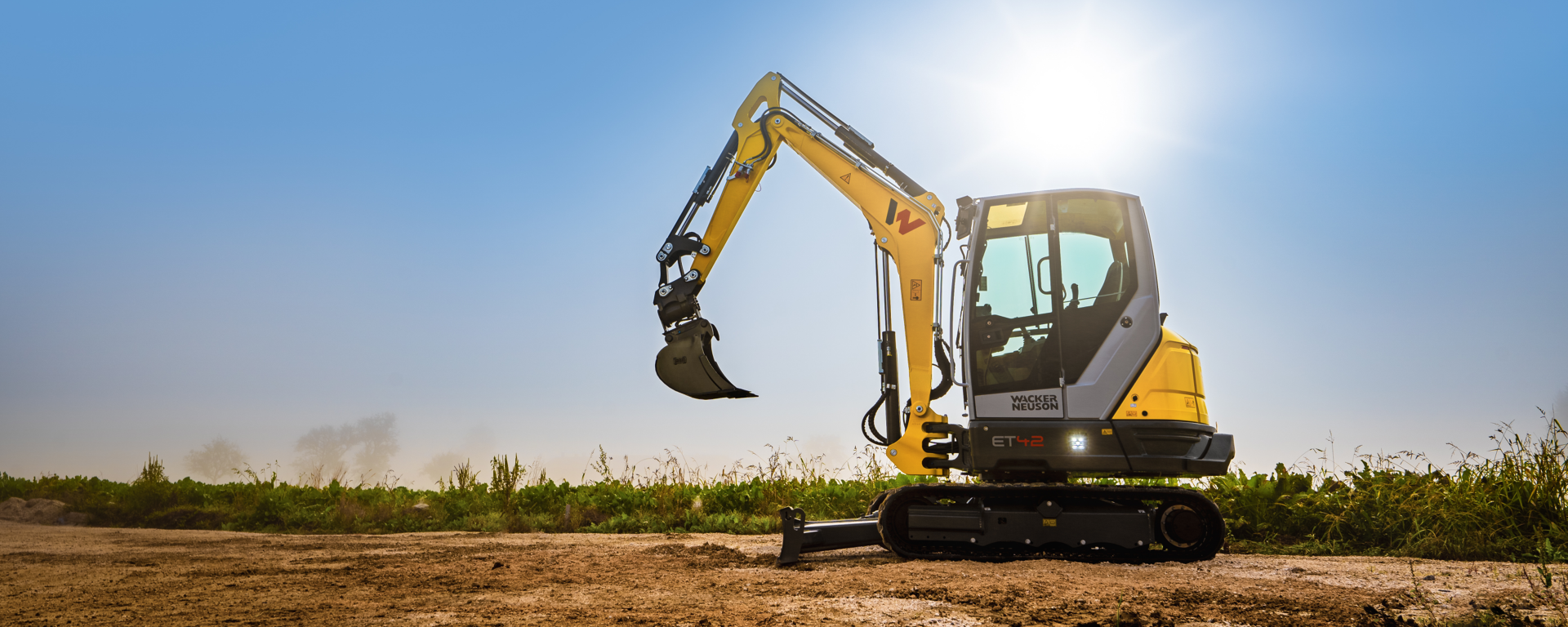

Tracked Conventional Excavator ET42: The boost for every construction site

Full speed ahead: the ET42 mini-excavator combines proven technology with a large dose of innovation to lead the 4-metric ton class. It has the usual high lifting and digging forces, as well as fast work cycles. Thanks to modern technologies, emissions are reduced while efficiency is increased. The ET42's powerful engine meets Stage V emissions standards. The intuitive operating concept means this powerhouse is both user-friendly and comfortable for the operator, while offering an excellent view of the working area.

Ditch or trench cleaning buckets

Backhoe buckets with teeth

Backhoe buckets with blade

Swivel bucket

Hydraulic breakers

EasyLock+

EasyLock+ with Powertilt and load hook

Lehnhoff mechanical

Lehnhoff hydraulic with Powertilt and load hook

Lehnhoff hydraulic with load hook

Flexible cylinder rod protection

• The cylinders and the cylinder rods are protected from damage thanks to the plastic rails, which lengthens their service life and saves costs. Due to their flexible material, they return to their original shape after an impact. Their appearance and characteristics are completely retained.

Load Sensing Flow Sharing

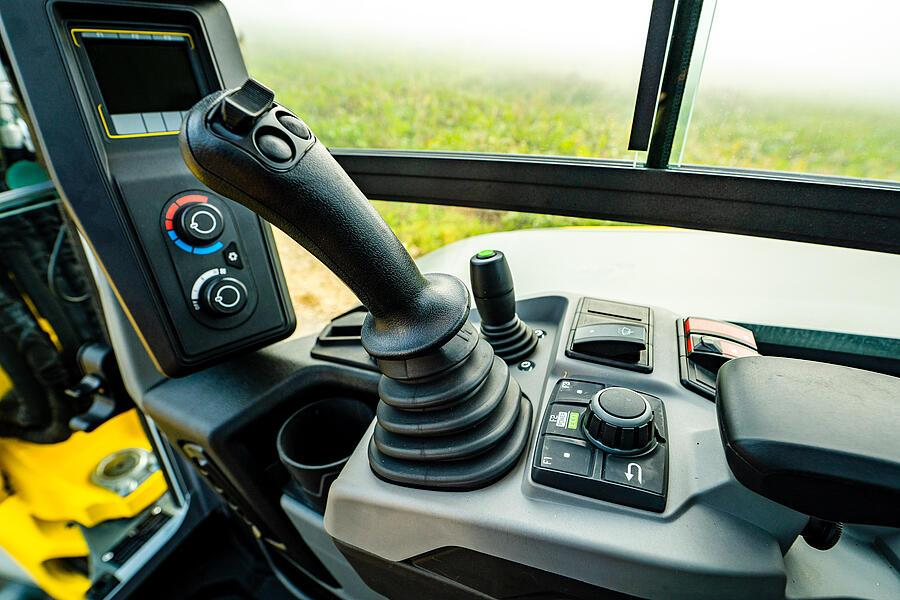

• Load Sensing Flow Sharing enables precise and efficient control of the excavator. The machine adjusts to the load and the joystick movements are always kept the same for the operator.
• The hydraulics work more efficiently, saving energy and ultimately costs. But it also makes operation easier for the operator.
• Load-sensing systems help to regulate the flow rate according to demand. The less power is used, the lower the fuel consumption.

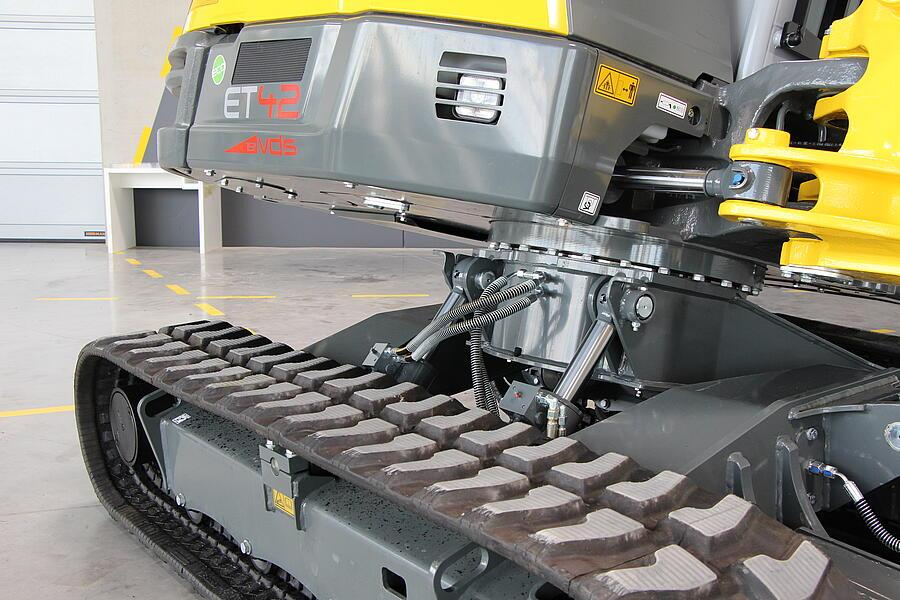

Vertical Digging System VDS+

• The vertical digging system compensates for slopes of up to 15 degrees, making it possible to vertically excavate on a slope. This is not only ergonomic for the operator, but it also saves time and also means less excavated material.
• Up to 25% material and time savings when excavating and filling. Work is safer with up to 20% increased stability.

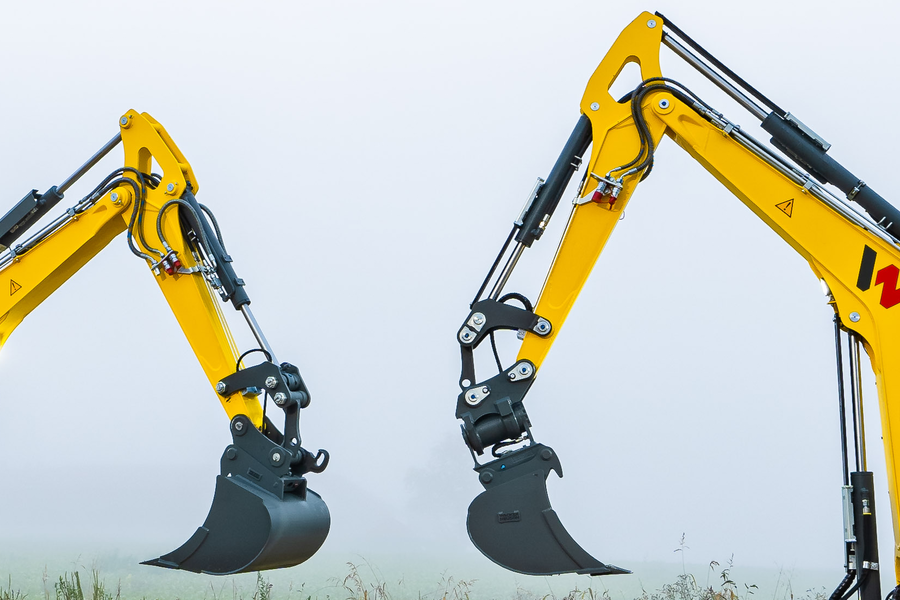

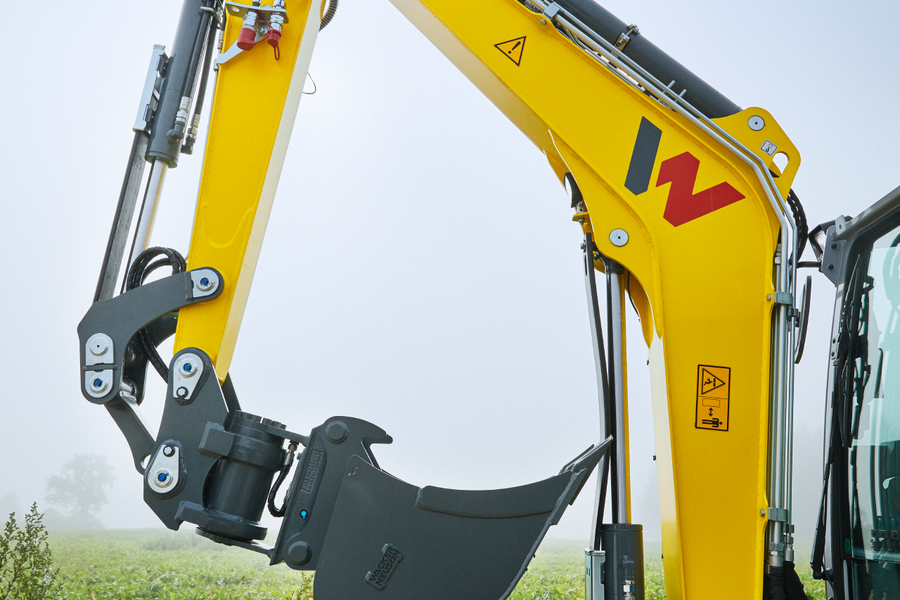

3-point kinematics

• With 3-point kinematics, the conventional bucket linkage has been taken to a new level. This "3-bolt" design extends the bucket's angle of rotation to 200 degrees - 10% more than conventional bucket linkage. This increases the vertical dig depth as well as the digging forces. This eliminates the need to reposition the excavator as often, significantly increasing efficiency.

Active Working Signal (AWS)

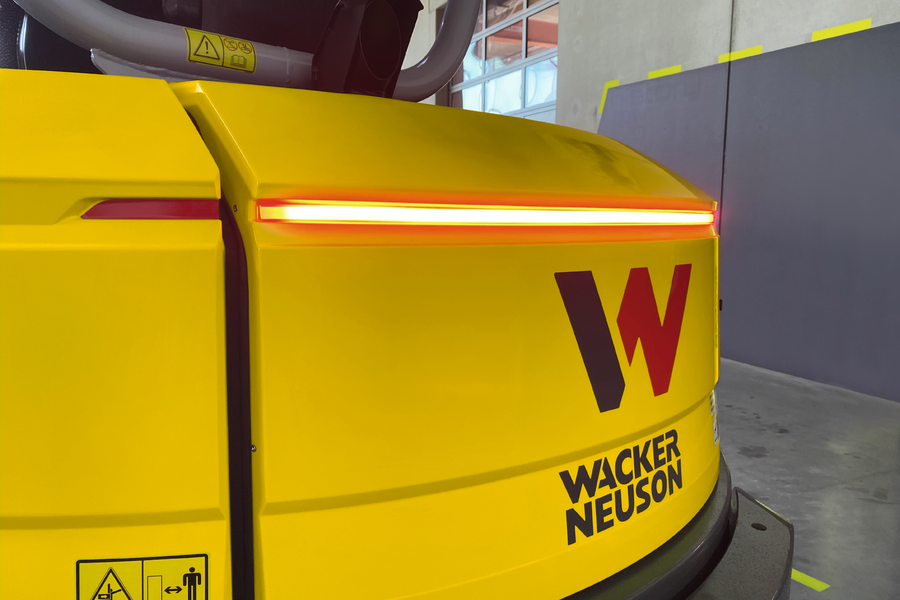

• The red LED strip running diagonally over the engine hood lights up when the joystick control is pressed down. This signals to bystanders nearby that the excavator is ready for operation and can be moved at any time.

Hydraulic thumb

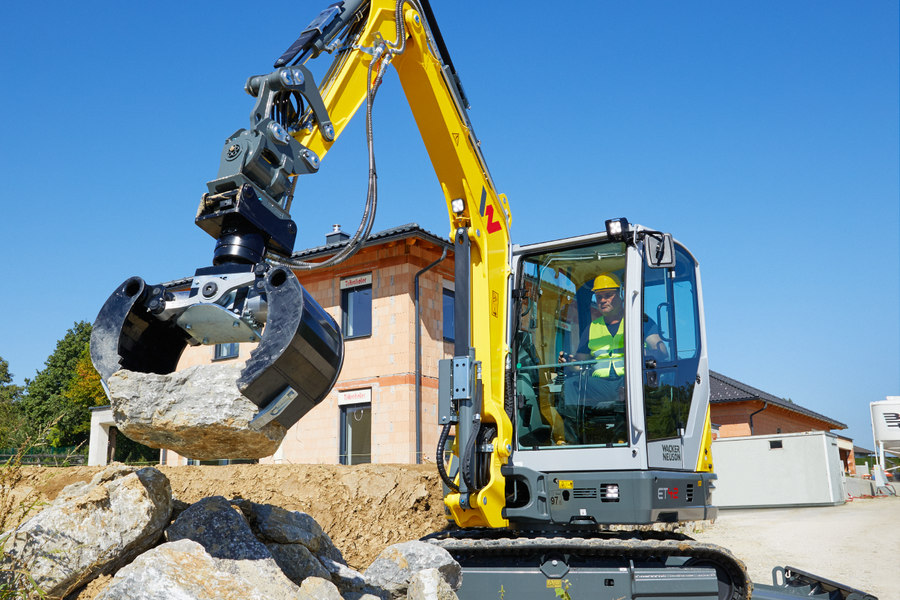

• The optional hydraulic thumb offers, beside a conventional bucket application, a grip function, which expands the spectrum of applications.
• With this additional grip function, material can be cleared away quite easily.

Up to 5 additional control circuits ex work

• Thanks to the optional additional control circuits, our excavators can be equipped with a variety of attachments. This allows for more application possibilities and increased utilization of the excavator.

Protective grating for windshield

• The sturdy grating protects the operator and the windshield from heavier stone impacts or other bulky obstacles without blocking the view.

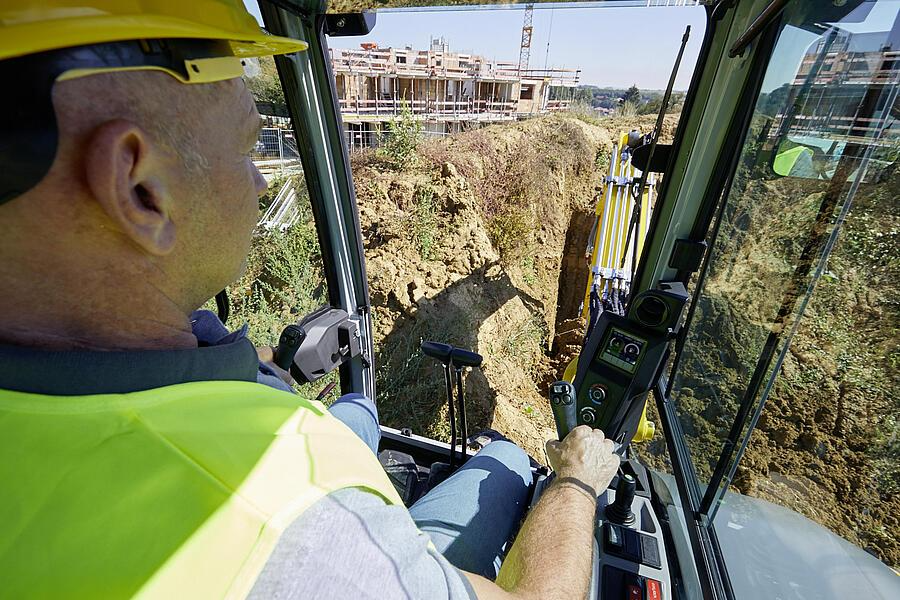

Very good all-round visibility

• The design of the machine has been specially adapted to the needs of the operator in terms of optimum visibility. For example, the right front track is very visible in the normal sitting position, which significantly increases safety for the operator and the surrounding area.
• Everything in view - ideal view of the attachment and of the right front track as well as the side and partial rear section of the machine

Compact dimensions

• High level of safety during transportation, cost and time savings. The excavator scores points with a low entry height and reduced external dimensions due to the intelligent component arrangement, providing higher stability thanks to the low center of gravity.
• Whether during transportation or in tight spaces: thanks to its compact design, the excavator can easily be taken to your next job site. And on the construction site, the machine can maneuver anywhere easily and quickly, even in confined spaces - for high efficiency in every application.

Hose guidance by swiveling bracket

• Optimum hose routing through the swiveling bracket provides the best possible protection for the hoses against external influences, which extends their service life. The field of vision is not restricted and abrasion of the hoses is significantly reduced.

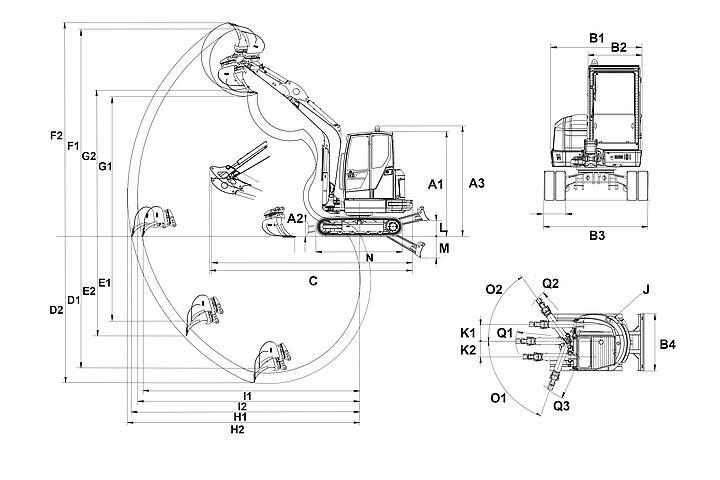

Mechanical Details

Engine

Hydraulic

Shipping and Storage

Environment Data

Standard Components

General

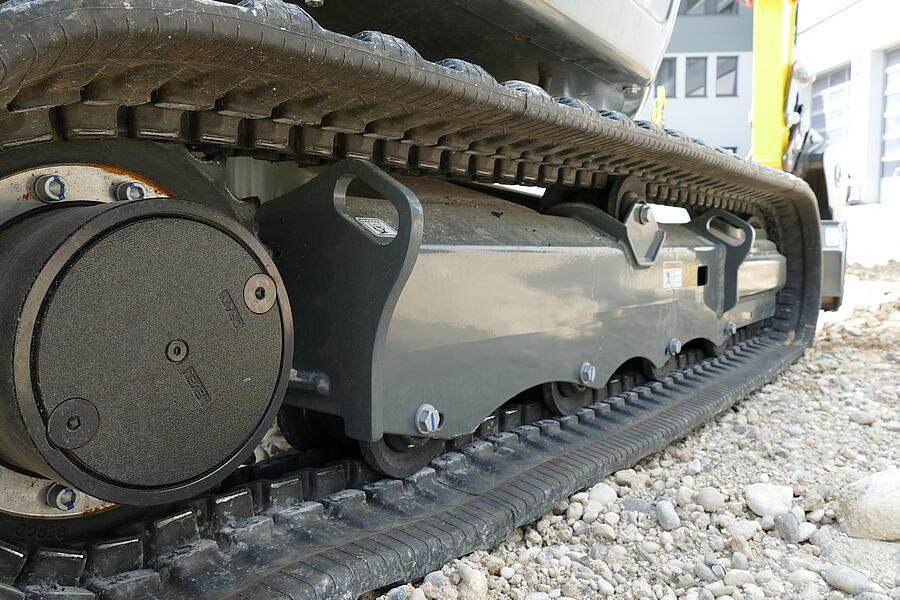

• Rubber track: 350 mm
• Dozer blade
• LED work light mounted on lifting arm
• Active Working Signal on the engine hood (red LED strips that signal the machine’s readiness to work)
• Toolkit, including grease press and operator's manual

Engine

• Liquid-cooled Yanmar diesel engine, model 3TNV88F, 3-cylinder/1,642 ccm, net output according to ISO 24.8 kW (30.2 hp), nominal speed 2,400 rpm (stage 5)
• Automatic idling speed control

Canopy

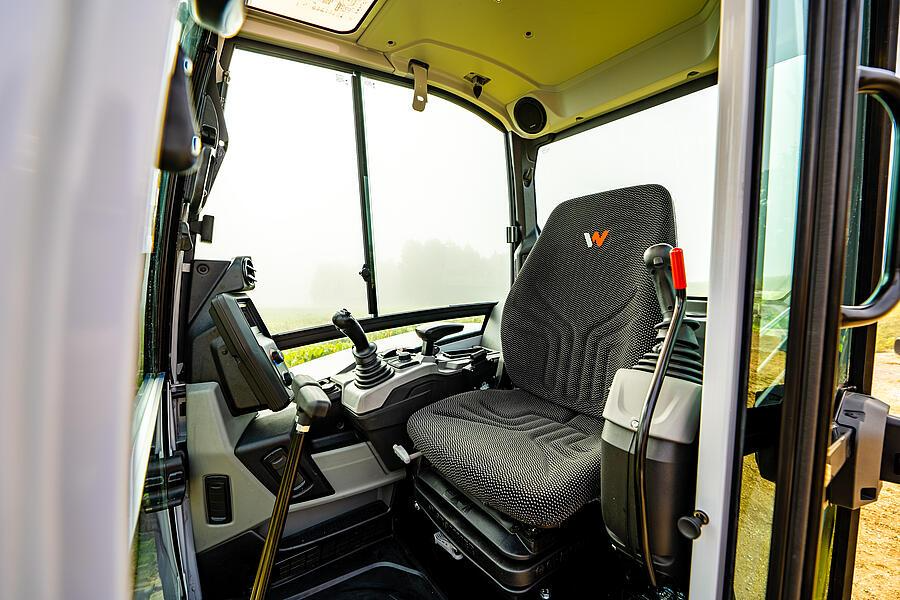

• Adjustable and air-cushioned comfort seat with artificial leather cover and safety belt; canopy (and cabin) complies with current ROPS, TOPS and FOPS regulations

Hydraulics

• Load Sensing Flow Sharing hydraulic system (max. discharge volume 90 L/min, max. working pressure 245 bar)
• Hydraulic pilot control via joystick operation
• Valve control according to ISO, DIN, SAE, PCSA and EURO
• Auxiliary hydraulic connections for 2 directions of travel on shovel arm | AUX I
• Automatic 2-speed transmission, 2 travel speeds automatically switched, 2nd gear manually lockable
• Hydraulically servo-controlled and cushioned foot pedals and forward + reverse travel lever
• Hydraulic oil cooler
• Parking brake for undercarriage and slewing system

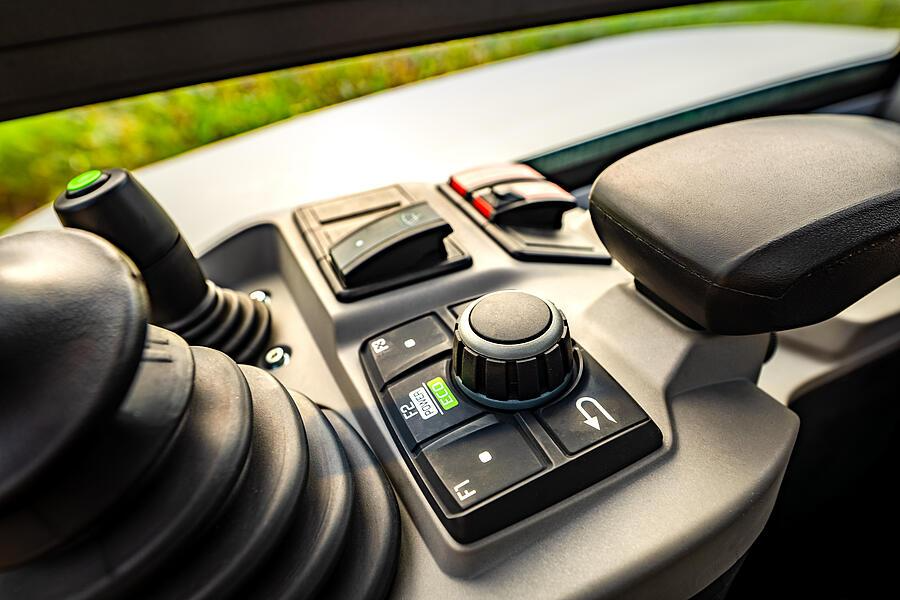

• Proportional control for AUX I; adjustable and programmable discharge volume via jog dial

Options

Cab

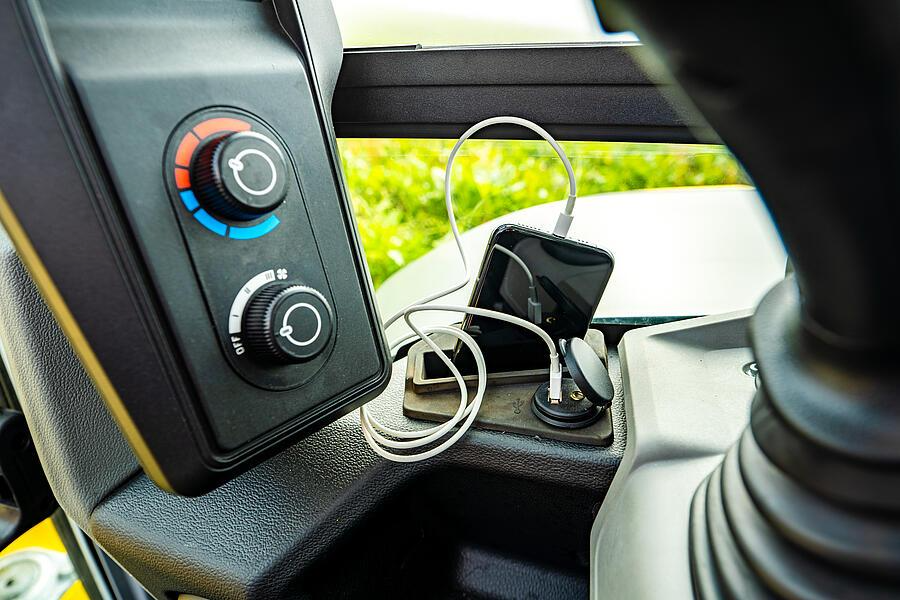

• Glazed safety cabin with cabin heating (incl. divided windshield and fully-lined cab interior), windshield wiper and washer system, radio installation setup and cell phone holder with USB charging function - only activated in conjunction with radio)
• LED front and rear work lights
• Outside rear-view mirrors (rear-view mirrors) on both sides
• Bluetooth radio with intercommunication station (for cabin version only)
• Air-conditioning system (for cabin version only)
• Fragment protection
• Rear-view camera
• Orange safety belt
• Protective skip grating (for cabin version only)

Hydraulics

• Overload valve for auxiliary hydraulics/AUX I
• Pressure release for auxiliary hydraulics/AUX I
• Hydraulic coupling, flat - auxiliary hydraulics/AUX I
• Pressure release of 3rd control circuit + auxiliary hydraulics/AUX I + II
• 3rd control circuit/AUX II
• Flow control valve 3rd control circuit/AUX II
• Overload valve for auxiliary hydraulics + 3rd control circuit/AUX I + II
• Powertilt setup/AUX III
• Setup for hydraulic quick-hitch system/AUX IV
• Powertilt + HSWS setup/AUX III + IV
• Control circuit for grapple/AUX V
• Hydraulic thumb setup/AUX VI
• Advanced overload warning device
• Panolin HLP Synt46 bio oil

Paint

• Single-color custom-made paint finish of machine in RAL (only for yellow parts)
• Single-color custom-made paint finish of machine, NO RAL (only for yellow parts)
• Single-color custom-made paint finish of cabin/canopy/ROPS in RAL (only RAL color possible)

Security

• Security 24 C (2000)
• Security 36 C (3000)
• Security 48 C (4000)
• Security 60 C (5000)

Miscellaneous

• Auto-stop function
• Counterweight: + 200 kg
• EquipCare
• EquipCare Dual ID
• Drive signal, broadband-tone frequency
• Piston rod protection
• Long shovel arm: + 200 mm

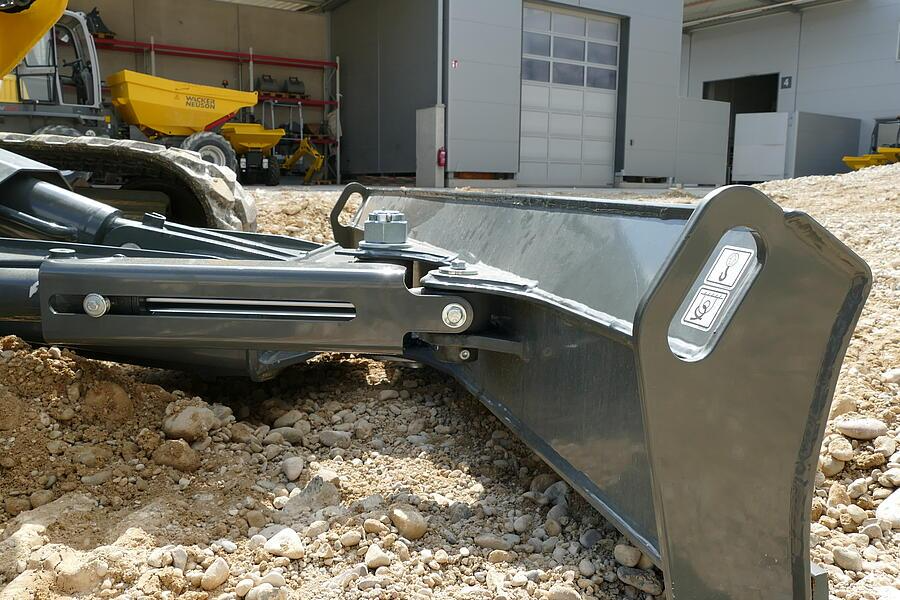

• Swiveling dozer blade
• Orange and/or green LED rotating beacon
• ISO-SAE change-over switch
• Steel track 350 mm
• Piston rod protection (for bucket and dipper stick cylinders)
• VDS (Vertical Digging System)

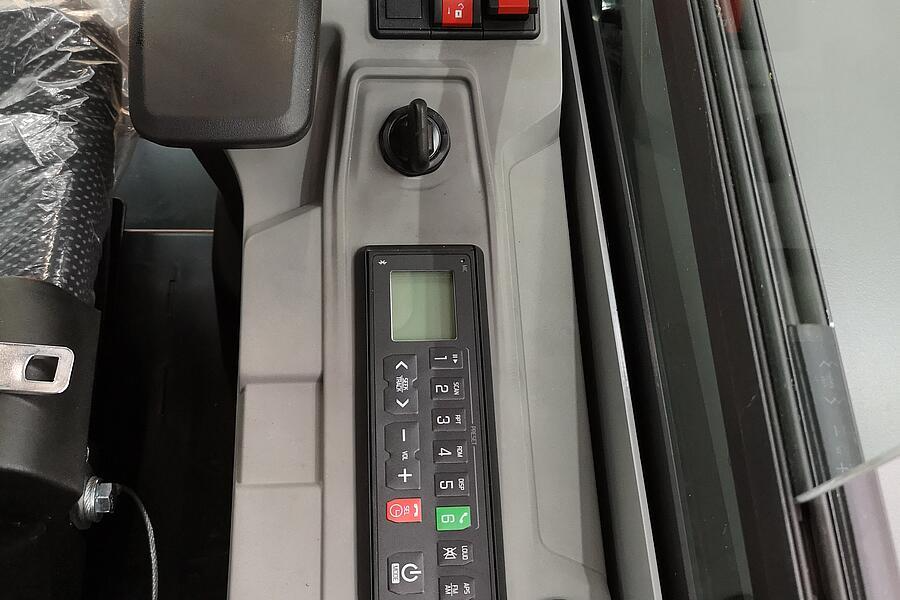

• KAT immobilizer system
• Service valve
• Refueling pump

Editions

Edition A

Basic machine
+ Cab (standard)
+ LED front and rear work lights
+ Outside rear-view mirrors, left and right
+ Advanced overload warning device
+ Setup for hydraulic quick-hitch system/AUX IV
+ Auto-stop function
+ Drive signal
+ Piston rod protection
+ Refueling pump

(Shipping weight +/- 2%: 3,963 kg)

Edition B

Basic machine
+ Cab (standard)
+ LED front and rear work lights
+ Air-conditioning system
+ Advanced overload warning device
+ Overload valve AUX I + AUX II
+ 3rd control circuit/AUX II
+ Hydraulic coupling, flat and 3rd control circuit
+ Setup for hydraulic quick-hitch system/AUX IV
+ Pressure release AUX I + AUX II
+ Counterweight
+ Piston rod protection
+ Long dipper stick
+ Diesel filling pump

(Shipping weight +/- 2%: 4,211 kg)

Edition C

Basic machine
+ Cab (standard)
+ LED front and rear work lights
+ Air-conditioning system
+ Bluetooth radio with intercommunication station
+ Advanced overload warning device
+ Overload valve AUX I + AUX II
+ 3rd control circuit/AUX II
+ Powertilt + HSWS setup/AUX III + IV
+ Control circuit for grapple/AUX V
+ Hydraulic coupling, flat and 3rd control circuit
+ Pressure release AUX I + AUX II
+ Counterweight
+ Piston rod protection
+ Diesel filling pump

(Shipping weight +/- 2%: 4,210 kg)
