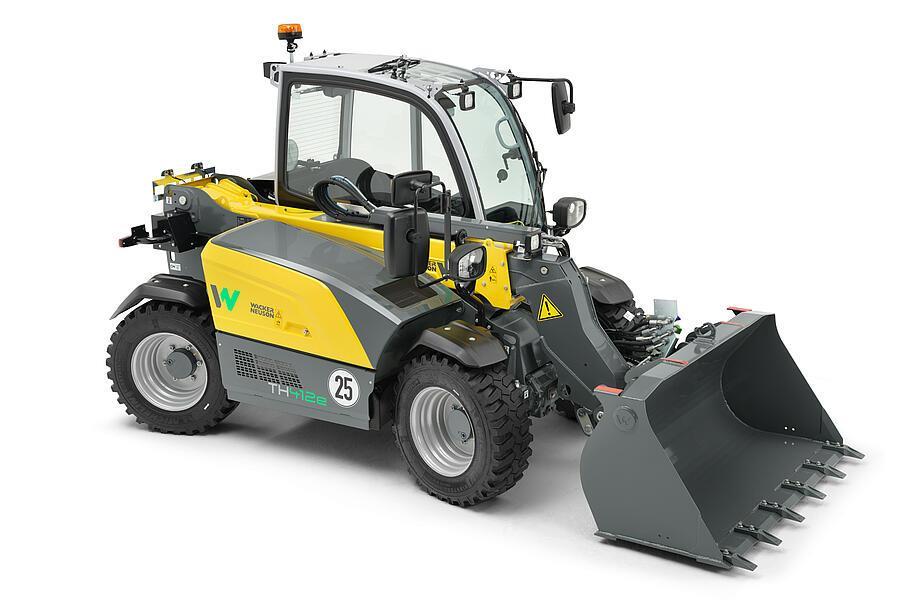

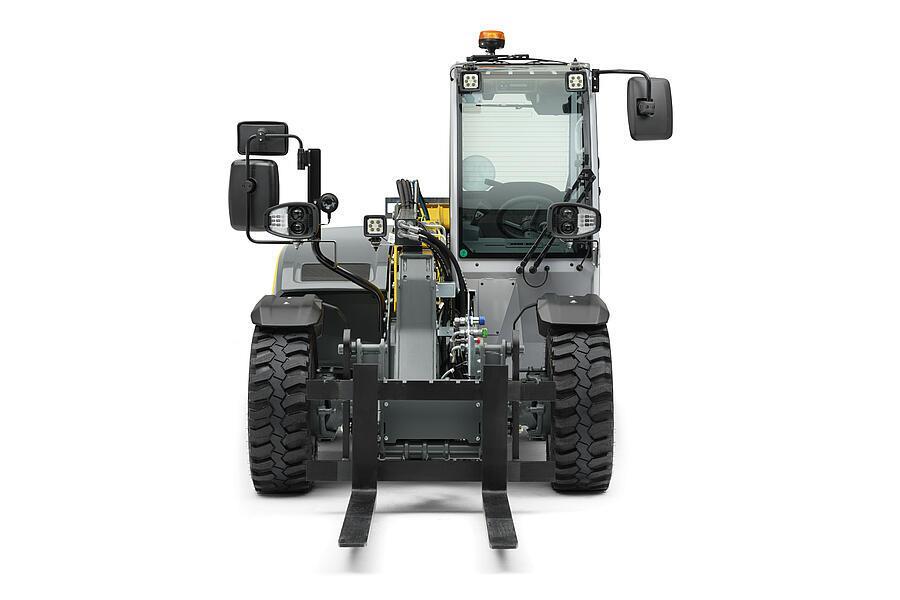

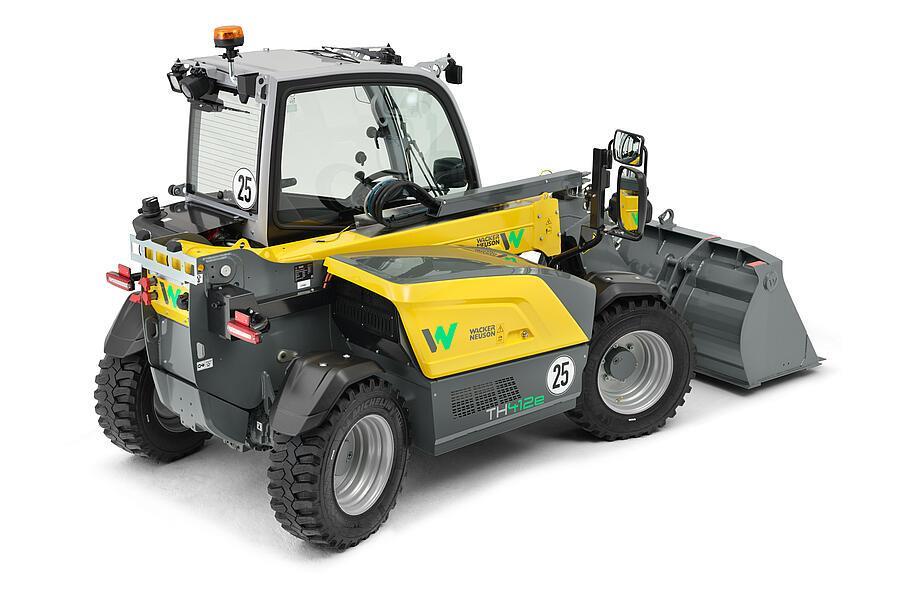

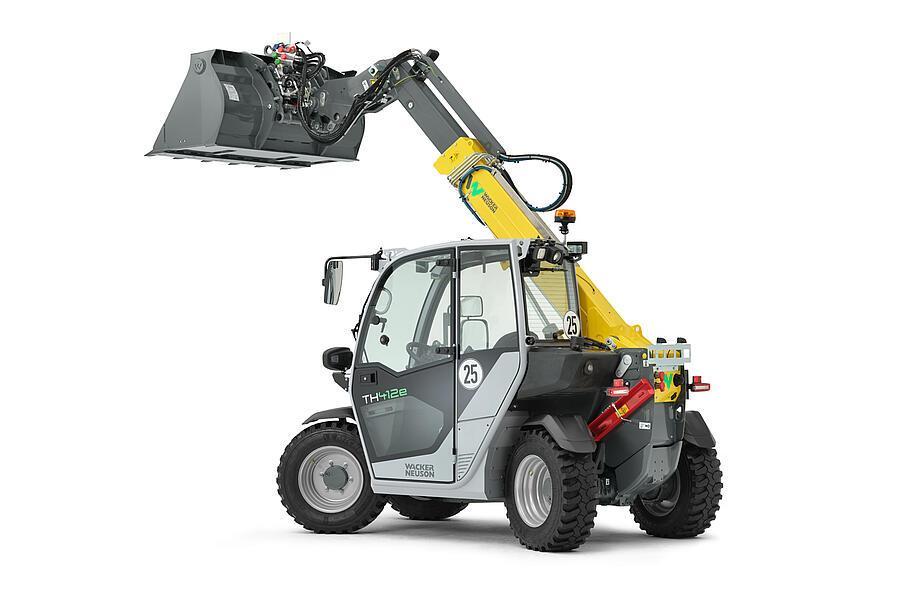

Telehandlers TH412e: Electric, environmentally-friendly, and powerful

The Th412e is the first pure electrically-operated telehandler by Wacker Neuson. Its power ratings correspond to those of a conventional diesel-operated machine. The installed 96-Volt lithium-ion battery is available in two power ratings so that the running and charging times can be optimally coordinated with the work requirements. The TH412e works on-site completely free from exhaust gases and with significantly lower noise emissions. For the end user, this means greater flexibility in application, environmental protection and significant savings with operating costs. As a result, features such as compact dimensions, all wheel steering, low center of gravity, and excellent stability are likewise true of the electrically-driven machine.

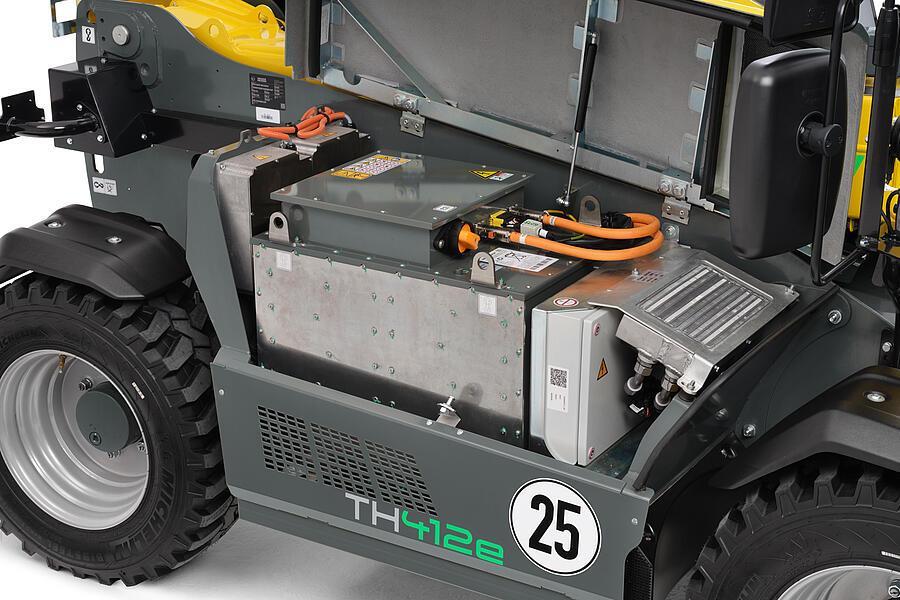

Powerful lithium-ion battery

• It is always possible to select the appropriate battery size depending on the area and purpose of application. There is a total of two maintenance-free lithium-ion batteries to choose from: As standard there is the 18 kWh, optionally available there is the 28 kWh.
• A 3 kW on-board battery charger is installed as standard. Optionally, a second 3 kW on-board battery charger can be selected, which increases the performance to a total of 6 kW. It is therefore possible to achieve a fast charging time.

Easy charging options

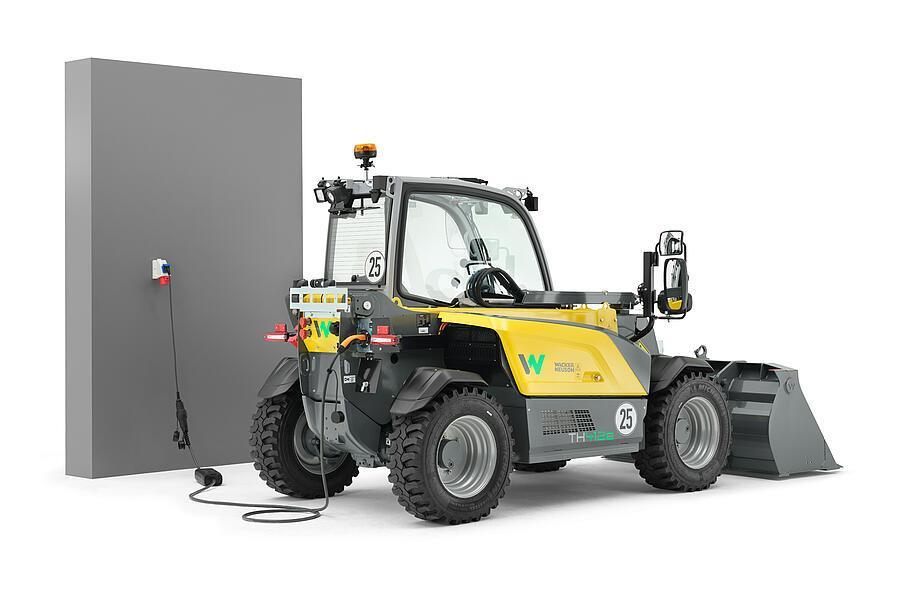

• The central charging cover is easily accessible on the outside at the rear of the machine. Behind it you will find the socket, the activation switch, and the charge display.
• The charging cable (Type 2 plug on the machine, familiar from the automotive industry), including the control box, is available with a number of different plugs: 230 V / 10 A Schuko, 230 V / 16 A CEE (blue, 3-pole), 400 V / 16 A CEE (red, three-phase AC current, 5-pole), 400 V / 16 A (Type 2 plug wall box, IEC 62196), and other adapter plugs.
• The flexible, selectable charging plugs enable fast and coordinated charging of the selected battery size. In combination with the installed on-board charger, both efficient and safe charging processes are guaranteed.

Digital display

• The main functions always in sight: With the digital display, the operator always has everything in sight while working.
• On the outside of the display are the standard indications, like the warning light for the parking brake or the control lights for the indicator or the full beam.
• In the central area of the display for information there are three main views and a variety of useful information, e.g. operating hour meter, charge status of the drive battery, remaining running time / remaining charge time, speed display, average consumption, recuperation level, date, time, or temperature of different components.

Electric parking brake

• The electric parking brake automatically activates if the machine stands still, the direction of travels is set to neutral or the operator leaves the seat. The parking brake is automatically released if the machine is put into gear using the accelerator. This provides the operator and their working environment with a maximum level of safety and comfort. The machine can therefore be operated more efficiently using the electric parking brake.
• Naturally, the electric parking brake can likewise be manually activated and deactivated by operating a switch. The operator therefore always has control and can work with the machine in accordance with their requirements.
• The electric parking brake provides both a comfortable auto-hold and hill-hold function. This prevents the machines from unintentionally rolling away and in doing so increases safety when working.

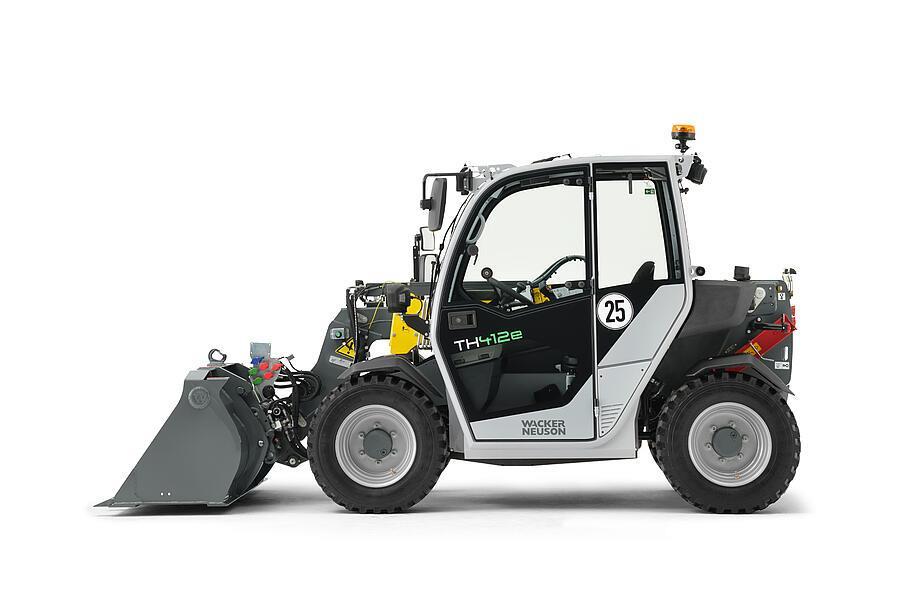

Compact dimensions in the 2 x 2 m class

• The width and height of the compact telehandlers is respectively under 2 m. This is why our telehandlers are also ideal for applications in confined areas and therefore are unique in their combination of lift height, width and machine performance.
• All telehandlers from our compact series have a particularly small internal radius. The maneuverability achieved as a result of this makes the machine very versatile on each and every application site.

Quality

High-quality powder coating

• In comparison to conventional wet painting, powder-coating greatly extends the service life of the machine and is also environment friendly.
• The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

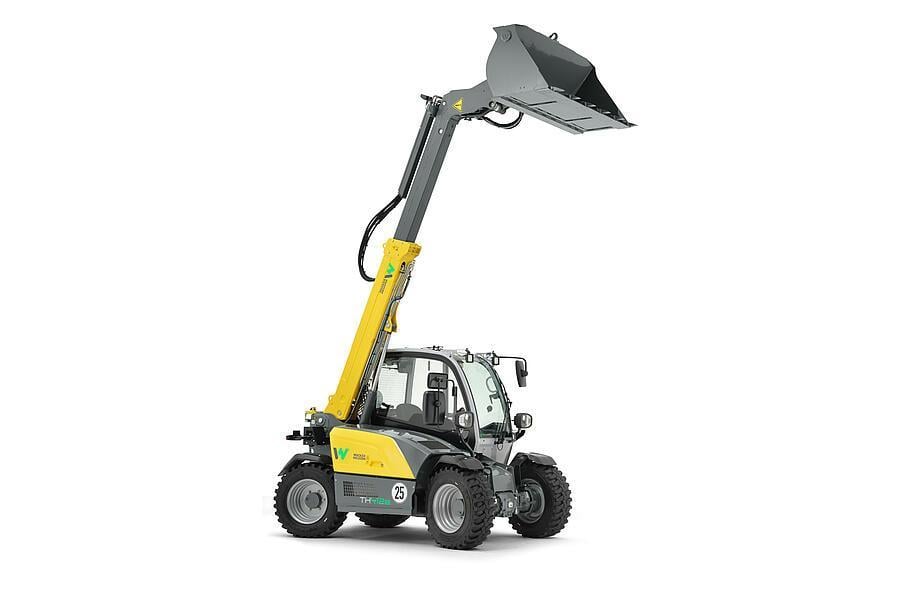

Robust Telescopic Arm

• The telescopic arm is both sturdy and stable in design, and is positioned in the middle of the machine, which counteracts the twisting. The parallel guide is hydraulic and the sliding elements in the interior pipe of the telescopic arm are maintenance-free. This reduces wear and increases the service life of the machine.

Maintenance

Fully automatic central lubrication unit

• On the fully-automatic central lubrication system, the time it takes to perform the lubrication and the intervals at which to perform it are set. With regularly lubrication top-ups of all lubrication points the application safety of the machine is increased.
• With the fully automatic central lubrication system, the lubrication of the machine is done automatically and thus very conveniently. This means significant saving of time and increase in the longevity of the machine, thus increasing its value preservation.

Maintenance-friendly hydraulic hosing

• Wacker Neuson machines generally have short hydraulic hoses installed in them. This means that the hoses are divided at several points. In the event that a hydraulic hose requires replacing, only the affected part needs to be replaced. Therefore, the whole hose connection within the hydraulic circuit does not require exchanging. This accelerates the repair times enormously and is also cost-efficient.

Easy maintenance

• A great benefit of an electrically operated machine is that clearly less maintenance arises overall than for a machine with a diesel engine.
• The engine hood can be opened upward, and the operator's seat and various access panels can be removed in just a few steps. This allows uncomplicated access to the hydraulic control block, pumps, battery and electric motors. This ensures easy and timesaving maintenance of the machine.

Eco-friendliness

Powerful electric drive

• The Th412e’s output corresponds to that of the diesel-driven version. The E-drive therefore has no drawbacks in terms of performance when compared with the conventional diesel drive.
• An electrically-driven machine has an increased level of productivity when compared with a diesel-operated machine. Overall, the electric drive is more efficient and effective than the diesel drive and provides a more environmentally-friendly alternative.

Energy recovery through recuperation

• The braking system recovers energy via so-called recuperation, which additionally extends the running time of the machine.

Low emissions

• With a fully-electric machine it is possible to work on site completely free of CO₂ emissions. This above all protects people in the immediate working vicinity, as well as the operator themselves.
• The noise emissions are clearly reduced with an electrically driven machine when compared with a diesel-driven machine. This makes it possible to work in noise-sensitive environments or at night.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.

























Mechanical-output details

Travel speed stage 1	0 - 7 km/h
Travel speed stage 2	0 - 25 km/h

Mechanical Details

Weight	2,950 kg
Payload max.	1,210 kg
Payload lift max.	712 kg
Lift bucket swivel	4,537 mm

Hydraulic

Operating pressure	220 bar
Flow rate	28 l/min
Tank capacity	36 l

Chassis

Turning radius	2,695 mm
Operating pressure	320 bar





A	Total length	3,944 mm
B	Total length without bucket	2,991 mm
C	Bucket pivot point (to center of axle)	450 mm
D	Wheel base	1,922 mm
E	Rear overhang	427 mm
F	Height with cab	1,995 mm
H	Seat height	978 mm
J	Total working height	5,280 mm
K	Bucket pivot point (max. lift height)	4,537 mm
L1	Load-over height telescopic arm retracted	2,949 mm
L	Load-over height telescopic arm extended	4,163 mm
M1	Dumping height telescopic arm retracted	2,415 mm
M	Dumping height telescopic arm extended	3,630 mm
N	Reach (at M)	557 mm
O	Digging depth	96 mm
P	Total width	1,564 mm
Q	Track width	1,235 mm
S	Ground clearance	294 mm
T	Maximum radius	3,506 mm
U	Radius on the outer edge	2,695 mm
V	Inner radius	951 mm
X	Rollback angle at max. lift height	52 °
Y	Dumping angle	31 °
Z	Rollback angle on ground	44 °
-		10.0/75-15.3 (255/75-15.3) AS ET-40 Starco

Drive system Battery

• Battery (lithium-ion), 96 V, Battery capacity (gross) 18 kWh
• Battery charger On-board 3 kW, plug type 2, charger cable Schuko 230 V / 10 A
• Drive hydraulics motor (ECE R085) 33.1 kW
• Work hydraulics motor (ECE R085) 21.2 kW

Steering system

• Hydrostatic all-wheel steering with end position synchronization
• Steering angle max. 38°
• Oscillating angle of the rear axle 7°
• Steering cylinder: 2

Operator's cab

• Cab with heating and ventilation ROPS / FOPS tested with VSG safety window on the right side
• Front, roof, and rear windshield wipers; heated front windshield, right window, and rear windshield
• Tilt display
• Armrest with storage compartment
• Sun shade
• Bottle holder
• Storage net

Operator's seat

• Comfort seat with safety belt

Lighting

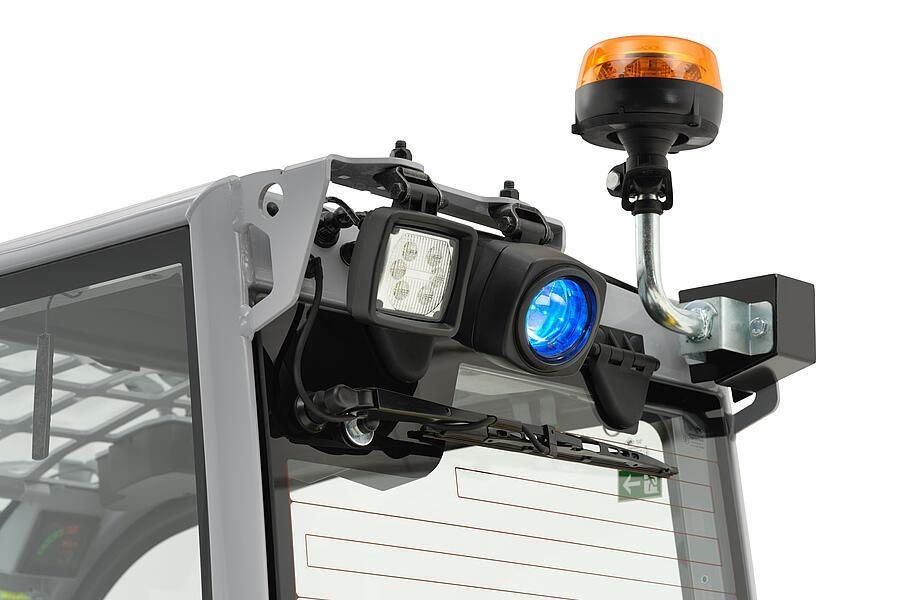

• LED working lights: 1 front, 1 rear on the overhead guard

Drive system

• Axle: planetary steering axle PAL1165
• Drive system: electric drive, energy recovery when decelerating, travel direction selectable using joystick
• Battery: internal battery heater, best possible charging time (from 20 % to 80 %) 1.8 h, charge release switch
• Speed: 15 km/h (optional 20 / 25)
• Travel speeds: 2
• Operating brake:&# 160;hydraulically actuated disc brake on front axle acting on rear axle via universal joint shaft
• Parking brake: electric parking brake with hill-hold function (when stopping on a hill, the electric motor holds the machine in place)

Tires

• 10.0/ 75-15.3 (255/75-15.3) AS ET-40 Starco

Loadıng system

• Telescopic arm lift height 4537 mm

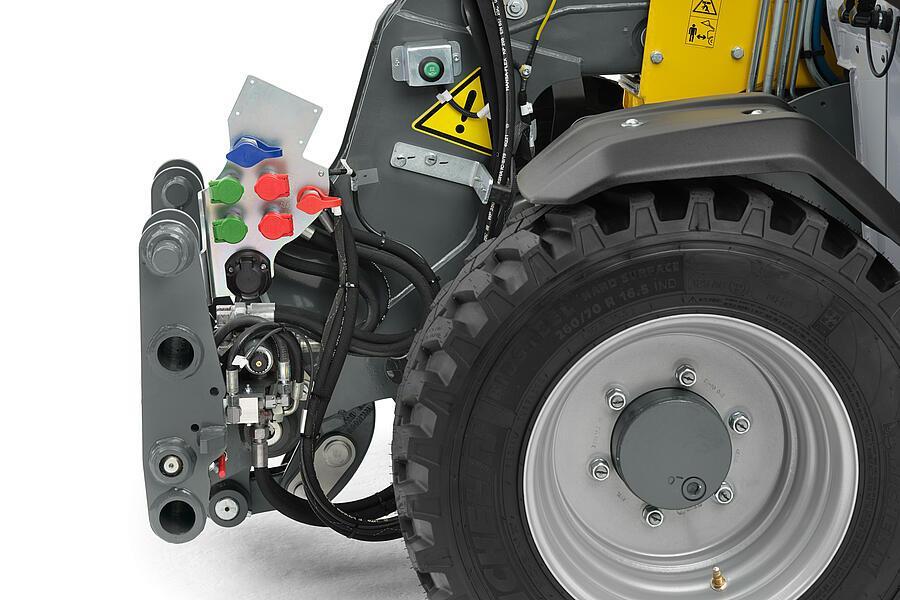

• Quickhitch facility (Wacker Neuson HV/TH - C) hydraulic
• Lifting cylinder 1
• Tipping cylinder 1

Hydraulics

• Mechanical, pilot-operated joystick with travel direction switch and proportional telescopic function
• 3rd front control circuit via lever
• Connections Flatface size 2
• vls (Vertical Lift System)
• Hydraulic oil cooler

Other

• Reversing alarm (acoustic)



V-shaped snowplow

Side dump bucket

Dozing bucket

Fork and grab - large

Large shear grab

Small shear grab

Logging grab - Sickle shaped

Logging grab - Fork shape

Hydraulically adjustable pallet fork with adjustable tines

Hydraulic adjustable pallet fork with lateral displacement

Hydraulically adjustable pallet fork with lateral displacement and adjustable tines

Pallet fork with rotating device

Pallet fork, fork tines with floating mount

Pallet fork

Fold-down pallet fork

Dozer blade laser 6-way

Pot grabber

Surface planer

Earth auger

Branch cutter

Hedge trimmer

Rotary sieve

Digging bucket with interchangeable blade

Digging bucket with ripper teeth

4 in 1 bucket with interchangeable blade

4-in-1 bucket with ripper teeth

Round light materials bucket

Round, lightweight bucket with interchangeable blade

Fence mower

Double-blade mowing unit

Flail mulcher

Sweeper 580 dual

Sweeper 25

Sweeper 20

Sweeper

High pressure washer

Snowplow

Small spreader

Waste container
