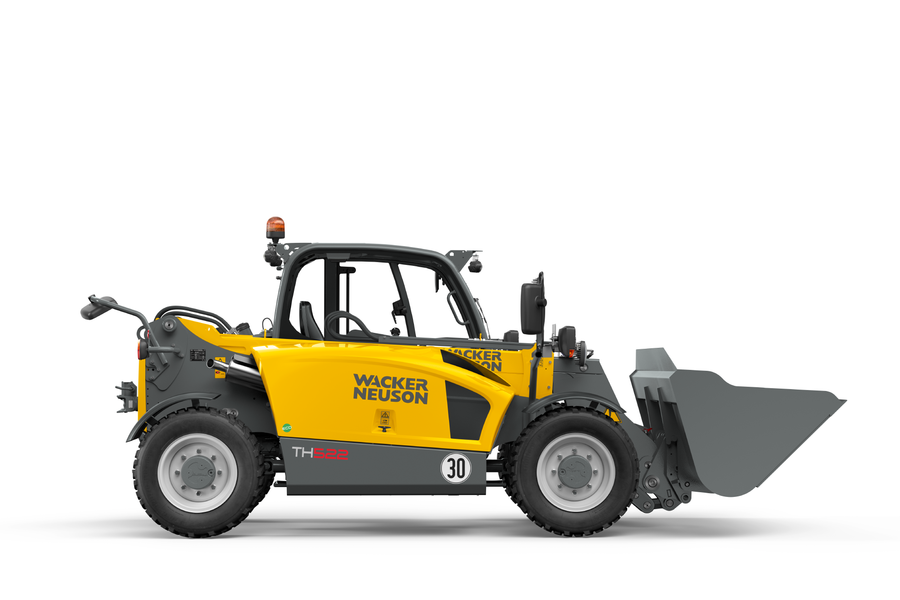

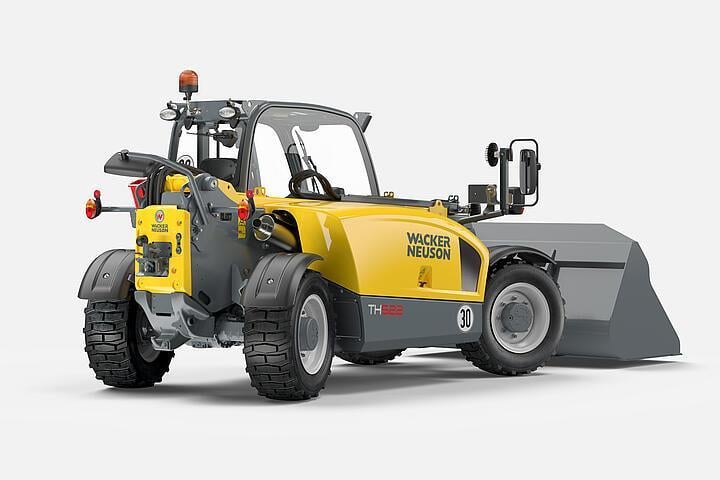

Telehandler TH522: Unites power and manoeuvrability

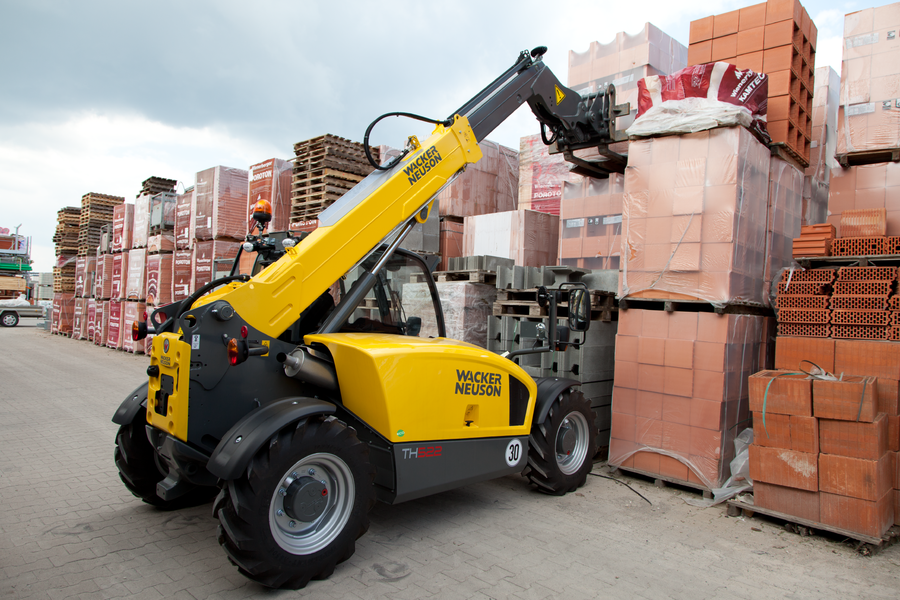

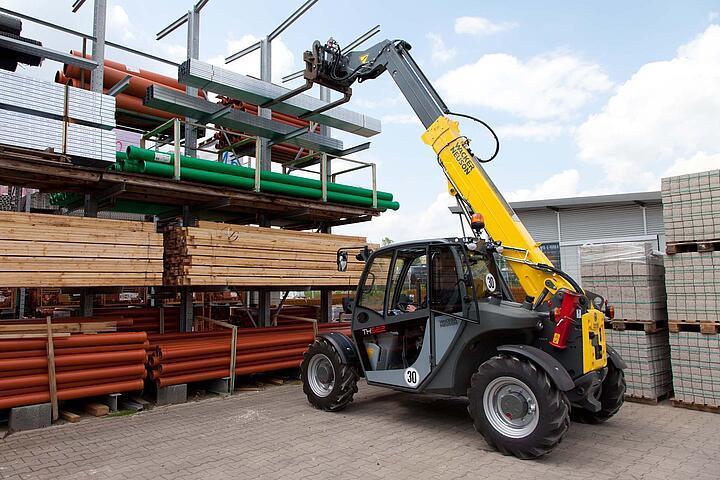

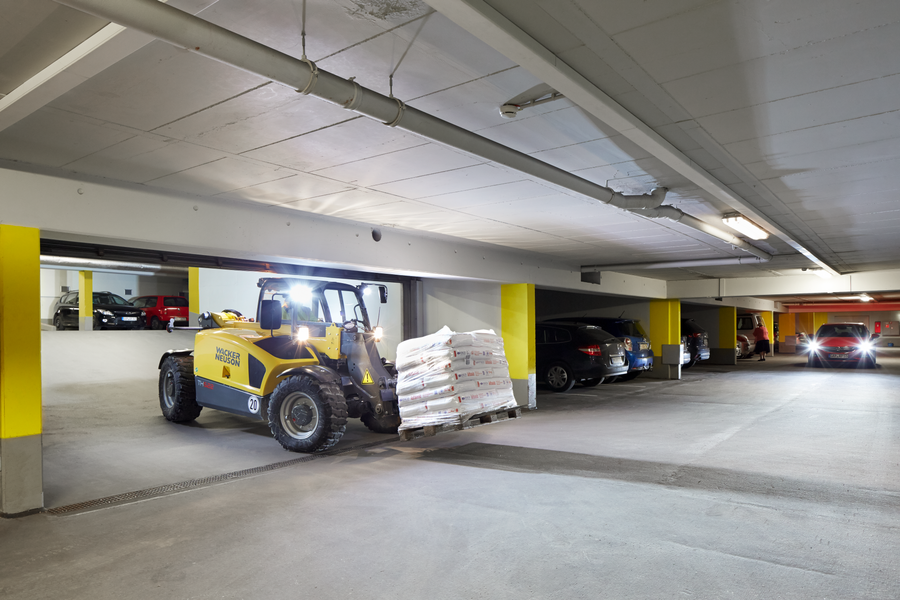

The comfortable TH522 telehandler is characterised by the combination of strong engine output, high level of manoeuvrability and great lift height. Thanks to the all wheel steering and compact design, the TH522 is extremely manoeuvrable. Stacking and transport work is fast and easy in even the tightest of spaces. Equipped with sensitive work hydraulics and a hydrostatic drive, it is possible to use many different attachments.



The telehandler as an equipment carrier

• Telehandlers are used for a huge range of jobs, and Wacker Neuson offers an equally extensive portfolio of attachments. With our comprehensive and well thought-out attachment range, you can turn any model into a multi-functional all-rounder.
• The “telehandler” investment can be used in a vast number of task fields, and as a result, it is very economical.

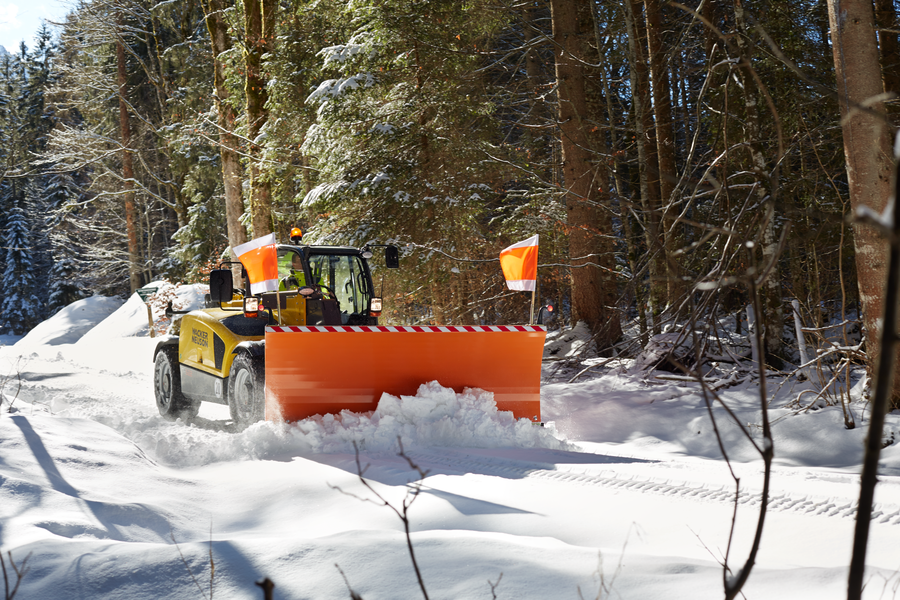

• The machine can be used all year round (e.g. even for winter service), relying on many different attachments depending on the application.

VLS (Vertical Lift System)

• The VLS (Vertical Lift System) is a driver assistance system that makes the work easier for the operator when lifting or lowering loads by extending and retracting the telescopic boom semi-automatically when lifting and lowering, respectively, without the operator having to additionally control the telescopic function. This makes smooth and quick work possible.
• The almost vertical lifting and lowering movement also makes the telehandler with the VLS very stable because the load does not enter into the overload area. Experienced operators can work even faster and safer with the VLS. Inexperienced operators receive valuable support for lifting and loading work.

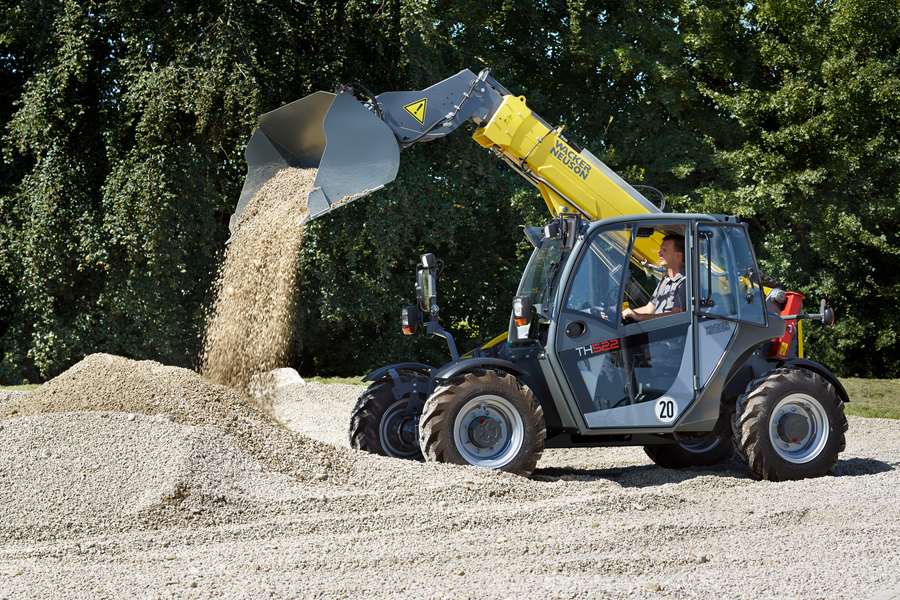

• The VLS (Vertical Lift System) can be categorised into two different modes: In the bucket mode, the telescopic arm always automatically retracts within the upper and lower area and within the upper area the telescopic arm does not automatically extend, this is suitable, for example, for loading works with bulk material. The stacking mode, the telescopic boom does not automatically retract within the lower area, in the upper area the telescopic boom automatically extends, it is possible to simultaneously lower and extend the telescopic arm, this is, for example, suitable for stacking work with pallets.

Ergonomic joystick

The joystick lies securely and comfortably in your hand. As a result, control is direct and sensitive at the same time. In this way, the operator always has the machine and its key functions under control.

• Alongside the standard functions, like selecting the travel direction and the speed, other functions, e.g. the differential lock, the 3rd and 4th control circuit, High-Flow, and all electrical functions, can be operated using the joystick, depending on the model. This enables the comfortable one-handed operation of attachments.
• Concentrating the most important function on the joystick ensures comfortable working even over longer periods of time. This also increases overall efficiency when working with the machine.

High-quality powder coating

• In comparison to conventional wet painting, powder-coating greatly extends the service life of the machine and is also environment friendly.
• The durable powder coating guarantees value retention and ensures an accordingly high resale value for the machine.

High Flow high-performance hydraulics

• The machine can be optionally equipped with a High-Flow high-performance hydraulic. This enables the operation of front attachments, which have a high demand for oil (e.g. snowplow or mulcher). As a result, the application range of the machine increases, as even with the compact machines it is possible to operate demanding attachments.

Quality

Robust Telescopic Arm

The telescopic arm is both sturdy and stable in design, and is positioned in the middle of the machine, which counteracts the twisting. The parallel guide is hydraulic and the sliding elements in the interior pipe of the telescopic arm are maintenance-free. This reduces wear and increases the service life of the machine.

Efficiency

Consistent operating philosophy

• There is a consistent operating concept with clearly categorized and ergonomically organized switches and keypads within each Wacker Neuson machine. In terms of the style, all machine can be operated very similarly, if not the same. This has the benefit that an operator is able to quickly familiarize themselves with different Wacker Neuson machine and is able to work productively.
• The Wacker Neuson operating philosophy provides the operator with a simple understanding of the machine, whereby they are able to orientate themselves well and work safely. This can be seen, for example, in the recurring elements, like the jog dial, joystick, display, general switch positioning, etc.

Brake-inch pedal: Engine output where it is needed

• 1. No pressure on the brake-inch pedal: full power for the drive system. 2. Slightly depressed brake-inch pedal: speed is reduced, more power to the work hydraulics. 3. Strongly depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics. 4. Fully depressed brake-inch pedal: The machine stands still, full power to the work hydraulics.
• The benefits of the brake-inch pedal: Less wear on the service brake as well as optimal performance distribution of the engine output.

Pressure release on the telescopic boom

• The button for the pressure discharge is easy to access outside on the telescopic arm. In this way, different hydraulic attachments can be replaced even faster and more efficiently. This also occurs with a running engine (diesel) or a switched on machine (electric).
• When the pressure relief is activated, the active hydraulic control circuit is depressurized and hydraulically operated attachments can be changed effortlessly and safely.
• Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
• Delivery times can vary - subject to prior sale.
• With the selection of different options, the technical data of the products can vary accordingly. Please note that equipment cannot be changed for editions.













Mechanical-output details

Travel speed stage 1	0 - 7 km/h
Travel speed stage 2	0 - 30 km/h

Mechanical Details

Weight	4,200 kg
Payload max.	2,200 kg
Lift bucket swivel	5,471 mm

Hydraulic

Operating pressure	225 bar
Flow rate	70 l/min
Tank capacity	55 l

Operating fluids

Cooling fluid volume	11 l
Hydraulic fluid volume	68 l
Fuel Tank capacity	70 l
Hydraulic fluid type	ISO VG 46

Chassis

Turning radius	3,281 mm
Operating pressure	450 bar



A	Total length	4,576 mm
B	Total length without bucket	3,747 mm
C	Bucket pivot point (to center of axle)	581 mm
D	Wheel base	2,449 mm
E	Rear overhang	472 mm
F	Height with cab lowered	1,950 mm
F	Height with cab raised	2,150 mm
H	Seat height	962 mm
J	Total working height	6,074 mm
K	Bucket pivot point (max. lift height)	5,471 mm
L1	Load-over height telescopic arm retracted	3,638 mm
L	Load-over height telescopic arm extended	5,056 mm
M1	Dumping height telescopic arm retracted	3,103 mm
M	Dumping height telescopic arm extended	4,520 mm
N	Reach (at M)	293 mm
O	Digging depth	111 mm
P	Total width	1,808 mm
Q	Track width	1,530 mm
S	Ground clearance	256 mm
T	Maximum radius	4,153 mm
U	Radius on the outer edge	3,281 mm
V	Inner radius	1,193 mm
X	Rollback angle at max. lift height	47 °
Y	Dumping angle	35 °
Z	Rollback angle on ground	41 °
-		10.5/80-18 AS ET0

Engine

• Perkins 404J-E22T, 45 kW / 61 HP, Stage V

Steering system

• Hydrostatic all-wheel steering
• Steering angle max. 2 x 40
• Oscillating angle of the rear axle: ± 8°
• Steering cylinder: 2

Tires

• 10.5/80-18 AS ET0

Drive system

• Hydrostatic all-wheel drive system, travel direction can be chosen via joystick
• Operating brake: Mechanical disc brake (combined with parking brake)
• Central service and parking brake in the drive train acts on all 4 wheels

Hydraulics

• 3rd Front control circuit proportional via joystick incl double detent
• Hydraulic oil cooler
• VLS (Vertical Lift System)
• Damping in telescopic cylinder and lifting cylinder (lifting)

Operator's cab

• Cab with heating and ventilation ROPS / FOPS tested with VSG safety window on the right side
• Comfort seat with safety belt
• Hydraulically pilot-controlled joystick with direction switch and proportional telescopic function
• Operating hour meter
• Fuel display
• Roof window wiper
• Tilt display

Other

• Work lights, 1 in front and 1 in rear
• Lighting equipment according to StVZO (road traffic licensing regulations)
• TÜV-report for road travel
• Reversing alarm (acoustic)



V-shaped snowplow

Stone bucket

Side dump bucket

Dozing bucket

Fork and grab - large

Large shear grab

Logging grab - Sickle shaped

Logging grab - Fork shape

Hydraulically adjustable pallet fork with adjustable tines

Hydraulic adjustable pallet fork with lateral displacement

Hydraulically adjustable pallet fork with lateral displacement and adjustable tines

Pallet fork with rotating device

Pallet fork, fork tines with floating mount

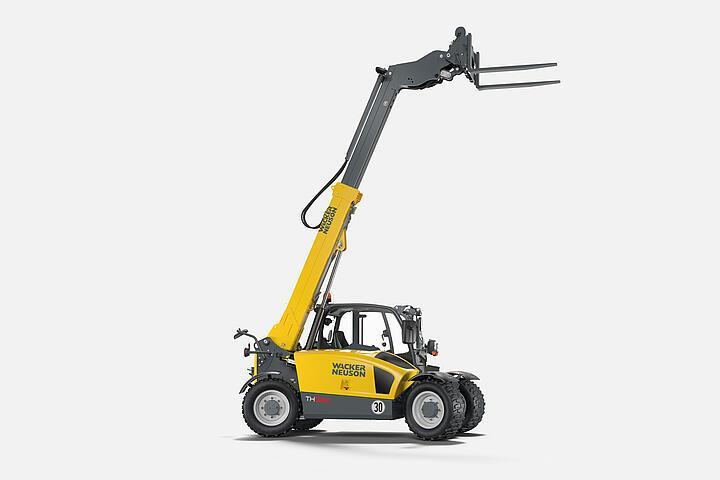

Pallet fork

Fold-down pallet fork

Pot grabber

Surface planer

Earth auger

Asphalt milling unit

Rotary sieve

Digging bucket with interchangeable blade

Digging bucket with ripper teeth

4 in 1 bucket with interchangeable blade

4 in 1 bucket with two interchangeable blades

4-in-1 bucket with ripper teeth

4 in 1 bucket with teeth and interchangeable blade

Round light materials bucket

Round, lightweight bucket with interchangeable blade

Concrete mixing bucket

Fence mower

Sweeper 30 dual

Sweeper 25

Sweeper 20

Sweeper

High pressure washer

Snowplow

Large spreader

Small spreader

Waste container
