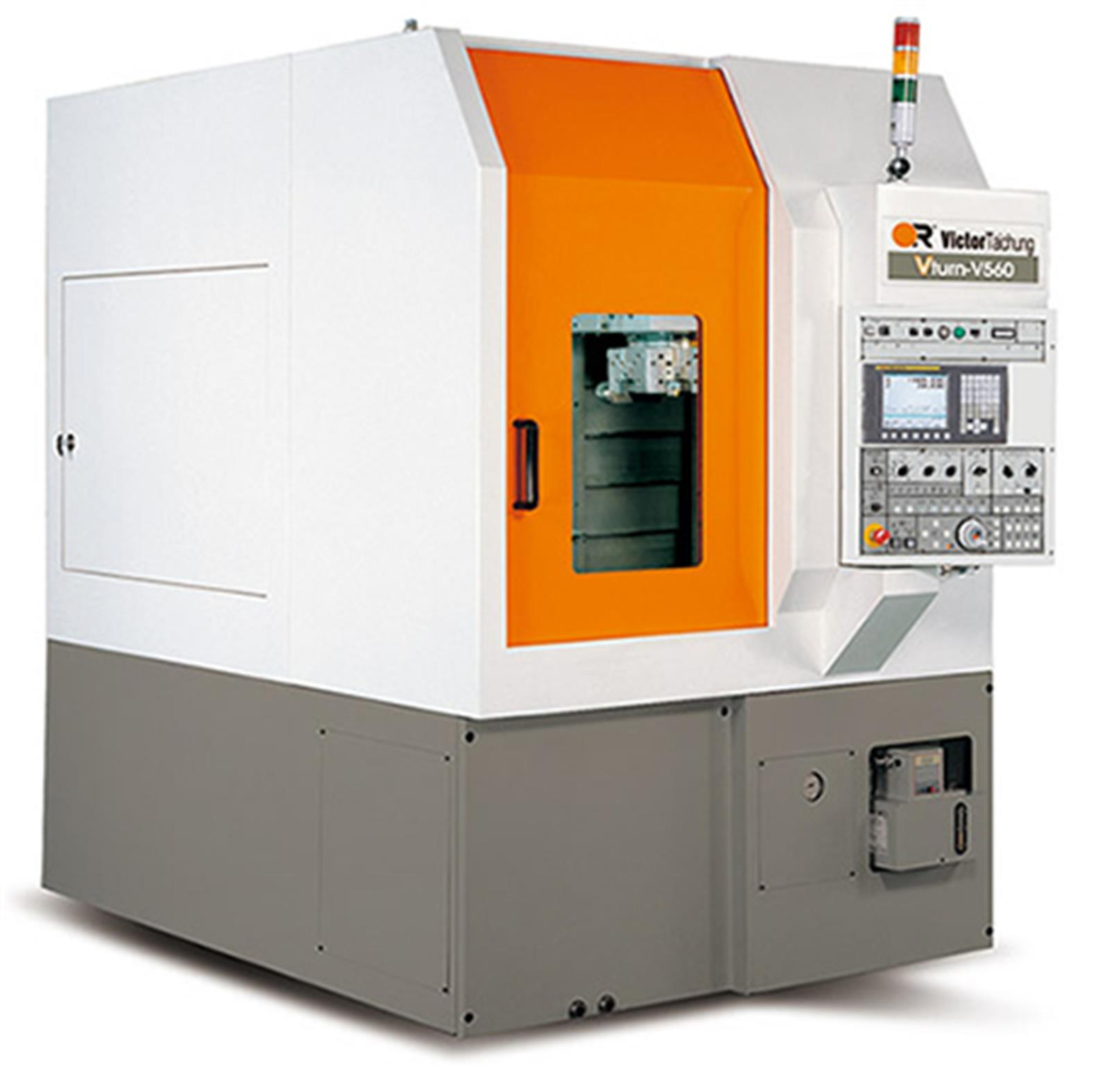

Victor Taichung Vturn-V560 (CV) Vertical Turning Center (Vturn-V560 (CV))

Victor design one new vertical lathe Vturn-560 to meet higher roundness requirement for auto parts.

Compact space floor requirement for easier cell layout in the factory
Ergonomic design for easy loading and unloading for operators
High roundness and surface finish without gravity effect on the turning process
Integral chip disposal without coolant leakage assures clean and clear factory

Solid chuck with soft jaws
Chip conveyor with cart (rear disposal)
Automatic forced lubrication
Fully enclosed splash guarding
Tool holders (exch VDI / BMT tooling)
3 step warning light
Fanuc 01-TF Plus (10.4") control
Remote MPG (handwheel) (except Vturn-V560)
Oil cooler for gearbox (Vturn-V760/V/1000)
Fanuc e-book (CD)

Bigger chucks (21" chuck/1700rpm, 24" chuck/1400rpm, 28 chuck/1200rpm, 32 chuck/1100rpm, 36" chuck/1000rpm, 40" chuck/800rpm)
Oil skimmer
Bigger spindle motor
Renishaw tool presetter (detachable) (Max. 15" chuck for VT-V560, 24 chuck for VTV760, 36 chuck for V1000)
High pressure coolant
Auto door
VDI turret (except Vturn-V1000)
Higher column (100mm more)
Right disposal chip conveyor (for Vturn-V760/V1000)
Higher outlet chip conveyor for Vturn-V560)
Detachable chip conveyor (to reduce the floor space when cleaning)
Fanuc manuals


Item \ model		Unit	Vturn-V560 (CV)
Capacity	Swing over bed	mm	600
	Swing over carriage	mm	540
	Max. turning length	mm	520
	Std. turning dia.	mm	470
Travel	X axis stroke	mm	280+130
	Z axis stroke	mm	540
Spindle	Max. spindle speed	rpm	2500
	Spindle nose	mm	A2-8
	Spindle bore	mm	86
	Inner bearing	mm	130
	Chuck diameter	inch	12" (Opt. 10"/15"/18")
	Max. part weight (incl. chuck)	kg	593
Turret	No. of tools	no.	8
	No. of live tools (opt.)	no.	8 (VDI-40)
			(DIN-5482, axial type, left-hand)
	Tool shank size	mm	32
	Max. boring bar dia.	mm	50
	Exchange time	sec.	1 (hydraulic)
Feedrate	Rapid feedrate	m/min	X/Z = 15/24
	X axis ballscrew	mm	Ø50 x P10 (moving column)
	Z axis ballscrew	mm	Ø40 x P12
	Cutting federate	mm/min	X/Z=0~1260
Motor	Spindle motor	kW	15/18.5 (αP30i)
			Opt. 18.5/22 (αP40i)
	Gearbox		Optional
	X/Z axis servo motor	kW	X:4, Z:4
	Milling motor (opt.)	kW	4 kW
Machine	Fanuc controller		0i-T
	Coolant tank	Liter	185
	W × L × H (including chip conveyor)	mm	1560 × 3250 × 2918
	Power requirement	kVA	40 (45 for CV)
	Net weight	kg	6000
