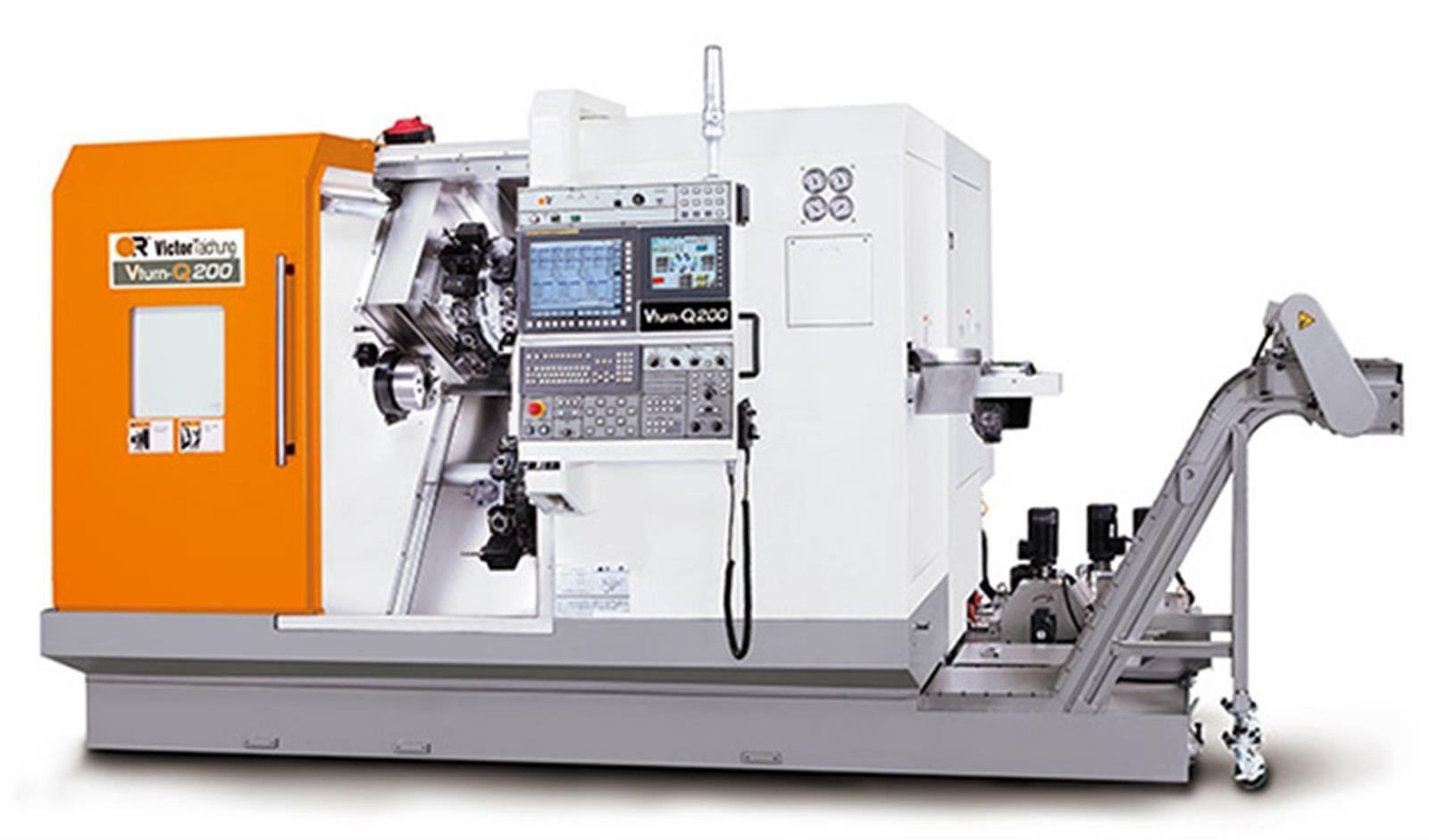

Victor Taichung Vturn-Q200TT(M2) Multi-Tasking Turning Center (Vturn-Q200TT(M2))

Three turrets with Y-axis and twin spindles for Quick & Quantitative production
3rd turret (lower turret) minimizes the cutting time difference between OP-10 and OP-20 to balance cutting tempo.
3rd turret offers sufficient 32 tools for both OP-10 and OP-20 machining applications.
3rd turret can be used as traveling steady rest, work rest or tailstock for more flexible applications.


Hydraulic chuck with soft jaws
Chip conveyor
Hand wheel (Remote MPG)
Coolant flush on Z-axis cover
3 step warning light
Oil skimmer
Fanuc e-book (CD)


Kitagawa power chuck
Large spindle bore (LSB) 66mm (2.6")/4500rpm
Manual tool presetter (Tool-eye)
Robotic part catcher
Part receiver for part catcher.
Air conditioner for electrical cabinet(Panel cooler)
Bar feeder interface
Air blow
Oil mist collector
Hard jaws
Auto door
Steady rest for lower turret
BMT-55 tool holders
Fanuc manuals

Items	Model	Unit	Vturn-Q200TT(M2)
			Vturn-Q200TTY2
Capacity	Swing over bed	mm	330
	Between centers	mm	850
	Max. turning dia.	mm	298
			248
	Std. Turning dia.	mm	298
			248
	Bar capacity	mm	52
	Max. part dia. from 1st spindle to 2nd spindle	mm	294
			248
Axis travel	X1/X2/X3 axis travel	mm	205 (185+20)
			180 (160+20)
	Z1/Z2/Z3 axis travel	mm	Z1/Z3: 230
	E axis travel (right spindle)	mm	600
	Y1/Y2/Y3 axis travel	mm	±45 (90)
	Rapid feedrate	m/min	X1/X3: 24
			Z1/Z3: 36
			Y1/Y3: 12, E: 24
	Cutting federate)	mm/min	X/Z=0~1260
Left spindle	Max. spindle speed	rpm	5000
	Spindle nose (chuck)	inch	A2-6 (8")
	Spindle bore	mm	62
	Bearing inside dia.	mm	100
Right  spindle	Max. spindle speed	rpm	5000
	Spindle nose (chuck)	inch	A2-6 (8")
	Spindle bore	mm	62
	Bearing inside dia.	mm	100
Turret	No. of tools	no.	T1/T3: 12(12)
			T1/T3: 16
	No. of live tools	no.	-12
			16
	Tool shank size	mm	20
	Max. boring bar dia.	mm	40 (BMT-55)
	Exchange time (incl. turret disk up & down)	mm	1.0 (Adjacent)
			1.3 (opposite)
	Milling speed	rpm	6000
Motor	Left spindle motor	kW	22/25
	Right spindle motor	kW	22/25
	Feed servo motor	kW	X1/X2/X3: 4
			Z1/Z2/Z3: 3
			Y1/Y2/Y3: 3
	Milling motor	kW	4.5
Coolant	Tank capacity	L.	420
Controller	FANUC		0i-TD (10.4”)
Machine	Power requirement	kVA	80.2
	Dimension (L×W×H)	mm	4803 x 2335 x 2410
	Net weight	kg	10000 (10200)
			10500
