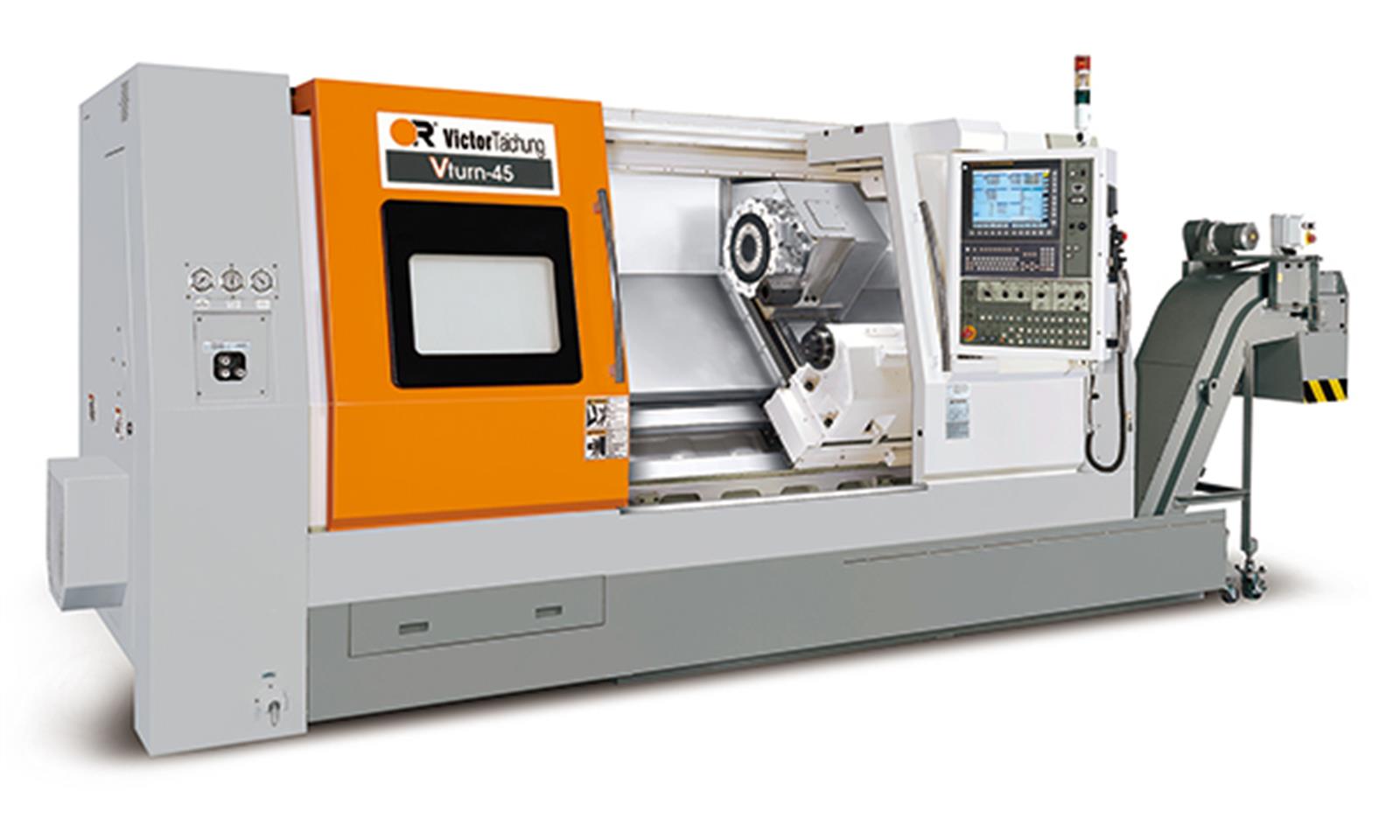

Victor Taichung Vturn-45 Horizontal Turning Center (Vturn-45)

Even heavy cutting lathe with larger spindle for turning length from 1250mm to 4250mm.
Bar capacity 117.5mm, Vturn-40 Spindle speed 2000rpm.
Available with Large spindle bore 135mm.
Spindle bore A2-11 with hydraulic chuck 15” (opt. 18”)
Genuine 45-degree one piece slant bed for maximal structure rigidity
Turning length 1250 / 2200 / 3250 / 4250 mm
C-axis available

Power chuck with soft jaws
Programmable tailstock
Chip conveyor with cart
Automatic forced lubrication
Fully enclosed splash guarding
Tool holders (excl. VDI / BMT turret system)
Fanuc Oi-TF Plus (10.4") control
3 step warning light
Air conditioner for electrical cabinet
Fanuc e-books (CD)

KitagawaⓇ chuck
Hard jaws
Tailstock center
Manual tool presenter
Automatic tool presenter
High pressure coolants
Auto door
Air blow system
Oil-mist remover .
Oil skimmer (std. on Vturn-40,45)
Steady rest (Manual or hydraulic)
C-axis with live tooling
High/low chucking pressure
Fanuc manuals

ITEM \ MODEL		Unit	Vturn-45/125[CM][Y]
			Vturn-45/220[CM][Y]
			Vturn-45/325[CM][Y]
			Vturn-45/425[CM][Y]
MACHINE CAPACITY	Swing over bed	mm	780
	Std. Turning dia.	mm	520
	Max. turning dia.	mm	620 [580]
	Swing over carriage	mm	620
	Center distance	mm	1215
			2165
			3425
			4285
	Hole through draw bar	mm	117.5 (145 for LSB)
AXIS FEEDS	X axis travel :	mm	310+30
	– Std turret		125+315
	- VDI turret		-
	- VDI turret, C-axis		290+50
	- BMT turret, C-axis
	Z axis travel	mm	1250
			2200
			3250
			4250
	Y axis travel	mm	±80
	Rapid feed - X/Z axis	m/min	24/24
			20/20
			20/12
			20/8
	Rapid feed - Y axis	m/min	4
	Feed motor - X/Z axis	kW	4 / 4 [7/7]
			4 / 7 (@30i_30Nm) [7/6]
			4 / 6 (@40i_38Nm) [7/6]
			4 / 6 (@40i_38Nm) [7/6]
	Feed motor - Y axis	kW	-
	JOG feed rate	mm/min	0~1260
	Ball screw dia x pitch	mm	32 x P8 (X)
			50 x P10 (Z)
		mm	36 x P10 (X)
			50 x P16 (Z)
		mm	63 x P16 (Z)
		mm	70 x P12 (Z)
SPINDLE	Spindle nose (chuck)	inch	A2-11 (15”)
	Max. spindle speed	rpm	2000
	Spindle motor power	kW	30 / 37
			With gearbox
	Bearing inside dia.	mm	190 (220 for LSB)
			, (260 for XSB)
	Spindle bore	mm	135 (160 for LSB)
			, (205 for XSB)
TURRET	No. of tools	no.	10 (opt. 12)
			(12 for CM)
	No. of live tools	no.	6 (CV), 12 (CM)
	Tool shank size	mm	32
	Coupling dia. (mm)	mm	320 [320]
			250 [320]
			320 [320]
			320 [320]
	Max. boring bar dia.	mm	50 [BMT-75]
	Exchange time (T-T)	sec	1
	Milling speed	rpm	3000
	Milling motor	kW	7
TAILSTOCK	Quill dia.	mm	150
	Quill stroke	mm	150
	Quill taper		MT#5 (live)
OTHER	CNC controller (FANUC)		0i-T
	Tank capacity	L.	600
			700
			850
			950
	Approx. machine size	m	5.3 x 2.7 x 2.2
			7.1 x 2.7 x 2.2
			8.5 x 2.7 x 2.2
			9.5 x 2.7 x 2.2
	Net weight	kg	10400 [11700]
			15580 [15880]
			17580 [17880]
			20180 [20480]
