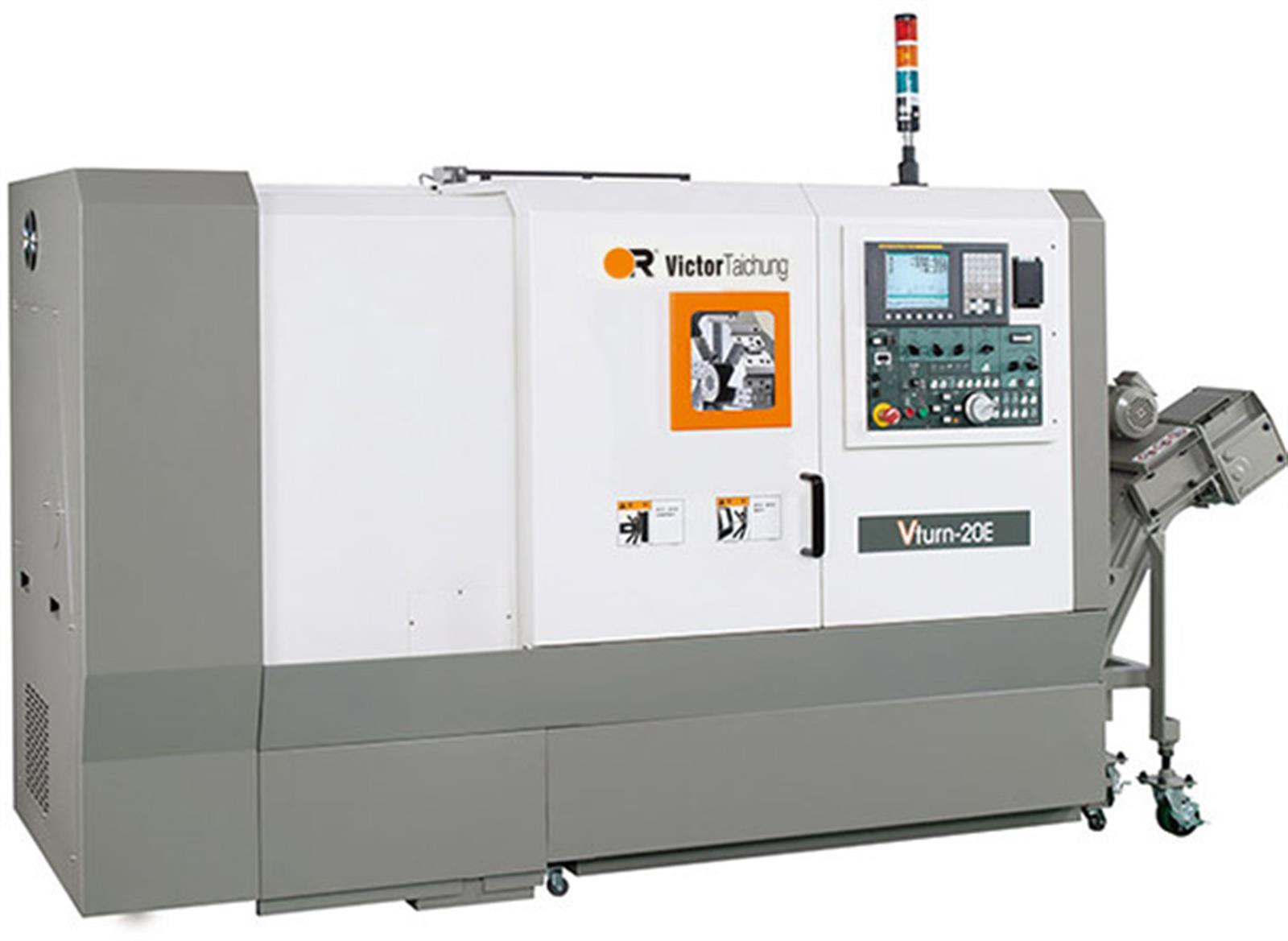

Victor Taichung Vturn-26E Horizontal Turning Center

Genuine 45° slant bed with box slideways
Z-axis ball screw diameter 40mm
Meehanite® certificated casting
8" chuck / 4200rpm for Vturn-20E and 10" chuck / 2500rpm for Vture-26E
Programmable tailstock and chip conveyor
Renowned reliability chuck is foot operated for safety and easy operation

Fully enclosed splash guard
T nuts for table slot
Hand tools and toolbox
Rigid tapping
High pressure coolants (5 bars/50Hz, 7 bars/60-z)
Remote MPG
3-step warning light
Leveling blocks
Fanuc manuals by CD-ROM

Dynamic graphic display (including Manual guide 01)
Spindle oil cooler
Air conditioner for electric cabinet
Chip conveyor with cart
Full 4 axis control
Auto tool length measurement
Air gun
Coolant gun
Oil skimmer
Oil mist collector
Fanuc manuals
CE marked components

ITEM \ MODEL		Unit	Vturn-26E
Machine Capacity	Swing over bed	mm	520
	Std. turning dia.	mm	260
	Max. turning dia.	mm	380
	Swing over carriage	mm	350
	Center distance	mm	650
Axis Feeds	X axis travel	mm	190+50
	Z axis travel	mm	600
	Rapid feed - X/Z axis	m/min	12 / 15
	Feed motor - X/Z axis	kW	2.5 / 2.5
	Cutting federate	mm/min	0 ~ 1260
	Ball screw dia x pitch	mm	28 x P6 (X)
			40 x P10 (Z)
Spindle	Spindle nose (chuck)	inch	A2-8 (10”)
	Max. spindle speed	rpm	2500 (opt. 3500)
	Spindle motor power (cont/30min)	kW	15 / 18.5
	Bearing inside dia.	mm	130
	Spindle bore	mm	87
	Hole through draw bar	mm	75
Turret	No. of tools	no.	10 (opt. 12)
	Tool shank size	mm	25
	Max. boring bar dia.	mm	50
	Exchange time (T-T)	sec	1
Tailstock	Quill dia.	mm	110
	Quill stroke	mm	100
	Quill taper	mm	MT#5
Machine	CNC controller	FANUC	0iMate-TD
	Tank capacity	L.	100
	Power requirement	kVA	40
	Machine dimension	mm	3800 x 1700 x 2000
	Machine weight	kg	5400
