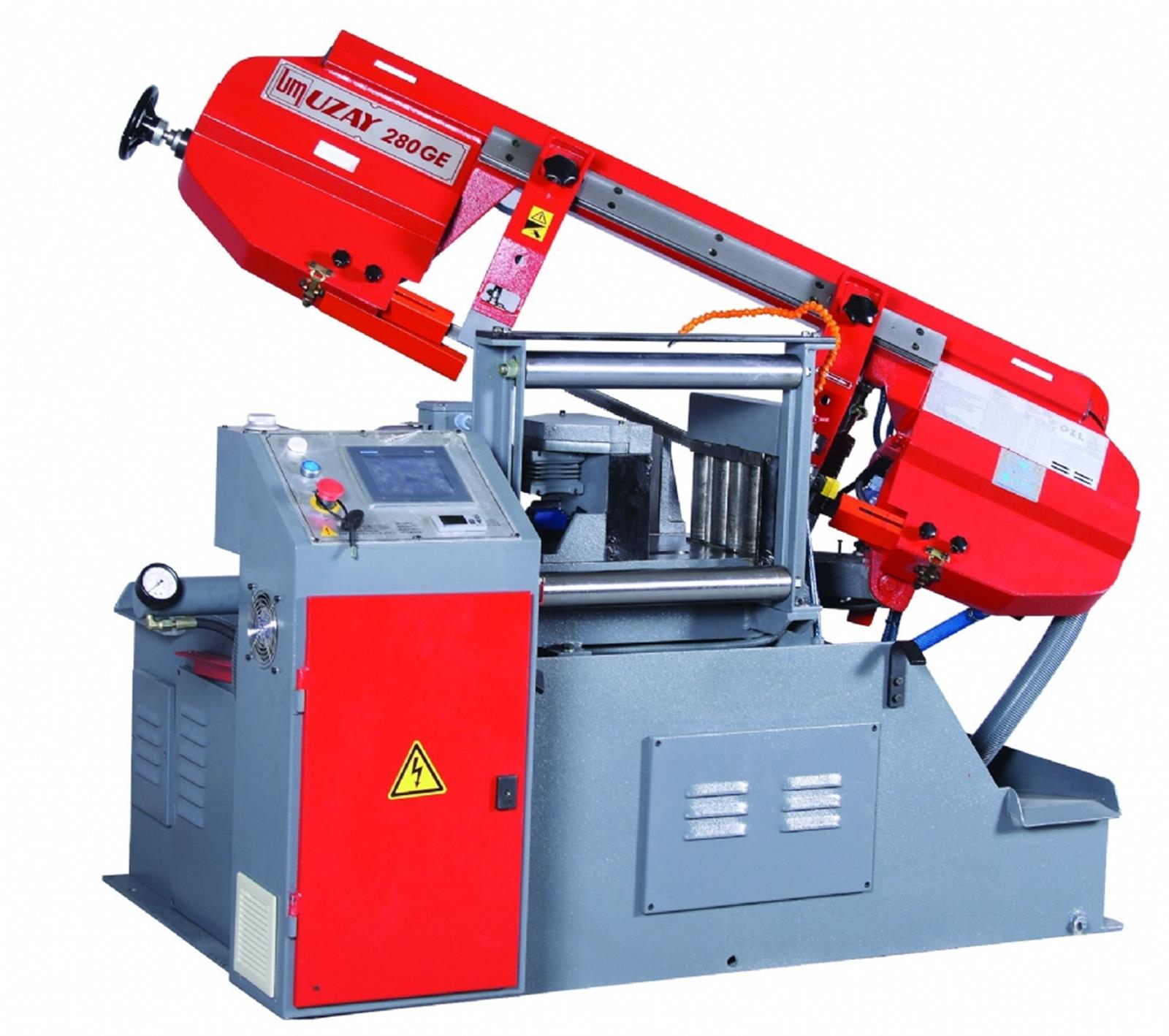

Uzay Makina UMSO 280 GE Angle-Cut Semi-Automatic Bandsaw Machine

It is a fully automatic model with articulated PLC programming. The material application process is carried out with roller drivers in the vices. The sliding length is adjusted with an encoder. They are models that can make angled cuts in one direction by turning the upper body. Suitable for harsh working conditions.

90°	RECTANGLE	SQUARE	ROUND
	200×280	250	280
30°	RECTANGLE	SQUARE	ROUND
	200×280	250	280
45°	RECTANGLE	SQUARE	ROUND
	150×230	150	180

Main Engine	1.5 kW 1500 rpm
Cooling Engine	0.12 kW 3000 rpm
Hydraulic Motor	0.25 kW 1500 rpm
Drive Motor	0.25 kW 1500 rpm
Chip Conveyor	0.12 kW 1500 rpm
Cutting Speed	20-100 m/min
Tape Measure	3960x27x0.09mm
Loading Weight	930 kg
Feeding Height	670mm
Working Dimensions	2100x1800x1750mm

• Inverter lane speed control
• Hydro-mechanical belt tensioning
• Ribbon break plug
• coolant pump
• 1200 mm material stand
• hydraulic vise
• Cutting height adjustment
• Roller clamp system
• Mechanical overprint
• 45° angled cut to the right
• Height adjustment with encoder
• Possibility to make 10 different programs
• Possibility of programming the number of cuts
