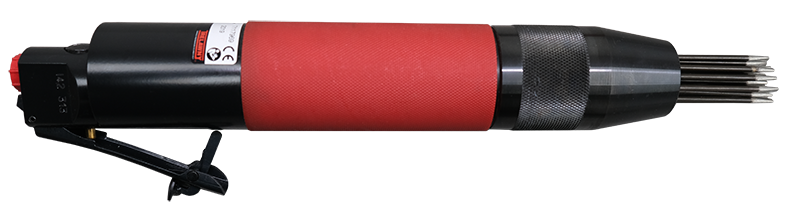

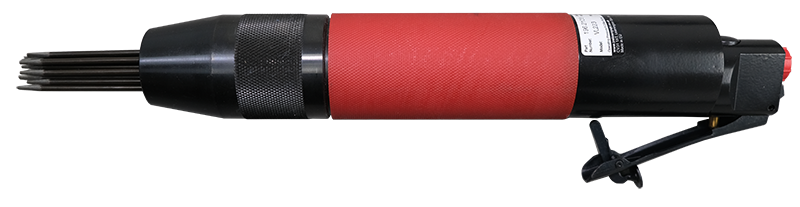

Trelawny VL223 Needle Scaler Low Vibration Pneumatic Scaler (VL223 Needle)

The Trelawny VL223 Medium duty low vibration needle/chisel scaler is an in-line tool offering the ideal balance of weight and performance for many scaling applications. Featuring Trelawny’s unique Vibro Lo™ vibration reduction system the VL range offers unrivalled performance, reliability and reduction in levels of harmful vibration. Offered as both needle and chisel models or as a kit with both attachments for multiple applications.

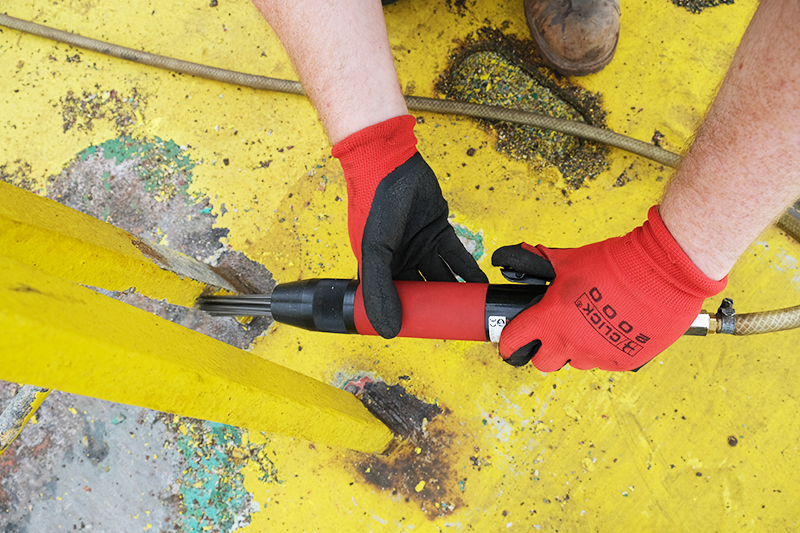

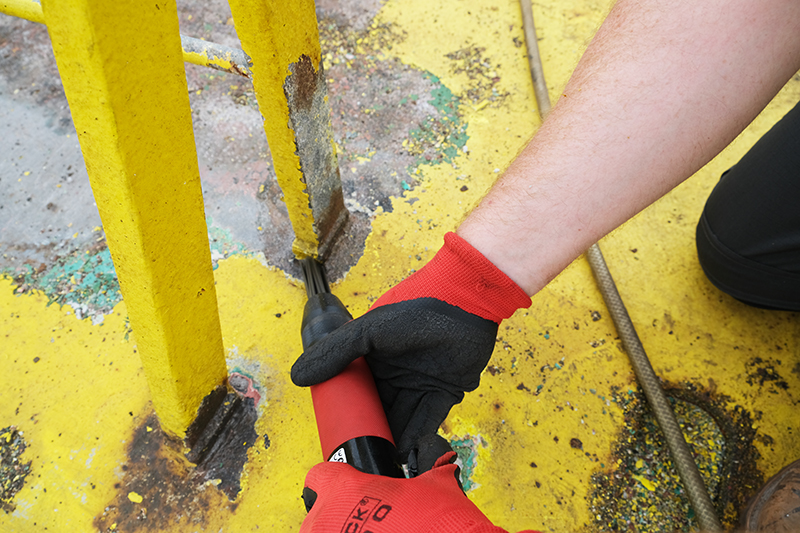

• Removal of coatings, corrosion and other accumulated materials
• Slag removal and stress relieving welds
• Cleaning concrete for repair
• Cleaning mixers, formwork and machinery

• Medium duty inline scaler
• Unique Vibro-Lo™ vibration reduction system giving levels up to 8 times lower than standard
• 19 x 3mm needles
• Dust shroud attachment available
• Requires no additional tools for changing needles/chisels
• Quality engineered to exceed industry expectations

Model	VL223 Needle
Trelawny Part No.	196.2103
Type	In-line
Needle Quantity	19 x 3 mm
Weight (kg)	2.35
Blows per min (BPM)	2400
Air Consumption (lps - cfm)	1.89 - 4
Air Inlet Size (BSP)	¼
Overall Length (mm)	370
Noise Level (LwA db(A))	90.7
Vibration Level (Aeq m/s2)	2.56

Part Number	196.2103
Type	In-line
Piston Diameter	23.5mm
Piston Stroke	11mm
Blows Per Minute	2400
Air Consumption (@ 6.2bar)	1.89lps (4.0cfm)
Air Inlet Size (BSP)	1/4
Needle Quantity	51 x 2mm / 19 x 3mm
Overall Length	370mm
Weight (kg)	2.35
Noise Level Lwa db(A)	90.7
Vibration (Primary)	2.55

Chisel Tip Needles

These needles will clean the same material as a pointed tip but will leave light surface markings.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.2112	3mm	6 x sets of 12 needles	1B
	413.2119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.2128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.2110	3mm	Box of 100 needles	All Models
	443.2107	3mm	Box of 1000 needles	All Models

Flat Tip Needles

The flat tip needles will reduce marking on metal surfaces and can actually give a polishing finish.
For use on thin gauge metals and any surface where light treatment is required.
A 2mm needle used on a welding joint produces a similar effect to shot peening, reducing stress in the weld.



IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	412.1129	2mm	6 x sets of 29 needles	1B
	412.1151	2mm	6 x sets of 51 needles	2B,2BPG,VL203, VL223
	412.1165	2mm	6 x sets of 65 needles	3BPG, VL303, LRS
	452.1110	2mm	Box of 100 needles	All Models
	442.1107	2mm	Box of 2000 needles	All Models
	413.1112	3mm	6 x sets of 12 needles	1B
	413.1119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.1128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.1110	3mm	Box of 100 needles	All Models
	443.1107	3mm	Box of 1000 needles	All Models
	414.1119	4mm	6 x setf of 19 needles	3PGS, VL303,LRS
	454.1105	4mm	Box of 50 needles	3PGS, VL303,LRS
	444.1107	4mm	Box of 500 needles	3PGS, VL303,LRS
	443.1105	3mm	1000 needles – 127mm	All Models
	443.1115	3mm	19 needles – 127mm	All Models

Spark Resistant Berryllium Copper

Available in 3mm flat tip only for use in potentially hazardous areas.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	403.1312	3mm	Box of 12 Needles	1B
	403.1319	3mm	Box of 19 Needles	2B, 2BPG, VL203, VL223, EX
	403.1328	3mm	Box of 28 Needles	3BPG, VL303, LRS, EX
	453.1310	3mm	Box of 100 Needles	All Models
	443.1307	3mm	Box of 500 Needles	All Models

Pointed Tip Needles

Sharpened to a conical point, these are the most effective in breaking through very hard scale on materials where some surface indentation is permissible – or where a roughening or keying of the surface is actually desirable

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.3112	3mm	6 x sets of 12 needles	1B
	413.3119	3mm	6 x sets of 19 needles	2B,2BPG, VL203, Vl223
	413.3128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.3110	3mm	Box of 100 needles	All Models
	443.3107	3mm	Box of 1000 needles	All Models
	414.3119	4mm	6 x sets of 19 needles	3BPG, VL303, LRS
	454.3105	4mm	Box of 50 needles	All Models
	444.3107	4mm	Box of 500 needles	All Models

Stainless Stain Needles

Available in 3mm flat tip form only, to be used in applications such as refurbishment of food processing machinery or areas of high humidity where the corrosive effect on needles would be prohibitive. Used on decorative concrete surfaces where contamination of the surface from carbon steel needles is undesirable.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	453.1207	3mm	Box of 100 Needles	All Models
	443.1207	3mm	Box of 500 Needles	All Models

Chisels

Image	Trelawny Part No:	Shank Type	Length (mm)	Blade Width (mm)	Applications
	704.3101	½ Square	178mm	19mm	Weld spatter removal & Chipping rust
	704.3103	½ Square	178mm	64mm	Wide Flat Chisel for the removal of peeling paint and rust
	704.3107	½ Square	254mm	19mm	Flat chisel for weld spatter and sand cast cleaning
	704.3110	½ Square	178mm	50mm	Spark resistant aluminium bronze for use in hazardous areas
	704.3205	½ Square	178mm	35mm Cranked	Weld flux and thick coating removal

Image	Part No:	Description
	418.2003	TVS Vacuum Shroud to fit VL203/VL223 Needle Scalers
	446.2120	VL203/VL223 Chisel Attachment Kit
	446.2003	VL203/VL223 Needle Scaler Service Kit
	446.2203	VL203/VL223 Chisel Scaler Service Kit
	413.2119	6 Sets of 19 Needles (3mm Chisel Tip) For use with VL203/VL223 Needle Scalers
	601.2030	VL203/VL223 Needle Holder (19 x 3mm)
	712.2003	VL203/VL223 Front Spring
	458.1530	¼ BSP Inline Lubricator Assembly   Consists of whip hose, whip check and ¼ lubricator
