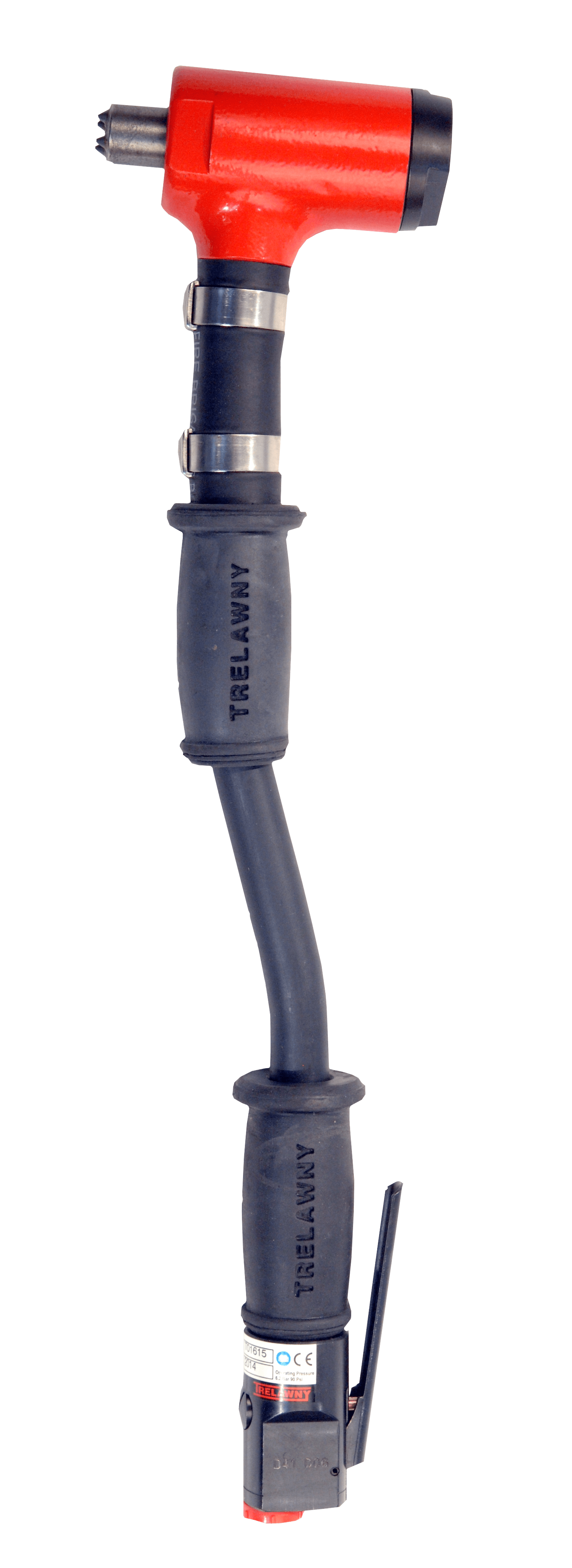

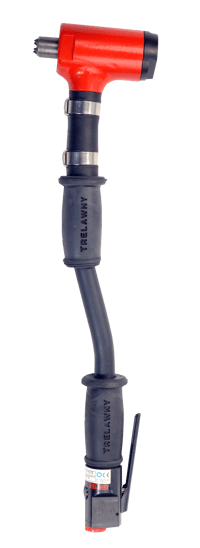

Trelawny Scaleforce Handheld Scaling Hammer SF1-EX ATEX Scaling Hemmer (SF1-EX ATEX Scaling Hemmer)

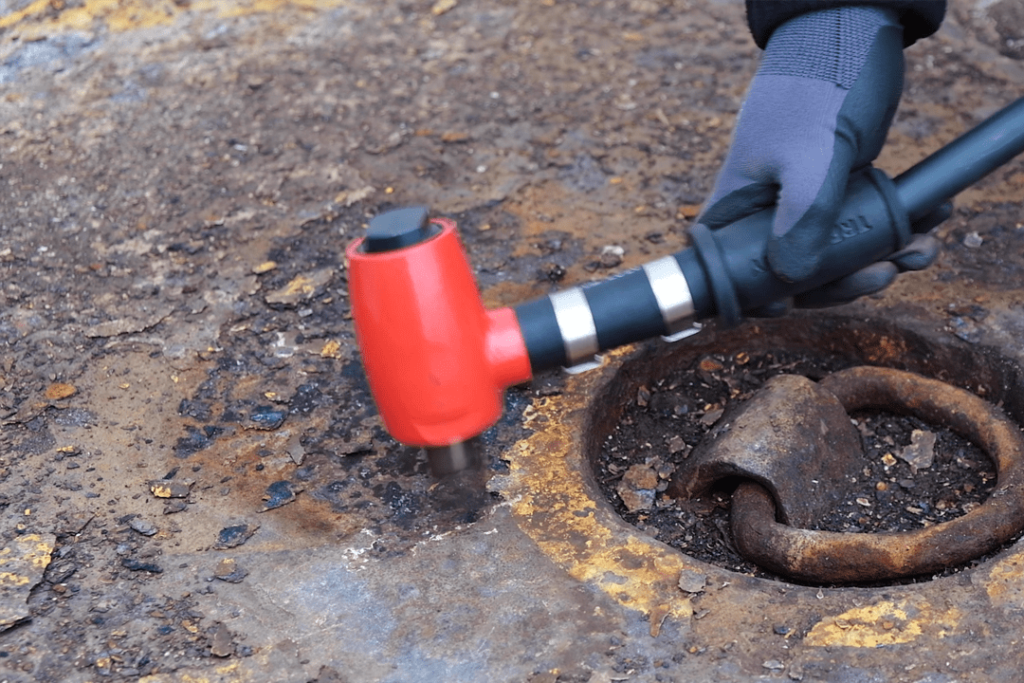

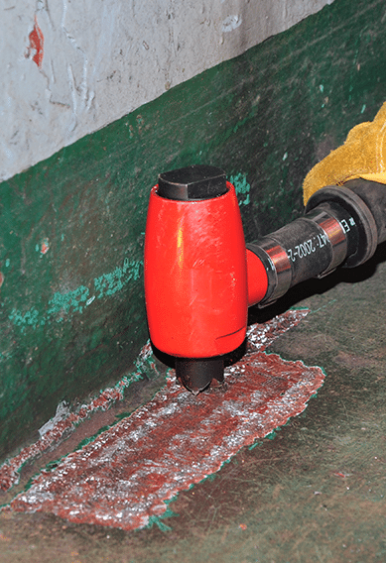

Trelawny's SF range of scaling hammers are highly effective for quick removal of heavy scale and coatings. The SF1/VLSF1 single head tools are perfect for smaller and awkward to reach areas, being lightweight and easy to handle it's perfect for reaching behind structures and up against bulkheads.

• Quick Removal of heavy coatings and rust
• Preparation before blasting
• Oil platform maintenance
• Cleaning pipes

• Option of replaceable carbide tipped scaling heads or economical hardened steel single piece pistons
• Beryllium copper spark resistant heads for use in potentially explosive environments
• ATEX approved model for use without hot work permits
• Ergonomic handle for ease of use – also available with a short handle and/or inline for tight areas
• Simple and robust design for low and easy maintenance

Part No.	196.5110
IMPA Part No.	N.A
ISSA Part No.	N.A
Weight (kg)	2.5
Length (mm)	515
Working Height (mm)	140
Blows Per Min (BPM)	3000
Air Consumption (lps – cfm)	4.25-9
Noise Level (db (A))	92.5
Vibration level (Aeq m/s2)	3.7

Image	Trelawny Part No.	IMPA Part No.	ISSA Part No.	Description
	426.5351	59.03.85	55.093.12	Cruciform taper fit cutter head Tungsten carbide tipped head – for fracturing and removal of coatings. To fit 151.5100 / 196.5095 / 153.5300
	606.5303	59.03.89	55.093.13	Cruciform taper fit cutter head Beryllium copper spark resistant – for fracturing and removal of coatings. To fit 196.5110 / 153.5310
	426.5252	N.A	N.A	Bush hammer taper fit cutter head Tungsten carbide tipped head – creates a heavier key on the surface. To fit 151.5105 / 153.5305

Image	Part Number	IMPA Part Number	ISSA Part Number	Description
	614.5301	N.A	N.A	Brush Seal
	815.5550	N.A	55.091.73	Whip Check Safety whip check for securing air hose 1/2″ – 1 1/4″
	458.1555	N.A	N.A	Whip Hose & Oiler Assembly Consists of whip hose, whip check and 1/2” lubricator
