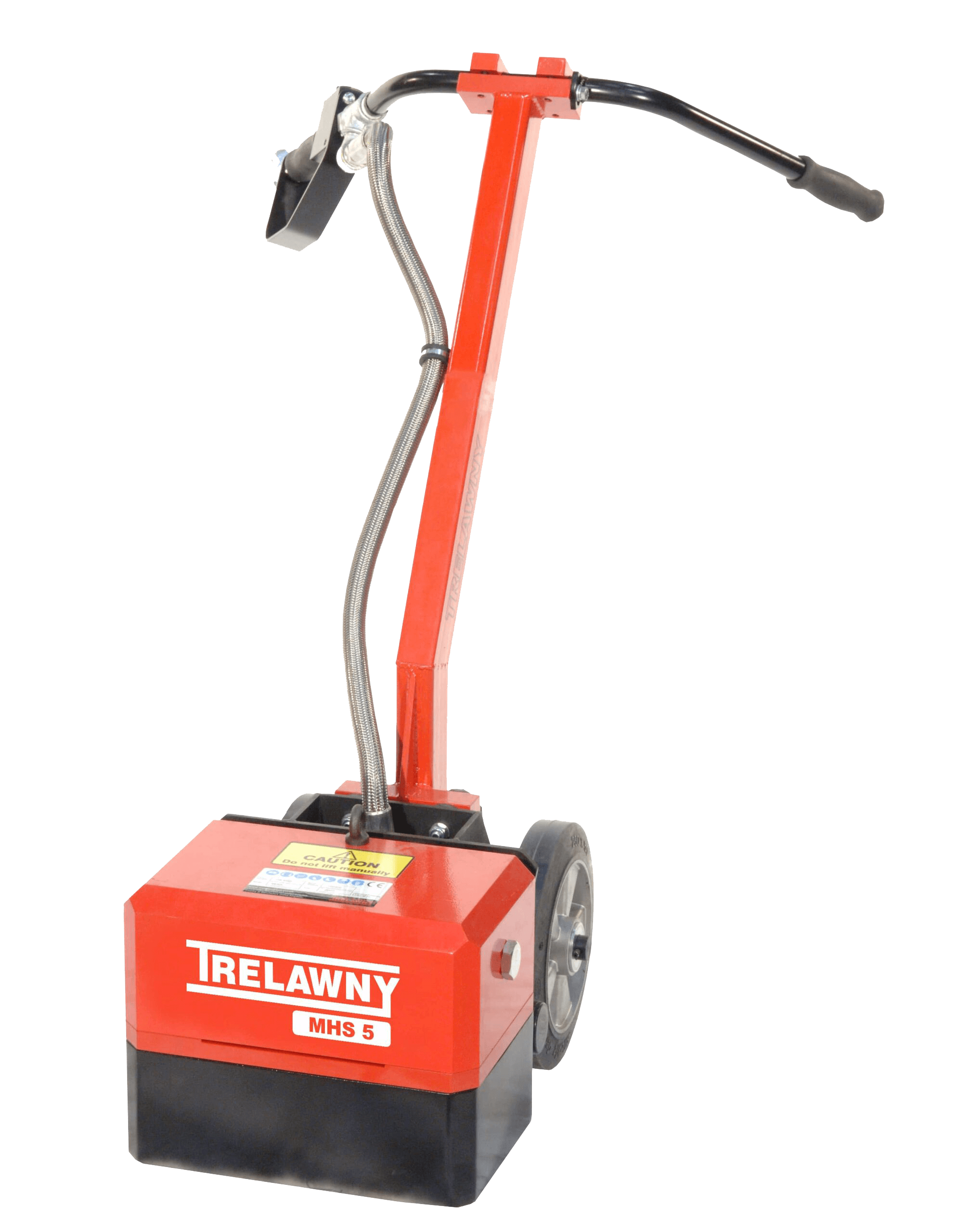

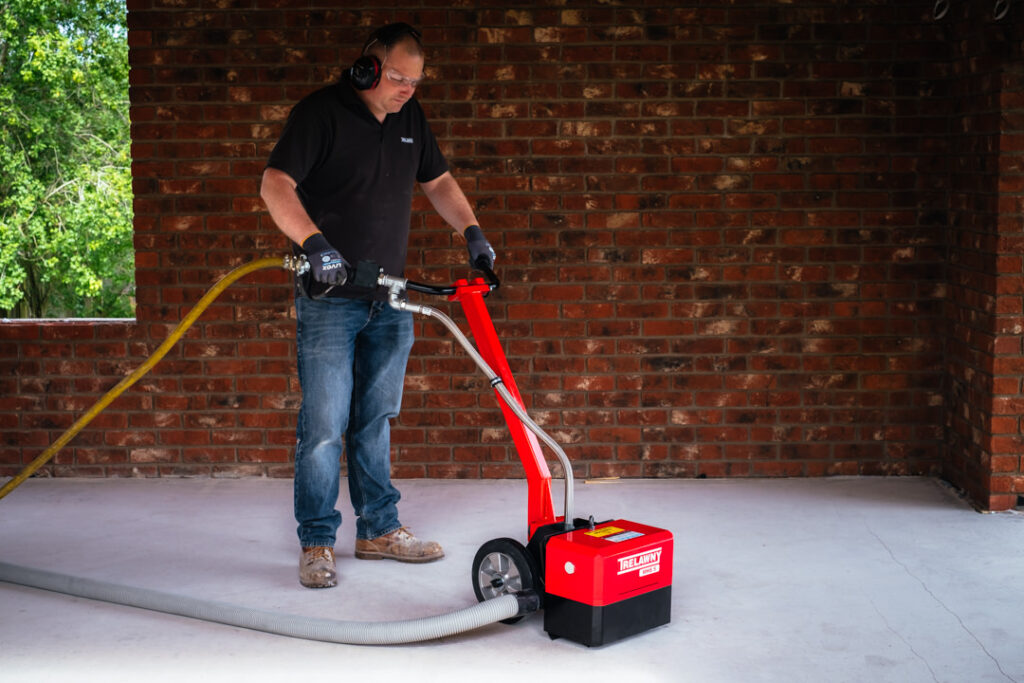

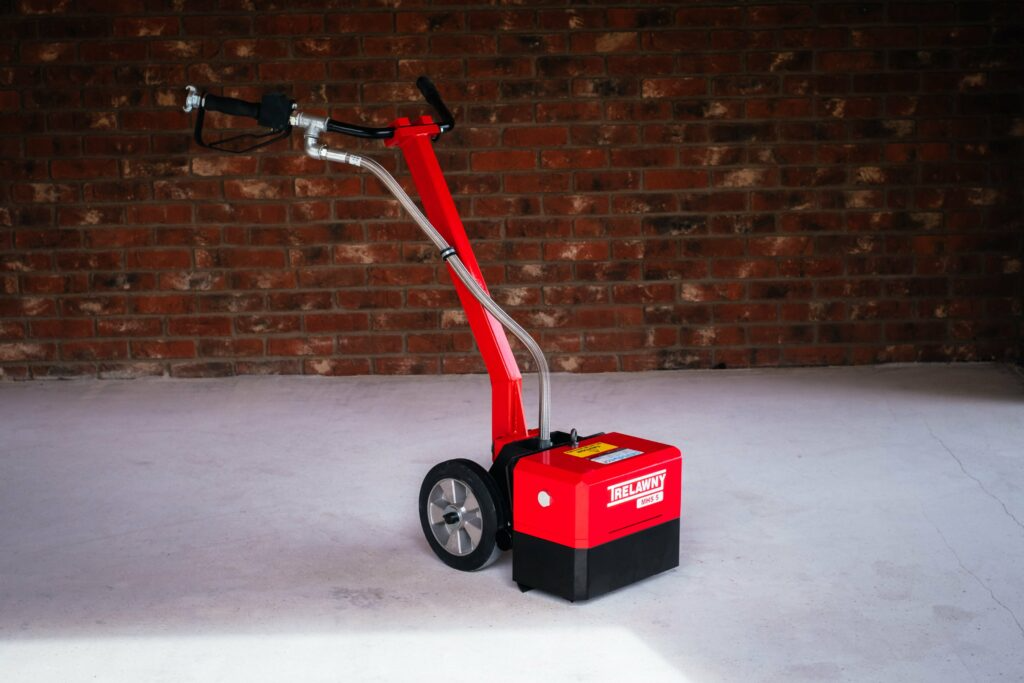

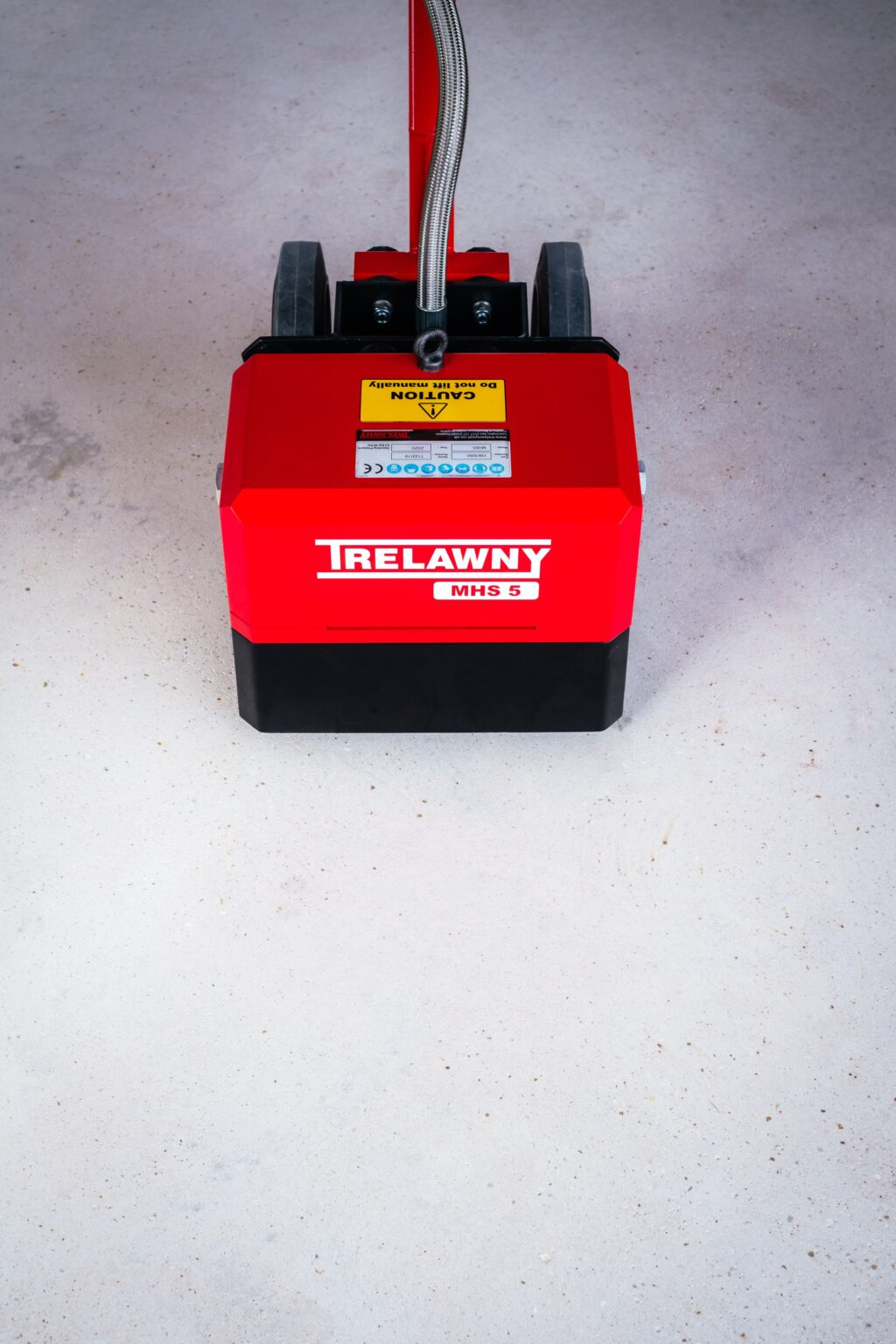

Trelawny MHS5 Pneumatic Concrete Floor Scabbler (MHS5)

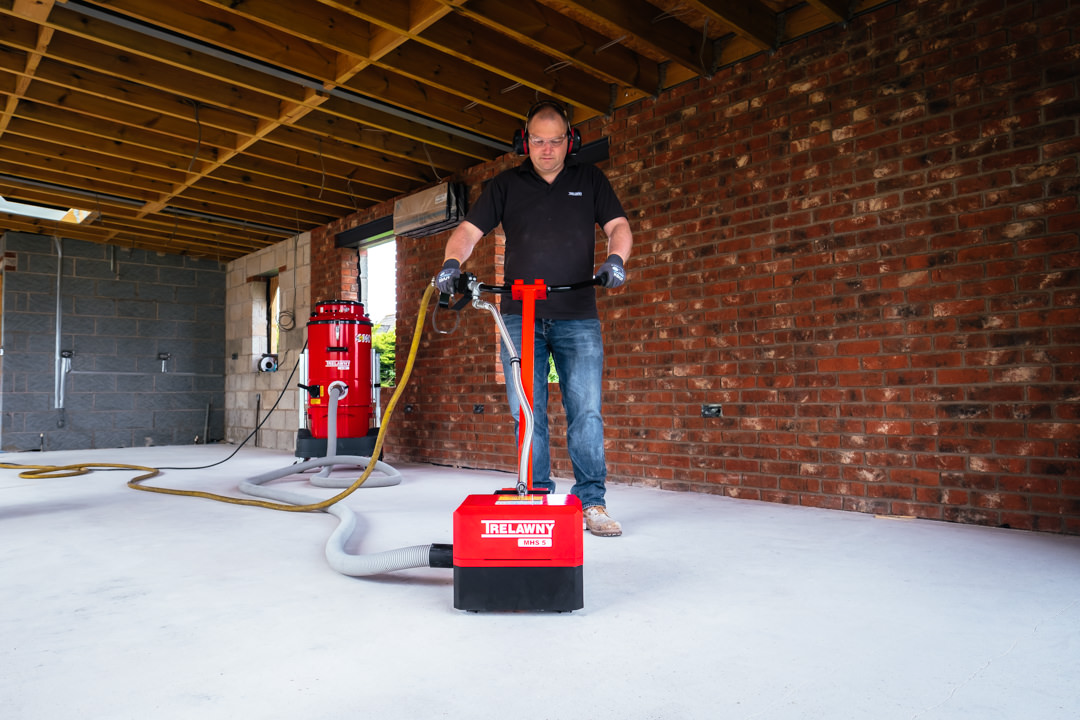

The MHS5 is the heavy duty floor scabbler of choice for fast reduction of levels. 5 50mm (2”) carbide tipped heads give 1300 powerful blows, each producing a heavy key for the application of fresh concrete and overlays. Integrated TVS® vacuum shroud allows the connection of an industrial dust collector for collecting nuisance and hazardous dust. Production rates in excess of 40 m² per hour.

• Fast reduction of levels
• Correct preparation for new applications of concrete
• Removal of heavy coatings
• Removal of contaminated materials and coatings with safe containment via standard fit Trelawny TVS® vacuum shroud

• 5 replaceable carbide tipped pin fit scabbling heads
• Height adjustable handle for operator comfort
• Heavy body gives control, performance and long service life
• Efficient design gives 45% lower air consumption than the main competition without sacrificing performance
• Fitted with a Trelawny Vibro-Lo™ vibration dampening system for operator comfort

Part Number	159.5050
Weight (kg)	114
Length (mm)	1100
Height (mm)	970
Width (mm)	720
Width at Handle Bar / Block Width	720 (28.34”) / 346 (13.62”)
Cutting Width (mm)	290 (11.4”)
Closest cut to wall	25 (.98”)
Blows Per Min (BPM)	1300 x 5
Air Hose Bore (Inlet Coupling 3/4″ BSP claw)	19mm (0.75”)
Removal Rate	30m 2/hr (323ft 2/hr)
Depth of cut (Average) *	3.0mm (1/8””), dependent on operator
Air Consumption (lps – cfm)	38 – 80
Noise Level (db (A))	94.7
Vibration level (Aeq m/s2)	16.5
Vibration level (Aeq m/s2) (secondary	23.1

Part Number	159.5075
Weight (kg)	114
Length (mm)	1100
Height (mm)	970
Width (mm)	720
Width at Handle Bar / Block Width	720 (28.34”) / 346 (13.62”)
Cutting Width (mm)	290 (11.4”)
Closest cut to wall	25 (.98”)
Blows Per Min (BPM)	1300 x 5
Air Hose Bore (Inlet Coupling 3/4″ BSP claw)	19mm (0.75”)
Removal Rate	30m 2/hr (323ft 2/hr)
Depth of cut (Average) *	3.0mm (1/8””), dependent on operator
Air Consumption (lps – cfm)	38 – 80
Noise Level (db (A))	94.7
Vibration level (Aeq m/s2)	16.5
Vibration level (Aeq m/s2) (secondary	23.1

Image	Part Number	Description
	441.5360	Cruciform Scabbler Head   Pin fit Flatter surface profile, ideal for fast reduction of material
	441.5359	5 Point Bush Hammer Scabbler Head   Pin fit Rough pitted profile, ideal for application of fresh concrete or coatings
	441.5369	9 Point Bush Hammer Scabbler Head   Pin fit Rough pitted profile, ideal for application of fresh concrete or coatings

Image	Part Number	Description
	815.5550	Whip Check
	859.1580	¾’’ BSP Inline Lubricator
	458.1580	Whip Hose & Oiler Assembly   Consists of whip hose, whip check and ¾’’ lubricator
	843.0752	¾’’ Air Hose   Complete with couplings 15m length
