Trelawny B Series Pnuematic 1B Chisel Scaler

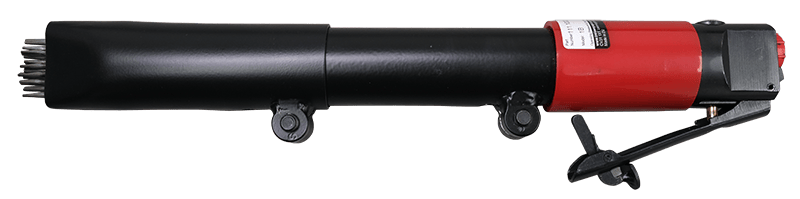

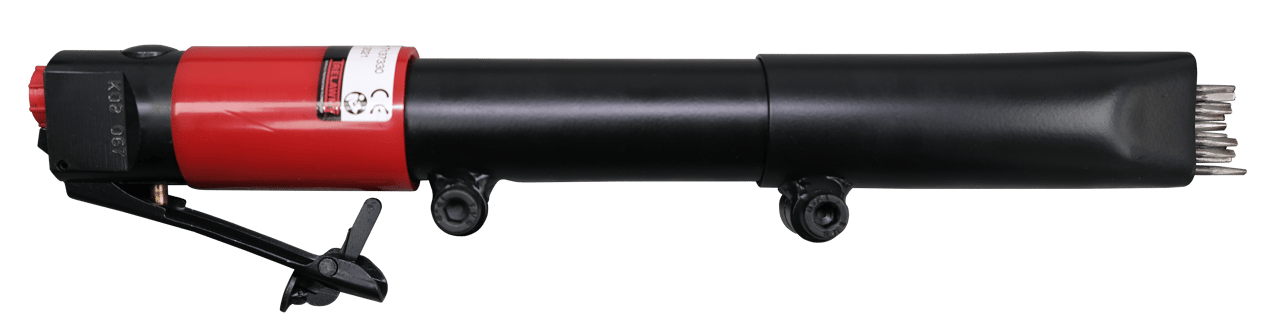

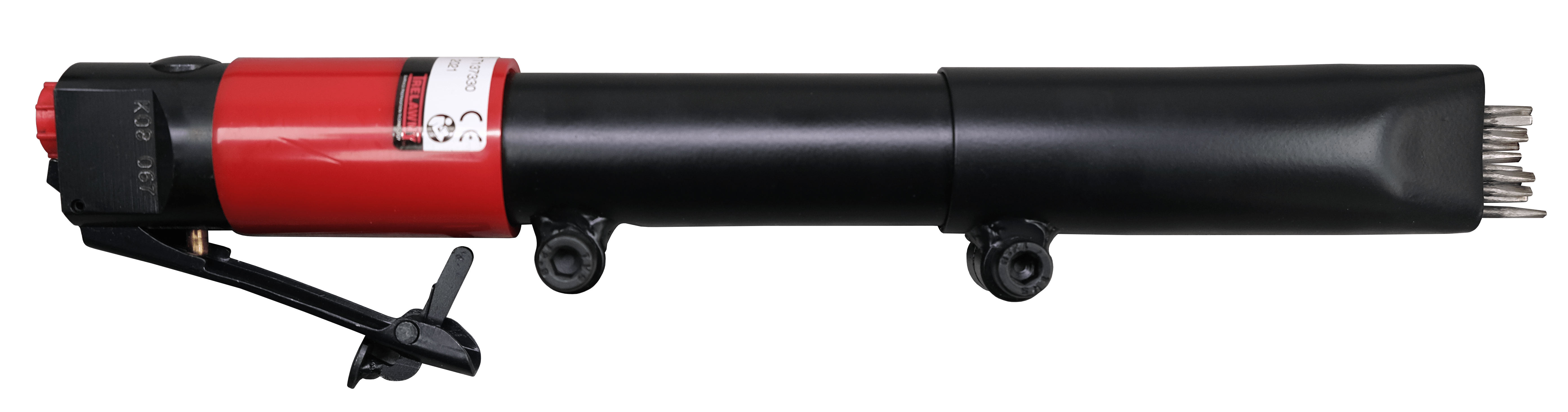

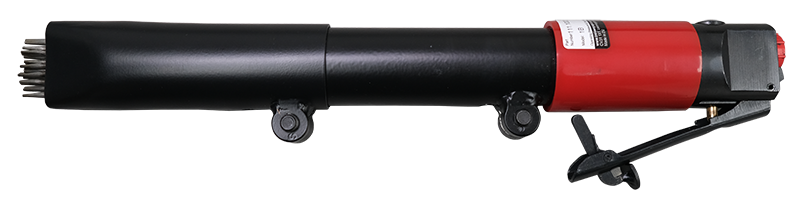

Simple, proven design offering performance and reliability The Trelawny 1B light duty needle/chisel scaler is the perfect tool for smaller applications where a lightweight, easy-to-handle tool is required. It is ideal for cleaning welds and accessing tight and hard-to-access areas for scaling and cleaning. The “B” series of needle/chisel scalers feature a simple, robust design offering reliable, long-lasting service and performance. Offered as both needle and chisel models or as a kit with both attachments for multiple applications.

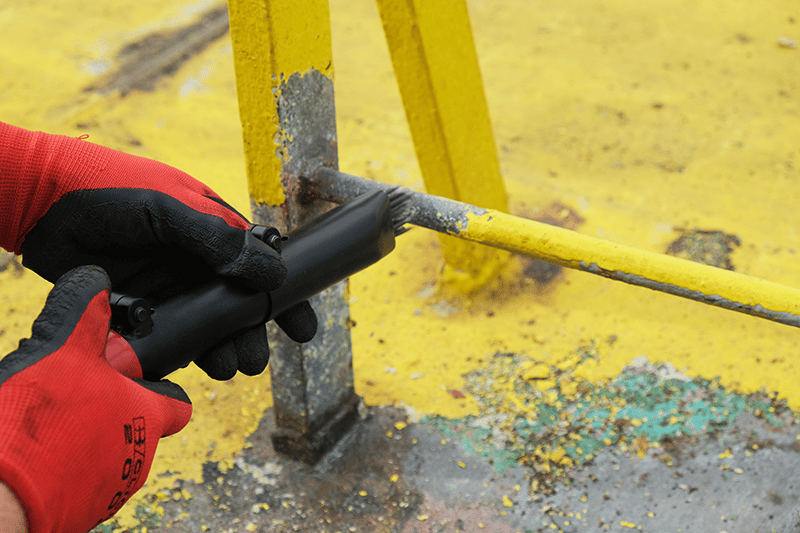

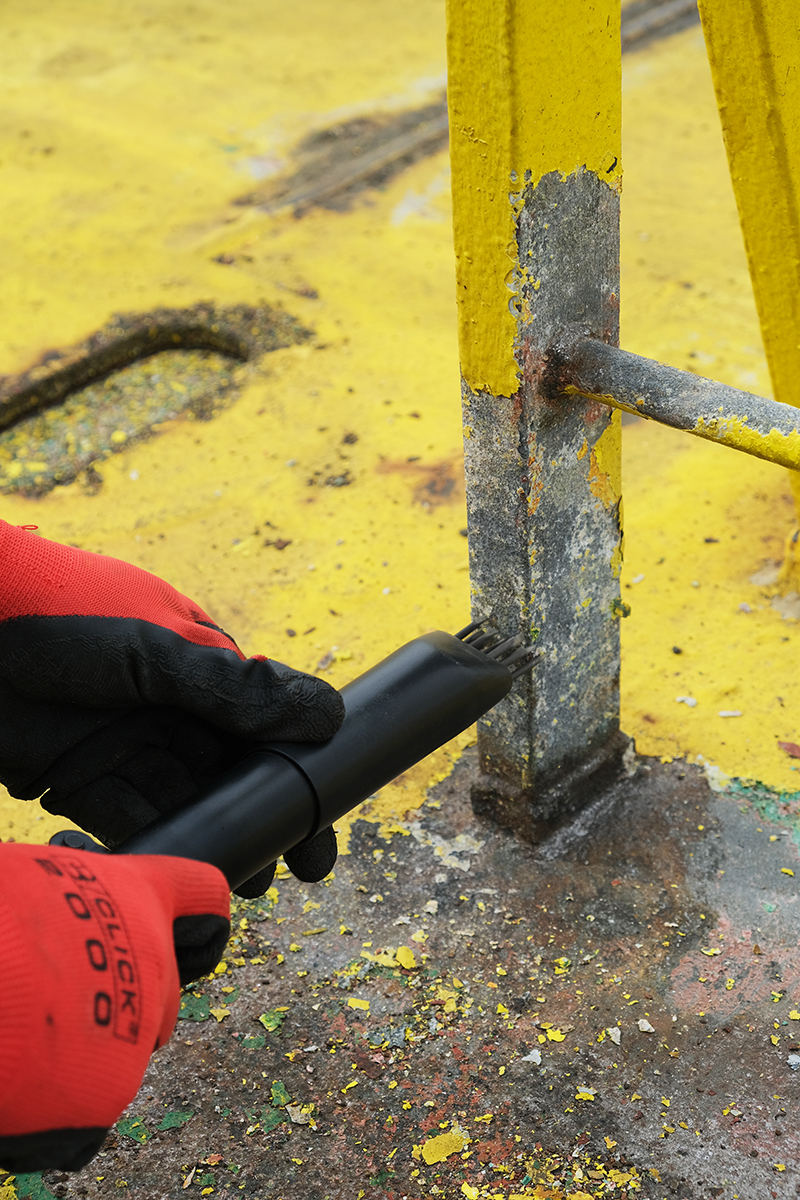

• Removal of coatings, corrosion and other accumulated materials
• Slag removal and stress relieving welds
• Cleaning concrete prior to repair
• Cleaning mixers, formwork and machinery

• Light weight, easy to handle
• 12 x 3mm needles
• Dust shroud attachment available
• Requires no additional tools for changing needles/chisels
• Quality engineered to exceed industry expectations

Model	1B Chisel
Trelawny Part No.	114.1200
Type	In-line
Needle Quantity	-
Weight (kg)	1.5
Blows per min (BPM)	3800
Air Consumption (lps - cfm)	1.42 - 3
Air Inlet Size (BSP)	¼
Overall Length (mm)	313
Noise Level (LwA db(A))	98.9
Vibration Level  (Aeq m/s2)	8.2

Part Number	114.1200
Type	In-line
Piston Diameter	18mm
Piston Stroke	30.0mm
Blows Per Minute	3800
Air Consumption (1/4″ BSP Air Inlet)	1.42lps (3.0cfm)
Air Inlet Size (BSP)	1/4
Handle Type	Straight
Overall Length	313mm
Nett Weight (kg)	1.5
Noise Level Lpa db(A)	85.9
Noise Level Lwa db(A)	98.9
Vibration Level AEQ – H1
Vibration Level AEQ – H2	8.15(K=0.7m/s²)
Complete With	Chisel 704.2105

Flat Tips Needles

The flat tip needles will reduce marking on metal surfaces and can actually give a polishing finish.
For use on thin gauge metals and any surface where light treatment is required.
2mm needle used on a welding joint produces a similar effect to shot peening, reducing stress in the weld.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	412.1129	2mm	6 x sets of 29 needles	1B
	412.1151	2mm	6 x sets of 51 needles	2B,2BPG,VL203, VL223
	412.1165	2mm	6 x sets of 65 needles	3BPG, VL303, LRS
	452.1110	2mm	Box of 100 needles	All Models
	442.1107	2mm	Box of 2000 needles	All Models
	413.1112	3mm	6 x sets of 12 needles	1B
	413.1119	3mm	6 x sets of 19 needles	2B, 2BPG, VL203, VL223
	413.1128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.1110	3mm	Box of 100 needles	All Models
	443.1107	3mm	Box of 1000 needles	All Models
	414.1119	4mm	6 x setf of 19 needles	3PGS, VL303,LRS
	454.1105	4mm	Box of 50 needles	3PGS, VL303,LRS
	444.1107	4mm	Box of 500 needles	3PGS, VL303,LRS
	443.1105	3mm	1000 needles – 127mm	All Models
	443.1115	3mm	19 needles – 127mm	All Models

Spark Resistant Berryllium Copper

Available in 3mm flat tip only for use in potentially hazardous areas.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	403.1312	3mm	Box of 12 Needles	1B
	403.1319	3mm	Box of 19 Needles	2B, 2BPG, VL203, VL223, EX
	403.1328	3mm	Box of 28 Needles	3BPG, VL303, LRS, EX
	453.1310	3mm	Box of 100 Needles	All Models
	443.1307	3mm	Box of 500 Needles	All Models

Pointed Tip Needles

Sharpened to a conical point, these are the most effective in breaking through very hard scale on materials where some surface indentation is permissible – or where a roughening or keying of the surface is actually desirable

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	413.3112	3mm	6 x sets of 12 needles	1B
	413.3119	3mm	6 x sets of 19 needles	2B,2BPG, VL203, Vl223
	413.3128	3mm	6 x sets of 28 needles	3BPG, VL303, LRS
	453.3110	3mm	Box of 100 needles	All Models
	443.3107	3mm	Box of 1000 needles	All Models
	414.3119	4mm	6 x sets of 19 needles	3BPG, VL303, LRS
	454.3105	4mm	Box of 50 needles	All Models
	444.3107	4mm	Box of 500 needles	All Models

Stainless Steel Needles

Available in 3mm flat tip form only, to be used in applications such as the refurbishment of food processing machinery or areas of high humidity where the corrosive effect on needles would be prohibitive. Used on decorative concrete surfaces where contamination of the surface from carbon steel needles is undesirable.

IMAGE	Trelawny Part No:	Size (mm)	Description	Model Range
	453.1207	3mm	Box of 100 Needles	All Models
	443.1207	3mm	Box of 500 Needles	All Models

Chisels



Image	Trelawny Part No:	Shank Type	Length (mm)	Blade Width (mm)	Applications
	704.1101	½ Square	178mm	19mm	Weld spatter removal & Chipping rust
	704.1103	½ Square	178mm	64mm	Wide Flat Chisel for the removal of peeling paint and rust
	704.1107	½ Square	254mm	19mm	Flat chisel for weld spatter and sand cast cleaning
	704.1110	½ Square	178mm	50mm	Spark resistant aluminium bronze for use in hazardous areas
	704.2105	½ Square	178mm	35mm Cranked	Weld flux and thick coating removal

Image	Trelawny   Part No:	Description
	418.2200     418.3040	TVS Vacuum to fit 2B/2BPG Needle Scalers     TVS Vacuum to fit 3BPG Needle Scaler
	446.7110     446.7120   446.7130	1B Chisel Attachment Kit     2B/2BPG Chisel Attachment Kit   3BPG Chisel Attachment Kit
	446.1010   446.1020 446.1025 446.1035	1B Needle Scaler Service Kit   2B Needle Scaler Service Kit 2BPG Needle Scaler Service Kit 3BPG Needle Scaler Service Kit
	446.1012   446.1022 446.1027 446.1037	1B Chisel Scaler Service Kit   2B Chisel Scaler Service Kit 2BPG Chisel Scaler Service Kit 3BPG Chisel Scaler Service Kit
	413.2112     413.2119   413.2128	6 Sets of 12 Needles (3mm Chisel Tip) For use with 1B Needle Scaler     6 Sets of 19 Needles (3mm Chisel Tip) For use with 2B/2BPG Needle Scalers   6 Sets of 28 Needles (3mm Chisel Tip) For use with 3BPG Needle Scaler
	601.1003     601.2003   601.3003	1B Needle Holder (12 x 3mm)     2B/2BPG Needle Holder (19 x 3mm)   3BPG Needle Holder (28 x 3mm)
	712.1001     712.2001   712.3001	1B Front Spring     2B/2BPG Front Spring   3BPG Front Spring
	458.1530	¼ BSP Inline Lubricator Assembly   Consists of whip hose, whip check and ¼ lubricator
