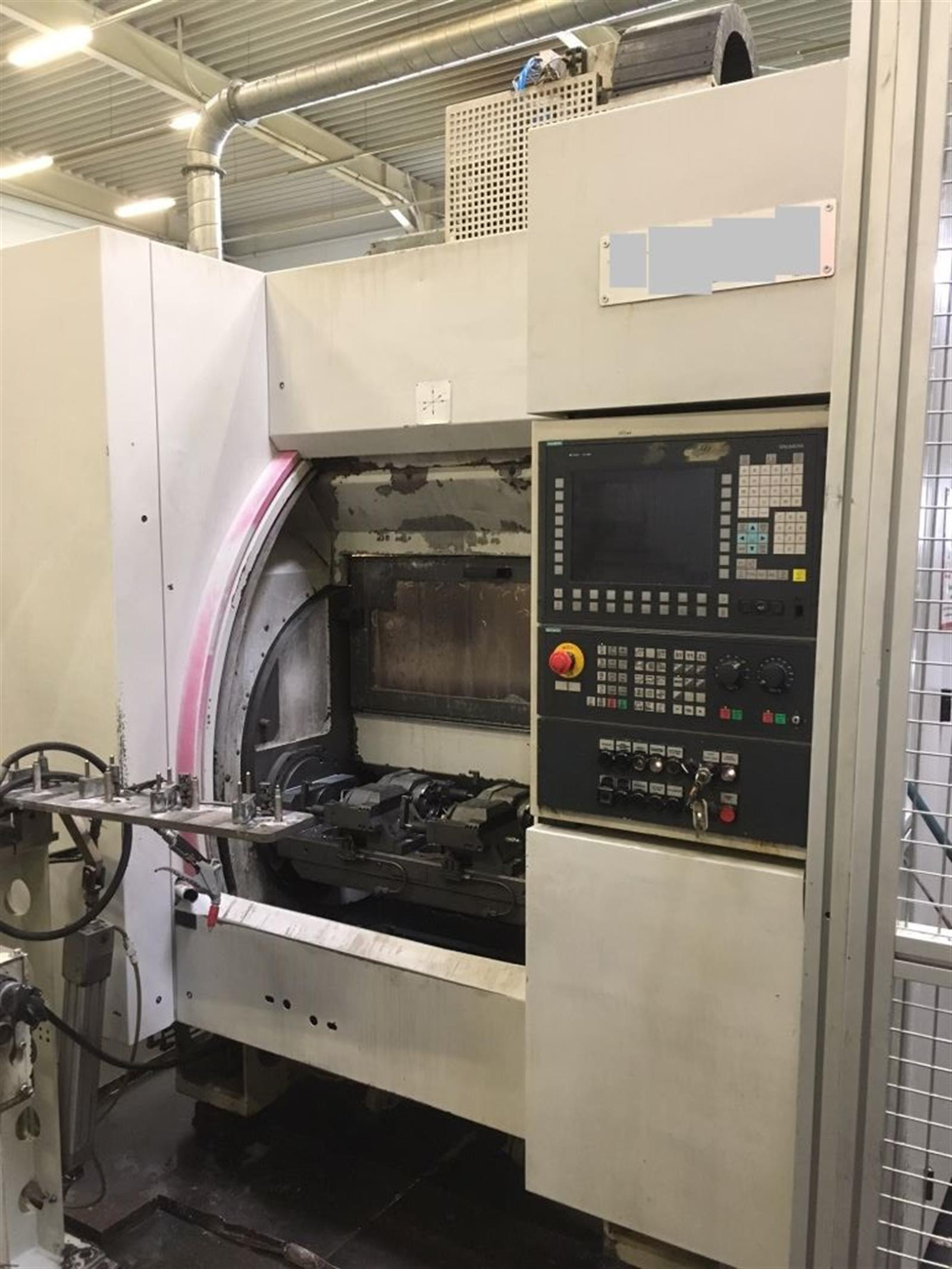

Sw (Schwaebische Werkzeugmaschinen) BAS03-22 Machining center - vertical (Sw (Schwaebische Werkzeugmaschinen) BAS03-22 Machi)

Type: BAS03-22
Producer: SW (SCHWAeBISCHE WERKZEUGMASCHINEN)
Created: 2006
parameters:
Control system: SIEMENS 840 D
4 axes
Two spindles
Accuracy: 0.010 mm
Travel:
X: 300 mm
Y: 400 (650) mm
Z: 400 mm
Feed drives:
X: 1-75000 mm / min
Y: 1-75000 mm / min
Z: 1-75000 mm / min
Feed force:
X: 6000 N
Y: 6000 N
Z: 6000 N
Speed ​​range: 1-17,500 rpm
Motor power: 15.5 kW
Torque: 42 Nm
Spindle distance: 300 mm
Main spindle diameter: 70 mm
Main spindle storage: 3 compartment
Machine dimensions: 3650 x 2750 x 3100 mm
Machine weight: 7500 Kg
Equipment:
Paper band filter
pallet changer
chip conveyor
KSS plant
Control unit control
2x 20 tool stations HSK A63

Axis X	300 mm
Axis Y	400 mm
Axis Z	400 mm
Rotary table (4th axis)	no
Type of CNC	SIEMENS 840 D
Max. spindle speed	17500 rpm
-------------------
Length x width x height	3650.0 × 2750.0 × 3100.0
Weight	7500 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status
