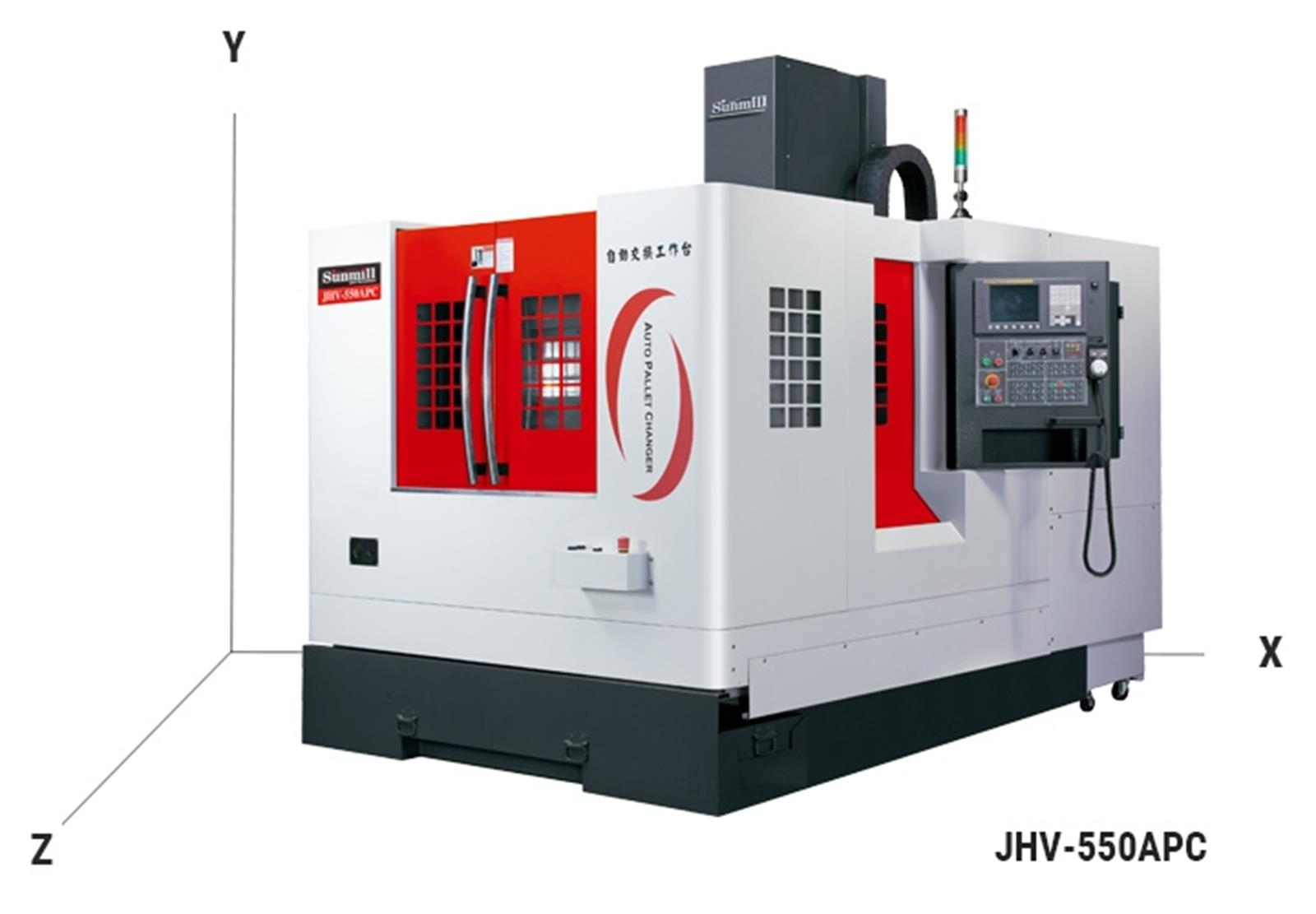

Sunmill JHV-550APC Vertical Machining Center (JHV-550APC)

Full splash guard
Belt type spindle 10000 rpm BT40
Spindle motor 5.5/7.5 kw
Arm type ATC 24 tools, BT40

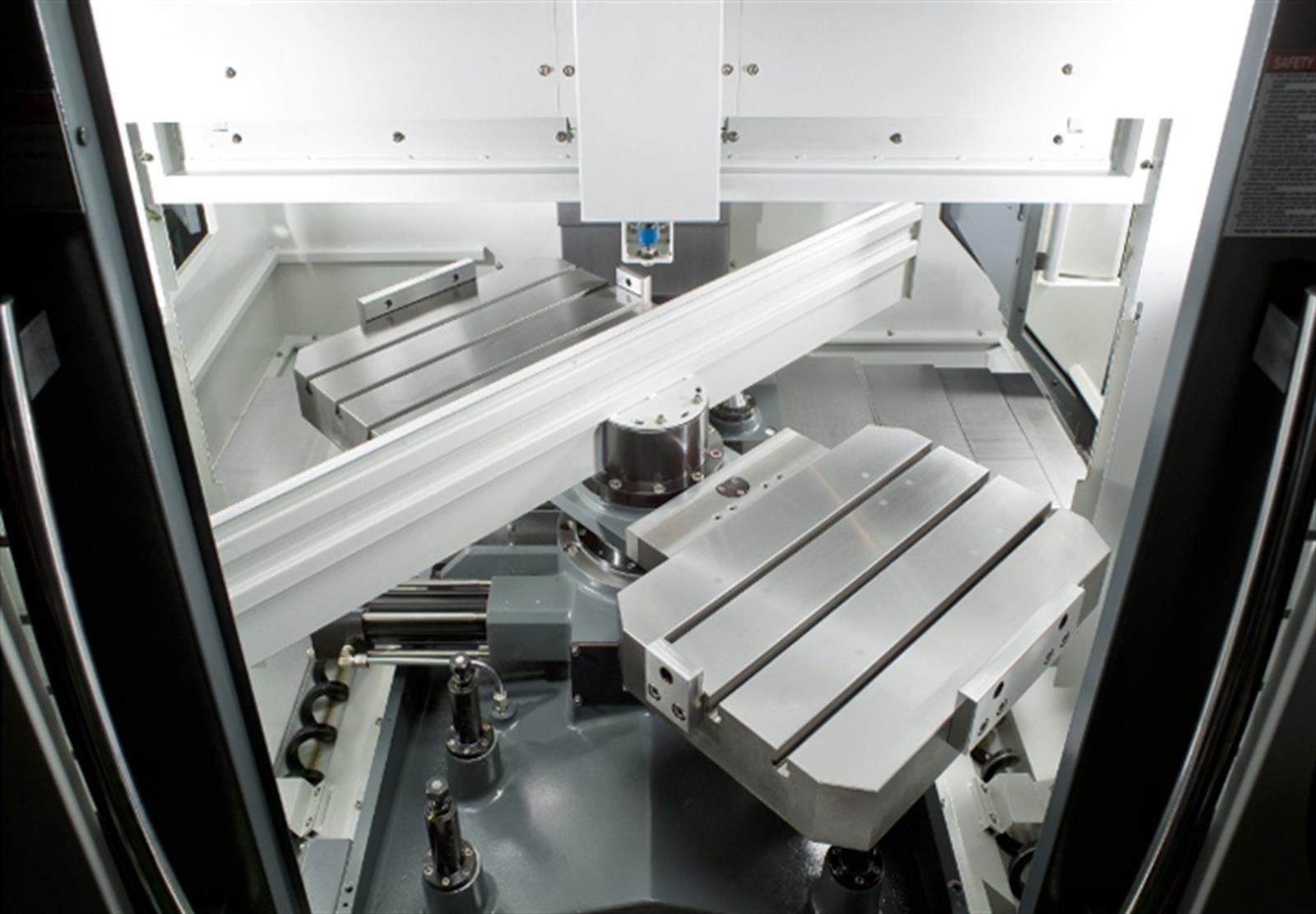

Auto Pallet exchanger (JHV-550APC)
Rigid tapping
Cooling system
Auto lubrication system
Spindle oil cooler unit
Heat exchanger
Telescopic cover for 3 axes
Work lamp
Three-color call light
Tool box
Coolant gun
Drawer type chip coolant tank (JHV-550)
Chain type chip conveyor with chip cart (JHV-550APC)

Transformer
CE mark
Spindle motor 7.5/11 kw
Belt type spindle 12000 rpm, BT40
Direct drive spindle 10000/12000/15000 rpm
Built-in type spindle 24000/30000/36000 rpm
Rear coolant flushing device
Disk type oil skimmer
Coolant through spindle (with sealed splash guard)
Screw tyep chip conveyor with chip cart (JHV-550)
Chain type chip conveyor with chip cart (JHV-550)
Roller type linear guideway

CONTENTS	ITEMS	UNITS	JHV-550APC
3- Axes travel	X axis travel	mm	550
	Y axis travel	mm	400
	Z axis travel	mm	460
	Distance from spindle nose	mm	120-580
	to table surface
Table	Table area	mm	600 x 400
	Max. load of table	kgs	200 x 2
	T- slot	mm	3x14x100
	Pallet changing time	sec	12
	Pallet exchange methord		180°changing(rotary)
Spindle	Spindle taper	type	BT-40
	Belt type	rpm	10000
	Direct drive - opt.	rpm	10000 / 12000 / 15000
	Spindle motor	kw	5.5 / 7.5
	Spindle cooling	type	oil cooler
Feed Rate	Rapid traverse (X,Y,Z)	m/min	36 / 36 / 36
	Cutting feed rate	mm/min	1-15000
	X,Y,Z axis servo motor (FANUC)	kw	1.2 / 1.2 / 3.0
	X,Y,Z axis servo motor (MITSUBISHI)	kw	1.5 / 1.5 / 2
A.T.C	Magazine type	type	Arm
	Tool magazine capacity	pcs	24
	Max. tool diameter	mm	75 / 150
	Max. tool length	mm	200
	Max. tool weight	kgs	7
	Tool selection	type	Random
Others	Power consumption	KVA	20
	Floor space (L x W x H)	mm	3100 x 3150 x 2800
	Machine weight	kgs	4800
