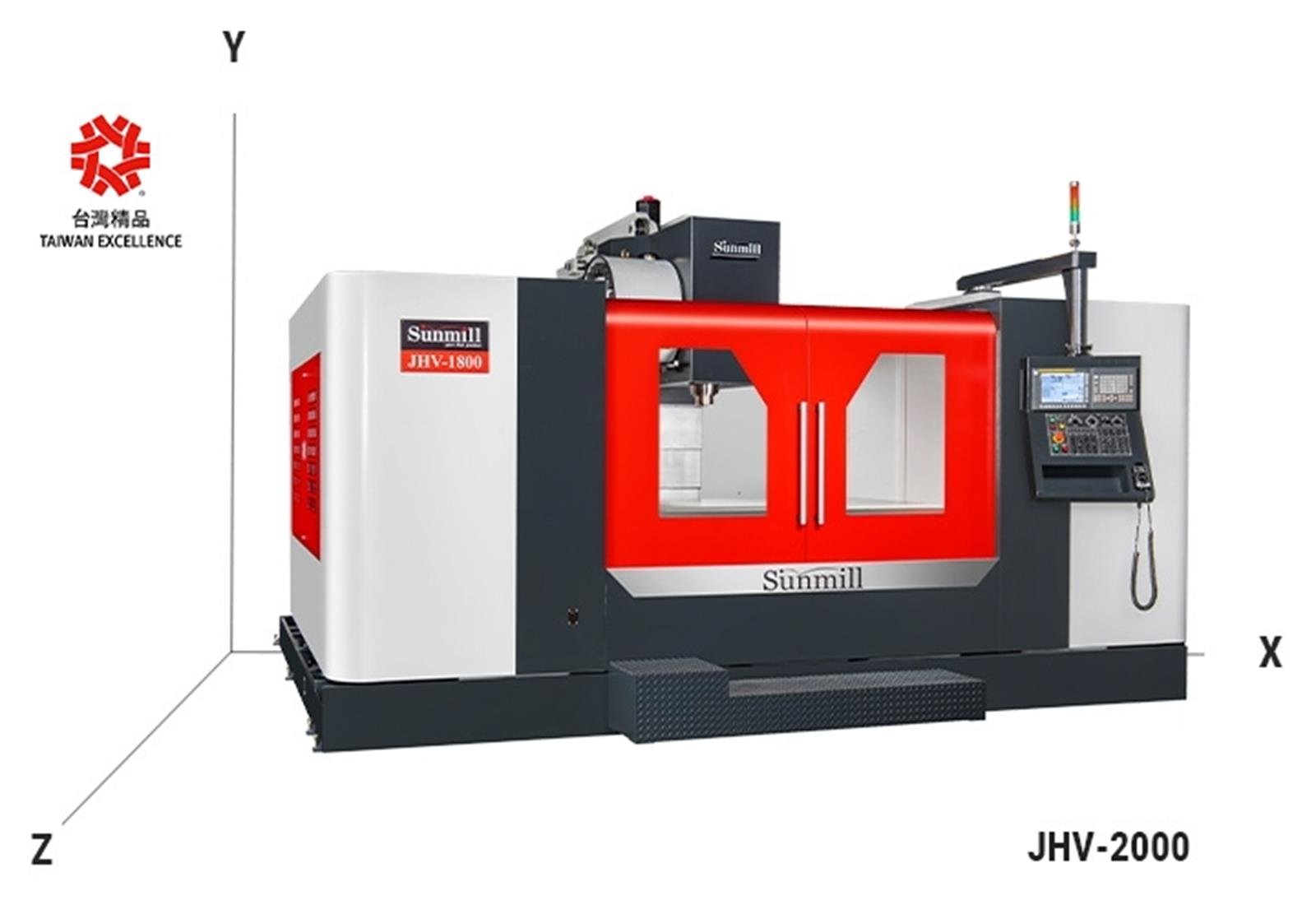

Sunmill JHV-1800 Vertical Machining Center

Full splash guard

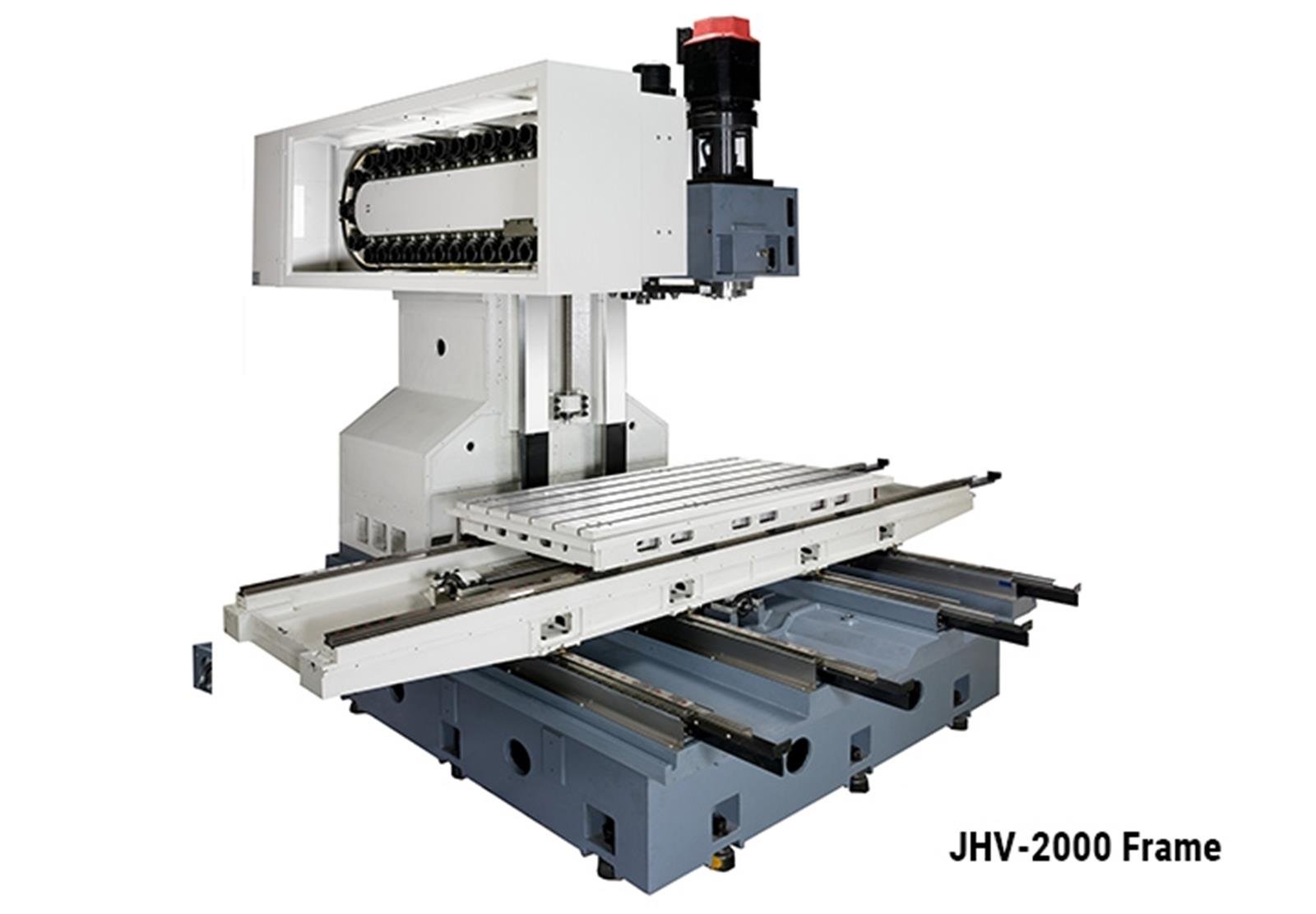

Roller type linear guideway for X, Y axes
Box way for Z axis
Belt type spindle 6000 rpm BT50
Spindle motor 11/15 kw (JHV-1800)
Spindle motor 15/18.5 kw (JHV-2000)
Arm type ATC 24 tools, BT50
Rigid tapping
Cooling system
Auto lubrication system
Spindle oil cooler unit
Heat exchanger

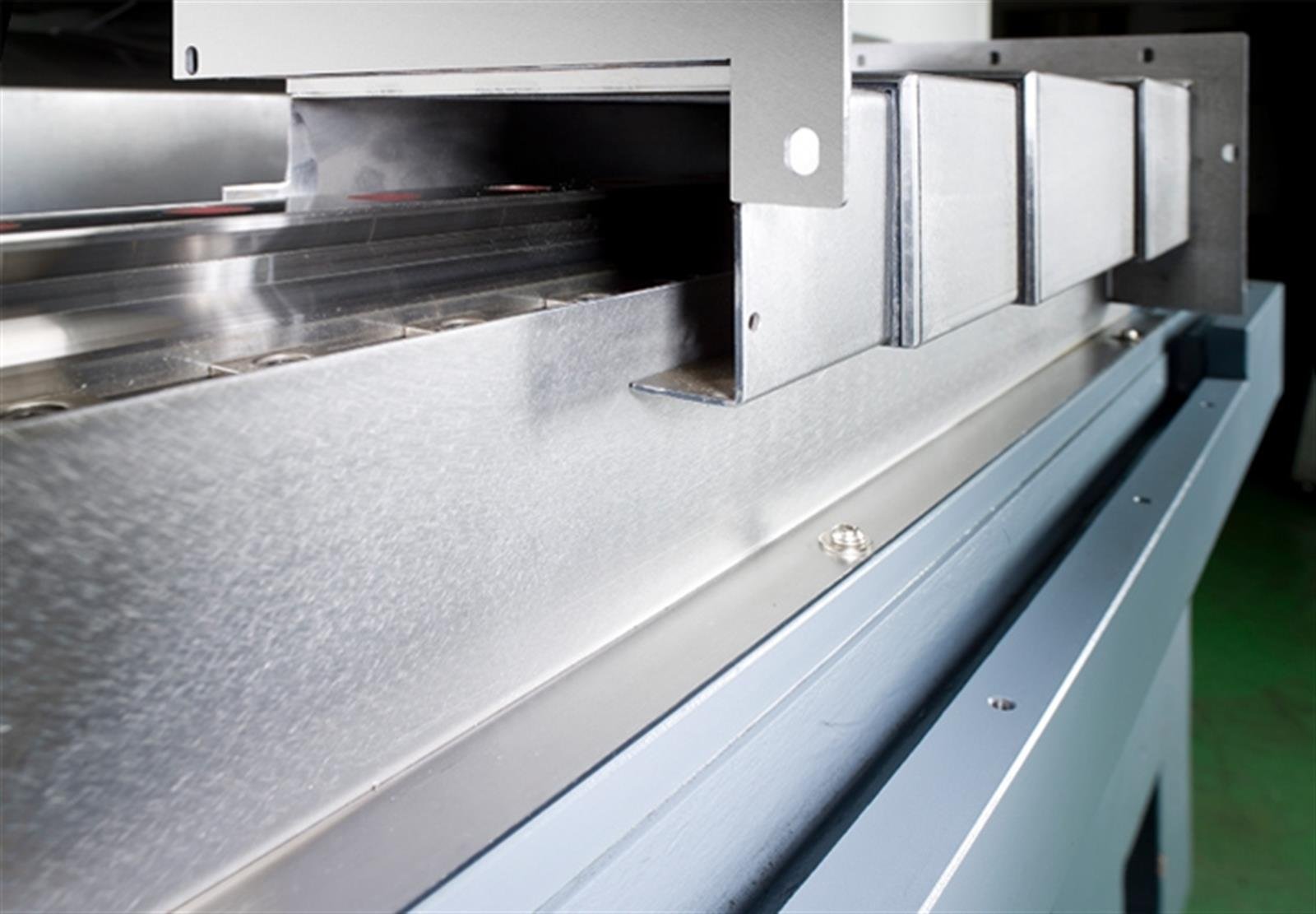

Telescopic cover for 3 axes
Work lamp
Three-color call light
Tool box
Coolant gun
Screw type chip conveyor with chip cart

Transformer
CE Mark
Spindle motor 15/18.5 kw
Spindle motor 18.5/22 kw

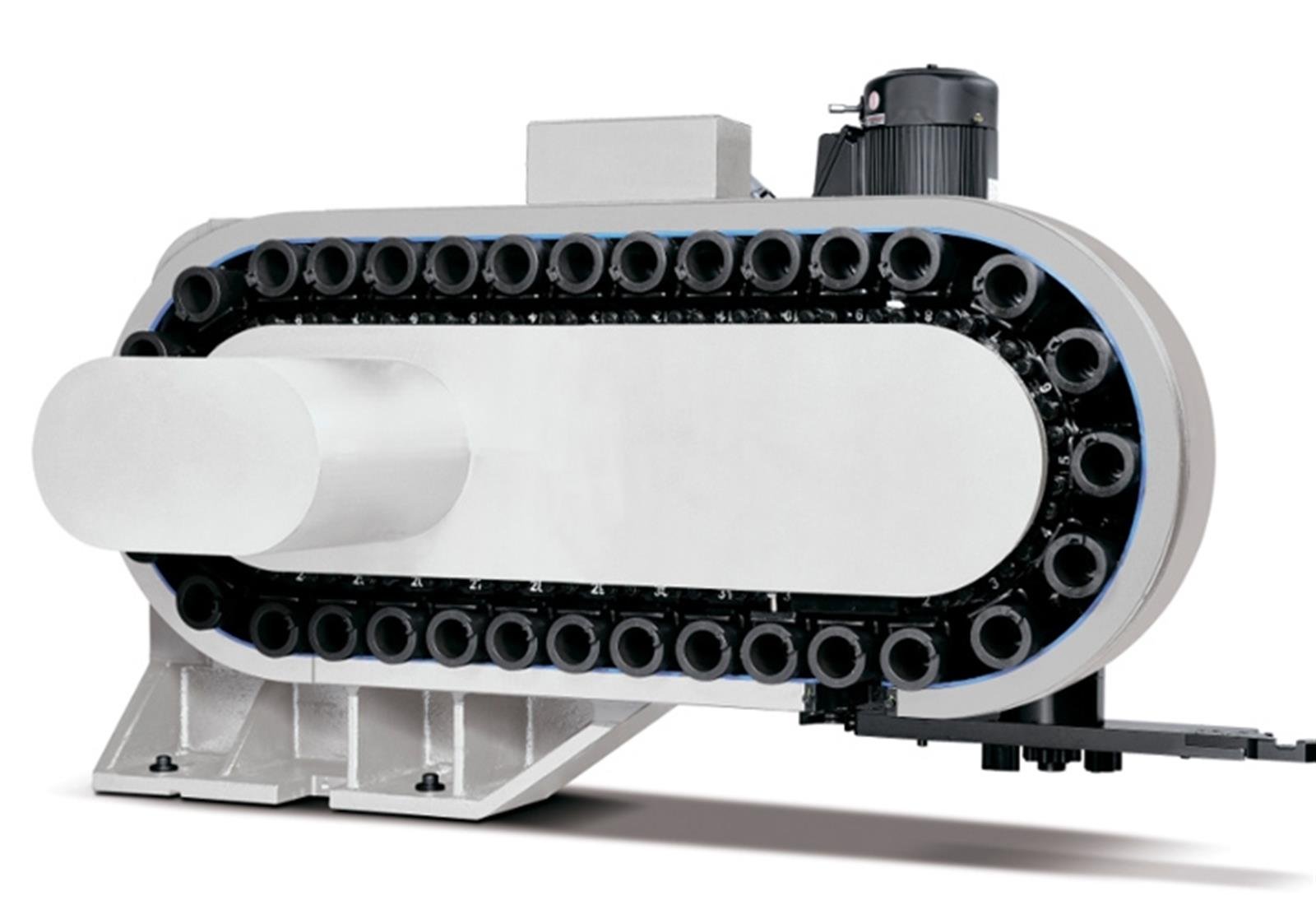

Chain type ATC 32/40 tools, BT50
Belt type spindle speed 8000rpm, BT50
Direct drive spindle 10000 rpm, BT50
Rear coolant flushing device
Disk type oil skimmer
Coolant through spindle (with sealed splash guard)
Chain type chip conveyor with chip cart
4th axis rotary table
CNC Tilting & rotary table
Gear box
Z axis travel 1000mm
Spindle speed 10000rpm, BT40 + Arm type ATC 24, BT40

CONTENTS	ITEMS	UNITS	JHV-1800
3- Axes travel	X axis travel	mm	1800
	Y axis travel	mm	900
	Z axis travel	mm	750 (1000 opt.)
	Distance from spindle nose to table surface	mm	150-900 (150-1150 opt.)
	Spindle center to column surface	mm	950
Table	Table area	mm	1850 x 900
	Max. load of table	kgs	2500
	T- slot	mm	6 x 18 x 145
Spindle	Spindle speed	type	BT-50
	Spindle taper	rpm	6000
Feed Rate	Rapid traverse (X,Y,Z)	m/min	20 / 20 / 15
	Cutting feed rate	mm/min	1-10000
A.T.C	Magazine type	type	Arm	Chain type(opt.)
	Tool magazine capacity	pcs	24	32
	Max. tool diameter	mm	110 / 220	125 / 250
	Max. tool length	mm	300	300
	Max. tool weight	kgs	15	15
	Tool selection	type	Random
Motor	Spindle motor	kw	15 / 18.5
	X/Y/Z axis motor	kw	7 / 7 / 7
Ball Screw	Diameter of X,Y,Z axis	mm	50
	Pitch of X,Y,Z axis	mm	10
Guideways	Width of linear quideways (X,Y)	mm	45 (8 blocks for each axis)
	Width of box ways (Z)	mm	140 (55 thickness)
Others	Floor Space (LxWxH)	mm	5710 x 4450 x 3350
	Machine weigth	kgs	17500
