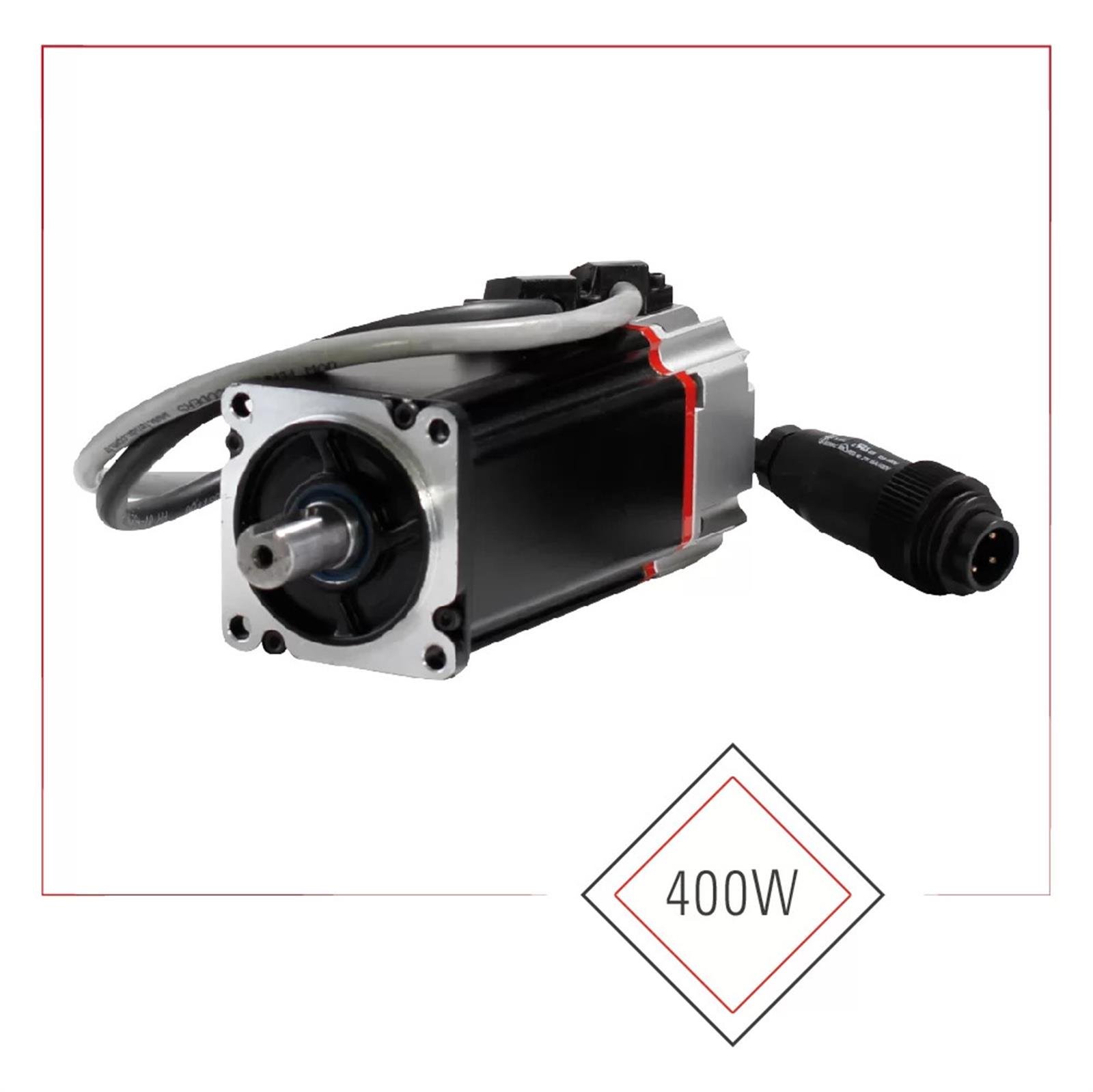

SMB Technics SM06-DX-040BX SMB Servo Motors (SM06-DX-040BX)

SM series industrial servo motors are used in many different applications such as factory automation, special machine production, machine tools and robotic. It provides high accuracy in applications which  require precise positioning by means of its low cogging torque and torque ripple. Braked option can be provided when needed in such applications. BiSS / SSI (absolute) and incremental encoder alternatives are offered for required applications. Through its compact construction, it brings a flexible solution for large machines and for the machines with limited space.

Parameters		Unit	SM06-DX-040BX
GENERAL	DC Bus Voltage	V	310
	Rated Power	W	400
	Rated Torque	Nm	1,27
	Rated Current	A	2,7
	Rated Speed	rpm	3000
	Max Torque	Nm	3,81
	Max Current	A	8,1
	Max Speed	rpm	5000
	Efficiency	%	90,5
	Mechanical Time Constant	ms	0,186
	Electrical Time Constant	ms	2,833
	IP Rating	–	IP65*
ELECTRICAL	Torque Constant	Nm/A	0,48
	Voltage Constant	V/ krpm	45,8
	Resistance	ohm	3
	Inductance	mH	8,5
MECHANICAL	Rotor Moment of Inertia (Without Brake)	kg.cm²	0,26
	Rotor Moment of Inertia (With Brake)	kg.cm²	0,275
	Weight (Without Brake)	kg	1,54
	Weight (With Brake)	kg	1,83
BRAKE	Static Torque (Min)	Nm	2
	Operating Voltage	V	24±10%
	Power Consumption (20°C)	W	11,2  ± 7%
	Electrical Insulation Rating	–	F
* Protection level is IP65 when suitable connectors and shaft seals are used.
