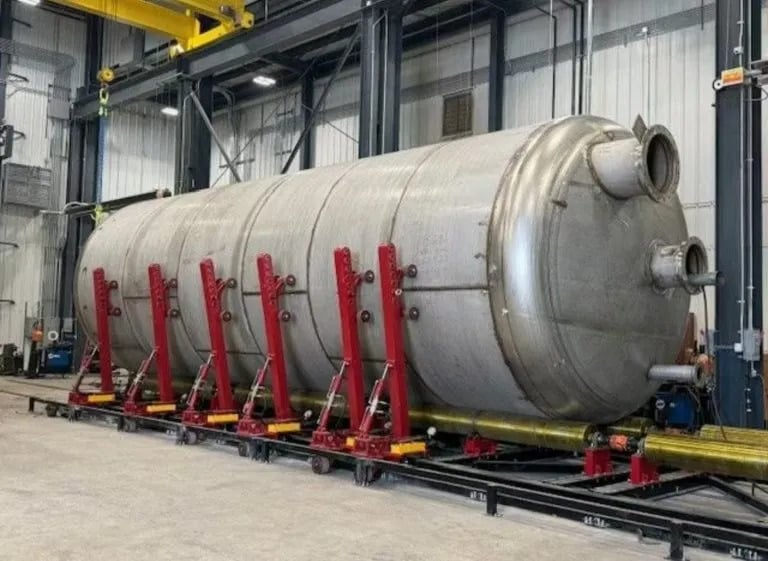

Tank Fit Up Rolls is a mechanical device specially used in the tank manufacturing and assembly process to ensure the precise alignment and stable fixation of tank parts.

By using Tank Fit Up Rolls, the tank can achieve minimal errors during welding and assembly, thus ensuring the overall quality and structural integrity of the tank.

Tank Fit Up Rolls are suitable for many fields, such as oil and gas, chemical industry, water treatment and environmental protection, and food storage tanks.

As an excellent supplier of Tank Fit Up Rolls products, SENLISWELD has a good market reputation and has established stable long-term cooperative relationships with many international customers. It is your best choice.

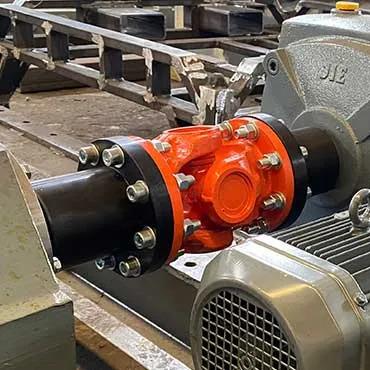

Roll Connections

The main function of the roller connection is to transmit power and ensure the operation of the equipment.

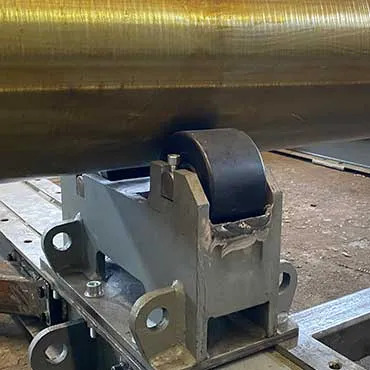

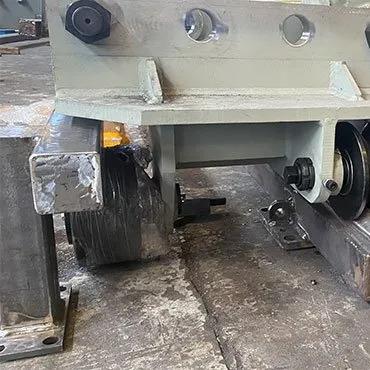

Support Wheel

The support wheels of Tank Fit Up Rolls are used to support the long axis, maintain stability and reduce friction.

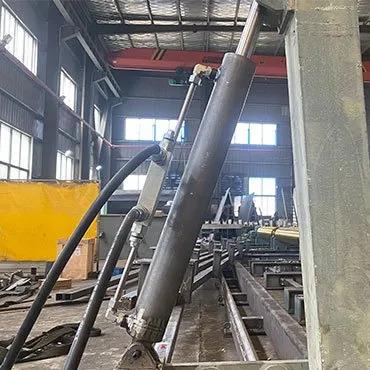

Hydraulic System

The hydraulic system of the Tank Fit Up Rolls support is used to adjust the pressure to adapt to different loads of workpieces.













Roller Base

Helps fix the position of the rollers, ensures the stability of the Tank Fit Up Rolls and prevents shaking.

By using Tank Fit Up Rolls, large tanks or cylindrical workpieces can be adjusted and docked easily and quickly, significantly increasing production efficiency.

SENLISWELD has an experienced team and considerate after-sales service, which will make you feel assured and satisfied.

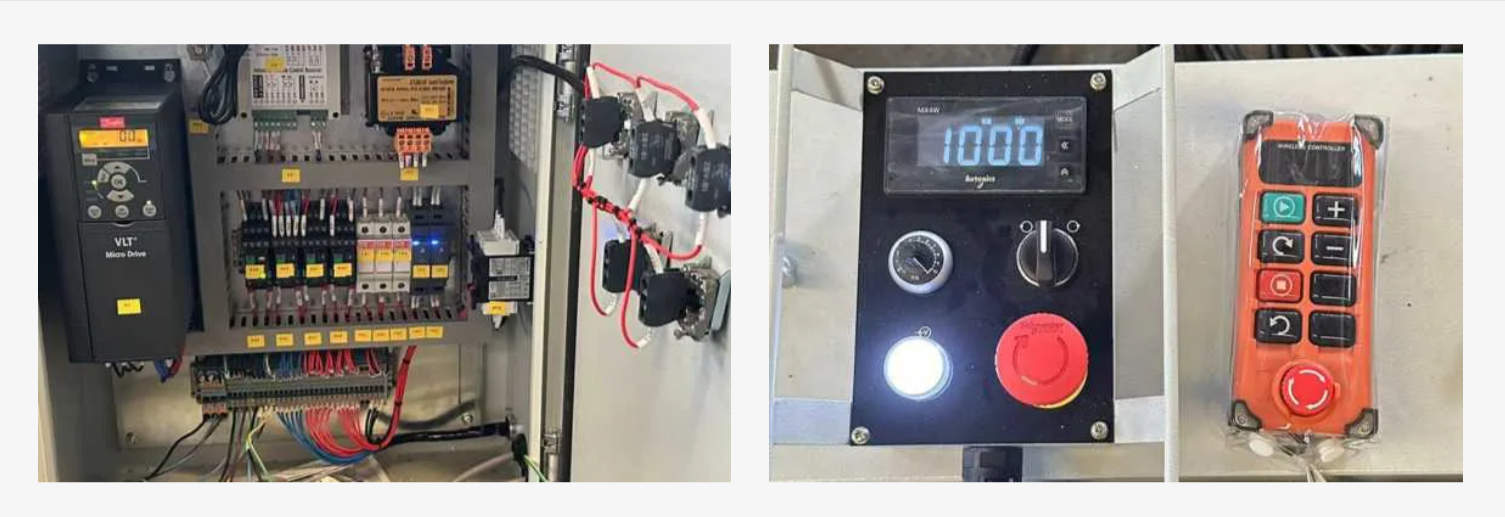

Tank Fit Up Rolls is equipped with Electric Control Box and Wireless Remote Control. Humanized design, simple operation, easy to use.

SENLISWELD provides comprehensive after-sales service and technical consultation to ensure you have no worries.

What are the things that make the fabrication and welding process perfect? Well, efficiency and accuracy. They make sure the process is done with safety.

That’s where tank fit up rolls come to help. They accurately position large tanks so that their alignment is perfect and they are welded perfectly. These special gadgets increase the weld quality and make the workflow a lot better.

These tank fit up rolls are affordable and reduce welding faults in businesses which ultimately improves productivity.

In this article we will give you an overview of different sorts of tank fit up rolls, their key features, and the advantages involved from their application in different industries.

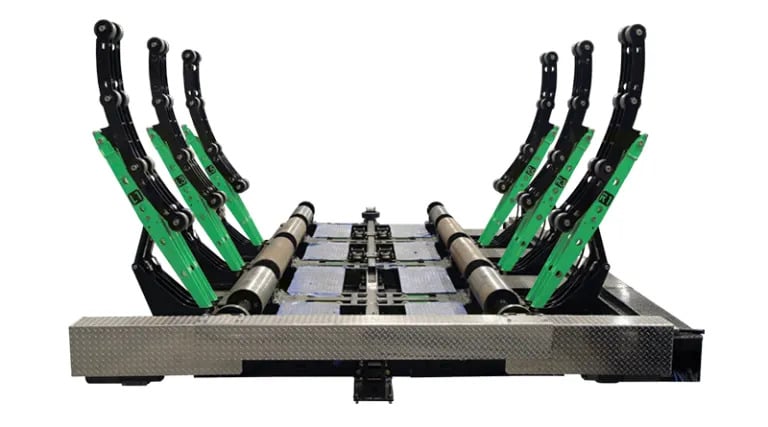

they are special accessories used to fabricate and weld large tanks with large diameter.

The tank fit up rollers have a series of powered idler rollers which help them rotate and support the tanks to be welded. It allows accurate alignment and positioning of the tanks while welding.

What’s more is that these rollers make sure that your tanks remain, helping create a smooth and streamlined welding procedure.

You can use these tank fit up rolls in different applications, including production of big cylindrical vessels, oil and gas industry, chemical processing, and water treatment plants.

Important Features of the Fit Up Rolls

We have discussed some important features of these tank fit up rolls below:

• Design

The design of these rollers is made according to the project needs and generally responds to it.

You can avail them in manual and automated configuration.

• Heavy Load Ability

These rollers can support high loads. They can even tolerate up to 60 tons.

• Precision Alignment

The tank fit up rolls make sure that the big cylindrical tanks are accurately positioned and aligned to be welded.

• Enhanced Stability

These are made to offer stable and controlled rotation so that they remove the risk of misalignment possibilities.

• Safety Features

These specialized tools have certain mechanisms that improve the safety of workers and reduce the chances of accidents during welding.

• Durable Construction

Built with heavy-duty materials, these tanks can tolerate rough manufacturing setups.

• Efficiency Boost

One of the key features is that these tools can speed up the welding process with the help of maintaining smooth, continuous rotation and alignment.

• Versatility

These are quite appropriate for a variety of tank dimensions and types for several applications.

The tank fit up rolls have the following parts with their roles:

1.Powered Rollers

So, we have mentioned these above as well. They are power-driven (through motors) rollers assigned to apply necessary torque to rotate the tank.

These motor driven rollers help engage the tank surface to make sure that the rotation is smooth and controlled. You can see that their speed can be changed based on application or skill of the operator.

2.Idler Rollers

Unlike powered rollers, these are non-powered. Their job is to provide adequate support to the tank weight.

They work in sync with the powered rollers and help achieve that smooth and continuous welding rotation. They also make sure that the tank’s weight is evenly distributed throughout the welding.

3.Control System

Like other machinery, these rollers have a user interface and electronic controls.

This control system enables the operator to make changes in the speed, direction, and alignment of the tank’s rotation. It ensures that the quality of the welding is 100% and there are no chances of accidents and errors.

4.Frame and Support Structure

You can see heavy-duty frame in these rollers. They provide support for the rollers and offer a stable base to them.

This structure serves to position tank fit up rollers precisely and to hold the tank firmly during the welding procedure.

5.Safety Mechanism

Moreover, the fit up roller has an emergency stop button, overload protection, and safety guards as well.

These tiny functions safeguard the operator by making sure that the system is under control and can be stopped right away in case of an emergency.

6.Customization Options

You can customize tank fit up rolls based on project needs.

Down below are the benefits by the use of tank fit up rolls. Have a look:

1.Higher Accuracy

Ensures that tanks are aligned and positioned accurately, which is critical to achieving quality welds.

Designing the control systems with consideration of exactness and alignment features reduces chances of an error in the welding process.

2.Higher Safety

Reduced chances of accidents and injury during tank fabrication.

Safety features include an emergency stop button and overload protection, which offer safety for the operators. Increased Efficiency It speeds up the processes of welding and fabricating tanks, which saves man-hours and reduces labor costs.

The continuous and efficient welding made possible by the automated rotation of the tanks allows for quicker completion of projects. Heavy Load Handling Able to handle and rotate heavy loads of up to 60 tons.

This capacity makes it possible to manufacture large-scale tanks for different industries, thereby ensuring that the equipment will sustain high weights without any compromise in performance.

3.Less Human Labor

Eliminates manual handling and positioning of the tanks.

Automated systems reduce physical demands on operatives, therefore making working conditions even safer and more comfortable.

4.Constant Controlled Rotation

Enables smooth rotation of the tank with consistency while being welded.

All these mean stable rotation, which allows for uniform welds, decreasing defects, hence enhancing the overall quality of the tanks.

5.Cost Economies

Reduces the overall project cost due to fewer labor hours and increases efficiency.

Faster and more accurate welding processes thus have lower operational costs and higher profitability.

6.Improved Quality of Welds

Higher quality welds are obtained by precision control and stable positioning.

Improves weld quality, adding more life to the tanks, thereby reducing repair frequency and maintenance.

7.Diverse Application

Can be adapted for various tank fabrication projects within several industries

Tank Fit Up Rolls find their span in industries dealing with oil and gas, chemical processes, and even water treatments, hence very versatile.

8.Ease of Operations

User-friendly controls and interfaces give ease to the operating system.

This simplifies the operation, hence reducing the learning curve with a view to quicker use and adoption of the equipment.

9.Durability and Reliability

Manufactured using heavy-duty materials to ensure endurance in extreme working conditions and unfriendly environments.

Stronger construction equates to longer life; this reduces frequency in replacement and repair.

There are a number of applications of these fit up rolls. Some are listed below:

• Oil and Gas Industry

Tank Fabrication – intense with large storage tanks holding crude oil, refined products, and natural gas liquids.

Pipeline Construction – Jack the position and weld pipeline sections correctly in place

• Chemical Processing

Reactor and Vessel Construction – chemical reactors and storage vessels are manufactured using fit-up rollers to place them accurately and weld as per high standards.

It maintains proper safety standards and regulations through such precise construction.

• Treatment Plants

Reservoir Storage Tanks – Enables making the process possible for large storage and treatment tanks of water.

Rapid and Precise Assembly– Enhances the speed and accuracy in assembling the treatment plant components.

• Power Plant

Boiler Construction – Helps in the exact assembly and welding of boiler parts.

Nuclear and Renewable Energy – This is used in the fabrication of large containment vessels and other structures within nuclear and renewable energy plants.

• Food and Beverage Industry

Tanks for Storage and Processing – Large stainless steel tanks for food and beverage storage and processing.

Sanitary Welding – Produces sanitary welds in accordance with acceptable industry standards.

• Pharmaceutical Industry

Sterile Environment Tanks – Building tanks suitable for use in sterile environments to store and mix pharmaceutical products.

Preciseness and Cleanliness – Ensures high level of precision and cleanliness in tank building.

• Construction and Infrastructure

Water Towers – Building of water towers and other large storage tanks used in municipal infrastructure.

Bridge and Structural Components – Its application involves welding large structural components for bridges and other heavy infrastructure projects.

• Aerospace and Defense

Fuel and Storage Tanks – Fabrication of fuel storage tanks and other large containers used in aerospace and defense applications.

Precision Engineering – Offers high precision with good reliability, which is crucial in these industries.

• Mining and Minerals

Ore Processing Tanks – It is used in producing large tanks that are utilized in ore processing and any other mining operation.

Durable and Efficient – Strong and highly efficient solutions for heavy industries.

• Marine and Shipbuilding

Hull and Structural Fabrication – Fabrication welding and assembling the ship’s hulls and other massive marine constructs.

Corrosion-resistant tanks are designed to construct those tanks and containers which have to be very corrosion-resistant. Tank Fit Up Rolls are general-purpose rolls that improve the accuracy, speed, and safety of welding and fabrication operations in various industries.

With the right alignment and stable rotation of large tanks and cylindrical structures, these rolls have become of utmost importance in maintaining quality standards and meeting specific industry requirements.

• Initial Setup

Spread the rollers to their ‘home’ position, setting them at the correct spacing ready for loading.

• Loading First Segment

The first segment of the tank (can) is loaded onto the rollers. The control panel will adjust and shape the segment.

• Loading Second Segment

The second segment of the tank is loaded onto the rollers. This time, too, by using the control panel, this segment shall be shaped and positioned.

• Loading Time

Time trials were conducted and revealed that approximately 20 minutes are needed to load each of the tank segments on the rollers.

• Fine Adjustments

By using the control panel, fine tune the position through minor adjustments so the segments can be fitted together perfectly in preparation for tacking. Each set of rollers has a dedicated control panel for this purpose.

• Tack Welding

The welder then makes any final adjustments inside the tank segment and makes a tack weld at six o’clock. The tank is turned to position and the welder continues to tack weld until the operation is finished.

Depending upon operator’s experience, Tack welding using Fit Up rolls may finish a job up to three times faster than any other process.

• Repeat Process

Repeat the process for each new tank segment to be added and welded.

• Optional Integration

For maximum productivity, integrate the Fit Up rolls with the manufacturer’s manipulator system.

• Total Time

The whole process of fitting up and tack welding takes from 120 to 180 minutes according to the size of the tank and how well the operation is carried out.

• Smearing

The moving parts should be smeared regularly, and amongst all, rollers and bearings are the most important. This helps in smooth functioning without wear and tear.

• Wear and Tear

The regular wear and tear of the rollers, frame and the supporting structures should be checked through routine investigation. Any defective part must be replaced with a new one immediately to avoid any disturbance during operation.

• Control Systems

The control systems must be tested to find that the user interface, electronic controls, and other things are working. There should be a search for any software updates, and any calibration should be carried out on them.

• Cleaning and Removing Debris

Ensure that there is no debris or dirt on the rollers and that any other contaminant is eradicated near the rollers as well because it may increase the effects on their functionality. It enhances better equipment performance.

• Alignment and Adjustment Checks

Alignment and adjustment mechanisms should be checked from time to time for proper functioning. This will provide certainty during operation that the tanks are positioned and aligned correctly.

• Testing of Safety Mechanism

All safety features, including emergency stop buttons and overload protection, shall be tested for functionality. This will keep the environment safe for working.

• Electrical System Inspection

Visible damages and wear on electrical components and wiring should be inspected. All connections must be snug, and defective components replaced to avoid electrical failures.

• Documentation and Record Keeping

It is necessary that detailed records be kept about all maintenance activities, including all inspections, repairs, and replacements made on that particular vehicle. This helps in giving a record of the history of its maintenance and also aids in planning future maintenance schedules.

The Tank Fit-Up Rolls form a very important regime in the concerns of industries that involve the fabrication of large tanks with a high degree of precision and speed.

These allow for proper positioning and alignment of tanks, thus helping to weld them with ease and in a far more effective manner.

Their features include customized designs, high load-carrying capacities, and safety mechanisms that ensure quality and efficiency in the concerned fabrication work about tanks.

Better welds, time saving, reduced labor costs, and safety among many are the ways businesses benefit from the usage of Tank Fit Up Rolls. Regular maintenance means that these tools stay in top condition for a considerable period, providing good reliability and performance.

Investments in the Tank Fit Up Rolls are intelligent for any company that aims to improve the fabrication process of tanks to give excellent results.
