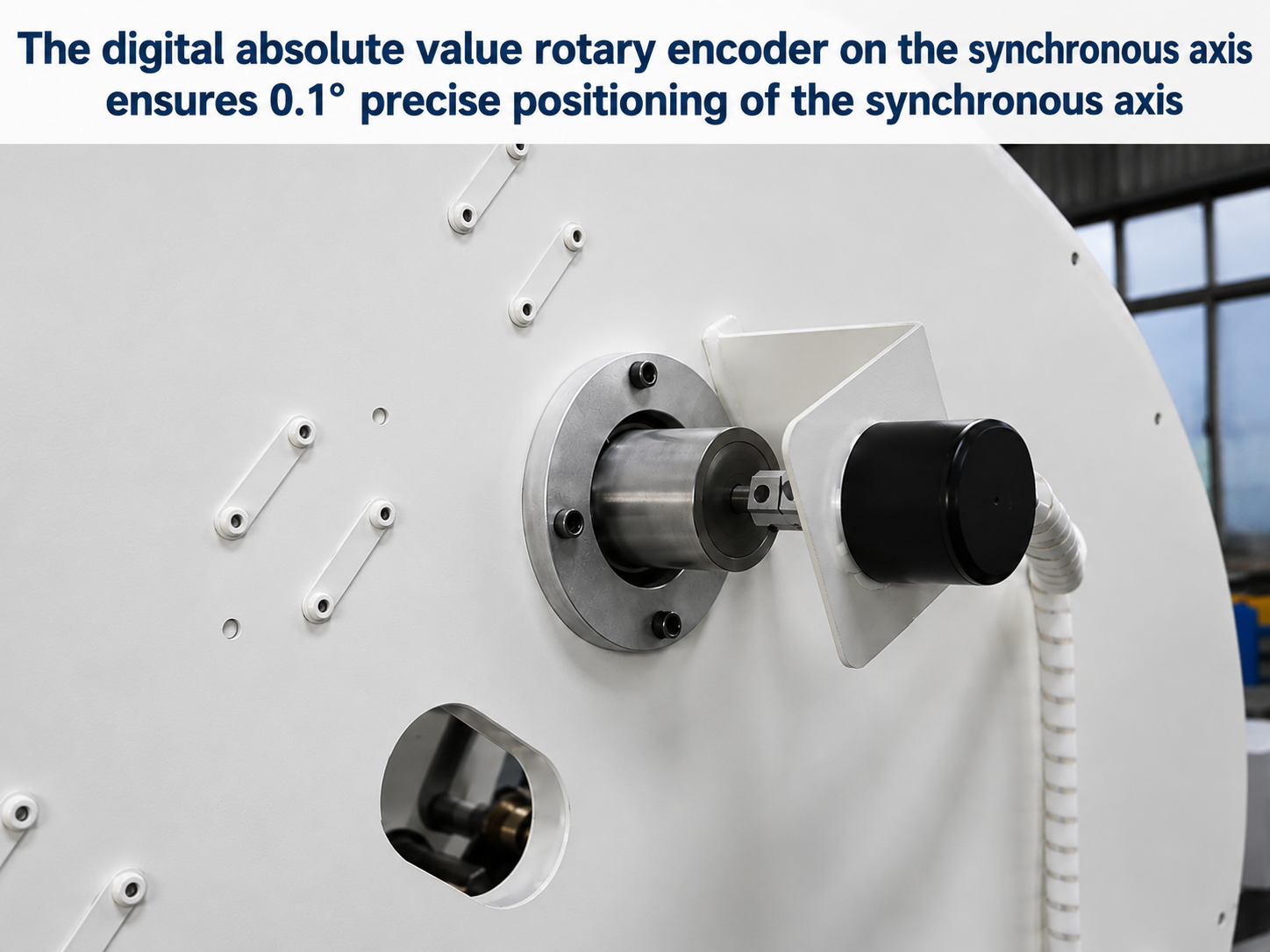

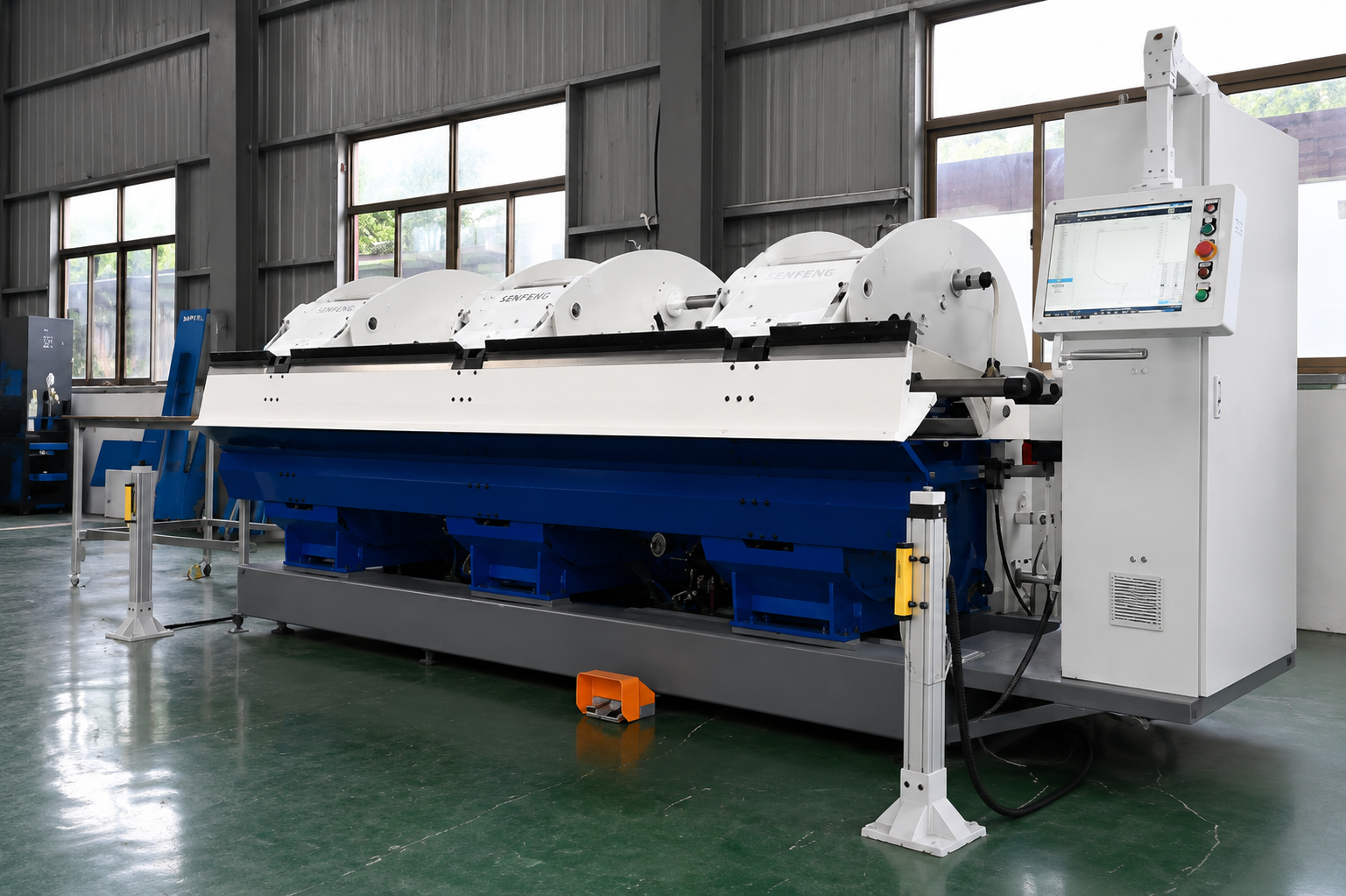

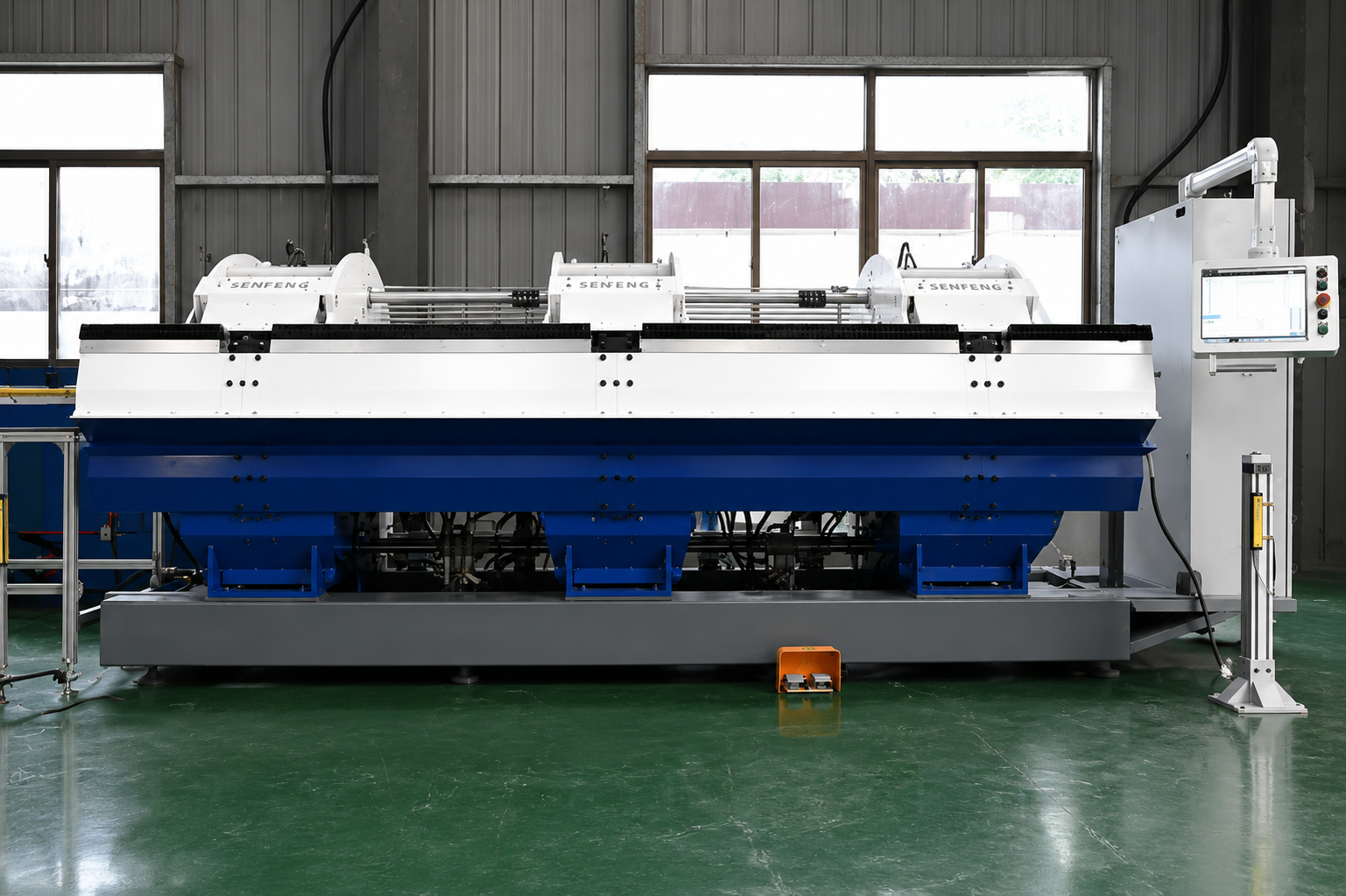

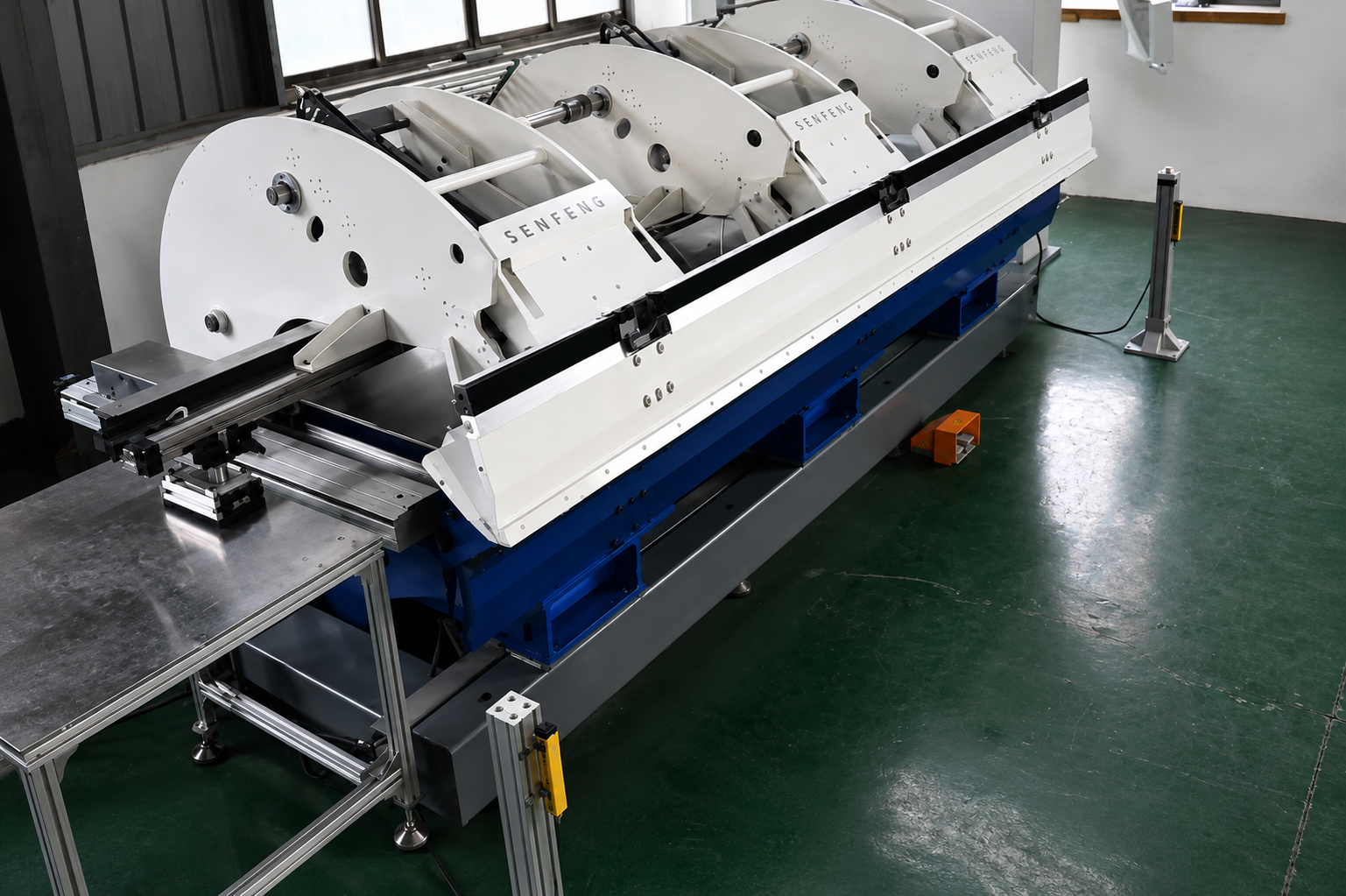

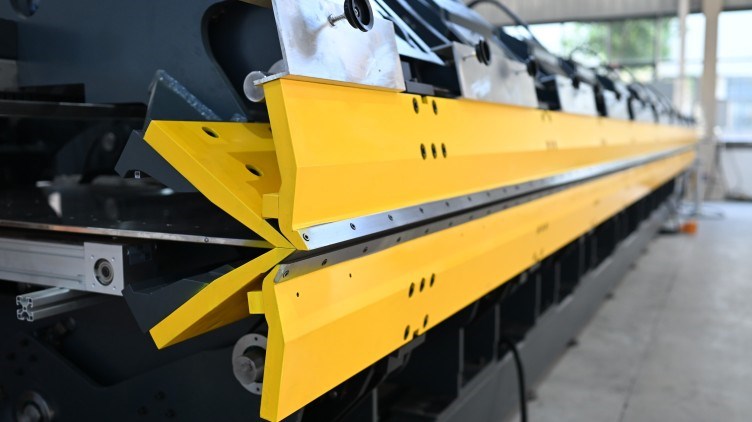

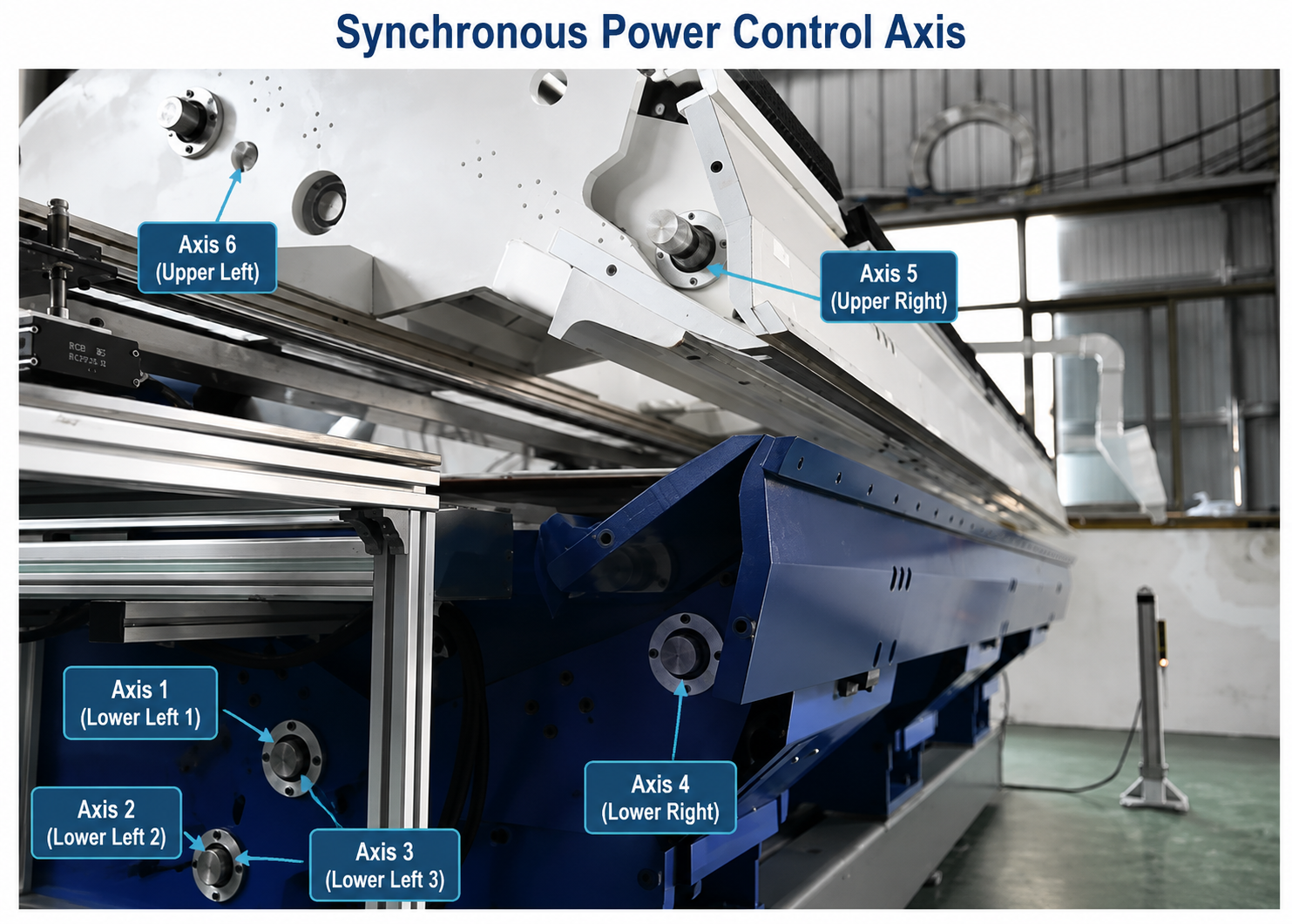

The Double-Turn Long Material Folding Machine is equipped with 6 root 50 mm synchronous power axes. The synchronous power axis ensures the levelness of the folding slide and clamping slide, which is essential for accurate arc folding and for extending the service life of the machine. The synchronous axis eliminates the different forces generated by the hydraulic cylinders, preventing the folded parts from twisting or deforming. The synchronous axis also enables double-pump technology for the folding die, resulting in faster folding operations. All axes move smoothly and synchronously on enclosed spherical bearings, ensuring stable operation without jerking during the forming process.

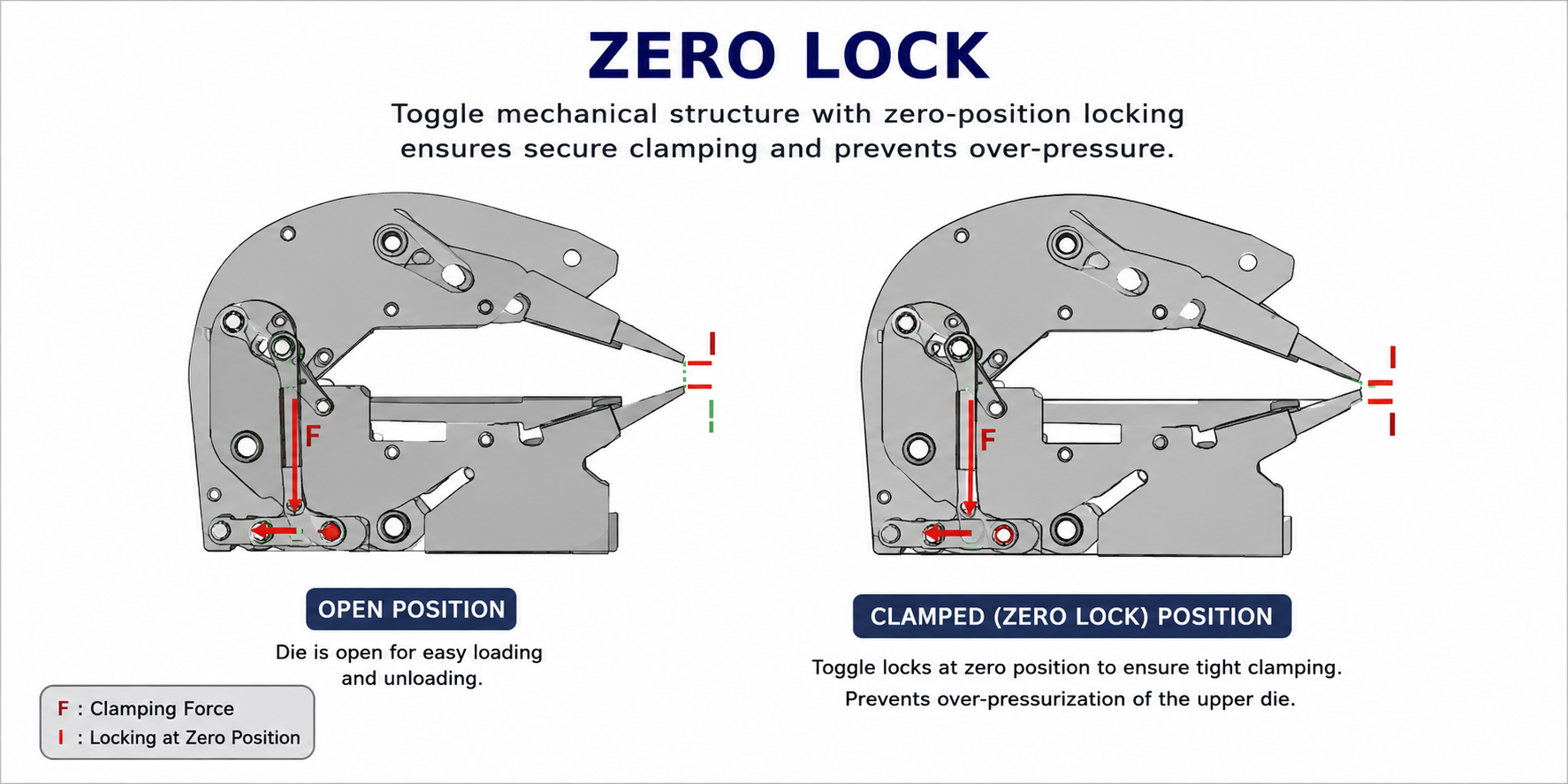

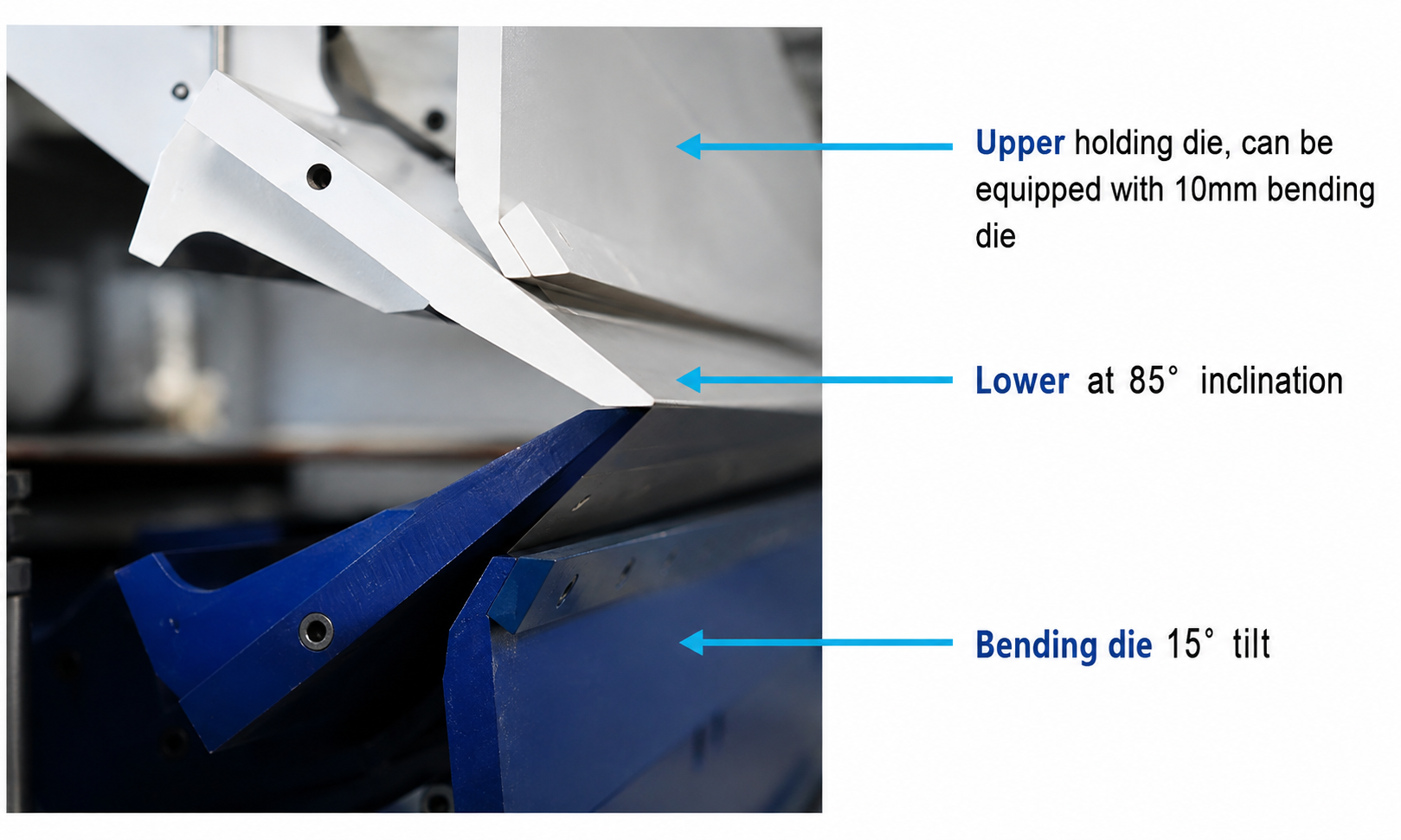

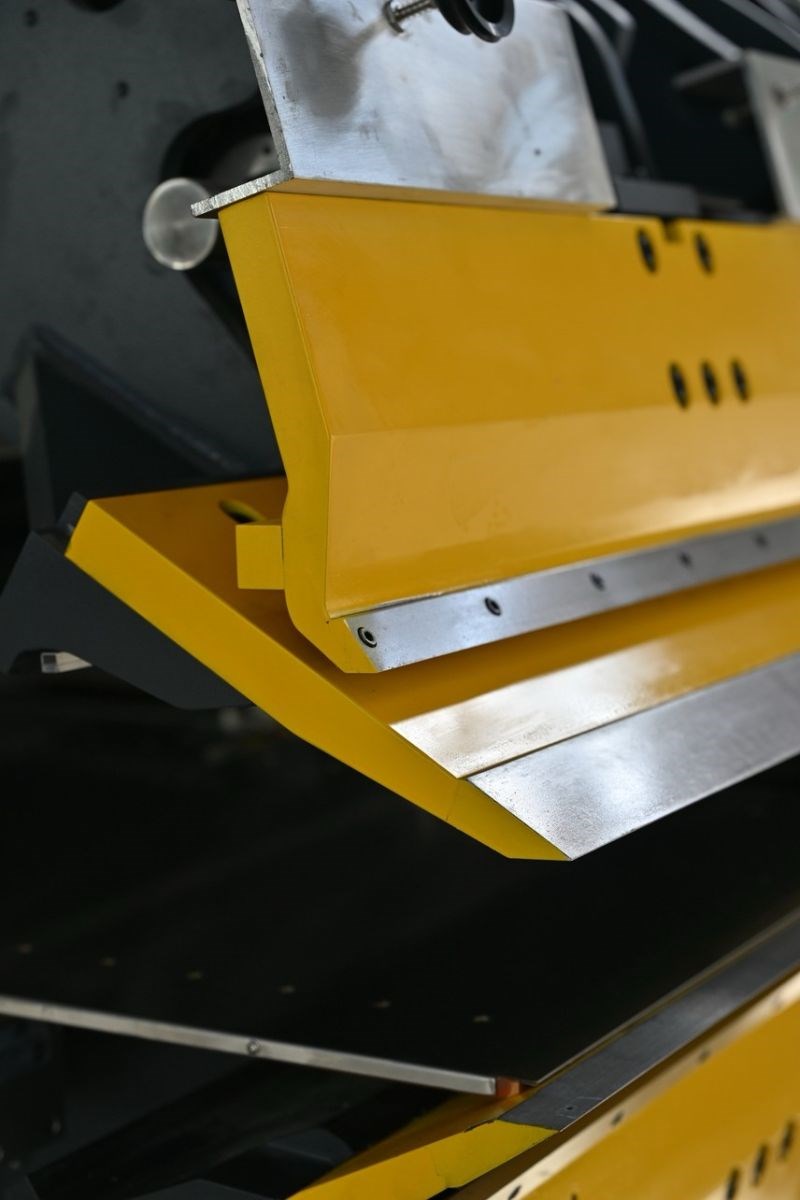

The clamping structure is unique. Unlike other manufacturers whose clamping force is generated by hydraulic pressure acting directly on the die, Senfeng uses a toggle mechanical structure with zero-position locking to ensure that the clamping die securely clamps the sheet. At the same time, this structure prevents the upper die from being over-pressurized, providing reliable clamping performance and protecting the machine components.

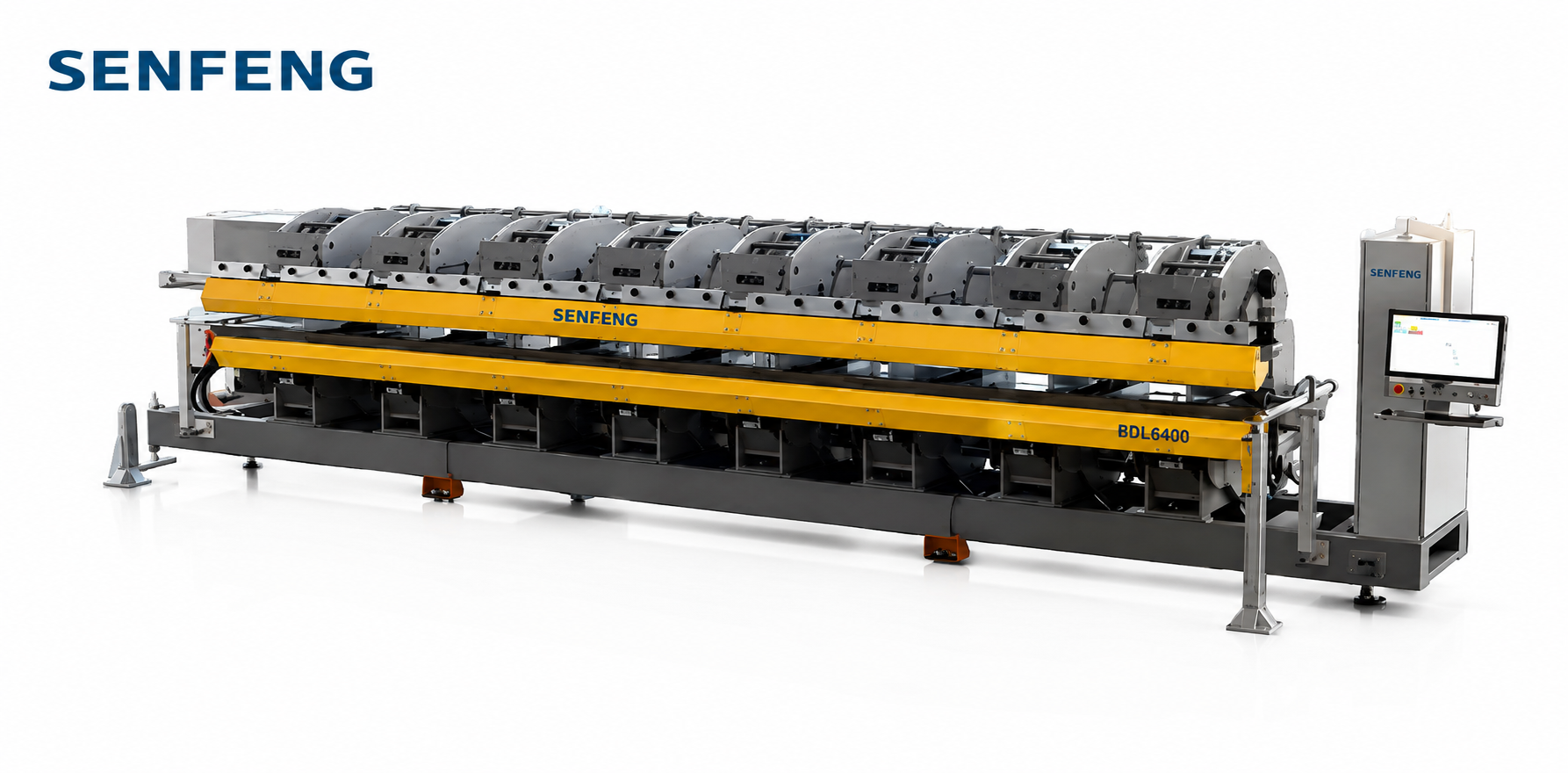

The combined features and geometry of the SENFENG BDL6400 workspace make this machine even more unique and flexible. Each of the advantages listed below is specifically designed to provide a flexible machine solution for different applications.
Dynamic hemming technology allows multiple axes to move simultaneously. This significantly reduces repositioning and idle times, ensuring a more efficient production process. The dynamic hemming technology provides a smooth and continuous hemming operation, while improving overall efficiency and increasing production capacity.

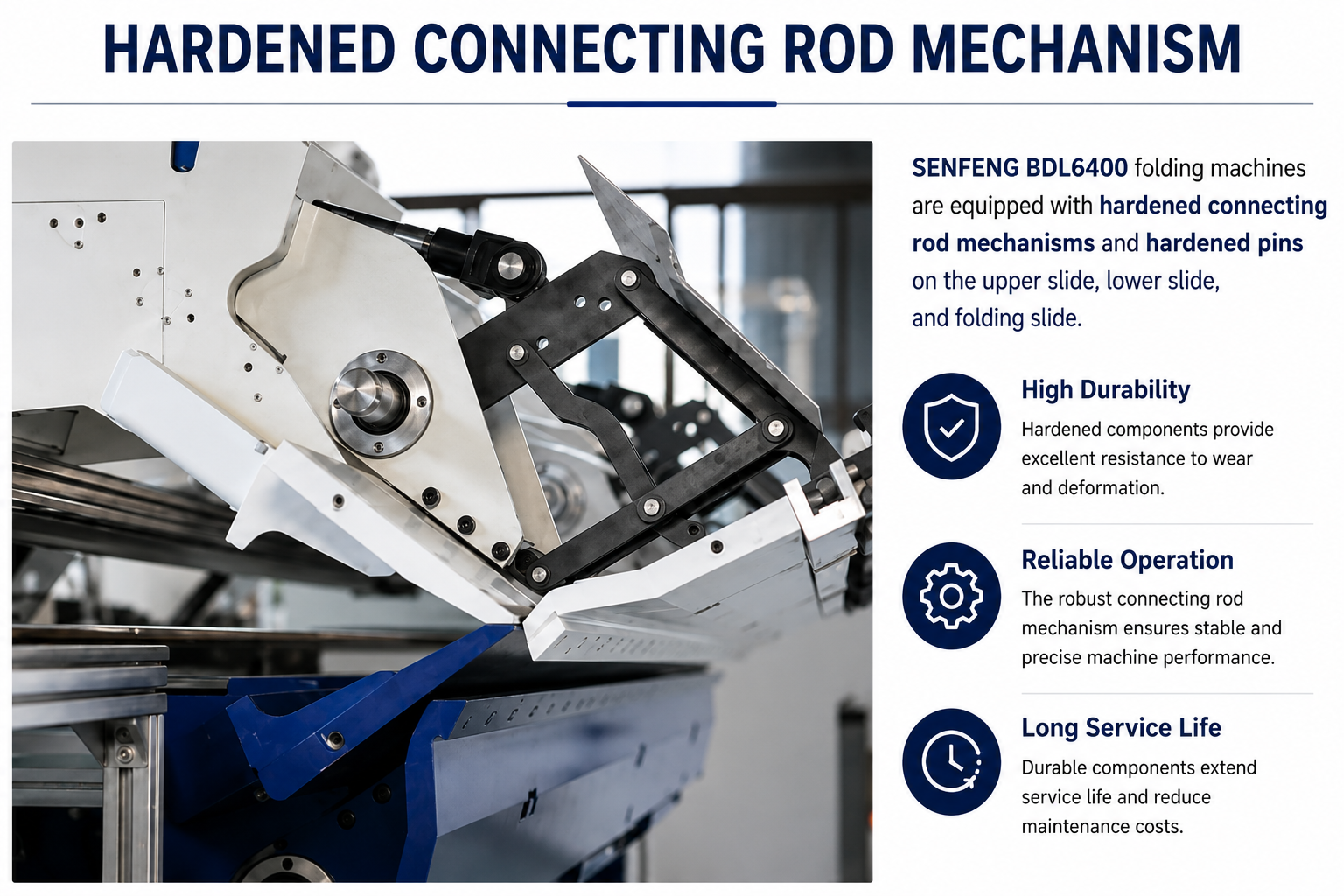

SENFENG BDL6400 folding machines are equipped with hardened connecting rod mechanisms and hardened pins on the upper slide, lower slide, and folding slide. This robust mechanical design provides high durability, reliable operation, and long service life during continuous folding operations.
Deflection compensation is provided as a standard feature to achieve precise forming results when processing different materials.

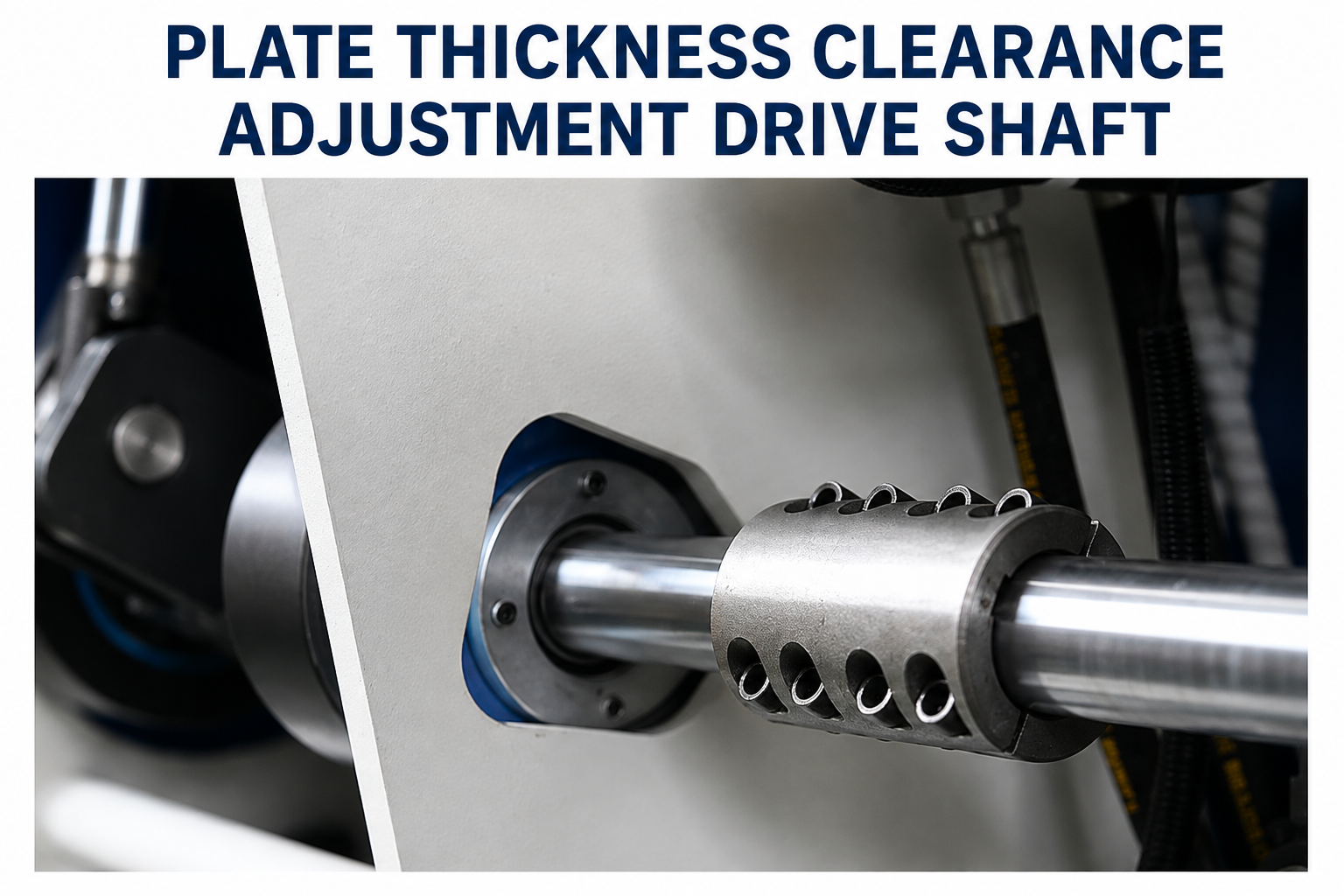

The machine is equipped with an independent plate-thickness gap adjustment drive shaft and a fully automatic R-angle adjustment system. The clamping die can be accurately positioned according to the plate thickness, ensuring a precise R-angle during the forming process. The required plate thickness can be entered directly into the control system, while the plate-thickness gap adjustment value can also be set manually when a larger R-angle is required. The full hydraulic adjustment system also facilitates effective pressing of the dead edge.

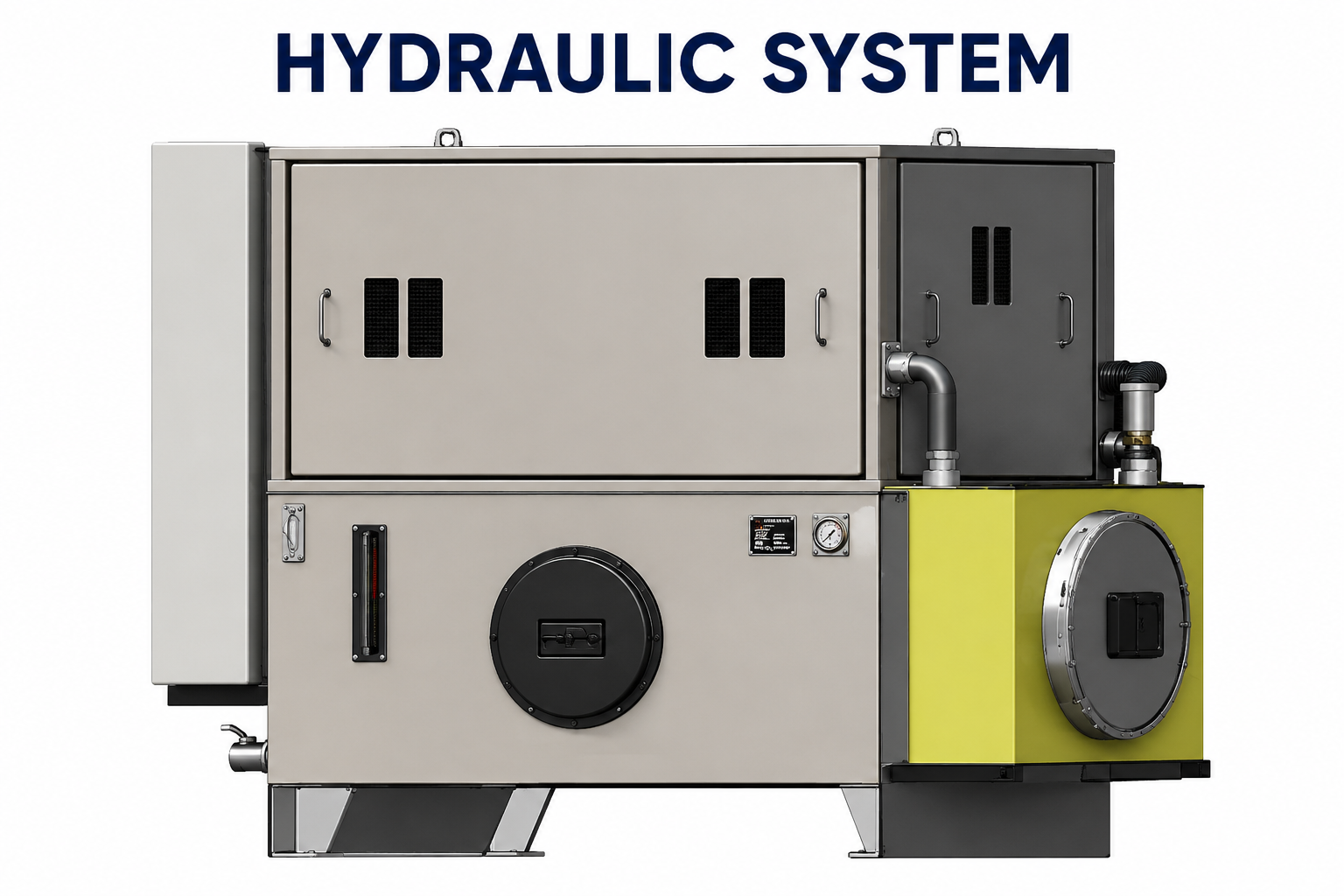

The hydraulic system is specially developed and designed for SENFENG BDL6400. The pressure on each axis is controlled individually by its own servo proportional valve. An additional pressure control valve is provided to prevent low-voltage closed-circuit operation. As an additional safety feature, each axis is equipped with two locking poppet valves, ensuring that the axis can be stopped immediately in the event of a power failure or proportional valve failure. In this way, each axis is provided with triple protection. The hydraulic system has a noise level of only 72 dB. The hydraulic system is also equipped with a hydraulic oil cooling function, allowing the machine to operate continuously in three shifts.

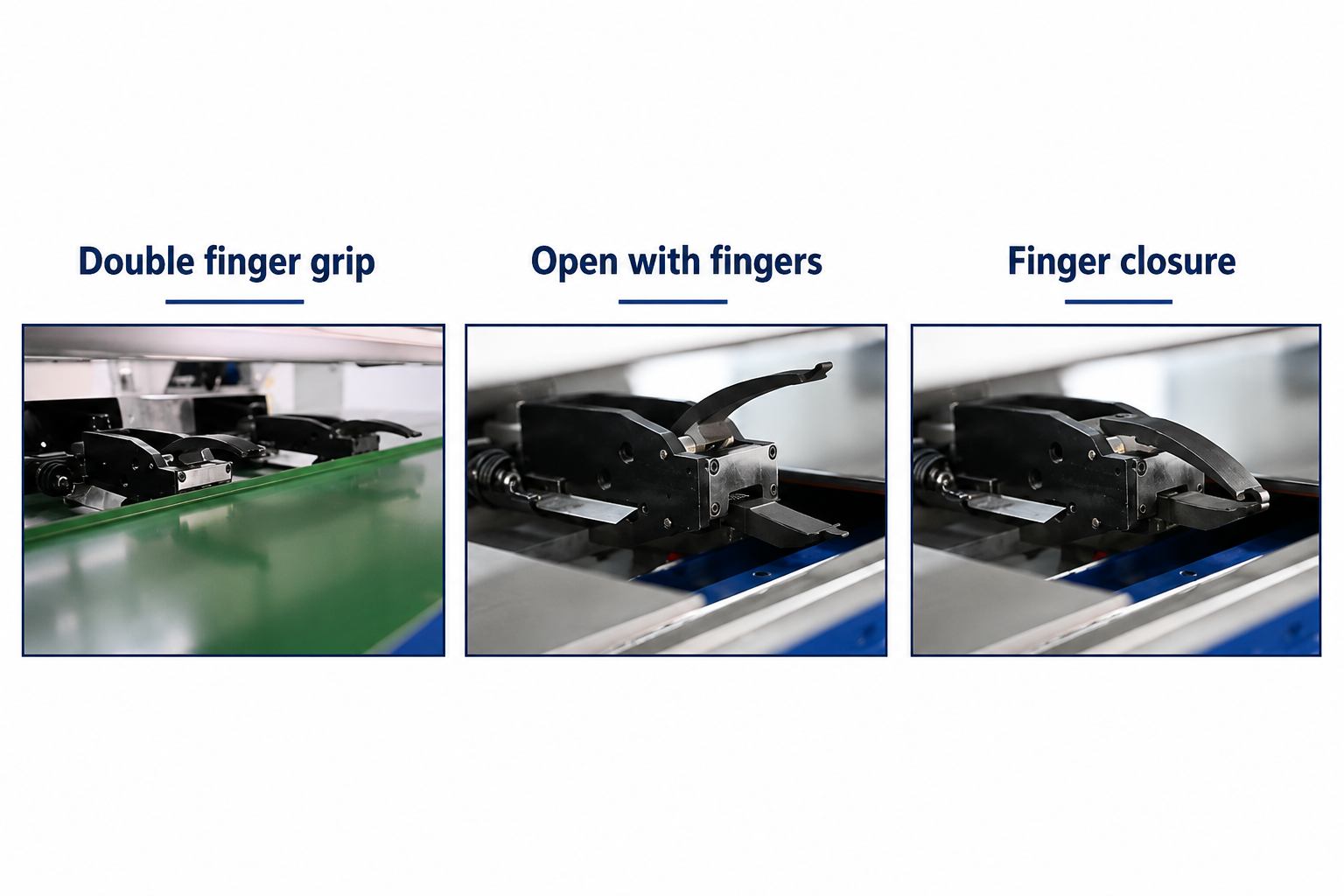

The back gauge gripper system has a positioning depth from 20 mm to 1250 mm. The grippers can be customized according to customer requirements. The upper and lower grippers hold the sheet simultaneously, making them suitable for sensitive materials. The gripper system features a modular design, which ensures fast replacement of different grippers. The pneumatic grippers operate with 6.0 bar air pressure.

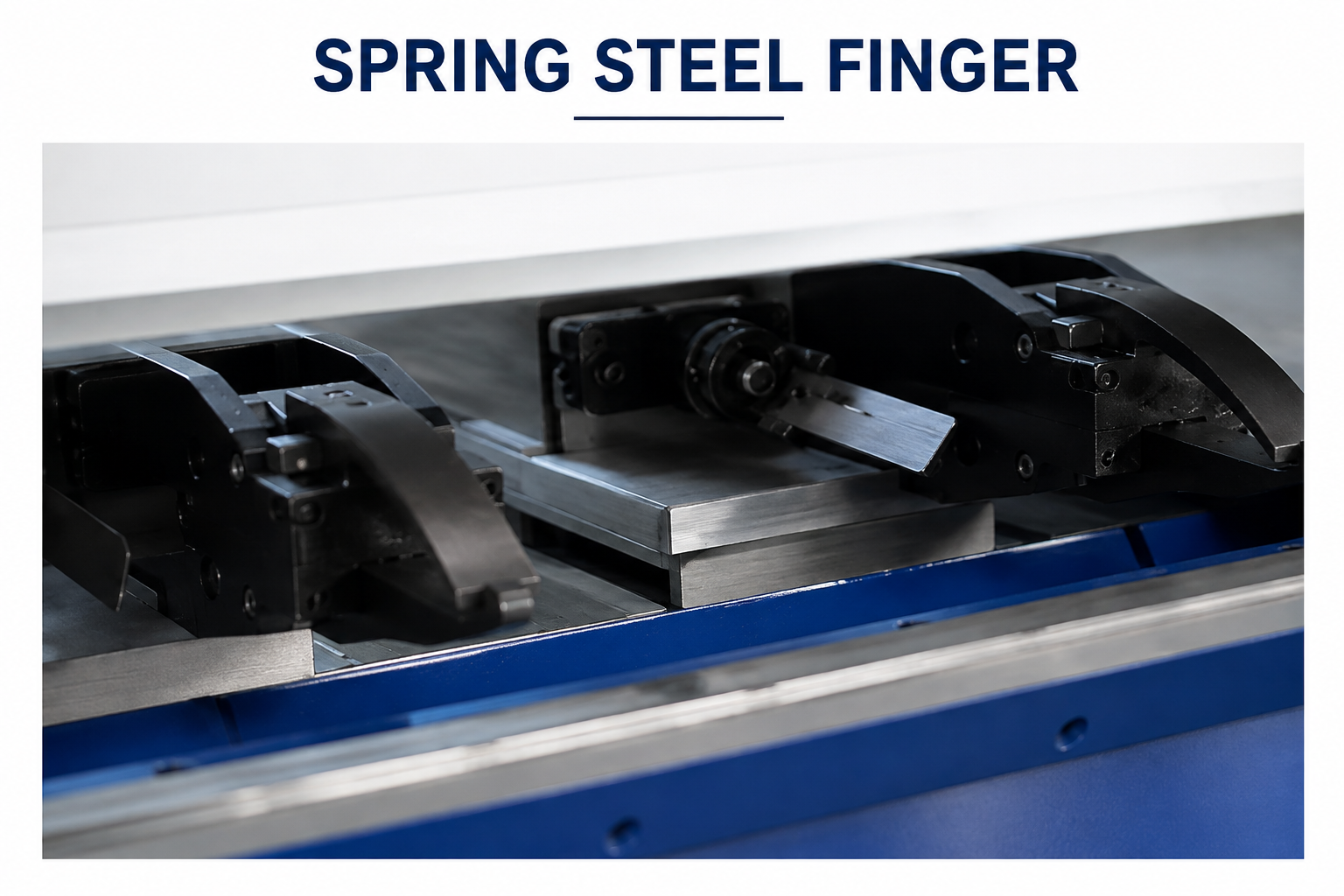

Used to locate flange edges less than 20 mm.

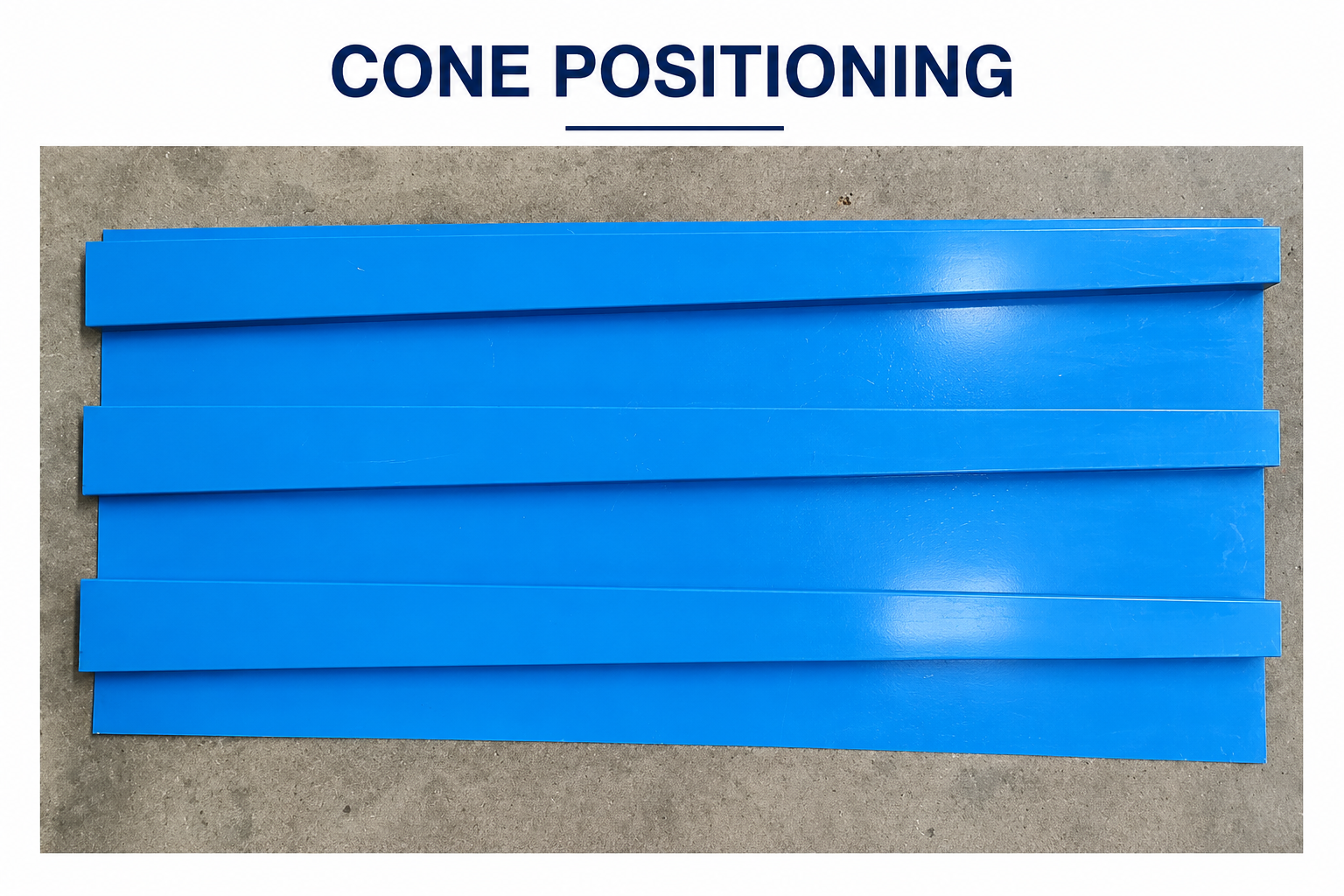

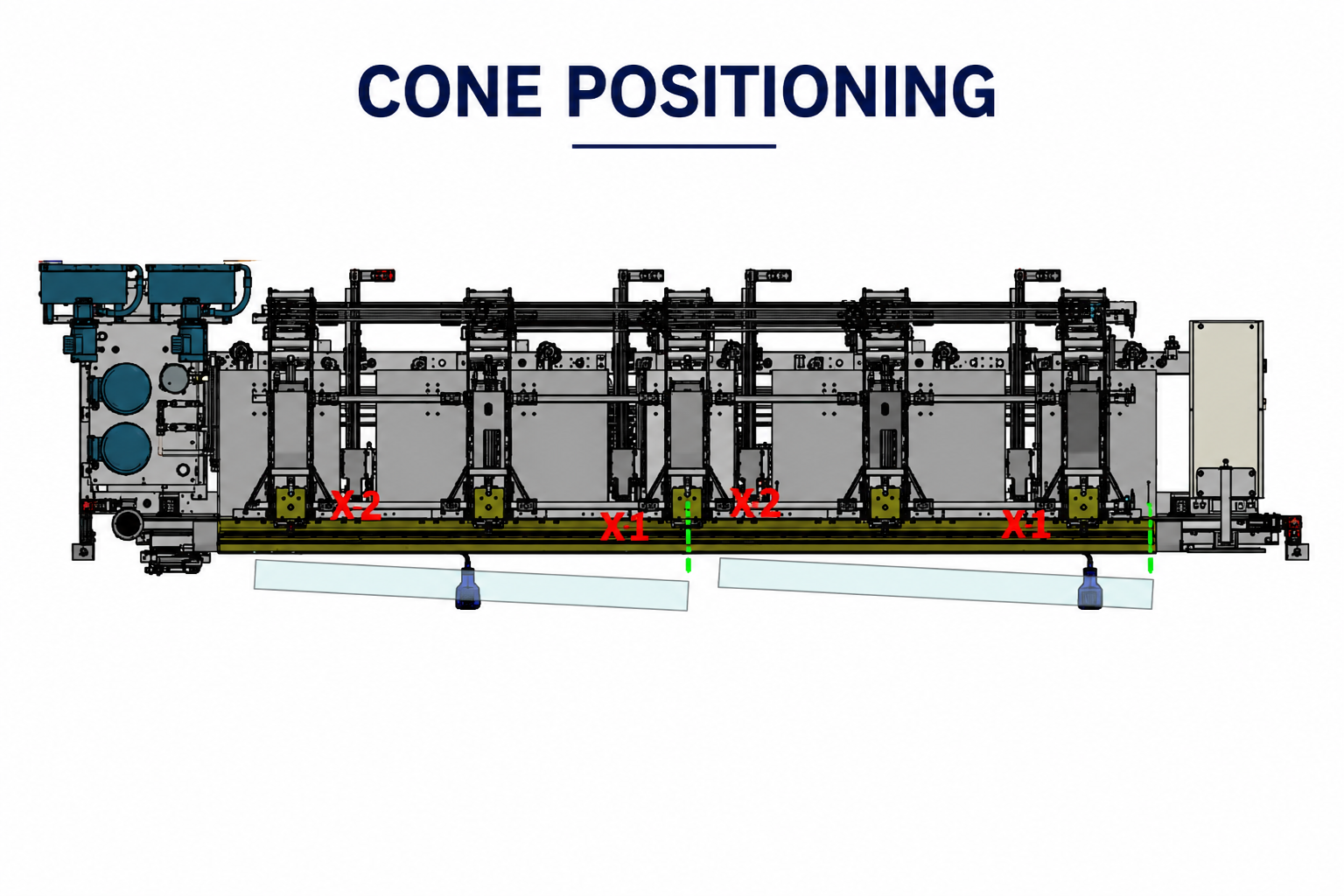

Fully automatic cone positioning with a maximum left and right difference of ±127 mm. With 4-area integrated control, no fixed reference points are required. The software automatically calculates the optimal loading position on the machine.

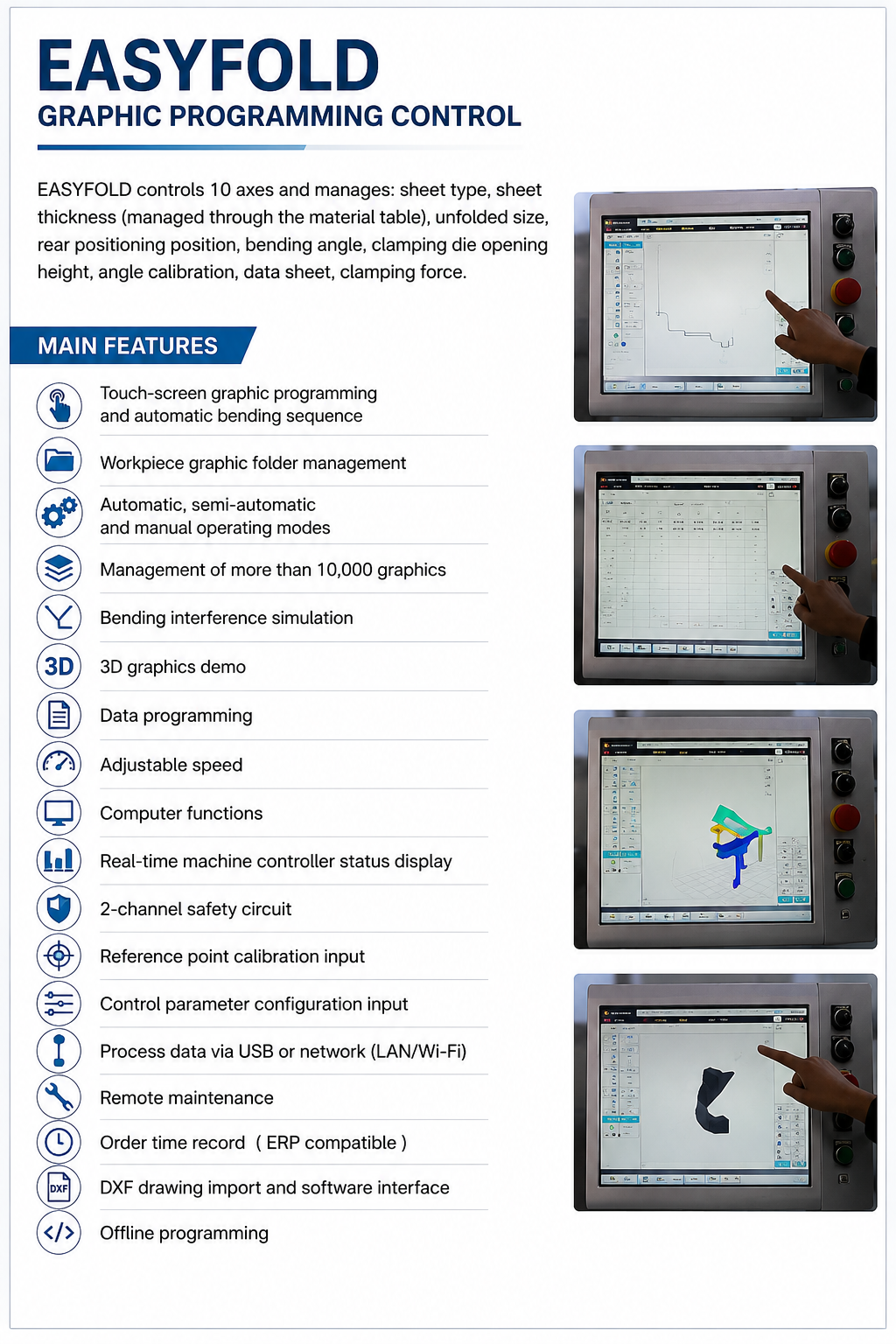

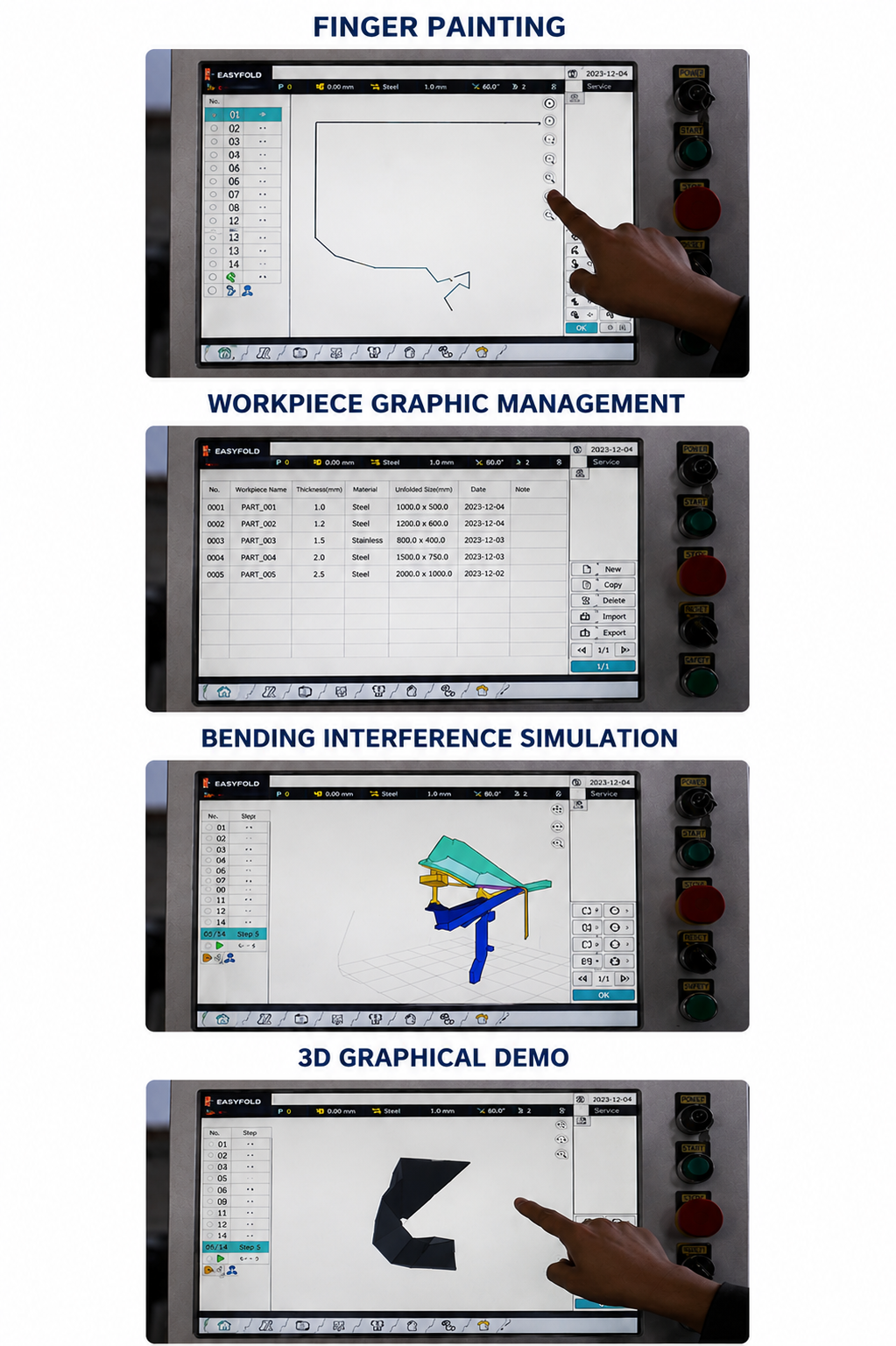

The EASYFOLD graphic programming control manages 10 axes and provides comprehensive control of the following parameters:

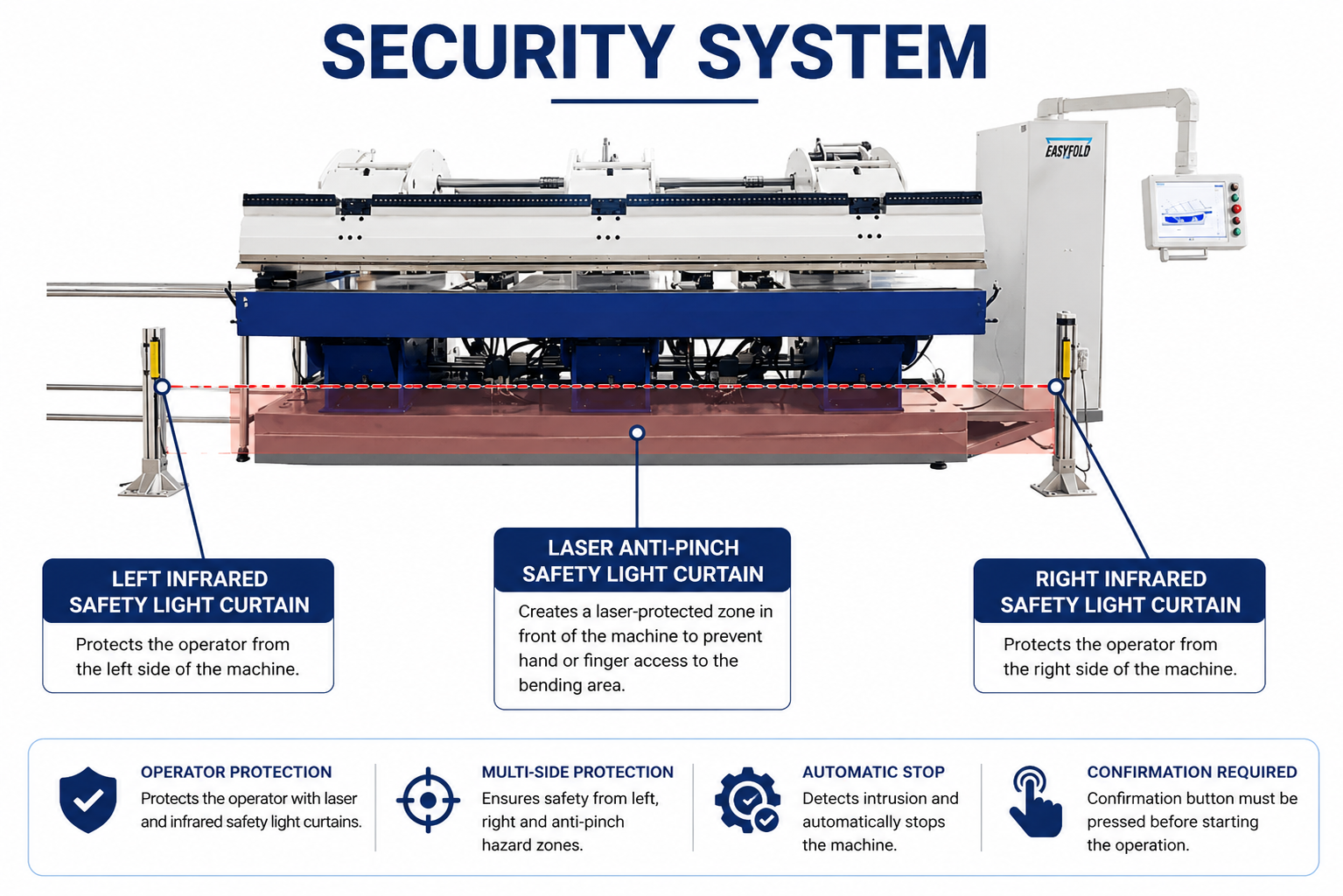

In automatic mode, the operator is protected by a laser safety light barrier. In semi-automatic and manual modes, the infrared safety light barrier is inactive. When the plate is placed in the machine and the operator leaves the danger zone, the machine must press the confirmation button on the safety light curtain before starting operation and entering the bending operation. If a person or object enters the protected area during operation, the safety light curtain immediately triggers the machine to stop.
The laser finger protection grid prevents the operator from pinching their fingers. It operates in semi-automatic and manual modes. In fully automatic mode, it is inactive because the infrared safety light barrier is active. The laser light barrier transmitter and receiver are installed at both ends of the machine. When the laser light barrier is activated, the clamping slide stops immediately. The laser system can detect hands and fingers. The clamping slide operates at a distance of 15 mm. The laser finger protection grid does not operate in the specified following situations.
LED lighting helps illuminate the bending area, providing a clear view of the working area and ensuring safer bending operations. The lighting system is effective for operation in semi-automatic and manual modes.

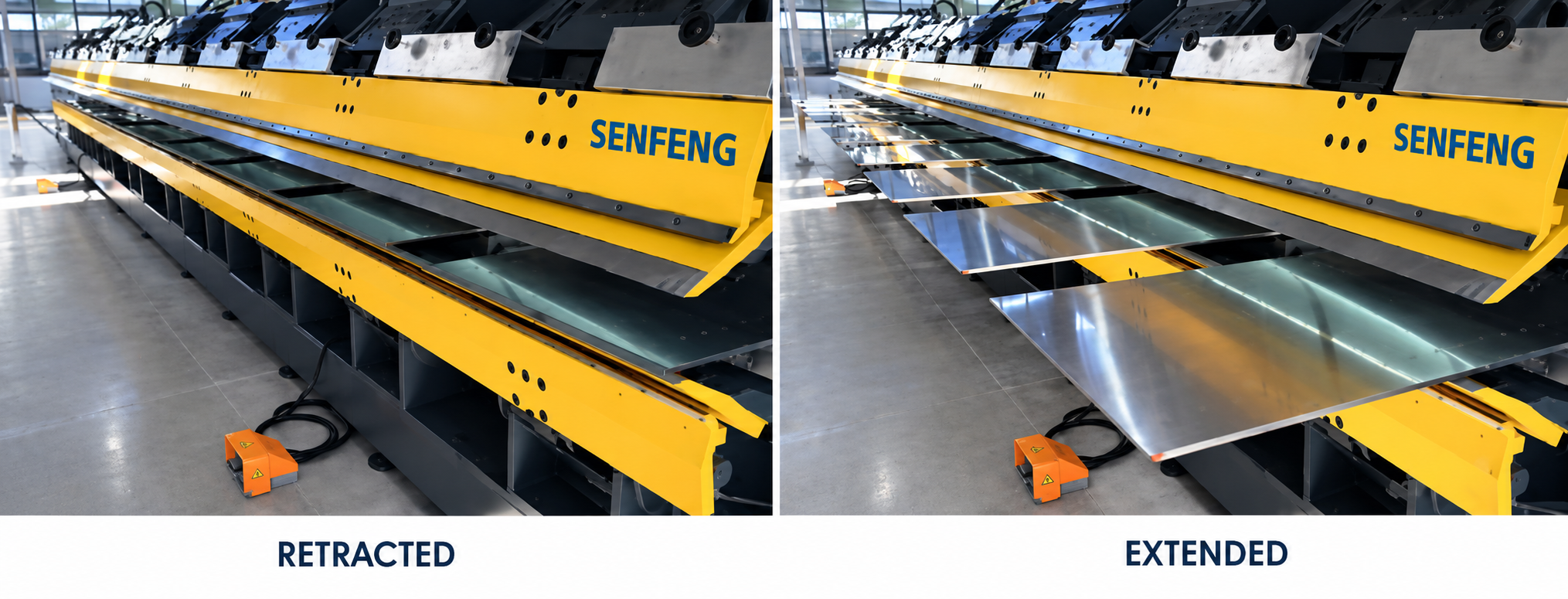

Designed for handling large workpieces or multiple panels by a single operator. The system doubles production efficiency and reduces labor requirements.

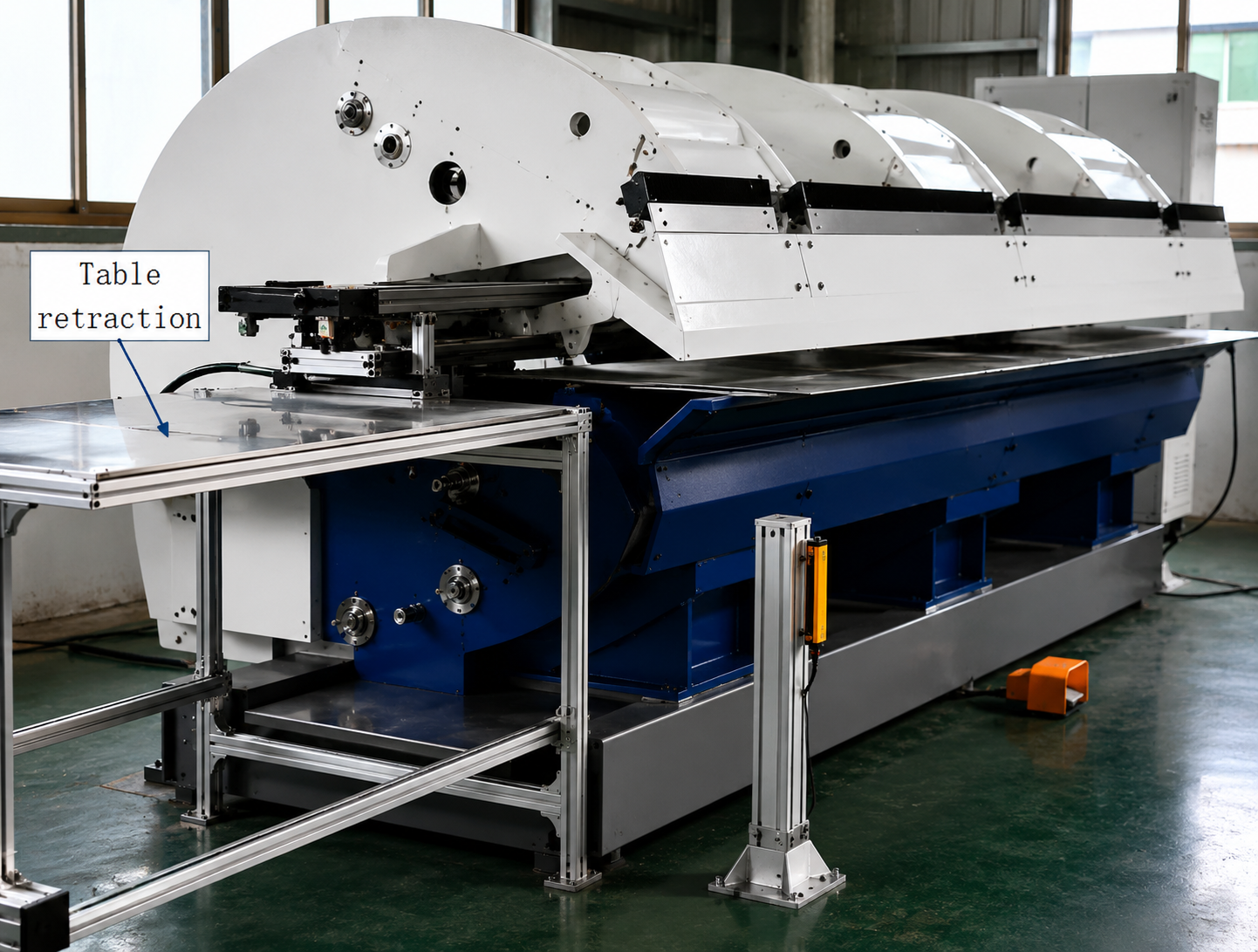

The extension amount can be automatically calculated according to the panel width or manually adjusted by the operator.

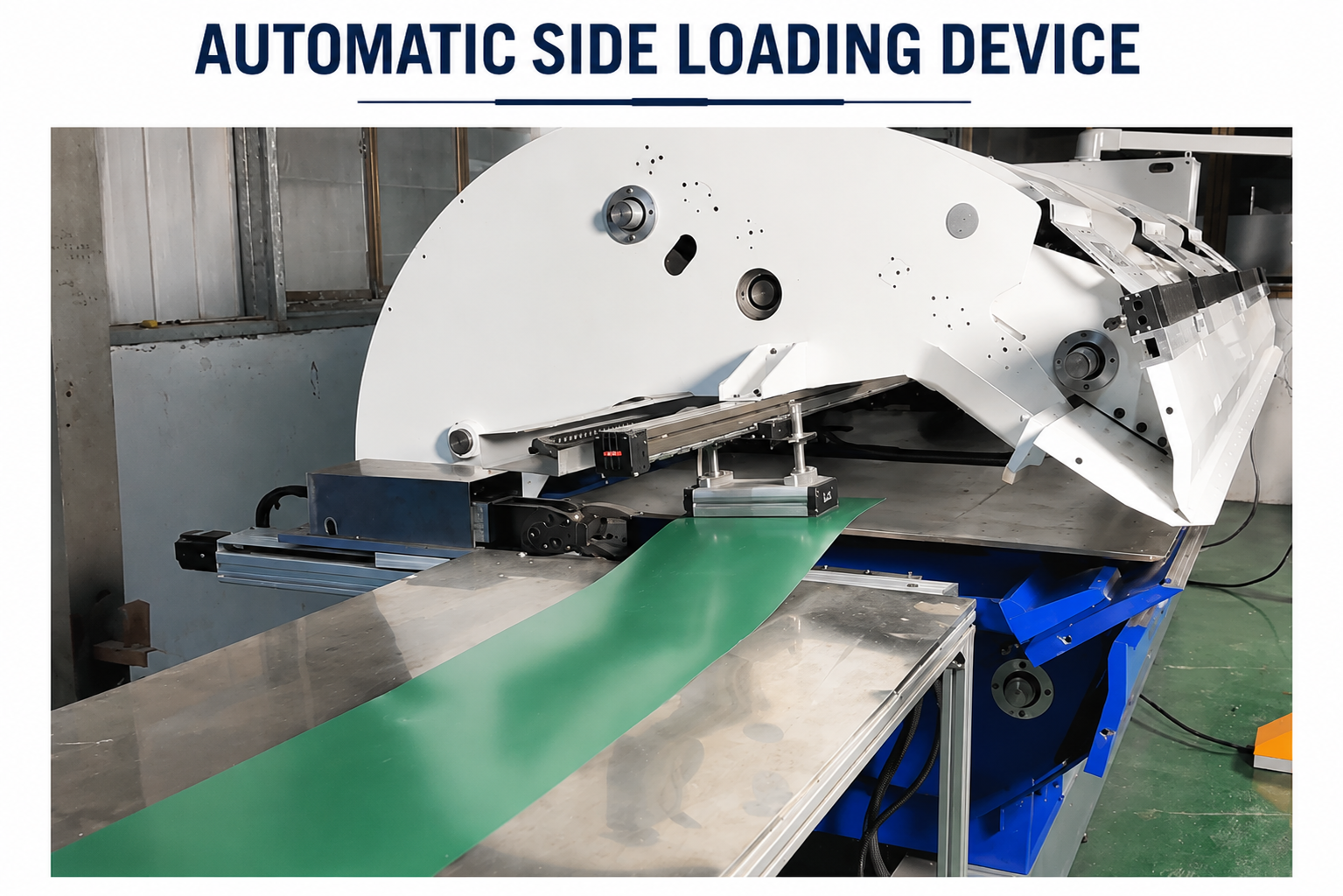

The integrated automatic loading system sets new standards. The sheets are automatically fed into the AD Long Material Folding Machine quickly and flexibly by means of linear guides and vacuum suction cups. The sheets can be loaded within the processing capacity of the machine and automatically positioned at the loading position. The loading device can continuously load one or more sheets, such as 24 m sheets on an 8.2 m machine. For long boards, the loading quantity can be set manually. The drop position can be customized through the controller.

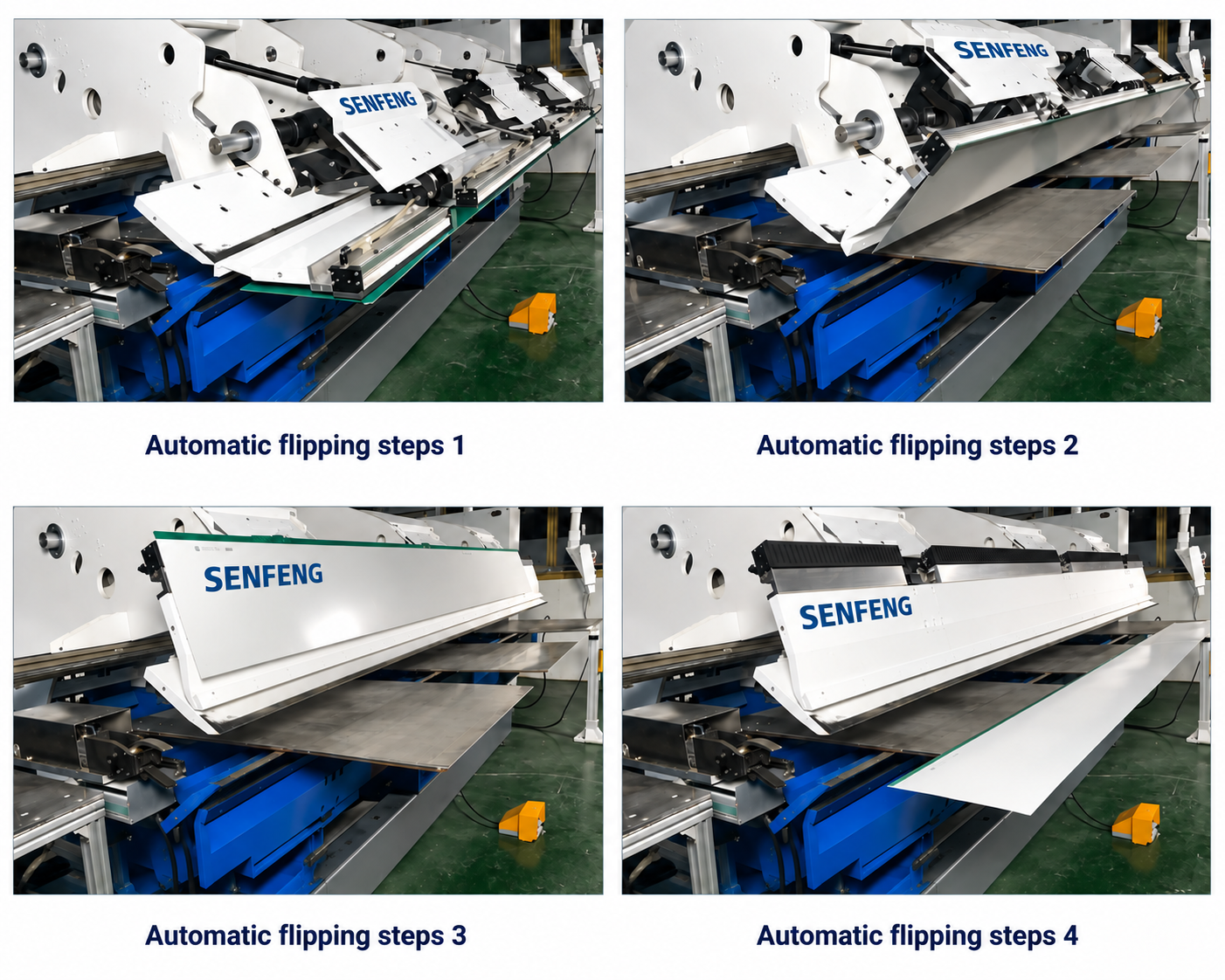

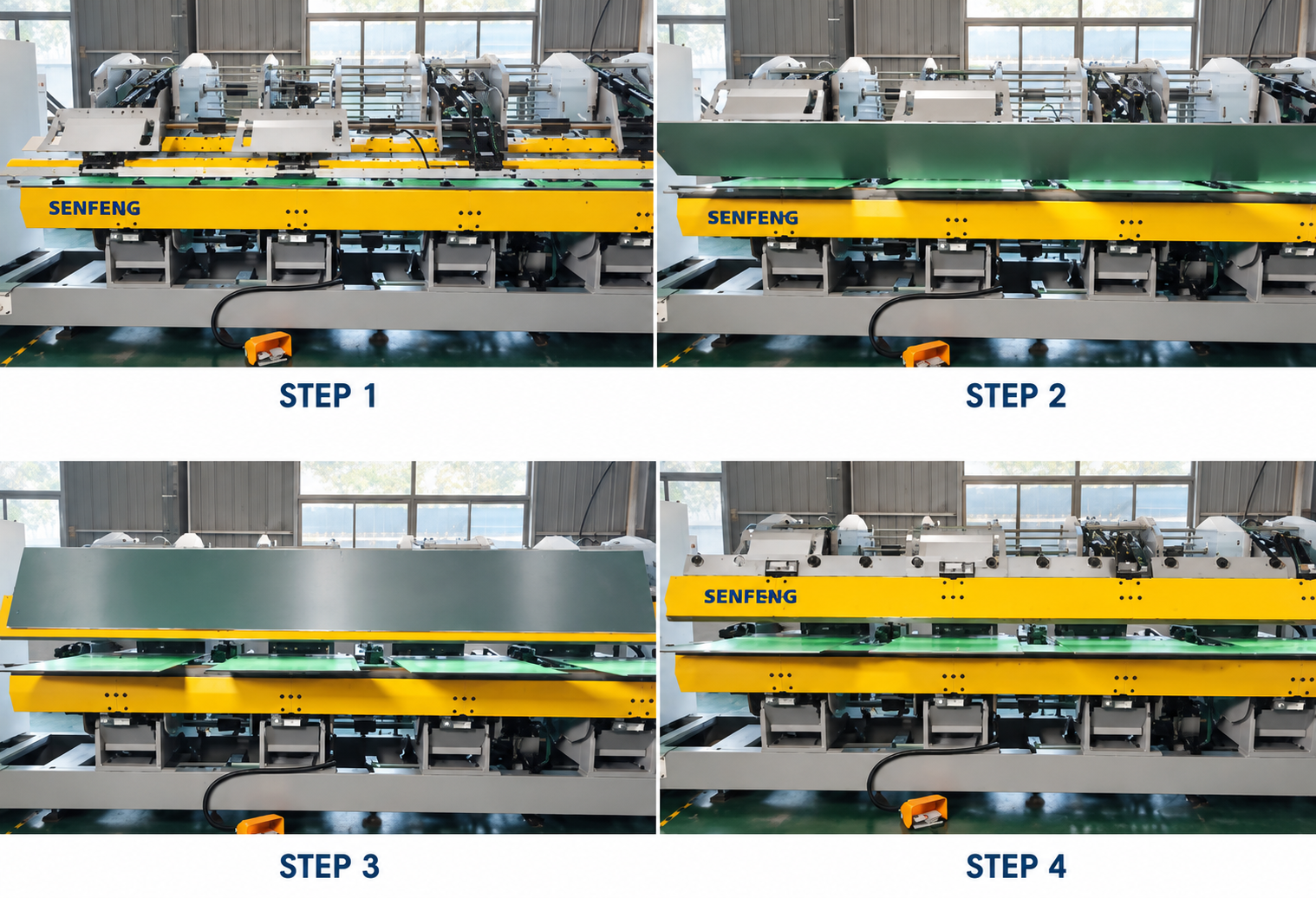

The machine automatically turns over the workpiece pressed against the edge at both ends or grips the opposite side of the workpiece. For workpieces with sizes from 125 mm to 635 mm, the operator does not need to assist in turning the plate. For workpieces from 635 mm to 1250 mm, the operator does not need to manually turn the plate but only needs to assist in keeping the workpiece on the table when the vacuum suction cup is released.
