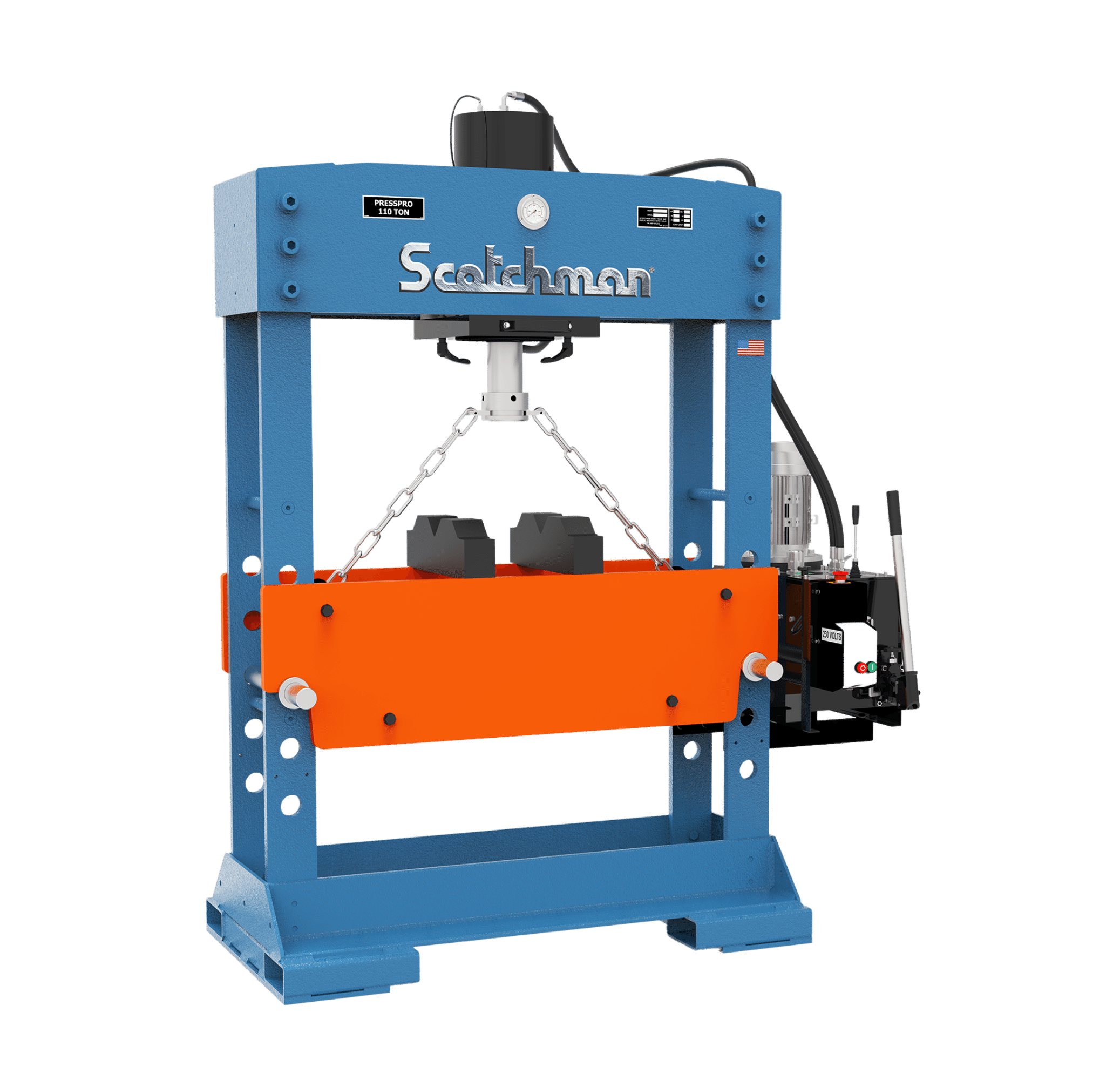

This 176 ton workshop press is equipped with a movable cylinder (left-right) and an in-height adjustable working table.
The motorized hydraulic unit comes standard with a pressure regulator, 2 speeds, a joystick and a hand pump for precision pressing.
Smooth & precise, heavy-duty and versatile; These presses are industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
They're simple to use and solve a variety of demands to improve user’s productivity. The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. Built for the big jobs as well as the small ones; the adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible.
This H-Press meets CE Standards, is manufactured in the USA, and comes with our superior 3-year warranty.
Press Force
176 Ton
160 mt
Motor Options (must specify)
230/460v, 3ph 5 hp
3.6 kW
Ram Speed - Approach
18 ipm
7.48 mm/s
Ram Speed - Press
6 ipm
2.40 mm/s
Ram Speed - Return
22 ipm
9.35 mm/s
Open Height (min.)
9-1/2"
241 mm
Open Height (max.)
32"
813 mm
Stroke
15-3/4"
Lateral Ram Slide
YES
Manual
Width Between Uprights
43-3/16"
Width Between Table Channels
17-1/16"
Table Height
Adjustable
Manual with Hydraulic Assist
Footprint (L x W)
69-1/8" x 42-3/8"
175.5 x 107.5 cm
Height Overall
87"
221 cm
Weight est. (includes V-blocks)
3,680 lbs
1,669 kg
