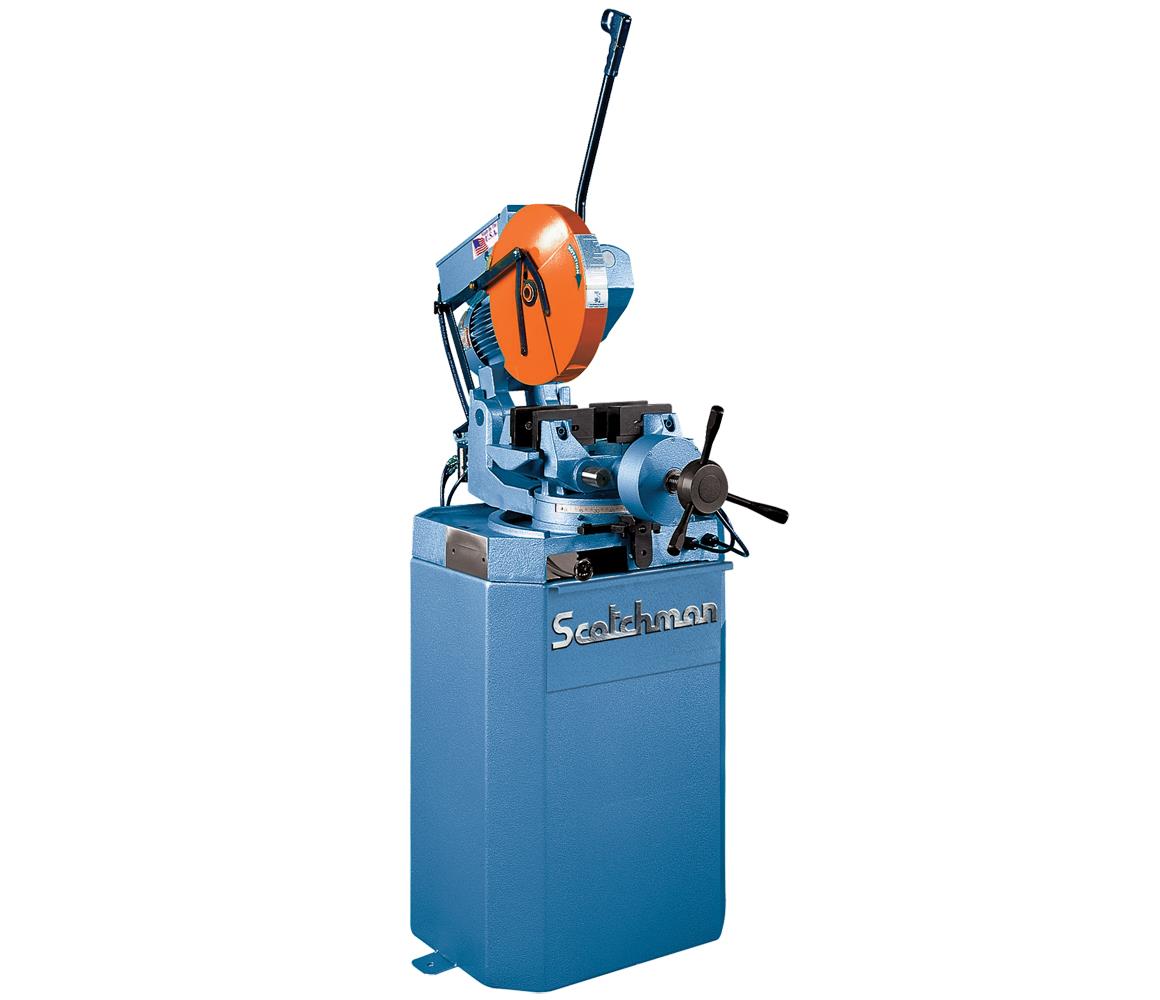

This powerful American-made Circular Cold Saw is built to last and is the perfect machine for any fabrication shop cutting non-ferrous materials like aluminum, plastic, copper, etc.
The CPO350 NF coldsaw is designed to make extremely fast and accurate cuts through metal and features a double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts.
It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, and can slot and notch. Accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts.
Additional machine features include a chip drawer, mist coolant lubrication system, a 3,000 rpm motor and utilizes up to a 14" diameter (350mm) carbide tipped sawblade giving it the ability to cut 4-1/2" OD max round tube and 3" max round or square solid at 90 degrees. The CPO 350NF saw is built with dependability and versatility in mind, with the quality you expect from a Scotchman; always backed by our 3-Year Warranty and lifetime customer support!
Pair this machine with a Scotchman digital measuring system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length.
Cutting Speed
3,000 rpm
Motor Rate: 5 hp
Maximum Cutting Capacities (Non-Ferrous & PVC )
TUBING Round Square Rectangle
90 Degree 4-1/2" 4-1/4" x 4-1/4" 5-1/2" x 4"
45 Degree 4-1/4" 4" x 4" 4" x 4"
SOLID Round Square
90 Degree 3" 3" x 3"
45 Degree 2-1/2" 2-1/2" x 2-1/2"
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Maximum Diameter Blade
350 mm
Arbor Bore
40 mm
Pin Spacing
4/12/64
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
56-1/4"
143 cm
Height (floor to vise)
37-7/16"
95 cm
Shipping Weight (may vary)
625 lbs.
283 kg
