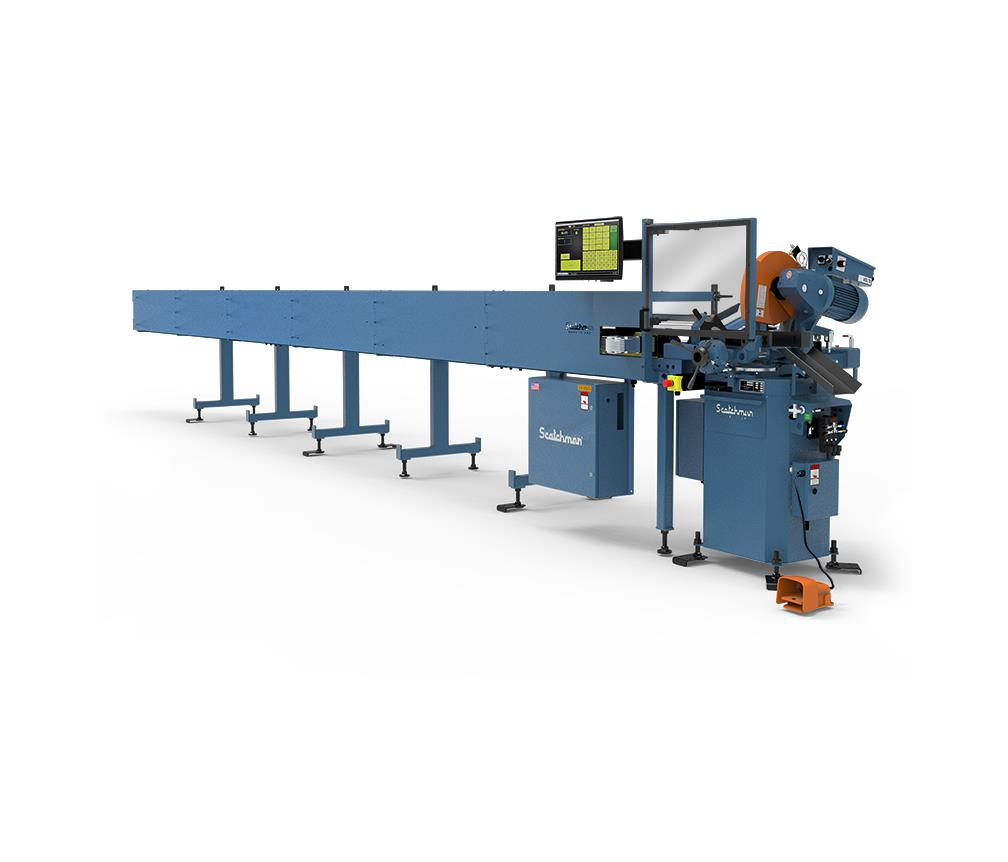

Our CPO 350 Auto Loader is a fully automatic sawing system guaranteed to save time, reduce scrap and eliminate costly mistakes. Automatically run unlimited cut lists at 90° OR miter cut in a semi-automatic mode; consistently producing accurate cut lengths within ±0.002 per dia. inch in squareness.
We've taken our trusted semi-automatic CPO 350 PKPD variable speed saw and added an automatic material loading system creating a fully automatic sawing system which can cut multiple lengths of tube (max 3" dia.). This saw can run unlimited cut lists from 1/2 inch to 23 feet in length.
Available for ferrous and non-ferrous materials; this saw comes standard with a Windows® based touch screen control, 5ph variable rpm speed motor, and a 315mm diameter blade.
This saw is Proudly made in the USA and is built for industrial use and comes with lifetime customer support.
Cutting Speeds (must specify when ordering)
CPO 350 AutoLoader (ferrous)
Variable Speed 11 to 177 rpm
Motor Rate: 5 hp
CPO 350 AutoLoader NF (non-ferrous)
3,000 rpm
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square
90 Degree 3" 3" x 3"
45 Degree 2" 2" x 2"
SOLID Round
90 Degree 1-3/4"
45 Degree 1-1/2"
Maximum Cutting Capacities (NF) (Non-Ferrous & PVC )
SOLID (NF) Round Square
Length Tolerance
± 0.015 repeatability
Squareness Tolerance
± 0.002" per diameter inch
Minimum Cut Length
1/2"
12 mm
Maximum Cut Length
23' 9"
724 cm
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Air Pressure
90 psi
Maximum Saw Blade
350mm
Arbor Bore Size
40mm
Pin Spacing
4/12/64
Must Specify Infeed Table Type ↓
12' Supply Table (ST)
Maximum Raw Stock (12' ST)
12'
Load Table Capacity (ST)
24"
Dimensions - 12' ST w/ Saw
(L)236" (W)47" (H)68"
24' Supply Table (ST)
Maximum Raw Stock (24' ST)
24'
Dimensions - 24' ST w/ Saw
(L)377" (W)47" (H)68"
Bundle Loader (BL)
Maximum Raw Stock (BL)
Up to 24'
Maximum Lifting Capacity (BL)
4,000 lbs
Dimensions - 24' BL w/ Saw
(L)377" (W)91" (H)68"
