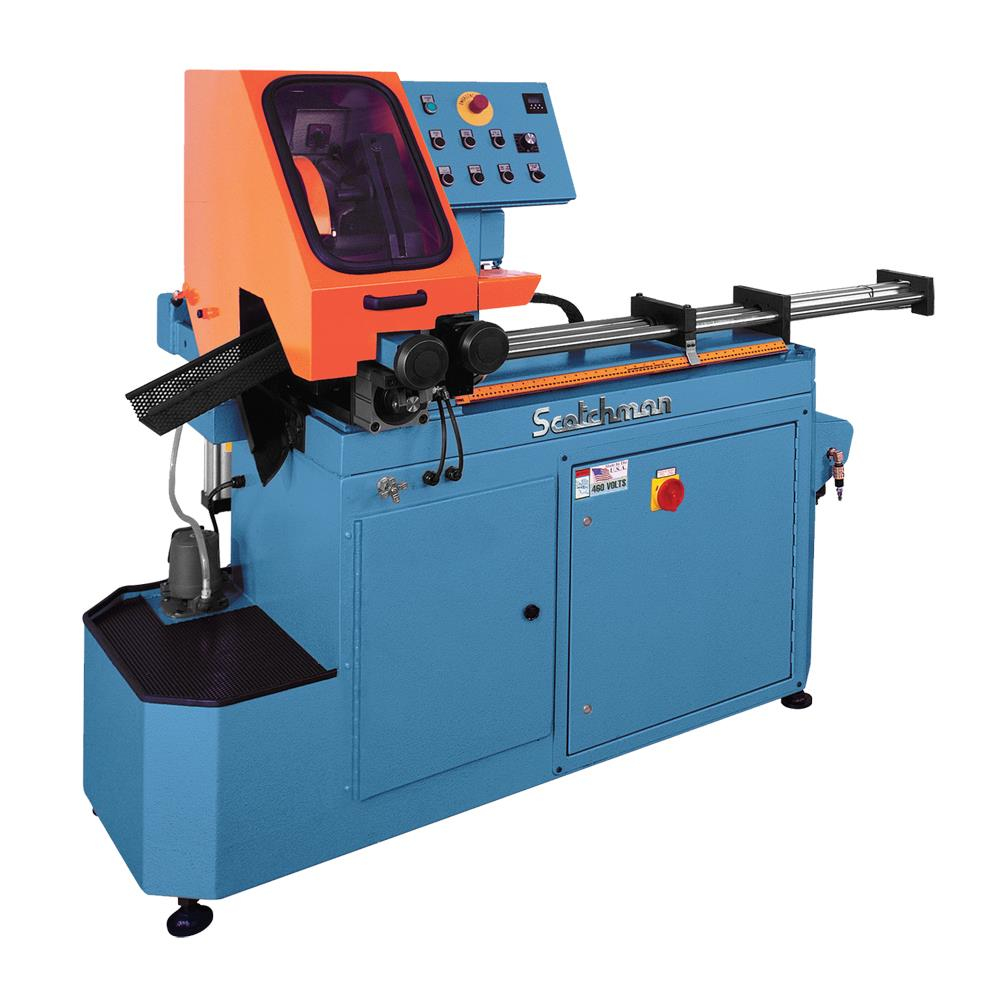

The Scotchman CPO 315 Hitch Feed Automatic Saw is a fully automatic circular cold saw which provides uninterrupted cutting on tubing or solids and delivers the highest quality of cuts. Ideal for high volume and short length applications that require very accurate and clean cuts.
The CPO 315 HFA has a length tolerance of ±0.006" per index, with a squareness tolerance of ±0.002" per diameter inch. This machine uses a 315mm blade and has the ability to cut pieces as short as 1/8" and as long as 90 inches. This Hitch Feed saw features a 30" single length shuttle, with a three-shuttle maximum index. Optional form jaws can be used to feed multiple pieces of smaller diameter material for hourly piece counts in the hundreds; drastically reducing labor costs.
This American made saw is dependable and built for industrial use. Its variable speed feature gives operators the ability to hone the blade feeds and speeds to each job yielding faster cutting times and longer blade life. CPO 315 HFA saws are available in ferrous and non-ferrous models and are always backed by our superior 2-year warranty and lifetime customer service.
Cutting Speeds (must specify when ordering)
CPO 315 HFA (ferrous)
Variable Speed 11 to 177 rpm
Motor Rate: 5 hp
CPO 315 HFA NF (non-ferrous)
3,000 rpm
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square
90 Degree 3-1/2" 3" x 3"
≤ 89 mm ≤ 76 x 76 mm
SOLID Round Square
90 Degree 1-3/4" 1-1/2" x 1-1/2"
≤ 45 mm ≤ 38 x 38 mm
Maximum Cutting Capacities (NF) (Non-Ferrous & PVC )
SOLID (NF) Round Square
Length Tolerance
± 0.006" per index
Squareness Tolerance
± 0.002" per dia. inch
Minimum Cut Length
1/8"
Maximum Cut Length
Single Index 30" Double Index 60" Triple Index 90"
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Air Pressure
90 psi
Maximum Saw Blade Diameter
315 mm
Arbor Bore Size
40 mm
Pin Spacing
4/12/64
Dimensions
L- 100" W- 44" H- 64"
L- 254 cm W- 112 cm H- 162.5 cm
Shipping Weight (may vary)
1,800 lbs.
816.5 kg
