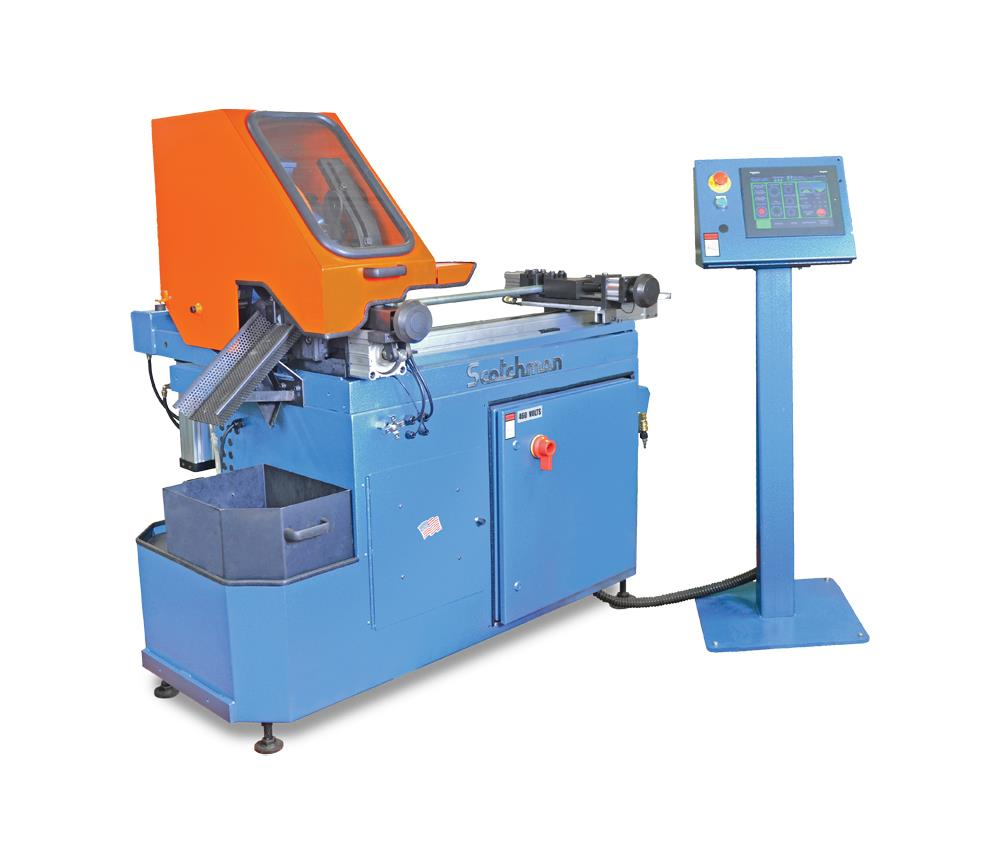

Increase productivity AND accuracy with this CNC saw! Scotchman's CPO 315 Hitch Feed Automatic CNC Saw is a fully programmable circular cold saw with unlimited cut length settings and provides uninterrupted cutting on tubing or solids delivering fast, accurate & clean cuts. Models available for steel & metal cutting or aluminum, copper, plastic & other nonferrous materials.
Using a 315mm blade, this saw delivers high quality, burr-free cuts on tube & pipe up to 3.5 inch diameter round and solid steel rod up to 1-3/4", while maintaining a length tolerance of ±0.006" per index and a squareness tolerance of ±0.002" per diameter inch.
The CPO 315 HFA CNC is designed to enhance performance and features a large 10" touch screen control, unlimited length settings with a 30" single length shuttle, and a variable speed control. Easily program your quantity of pieces cut to a specific length OR program up to four separate lengths & part quantities to be cut in sequence; plus, the first part cut is always accurate!
This American made saw is dependable and built for industrial use. It's available in ferrous and non-ferrous models and is always backed by our superior 2-year warranty and lifetime customer support.
Cutting Speeds (must specify when ordering)
CPO 315 HFA CNC (ferrous)
Variable Speed 11 to 177 rpm
Motor Rate: 5 hp
CPO 315 HFA CNC NF (non-ferrous)
3,000 rpm
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square
90 Degree Up to 3-1/2" Up to 3-1/8" x 3-1/8"
SOLID Round Square
90 Degree Up to 1-3/4" Up to 1-1/2" x 1-1/2"
Maximum Cutting Capacities (NF) (Non-Ferrous & PVC )
SOLID (NF) Round Square
Length Tolerance
± 0.006" per index
Squareness Tolerance
± 0.002" per diameter inch
Minimum Cut Length
1/8"
3 mm
Maximum Cut Length
Unlimited
Motor Options (Factory Wired)
Specify: 208/230/460v, 3 ph
Air Pressure
90 psi
Maximum Saw Blade Diameter
315 mm
Arbor Bore Size
40 mm
Pin Spacing
4/12/64
Dimensions
L- 100" W- 44" H- 64"
L- 254 cm W- 112 cm H- 162.5 cm
Shipping Weight (may vary)
1,800 lbs.
816.5 kg
