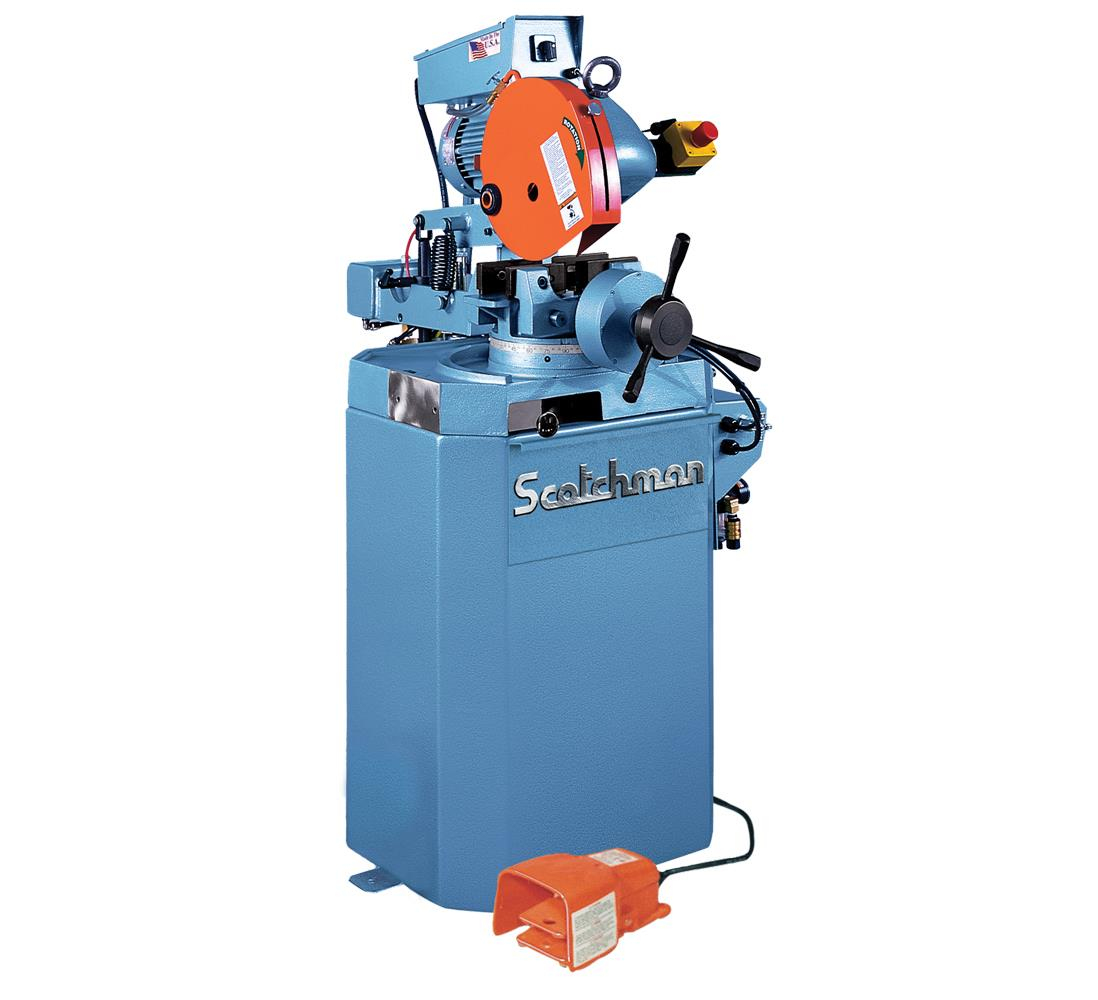

This semi-automatic circular cold saw has a pneumatic power down feed with electric controls, a powered clamp and an emergency stop button. The powered clamp is a double self-centering, air-operated material vise to ensure safe, accurate, fast and efficient cuts.
Like all Scotchman cold saws, the CPO 275 PK PD is designed to make extremely accurate cuts, without producing any heat, sparks or burrs. With 180 degrees of mitering capability and a miter-locking device that makes quick, accurate setting stops at 45° left, 90° straight, and 45 degrees right. This saw is precise with an accuracy within 1° of mitering and a squareness tolerance of ±0.002 per diameter inch in height, the real payoff for this machine is fast, clean and extremely accurate cuts.
This saw accepts up to a 10-3/4" (275mm) high speed steel HSS saw blade and can cut 3-3/8" max round tube at 90° and 1-1/2" max round or square solid at 90 degrees. Featuring two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO 275PKPD also comes with built-in chip drawer and a seven-gallon coolant tank.
Increase your shop's efficiency by pairing this American made machine with a Scotchman automatic measuring system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length. This machine is made in the USA and built with dependability and versatility in mind; plus it's backed by our 3-year warranty.
Cutting Speeds (must specify when ordering)
LT (Low Turn) - designed for solid mild steel, solid stainless steel & thick wall pipe
LT (Low Turn) 30 / 60 rpm
Motor rate: 2 hp
HT (High Turn) - designed for thin wall tube 0.060 wall thickness or thinner and non-ferrous material
HT (High Turn) 60 / 120 rpm
Motor rate: 1.5 hp
SS (Single Speed) - designed for 220v 1ph applications
SS (Single Speed) 60 rpm
Maximum Cutting Capacities (based on mild steel)
TUBING Round Square Rectangle
90 Degree 3-3/8" 3" x 3" 3" x 2-3/8"
45 Degree 2" 2" x 2" 2" x 2"
SOLID Round Square
90 Degree 1-1/2" 1-1/2" x 1-1/2"
45 Degree 1" 1" x 1"
Motor Options (Factory Wired)
Specify: LT & HT: 208/230/460/575v, 3 ph SS: 220v, 1 ph
Maximum Diameter Blade
275 mm
Arbor Bore
32 mm
Pin Spacing
2/8/45
Width
21-7/8"
55.5 cm
Depth
43-1/2"
110.5 cm
Height (not including feed handle)
53-1/4"
135 cm
Height (floor to vise)
36-1/8"
92 cm
Shipping Weight (may vary)
670 lbs.
304 kg
