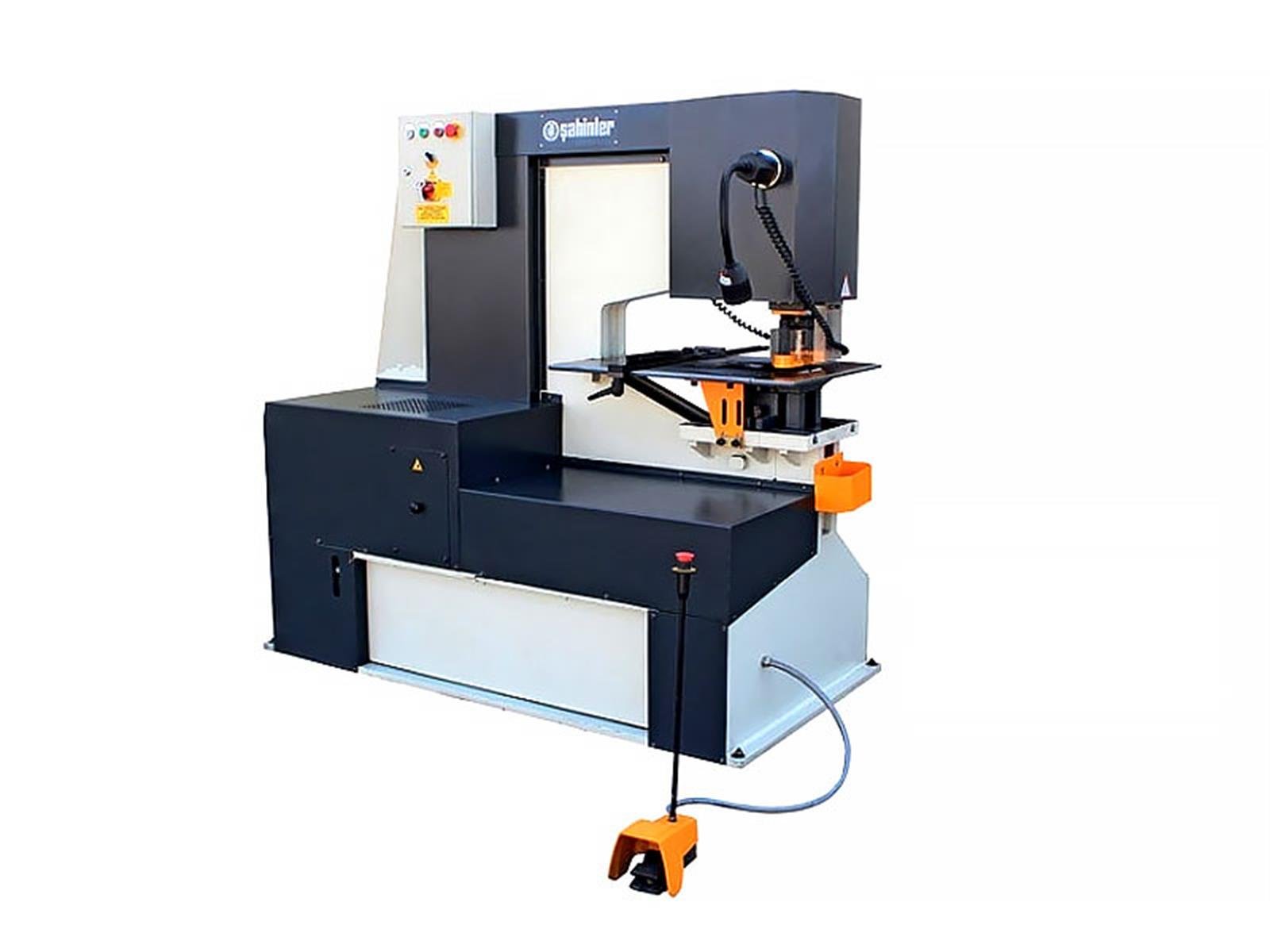

Sahinler HPM 115 Hydraulic Punching Machines

Brand : Şahinler

Stock Code (HPM 115)

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Stock Amount : 0

Item is out of stock.

Price : 15.840,00 EURO(Vat included)

Get Information with WhatsApp

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Punching & Punching-Shearing Machines

Hydraulic Punching Machines

Punch and die Ø 22* - Ø 26**(*HPM 65 / 85 - **HPM 115 / 175)
Punch holder
Led light on work station
C-Spanner

PUNCHING
• With the punching tool, holes and punches up to Ø 57mm (in 10 - 22 mm thickness) can be punch easily and efficiently. The punches and dies are interchangable and easy to change. Special tools and punches are available upon request.

PUNCHING		HPM 115
Diameter x max. thickness		Ø34x26 mm
Diameter x thickness		Ø55x16 mm
Maximum Diameter		Ø110x5 mm
Stroke		80 mm
Stroke count in (20 mm)		x 21
Throat depth		625 mm
Working height		950 mm
TECHNICAL DATA
V - bending Press Brake	Bar bend Max.	250x22 mm
	Sheet bend.max.	700x3 mm
TECHNICAL DATA
Motor Power		11 kW
Weight		3760 kg
Machine Dimensions (LxWxH)mm		2000x950x1970
Power (Pressure)		115 ton
