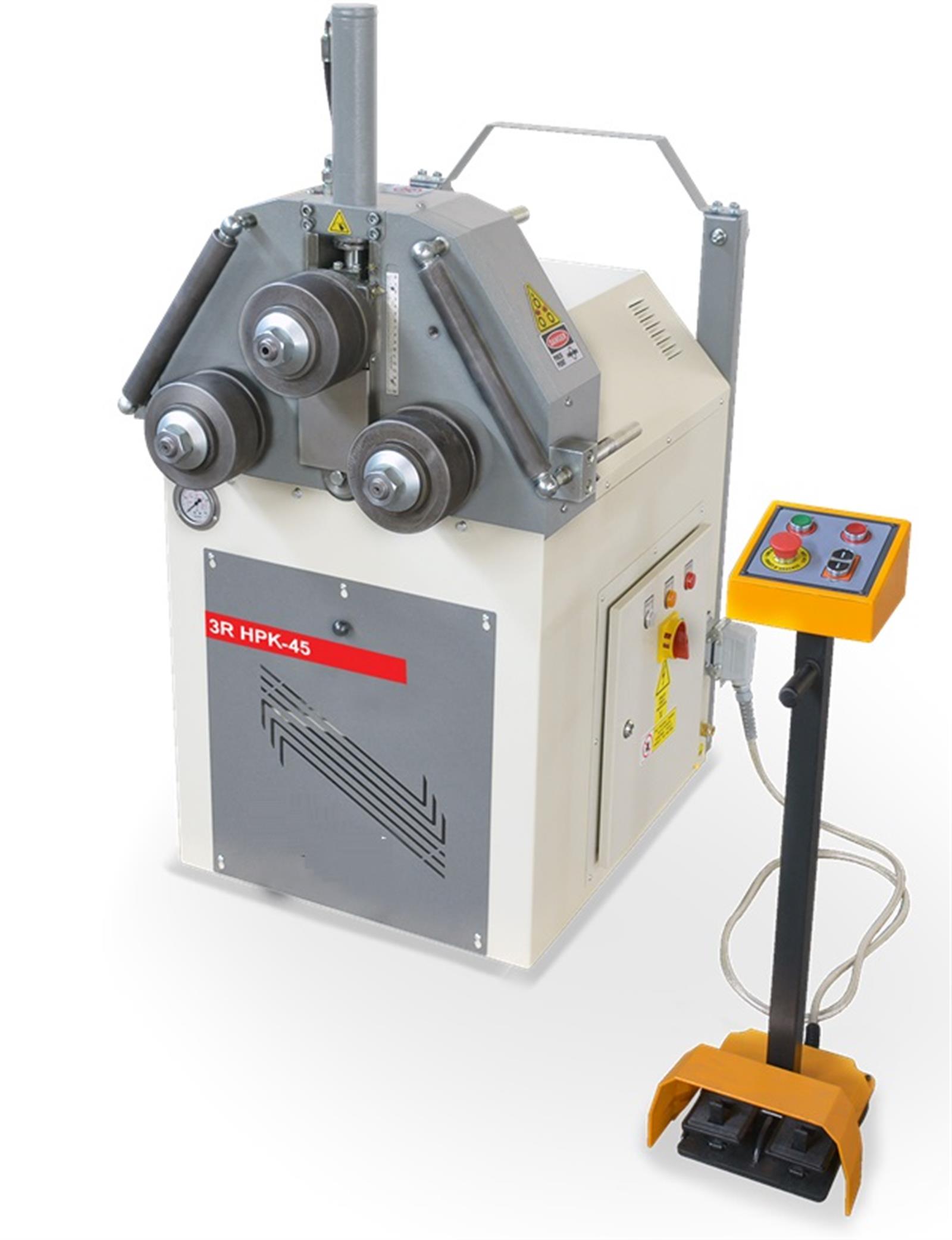

Sahinler HPK 45 Hydraulic 3 Roll Profile Pipe Bending Machine - Stock (HPK 45)

Easy operation with mobile control panel with push buttons
Welded steel frames
Built according to EC Safety Directives and has CE Mark
3 driving rolls
Pyramid style design
Bending capacity: pipe up to 6”;
angle up to 100x100x12 mm (4”x4”)
Hydraulic adjustment of Top Bending roll
Combination horizontal-vertical working position
1 pcs Digital Read-Out

MODEL	HPK 45
Shaft Diameter	50	mm
Rolls Diameter	155	mm
Shaft Lenght	--	mm
Bending Speed	--	d / dk rpm
N° of motorized rolls	--	adet pcs
N° of side rolls axes	--	adet pcs
Motor Power	1,5+0,75	kw
Machine weight, without optionals	430	kg
Machine Dimensions	900x1355x1450	mm
