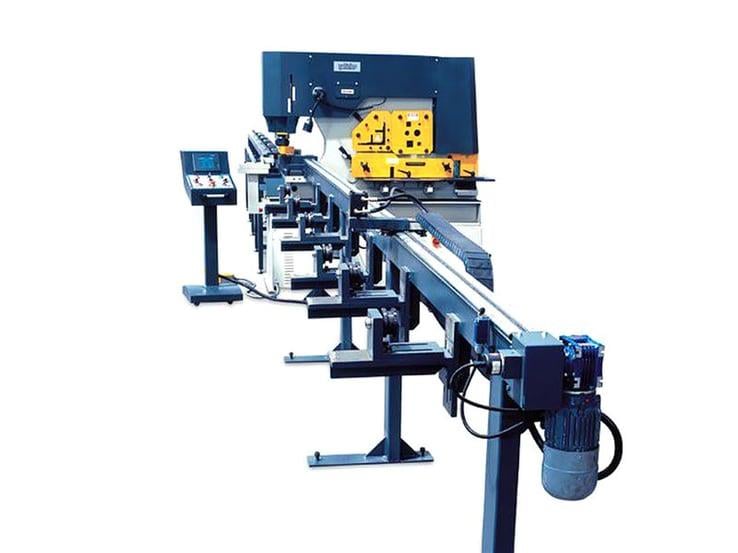

Sahinler HKM 85 NC Special Punching and Cutting Lines with Feeding System (HKM 85 NC)

Punch and die Ø 22* - Ø 26**(*HPM 65/85 - **HPM 115/175)
Punch holder
Led light on work station
Mobile NC control panel
Dividable separate table
Material holder with manual and adjustment clamps
C-Spanner


With the punching tool, holes and punches up to Ø 57 mm (in 22 mm thickness) can be made easily and efficiently. The punches and dies are
interchangable and easy to change. Special tools and punches are available upon request.
Table sizes:
7800 x 800 mm (NC)
5100 x 400 mm (loading long table)
On X max. movement X:6200 mm
Material thickness 2 - 20 mm ( between )
Positioning precision 0,1 mm
Free software
Manual punching and copy system
Programming with technical values by inserting in to NC programme
