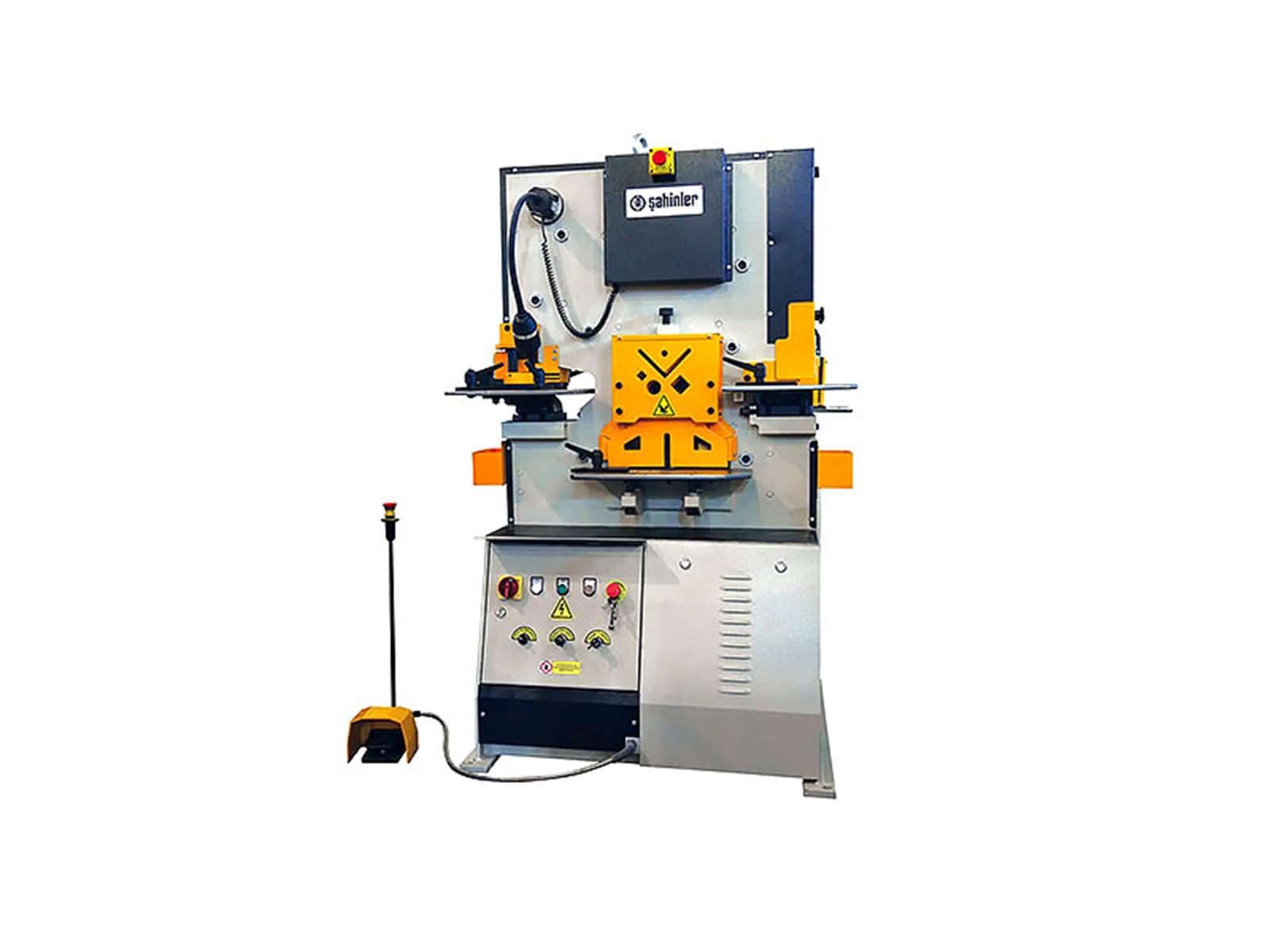

Sahinler HKM 65 V Hydraulic Steelworker-With Single Piston (HKM 65 V)

More productivity with adjustable piston stroke distance
Spot lubrication system
Electrical back gauge
Led lights on all work stations
5 individual workstation on the machine:
Ø22 mm punch and die and standard punching tools
Steel solid round and square bar cutting blade set
Angle cutting blade set
Sheet metal cutting shear
U-Notching blade set

PUNCHING		HKM 65V
Diameter x max. Thickness		Ø 22x20 mm
Diameter x thickness		-
Maximum Diameter		Ø 38x11 mm
Stroke		40 mm
Stroke count in (20 mm)		(15mm) x 22
Throat depth		240 mm
Working height		1050 mm
STEEL BAR SHEAR
Round/Square		Ø 40- 38 mm
ANGLE SHEAR
Angle section (90°)		100x100x10 mm
Angle section (45°)		-
Working height		1070 mm
SHEET METAL SHEAR
Sheet metal		350x15 mm
Sheet metal		250x19 mm
Blade Length		352 mm
Angle shear one side		70x7 mm
Working height		810 mm
NOTCHING
Thicknes		8 mm
Width		50.8 mm
Depth		90 mm
Working height		1060 mm
OPTIONAL TOOLS
U-I Section blades (for UPN - IPN cutting)		100x50 mm
T Section Blades		-
Special V-Notching tooling		90x90x8 mm
V - bending Press Brake	Bar bend Max.	110x8 mm
	Sheet bend Max.	110x8 mm
TECHNICAL DATA
Motor Powe		5. 5 kW
Weight		1215 kg
Machine Dimensions (LxWxH)		1180x950x1920 mm
Power (Pressure)		65 ton
