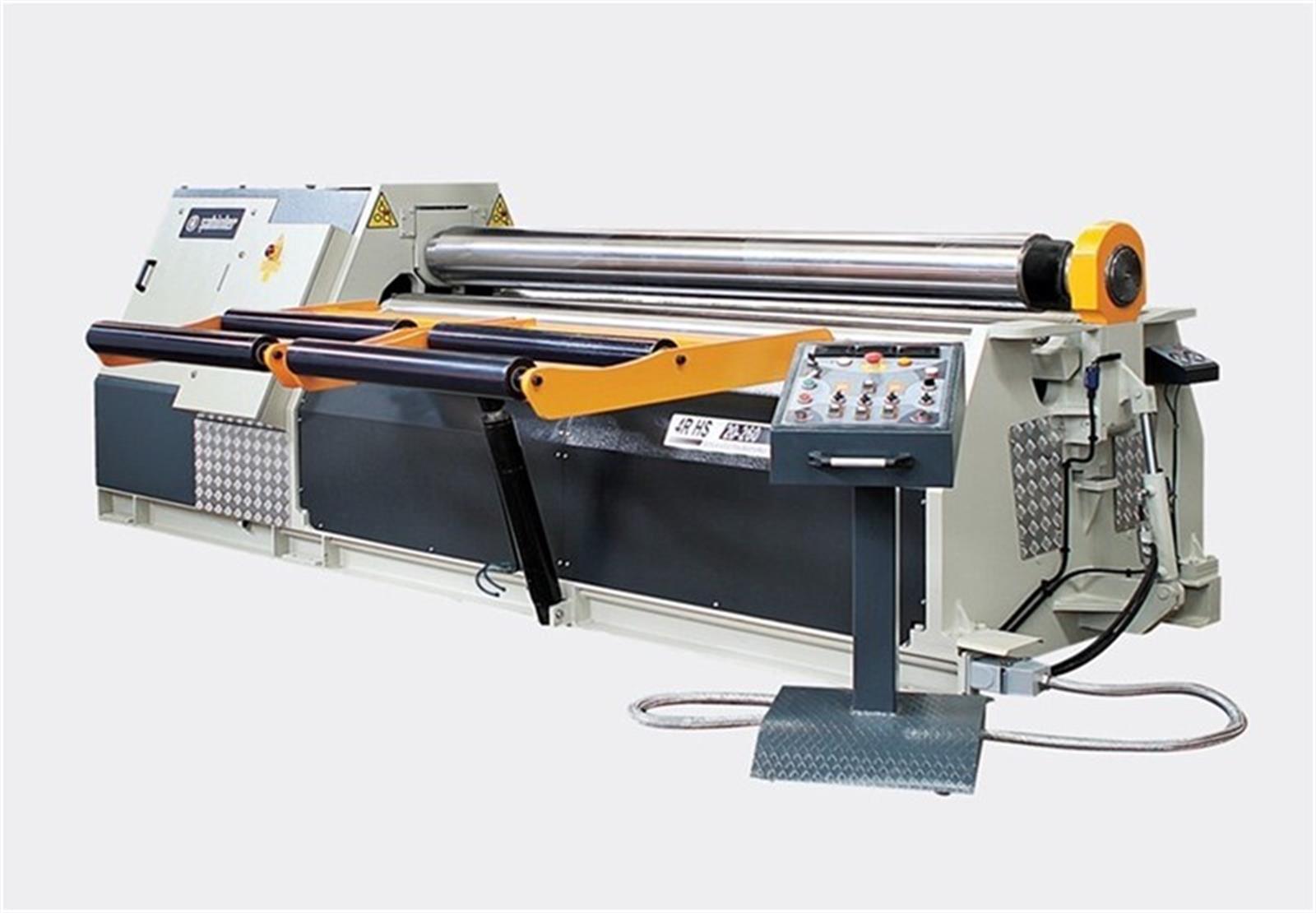

Sahinler 4R HS 20-200 4Rolls Hydraulic Plate Bending Machine wtih Crane, 2 Side Supports - Stock (4R HS 20-200)

Very suitable for medium and light plates or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Pinch roll and lateral rolls move with hydraulic pistons in orbital way.
Overload protection
Top Roll is driven by a hydromotor and planetary gearbox and bottom roll is driven by a gear and cardan system
Three digital readouts for easy roll positioning
Hydraulic Drop-End for easy removal of fnished ferrule
Easy operation with mobile control panel
Welded steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical Bending device
Hydraulic balancing system
Double speed working system

General Technical Specifications
Plate Bending Roll Type	4		pcs.
Useful Length	2050		mm
Central Rolls Diameter  (Ø)	200	220	mm
Side Rolls Diameter (Ø)	160		mm
Bending Capacity Specifications and Power
Min. Bending Diameter With Pre-bend (Top Roll x 1,5)	300		mm
Min. Bending Diameter With Pre-bend (Top Roll x 5)	1000		mm
Min. Bending Diameter Without Pre-bend (Top Roll x 1,5)	300		mm
Min. Bending Diameter Without Pre-bend (Top Roll x 5)	1000		mm
Working Speed	1,5 -6		m/min.
Motor Power	5,5		Kw
Machine Dimensions
Length	4400		mm
Width	1100		mm
Height	1250		mm
Weight	3950		kg



• All technical specifications are subject to change without notice.

• Plate bending capacities are given for 260 N/mm2 plate yielding strength.





ŞAHİNLER 4R HS 20-200 HYDRAULIC 4ROLLS PLATE  BENDING MACHINE

CENTRAL CRANE SYSTEM

HYDRAULIC SIDE SUPPORTS (2 PCS)

HARDENED ROLLERS

CONICAL BENDING SYSTEM

DIGITAL DISPLAY MACHINE

2 METERS FULL LENGTH 10 MM. BENDING CAPACITY.

DELIVERY FROM STOCK
