Sacform Hydraulic Decoiler RM6000HM/1000 (RM6000HM/1000)

Brand : Sacform

Stock Amount : 0

Est. Delivery Time45 Days After Order

Shipment Place Turkiye

Payment Terms%30 T/T On Order, % 70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

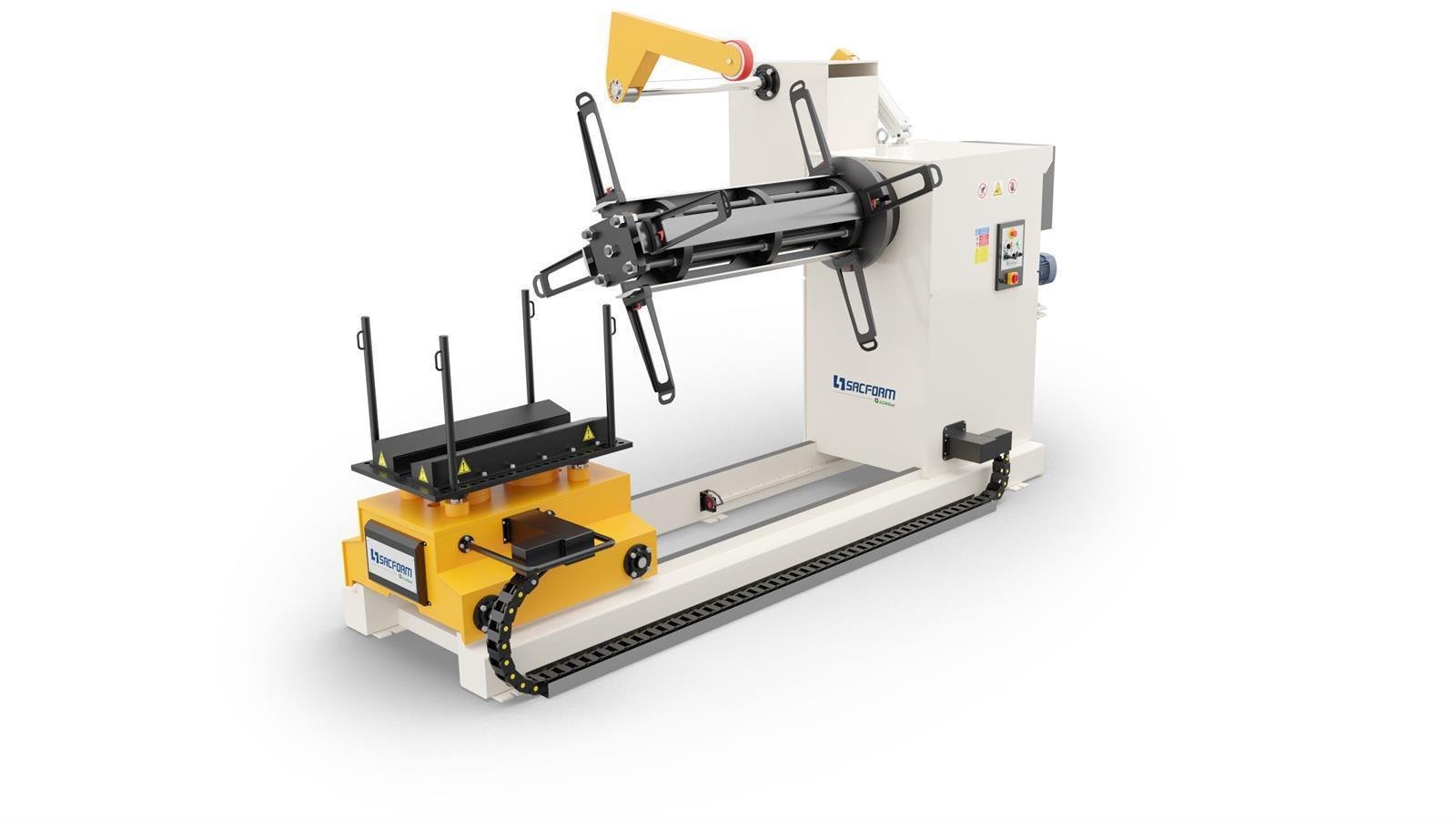

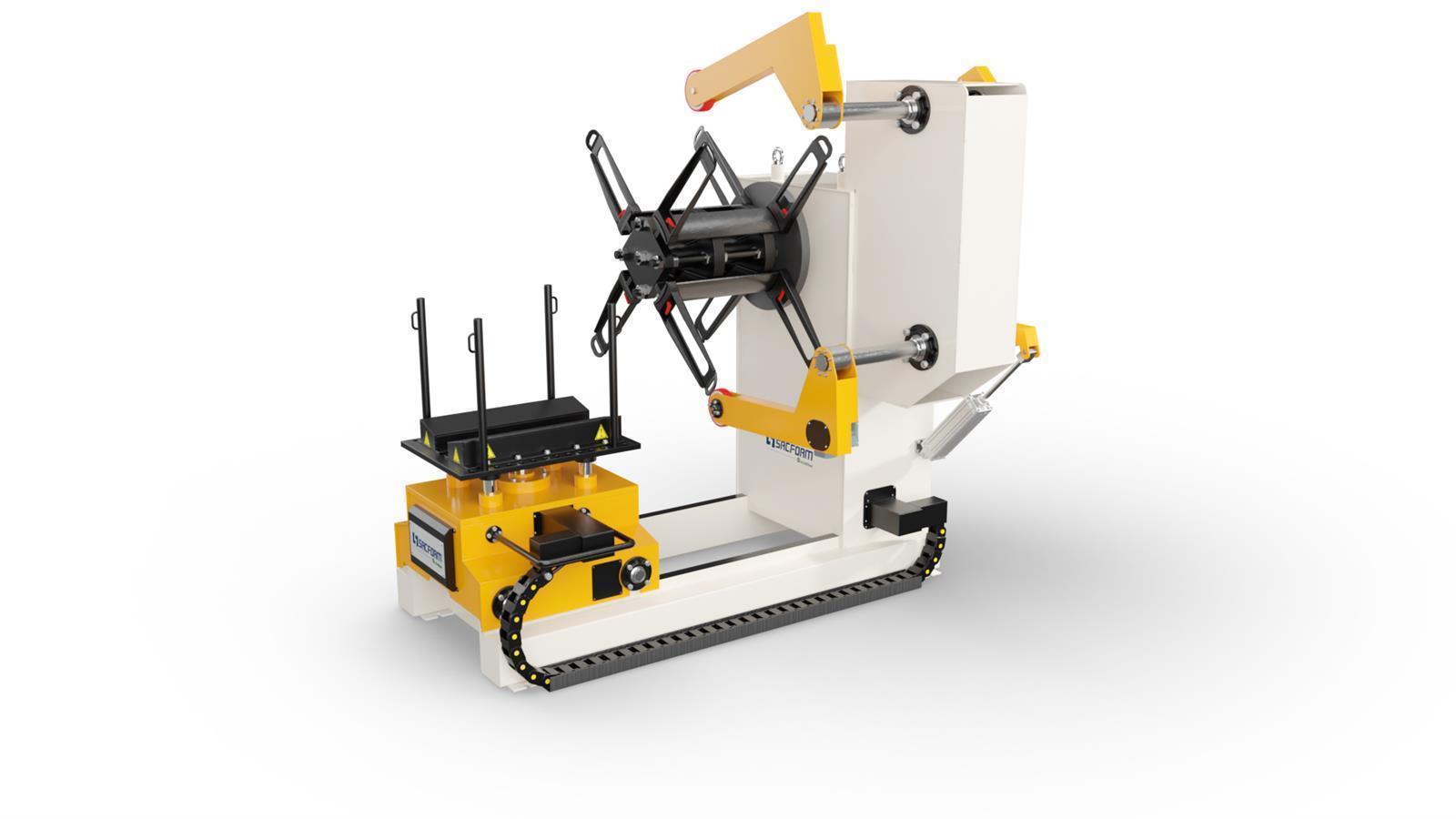

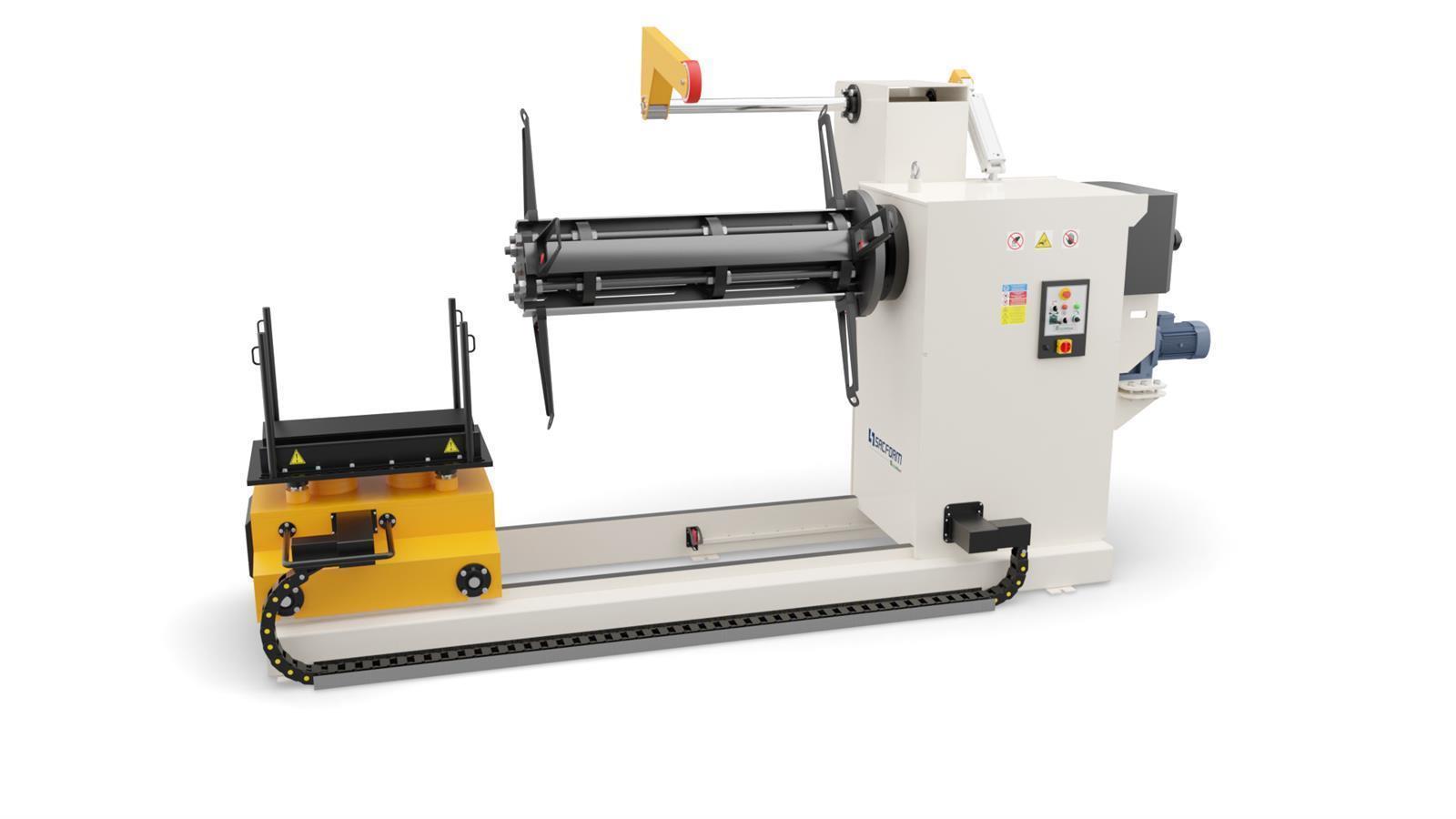

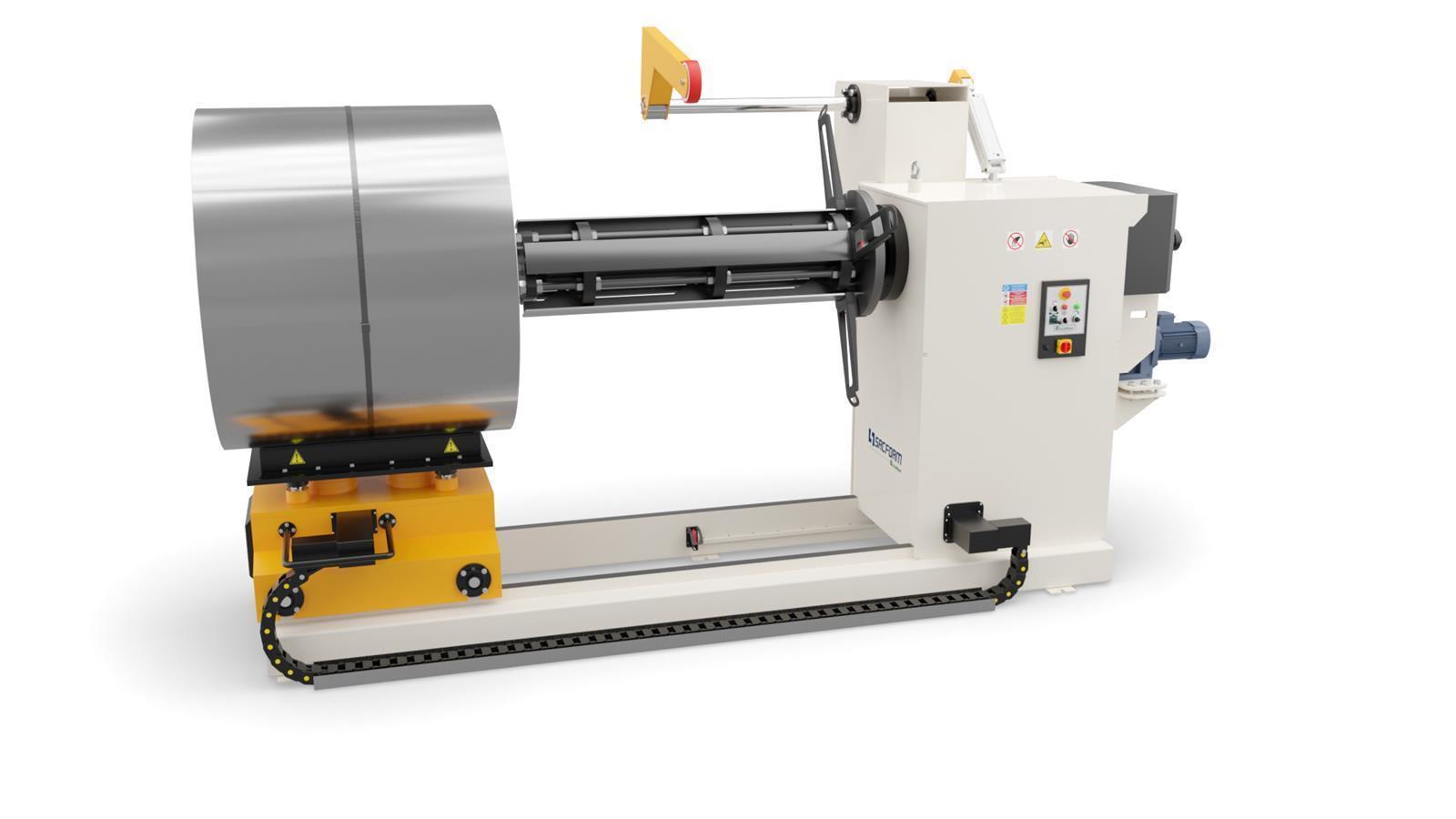

SACFORM’s Specially Designed and Manufactured Hydraulic Decoiler has the Hydraulic Mandrel System and the Hydraulic Loading Car to Provide the Most Reliable and Fast Coil Loading, Positioning / Gripping and Removing Functions.

Hydraulic Loading Car
Hydraulic Coil Inner Tightening / Releasing System
Motor Reducer System
Brake System
Upper Pressure Arm ( Hydraulic & Pneumatic )
Lower Pressure Arm ( Hydraulic / Pneumatic )
Speed Control / Integration with Line Speed
Distance Detection / Laser Sensor

Material Width	70-1000	mm
Coil I.D. (Ø) Min.	480	Ø mm
Coil I.D. (Ø) Max.	560	Ø mm
Coil O.D.	1400-1600	Ø mm
Coil Weight	6000	Kg
Roll Inside Pressure System	Hydraulic System
Motor	+
Upper Pressure Arm System	Standard

Machine Dimensions

Length		mm
Width		mm
Height		mm
Weight		kg
