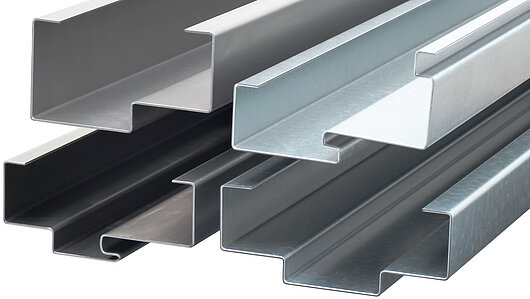

Flexible and automatic profile bends profiles such as door frames, window frames, elevator entries, electrical cabinet components or cable ducts in batch size 1. The unique FlexGripper handling system moves, rotates and flips the blank automatically during the bending process.
Fast cycle times during automatic bending, as the workpiece no longer needs to be positioned on stops during the bending process. Scratch-free bending even of pre-coated or galvanized sheet metal and stainless steel thanks to a rolling bending movement.

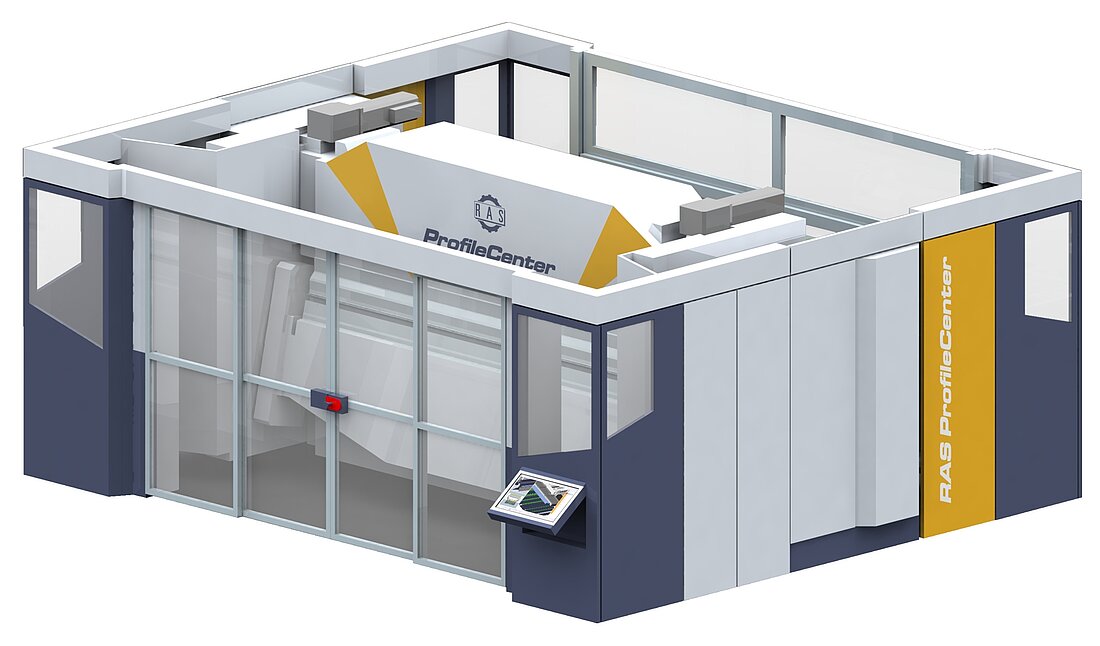

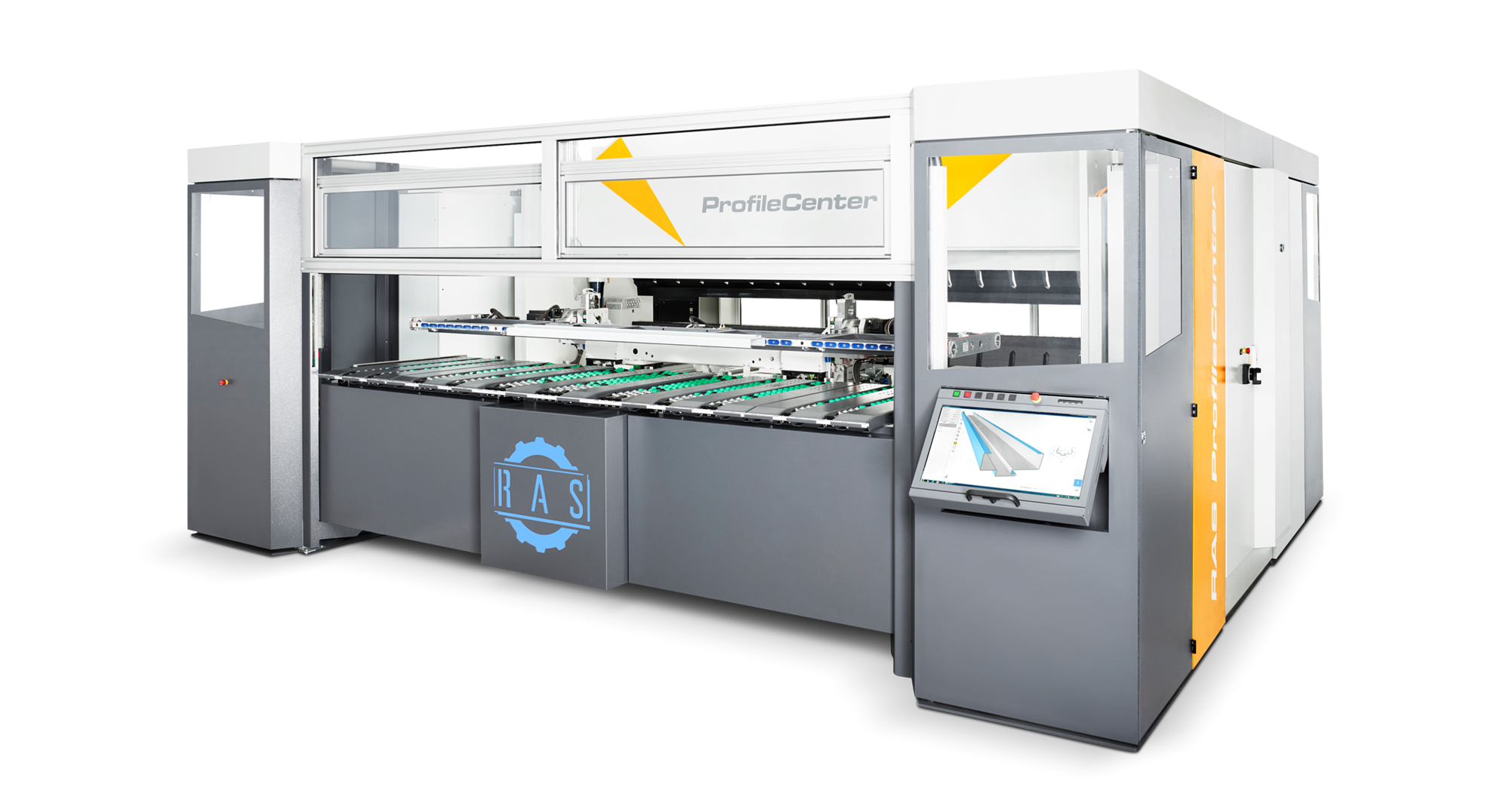

The Profile Center is a bending center for metal components up to 3200 mm in length and 700 mm in width. The capacity of the machine is designed for 2 mm mild steel or 1.5 mm stainless steel materials. The Profile Center uses the folding technology for flexible folding of profiles such as door frames, elevator parts or cable ducts. Precision bending in batch size 1 is no longer a dream, but reality with the Profile Center!

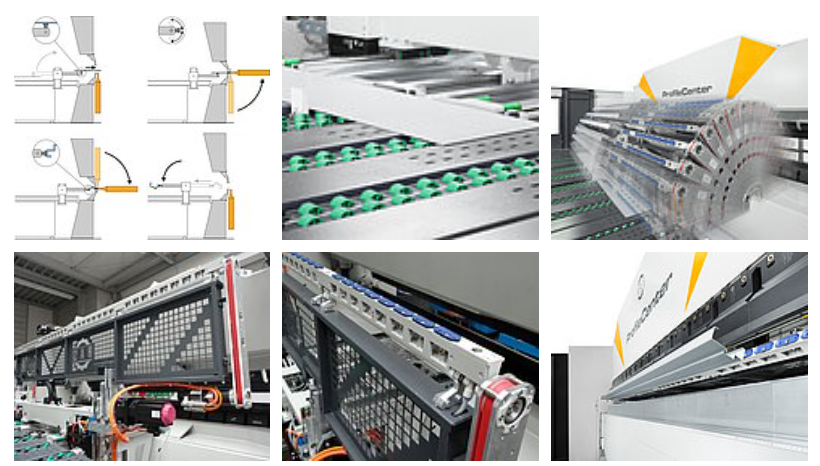

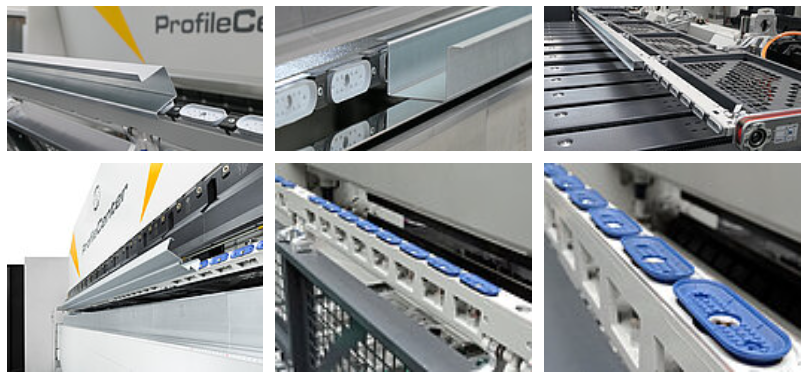

The unique FlexGripper Positioning System moves, rotates and flips the blank automatically during the folding process. Its multi-flexible suction frame grips the part with up to forty suction cups. The vacuum is generated by an on-board vacuum pump. The suction bar can grab the blank from below, from above or from behind and can automatically change its access position during the folding sequence.
There are two suction frame options available for the FlexGripper handling system. To cover the complete range of possible material thicknesses and blank dimensions, the wide suction frame will be used. A narrow suction frame is also available for smaller profiles (e.g. multi-part frames). With this suction frame, however, max. sheet thickness and max. blank dimension are reduced.
The ProfileCenter automatically bends complex profiles without operator intervention. The bending center bends up and down with high speeds.

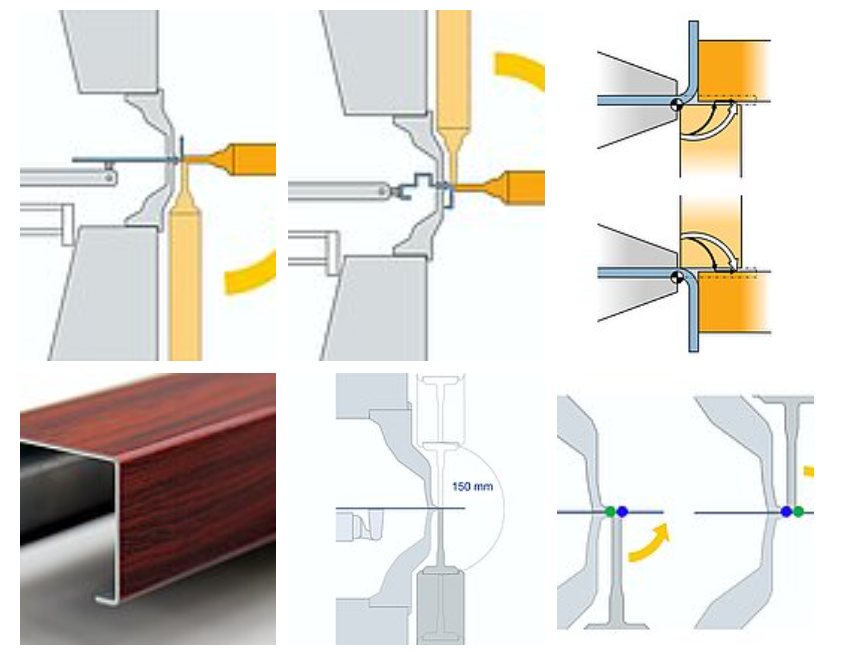

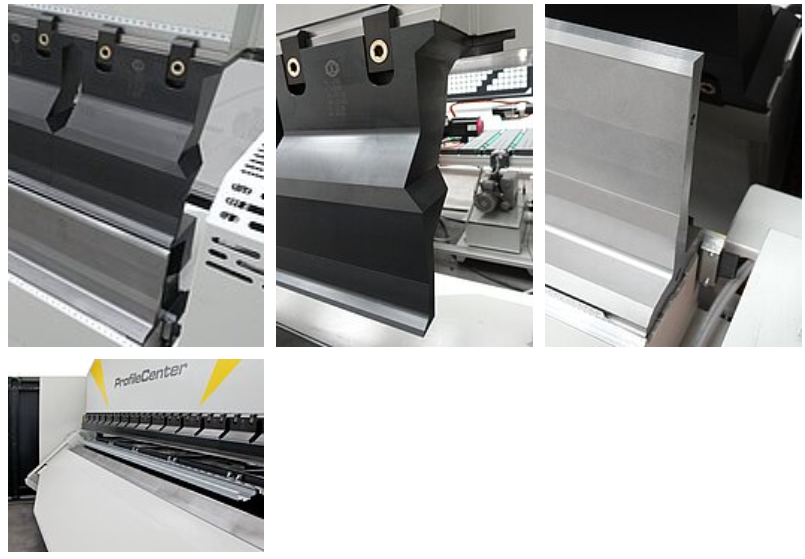

The folding technology is based on the moving folding beam. Its high and slim folding beam tool is exactly designed for the profile bending requests. The tools of the upper and lower clamping beam come with delicate geometries and with huge free space areas.

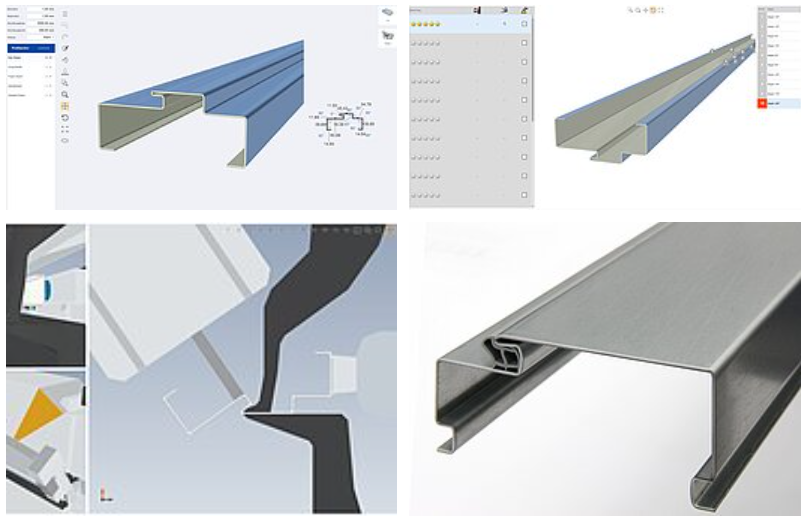

Making the complexity of the bending process manageable, the ProfileCenter uses a unique and innovative one-click programming software. The operator just drags-and-drops a STEP file of the profile into the Bendex software. With a single mouse click the part is programmed.
