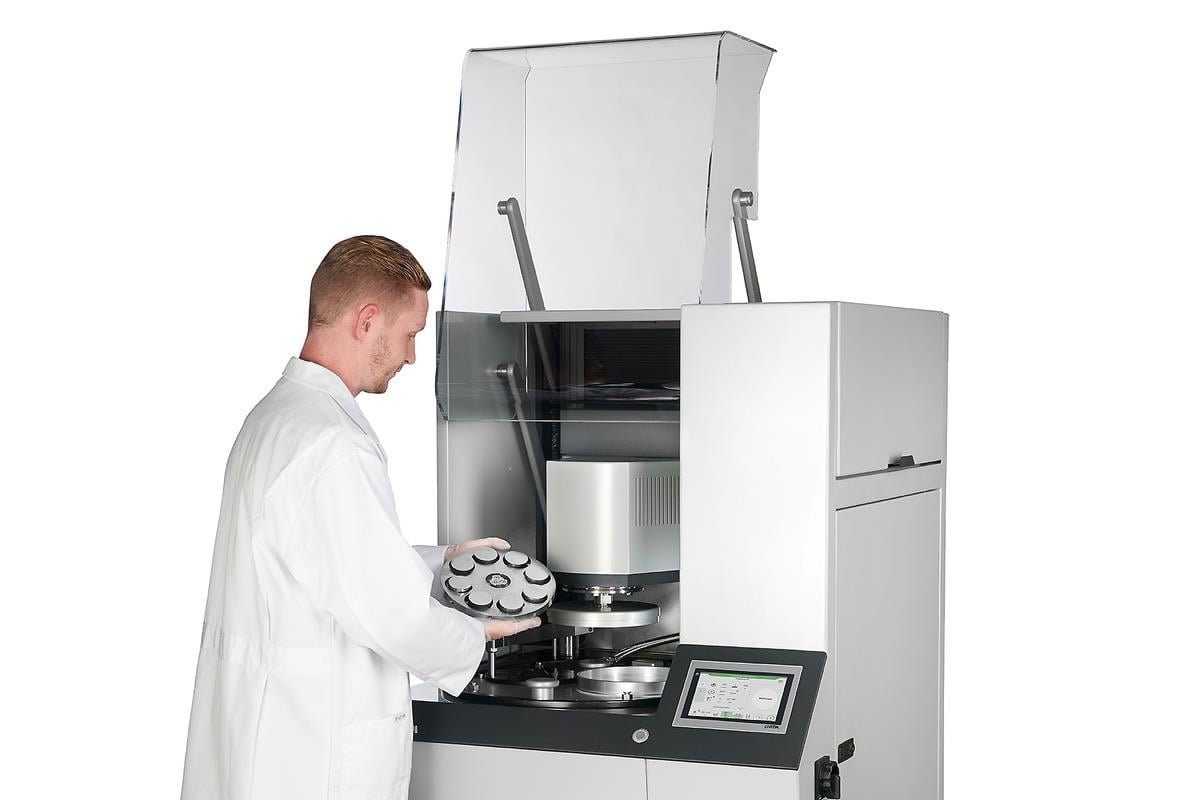

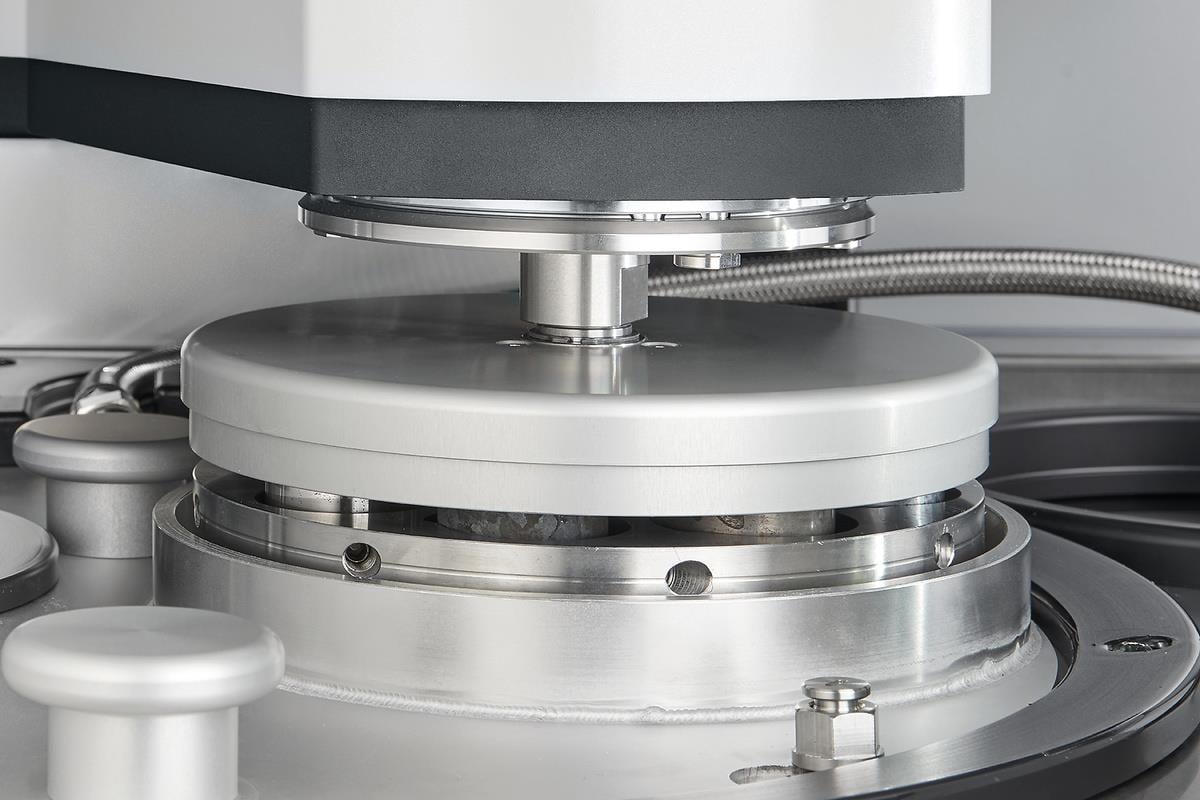

The grinding head and diamond dresser are equipped with a robust ForceControl system and enable reproducible and high grinding forces. The integrated load cells and the innovative motorized force control ensure defined material removal and maximum process reliability.
In the fully automatic mode (Smartgrind), the grinding process is continuously evaluated and the grinding requirement of the stone is automatically determined and efficiently controlled. Stones may also be dressed at predetermined intervals as well as manually. The remaining stone height, the wear of the dressing diamond and the process flow are shown dynamically on the display.
When planar grinding metallographic samples, both high removal rates and flat samples with high surface quality are the goals. In the „roughing“ grinding mode, material removal can be increased by up to 20% compared to conventional processes, thus significantly reducing process times. In „Finishing“ mode the surface quality is improved by up to 15%. The combination of different modes produces optimal grinding results with maximum efficiency.

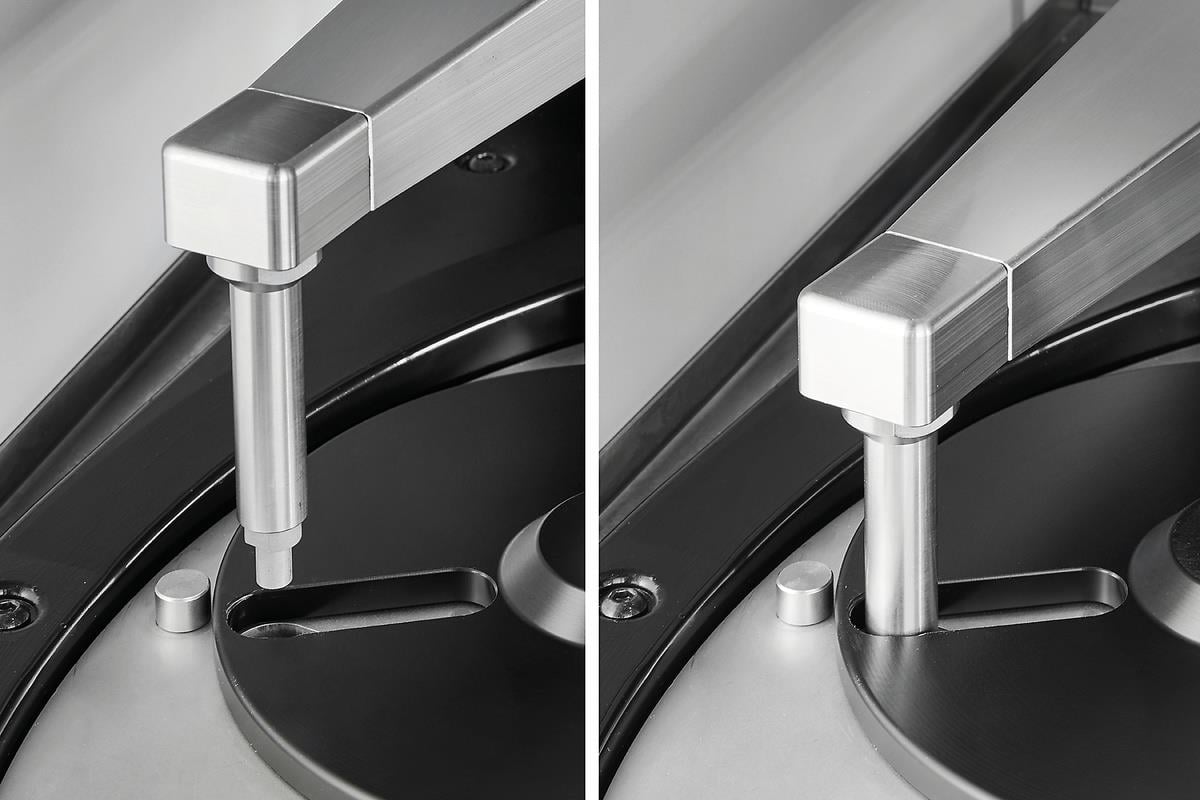

The QATM Qgrind XL comes with a system for precise measurement of material removal – regardless of operating time, sample type, material and hardness, you can easily monitor the material height already removed.

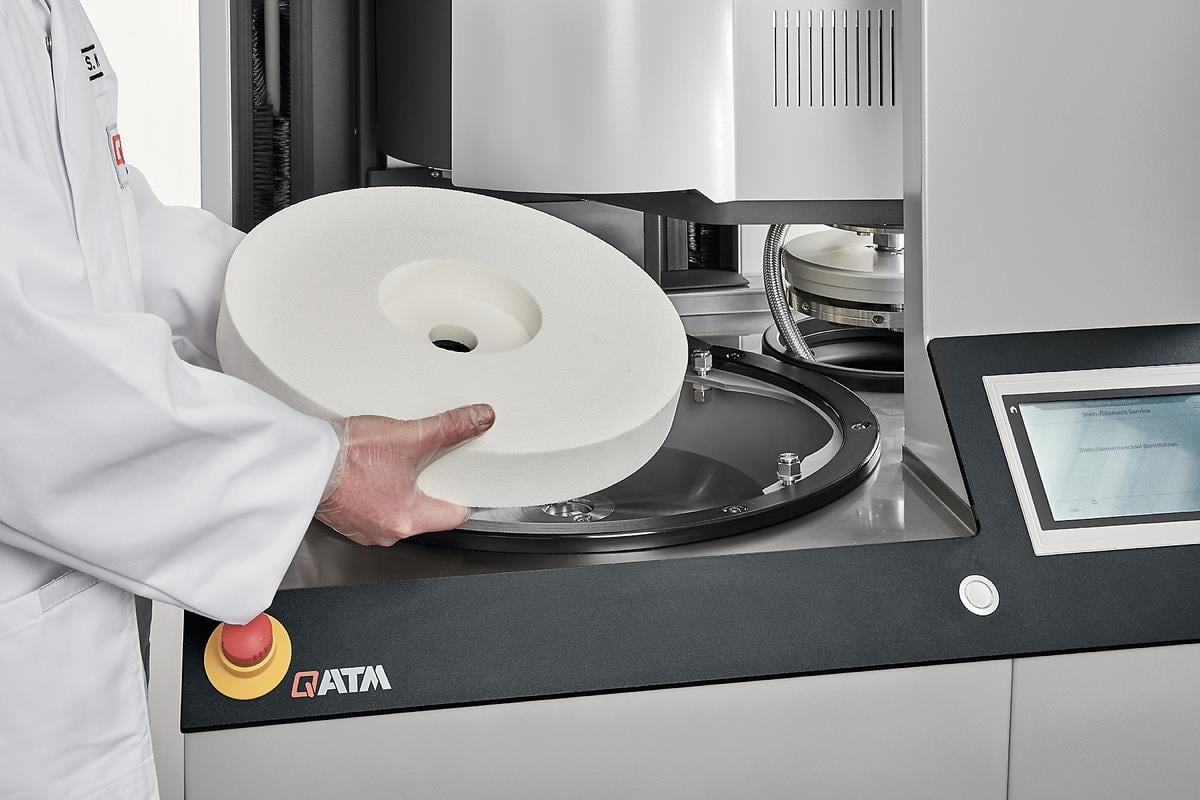

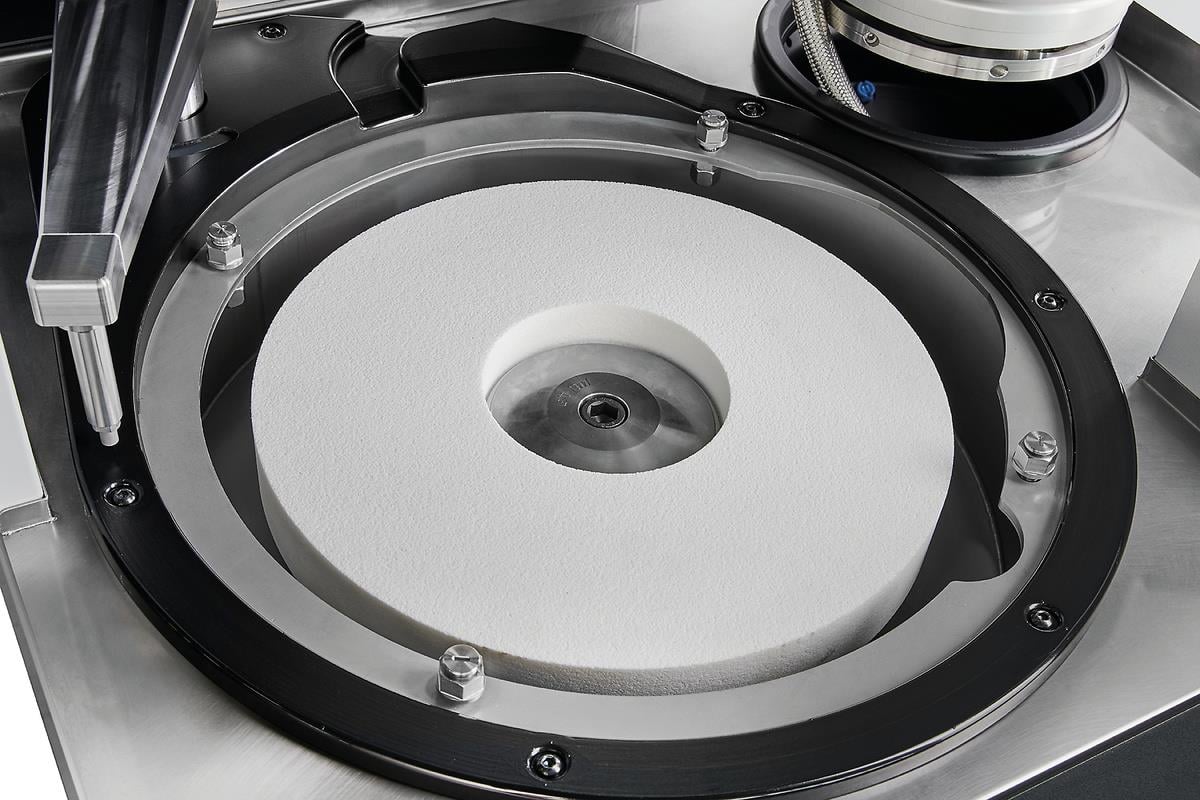

High-quality aluminum oxide or silicon carbide grinding stones are available for the various applications. Synthetic resin-bonded diamond grinding wheels can be used for planar grinding ceramic materials and hard metals. The grinding media, specially optimized for materialographic grinding processes, are designed for high removal rates, surface qualities and flatness. The QATM grinding media are approved for rotational speeds of up to 2000 rpm as standard.

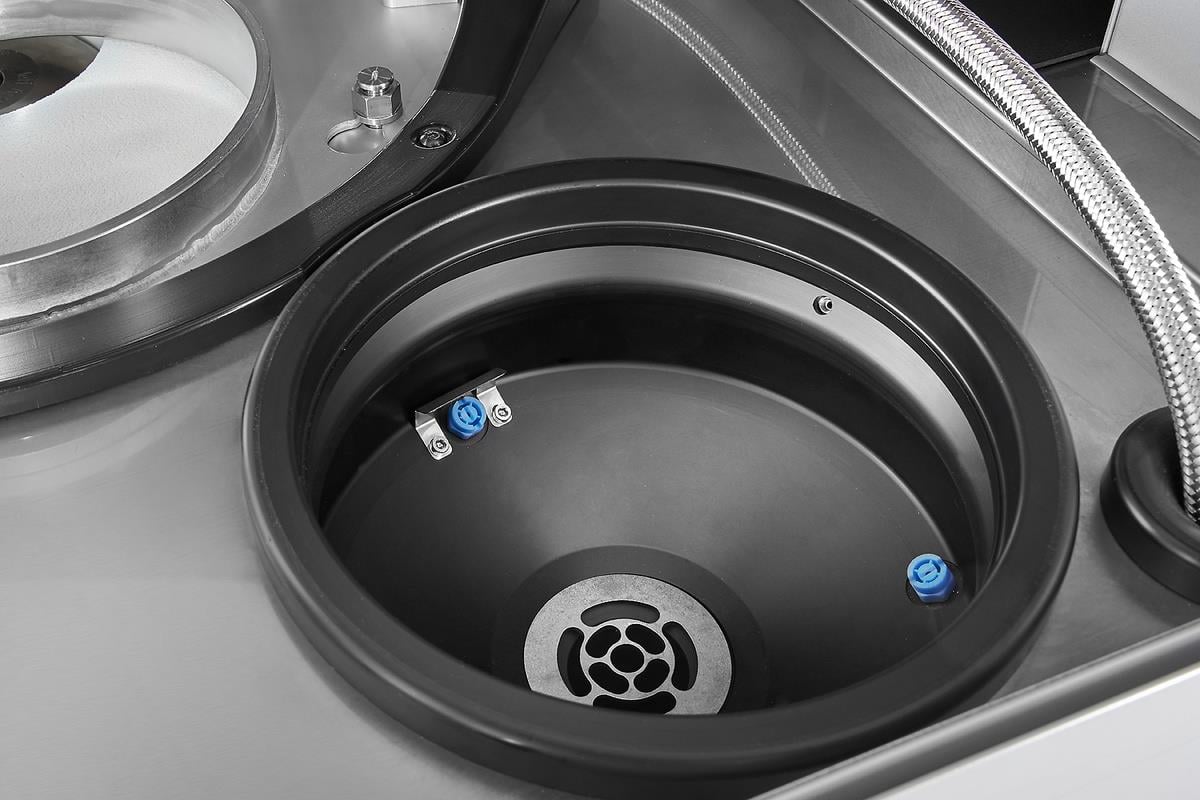

In the cleaning station specimens are automatically cleaned with water, ethanol and air and by spin cycling at up to 800 rpm (adjustable). Thus, each preparation step is finalized with a cleaning step.

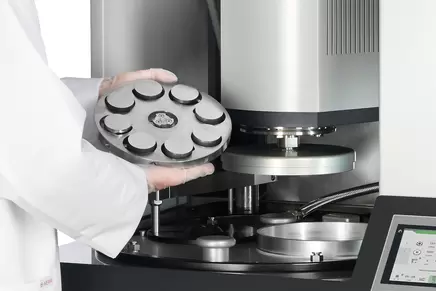

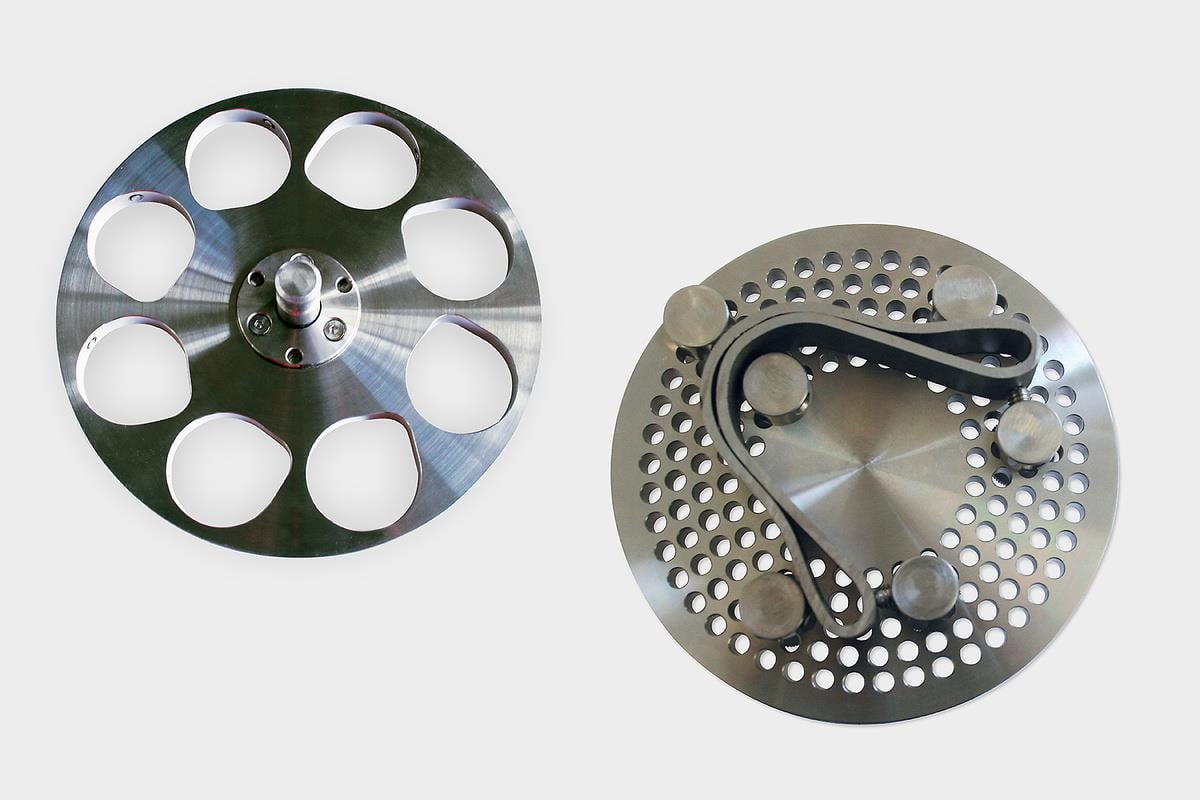

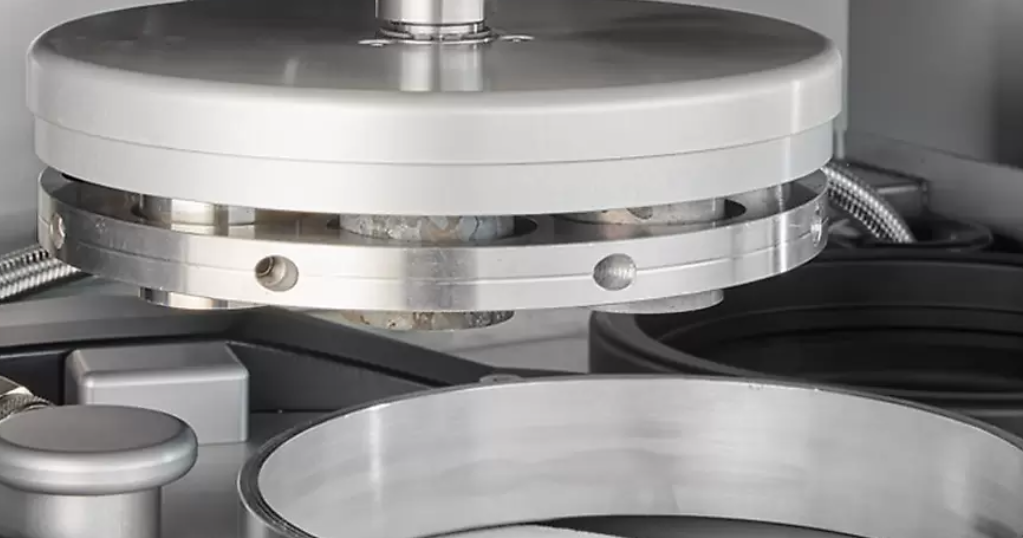

QATM offers a wide selection of standard sample holders with different diameters and for a variety of applications and machines. Clamping of samples with unusual dimensions can be realized with special sample holders.

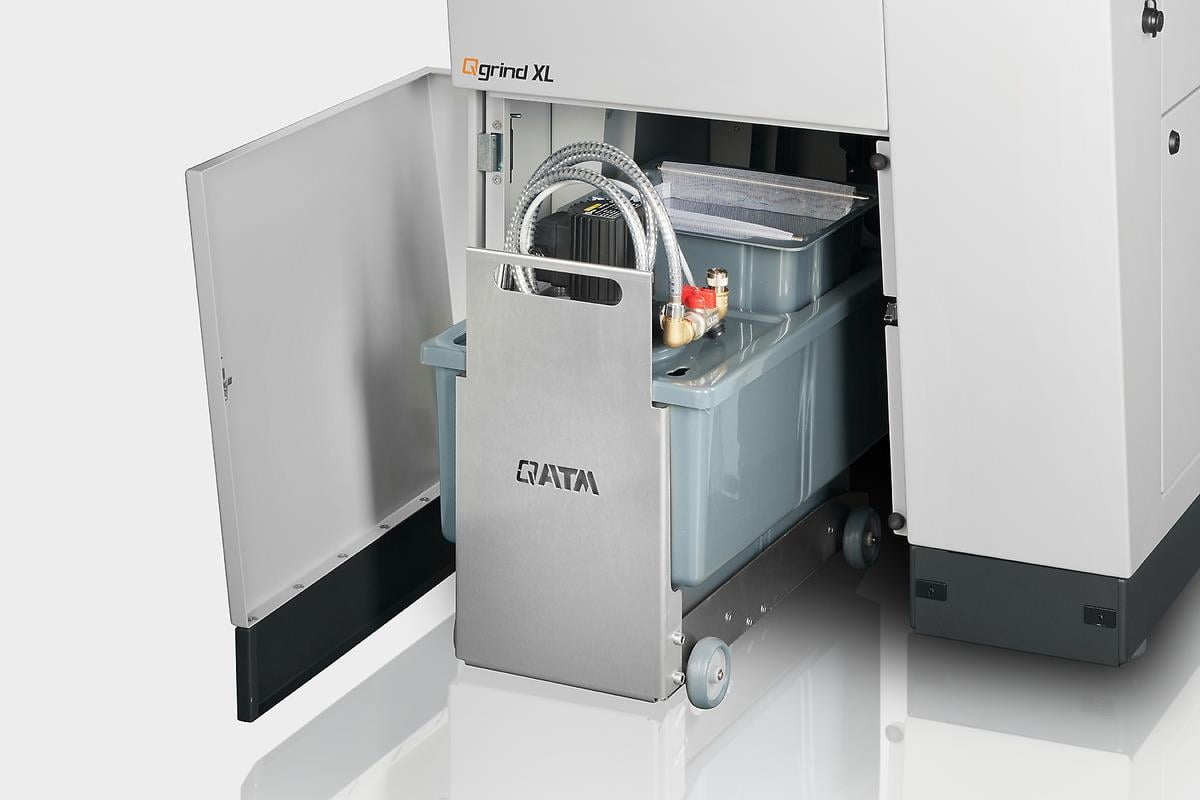

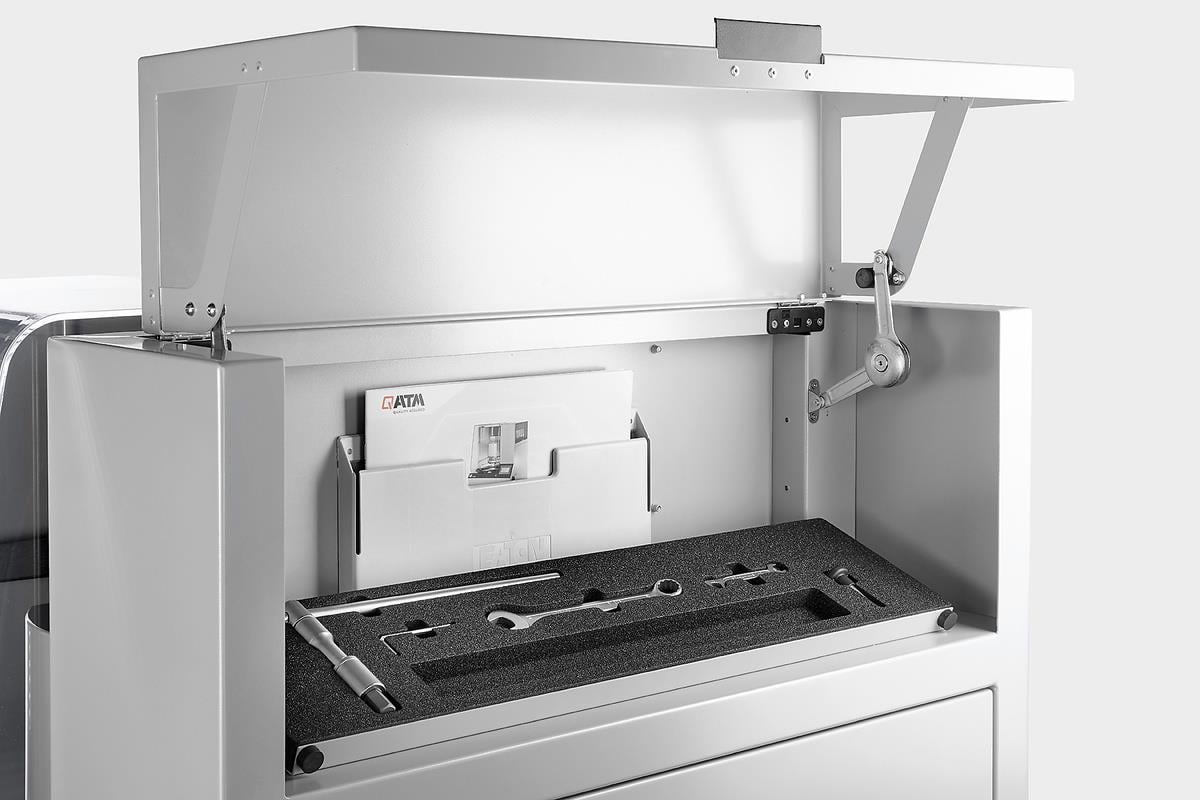

The tool compartment integrated in the machine housing is particularly practical. This means you always have easy access to all tools.

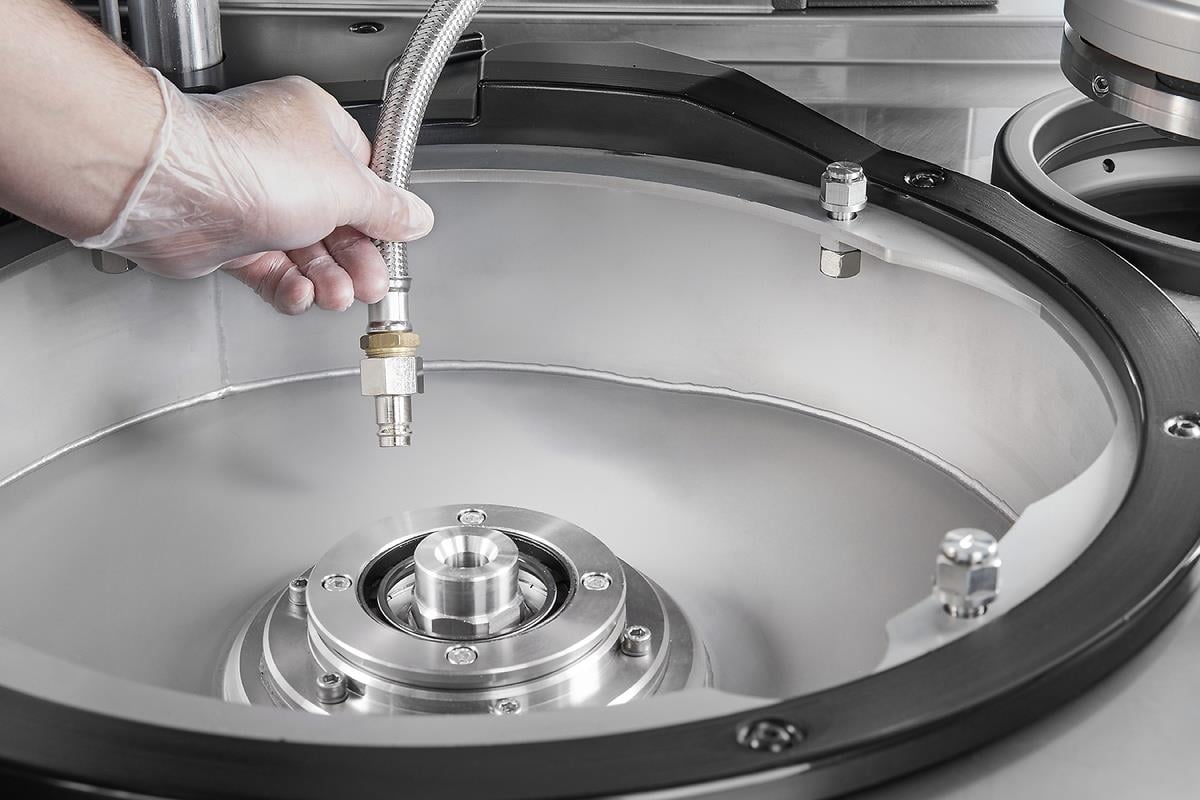

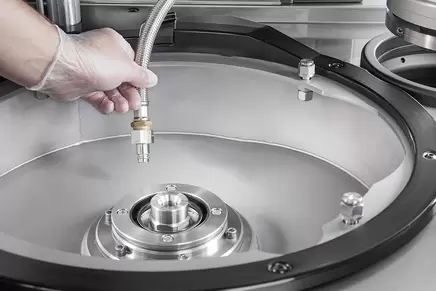

An integrated rinsing hose allows for manual cleaning of the working area.

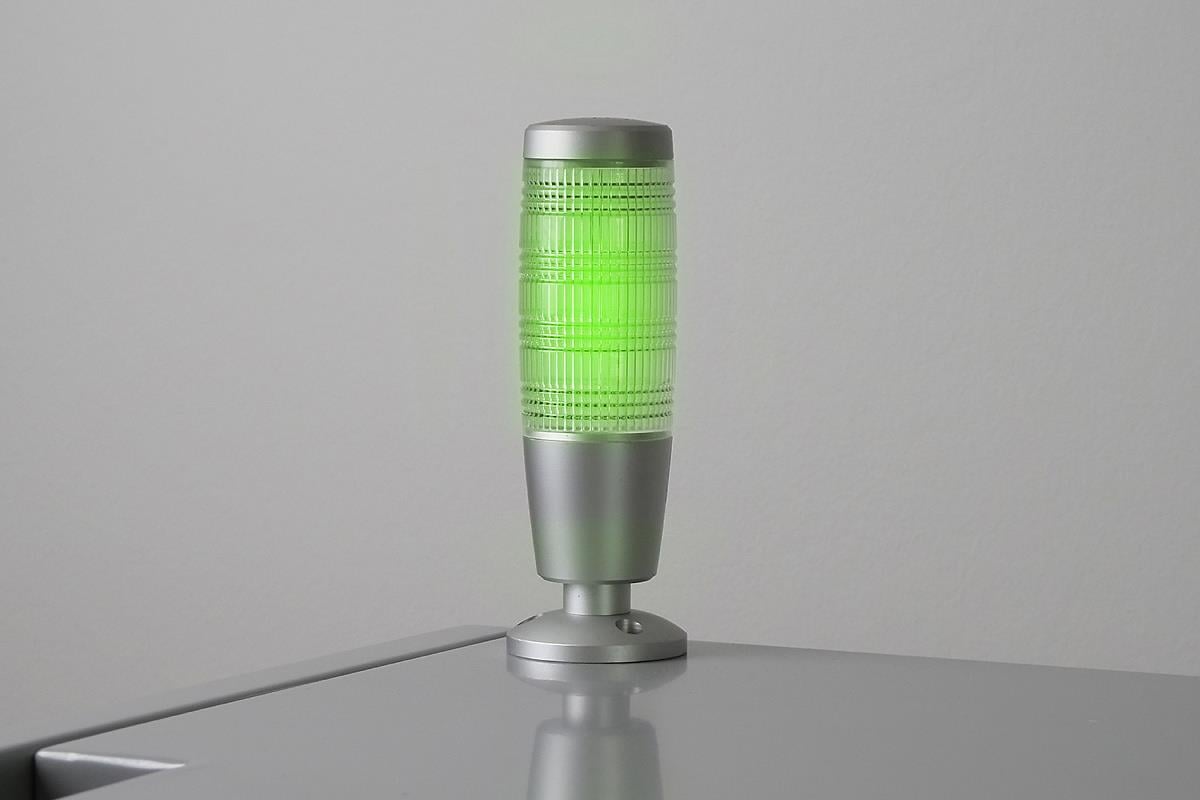

The optional signal lamp allows monitoring of your Qgrind XL from a distance: The red/yellow/green lights show the current state of the machine at a glance.

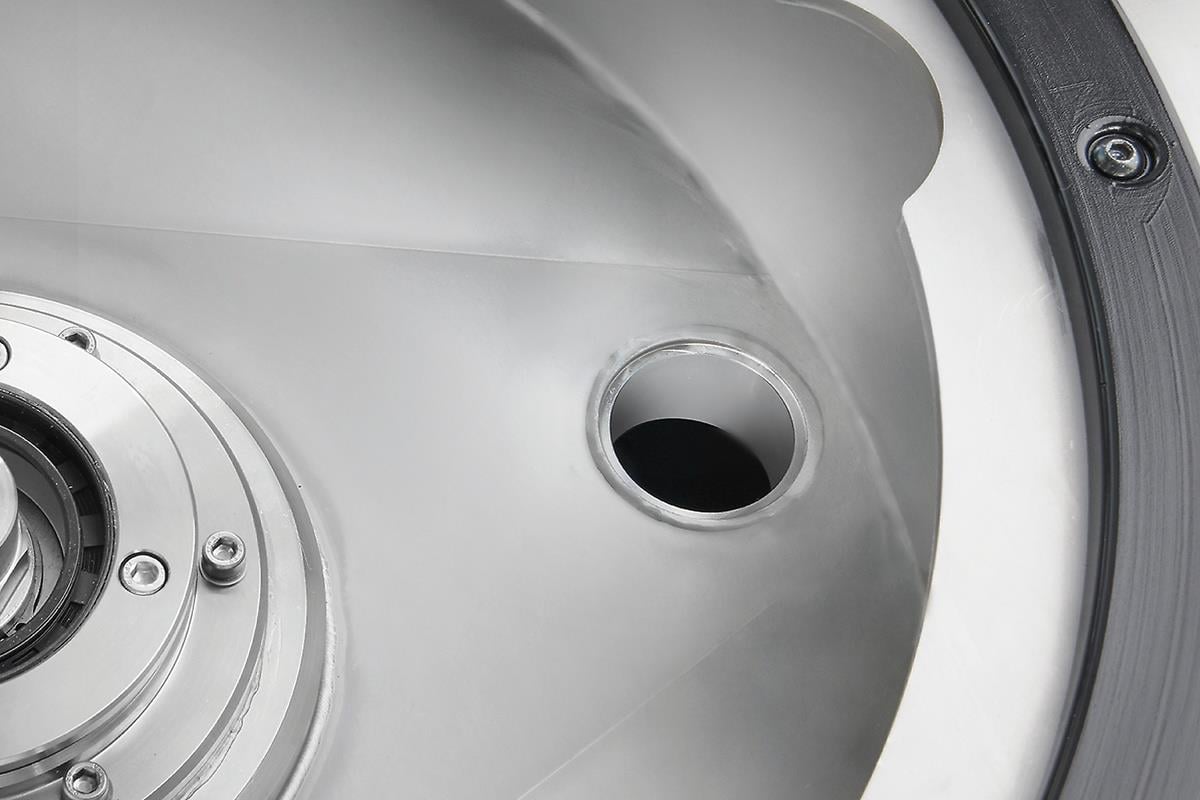

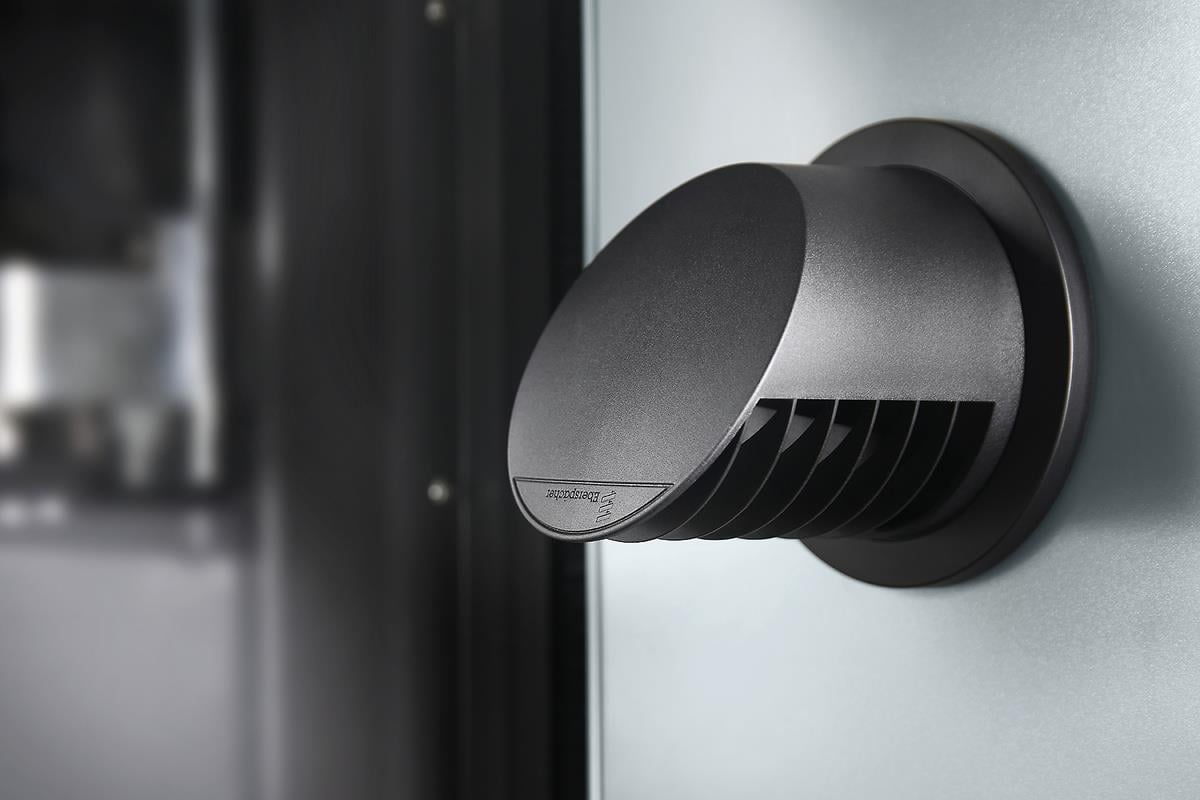

Direct suction of vapor from the working area through suction nozzle.
Grinding is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
