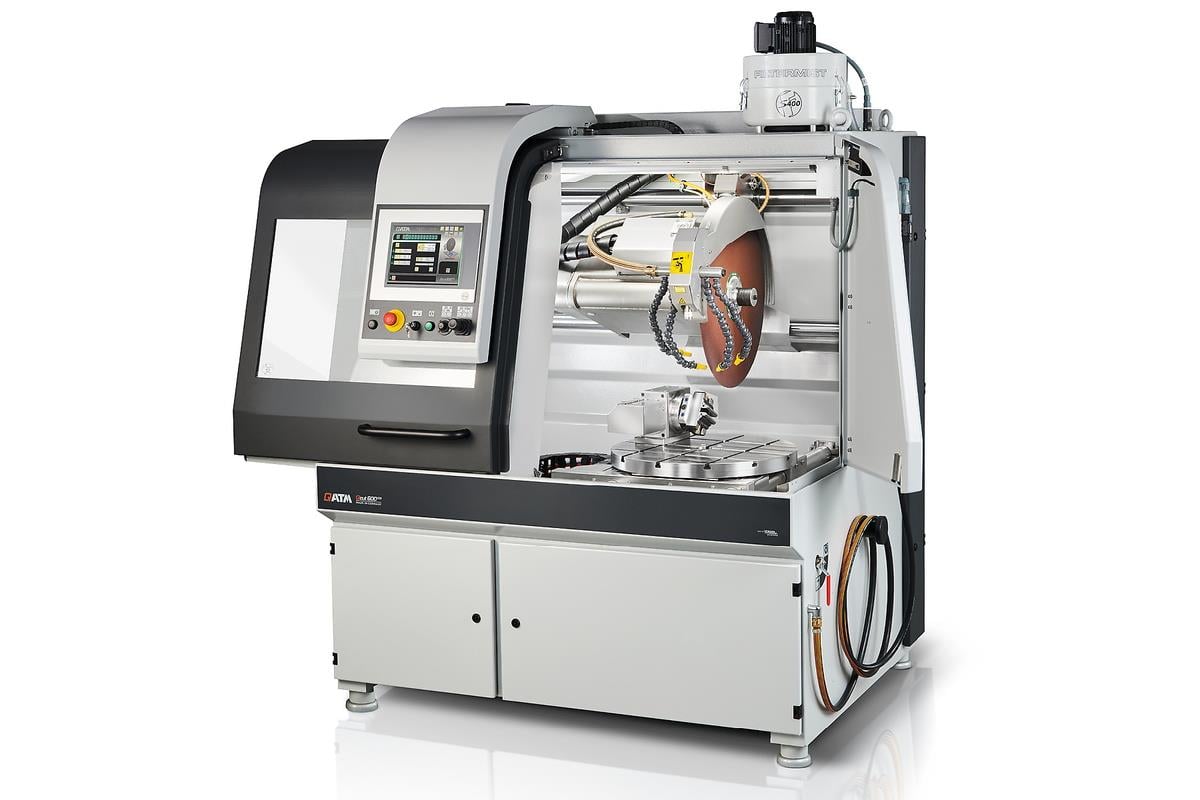

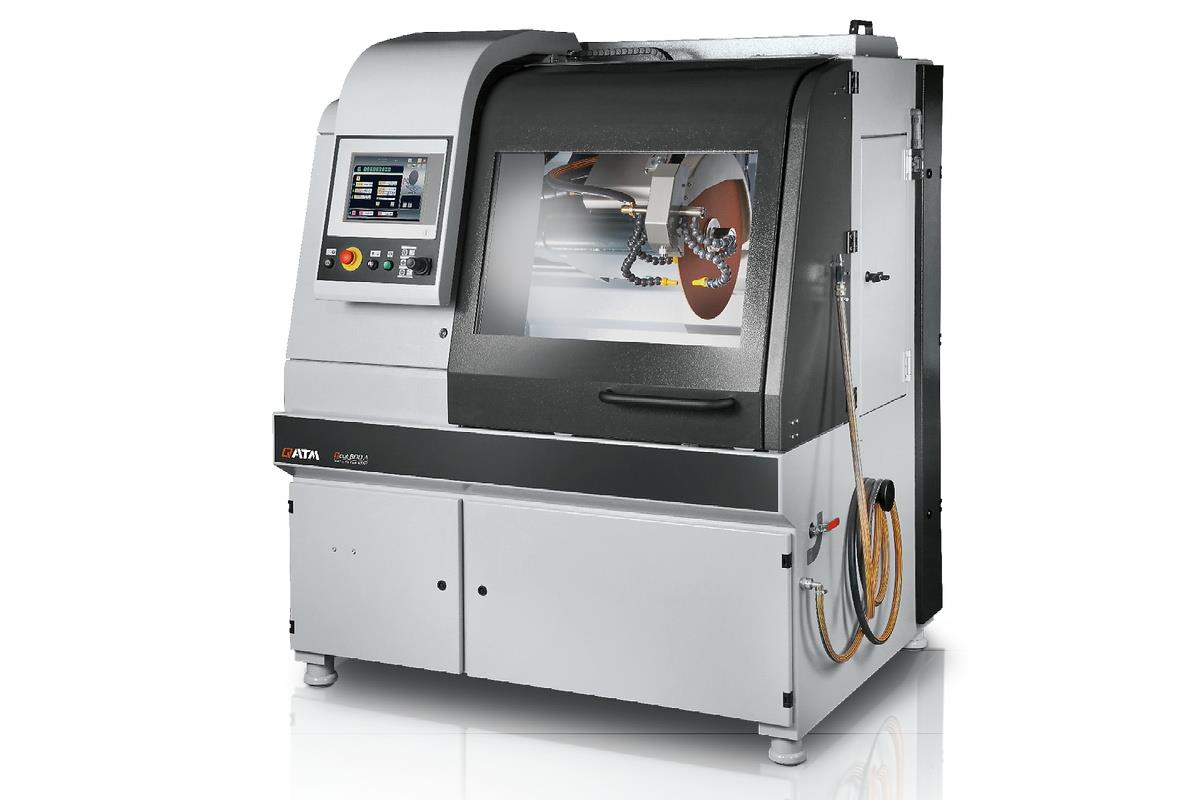

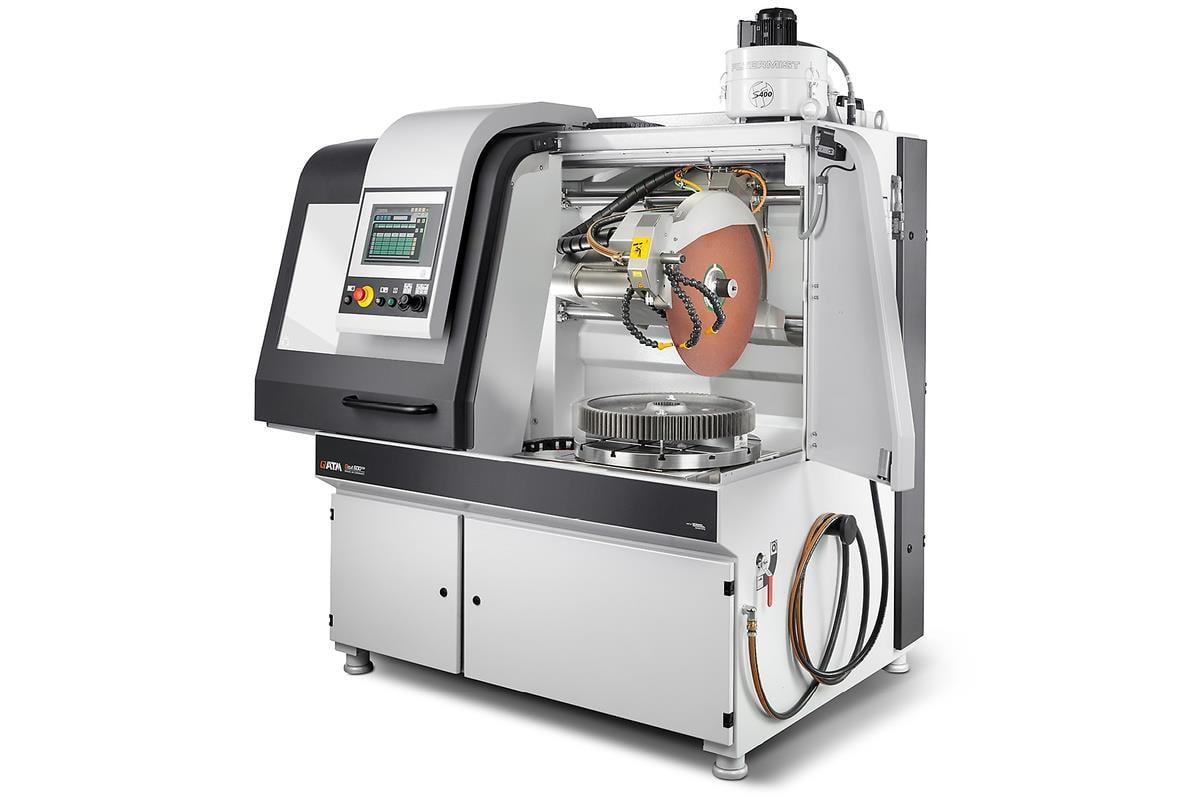

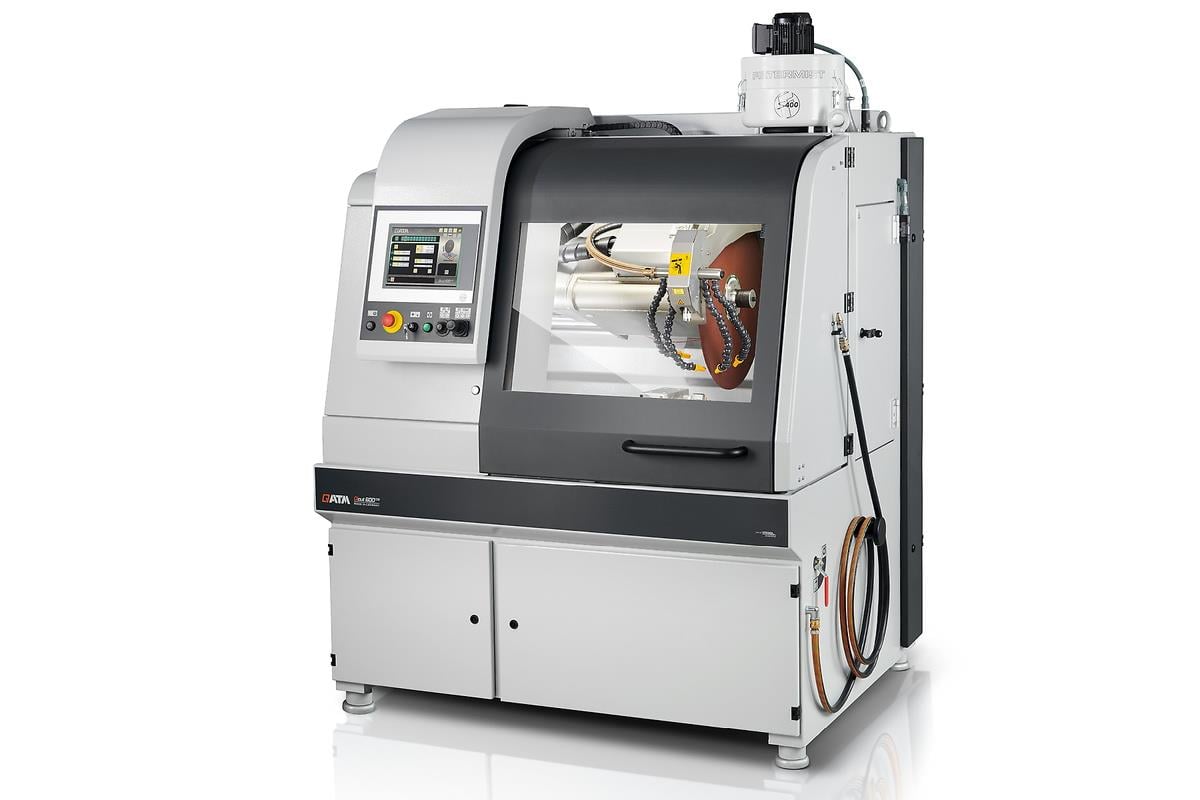

The Qcut 600 BOT is a fully automatic cutting robot with max. 5 axes for the use of cutting discs with a size of up to 610 mm / 24“.

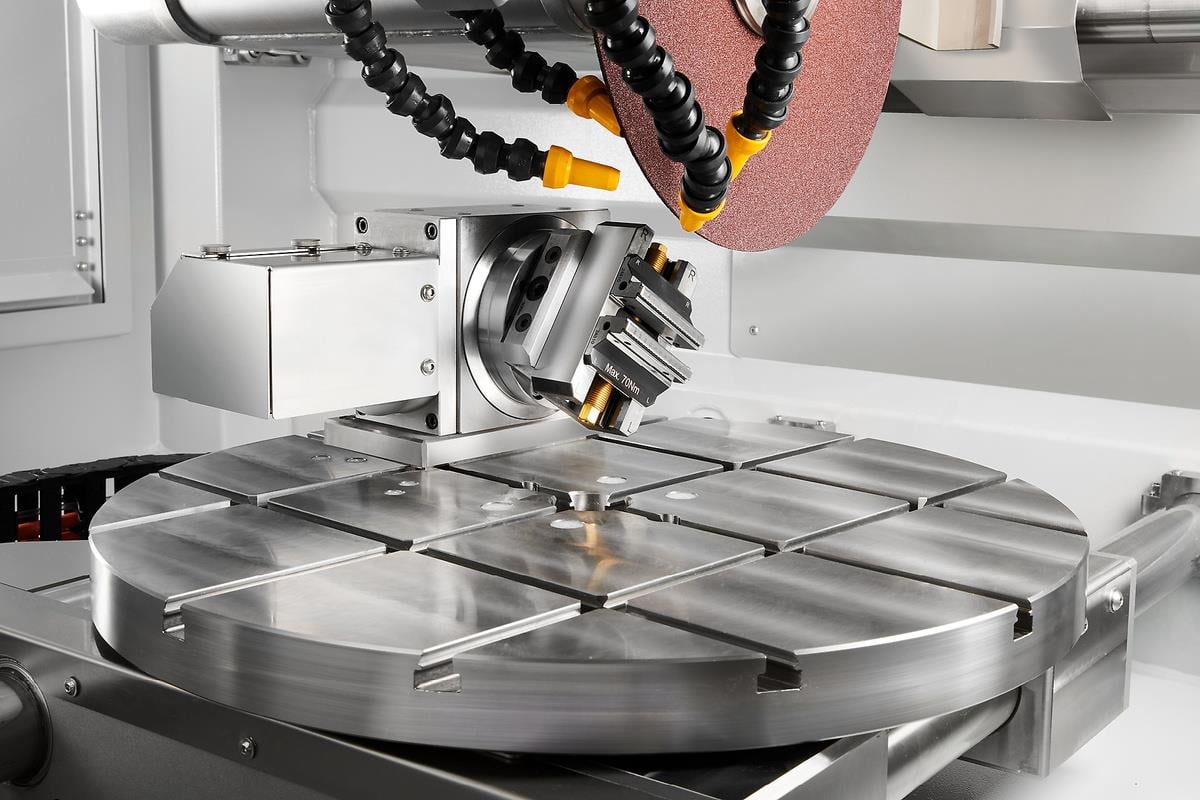

The Qcut 600 BOT cutting robot opens up new possibilities with its 5 axes (X-, Y-, Z-, B-, C-axis) and the generously sized machine table (Ø 600 mm) opens up new application possibilities. The automatic travel (X-axis) and cross-cut (Y-axis) reach speeds of up to 80 mm/sec thanks to its highly dynamic drives. The rotary table (B-axis) has a swivelling range of 360° and can be modularly extended with an additional rotary axis (C-axis - swivel range of combined axes: B-axis: 200° / C-axis 360°). The cut-off wheel guard is guided in parallel during the chop cut to increase the cutting capacity of the cut-off wheel. The large sliding and side door, with safety lock when the cutting disc moves, ensures the best possible access to the large machine table. Recirculation cooling and automatic central lubrication are integrated in the machine body of the robust steel construction. The Qcut 600 BOT can also be equipped with a belt filter unit as an alternative to the recirculating cooling unit.

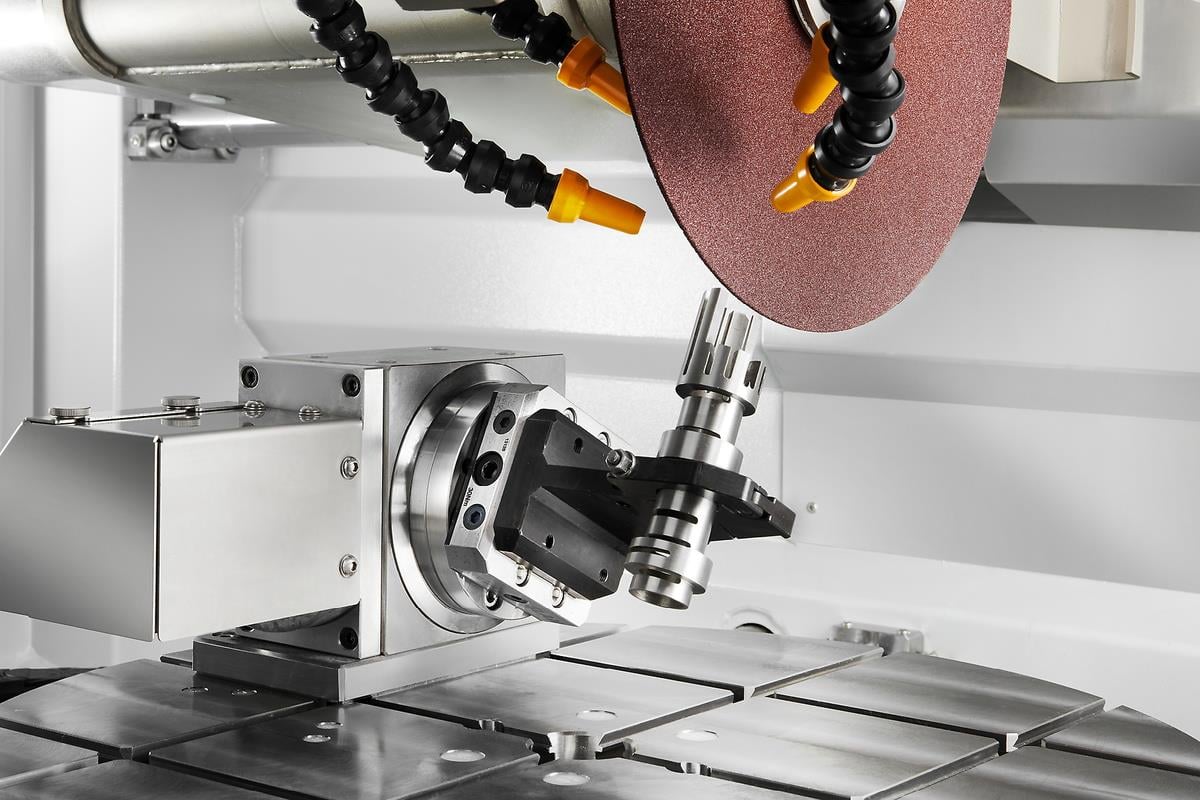

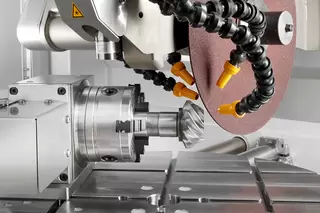

Expandable with additional rotary axis that can be adapted modularly

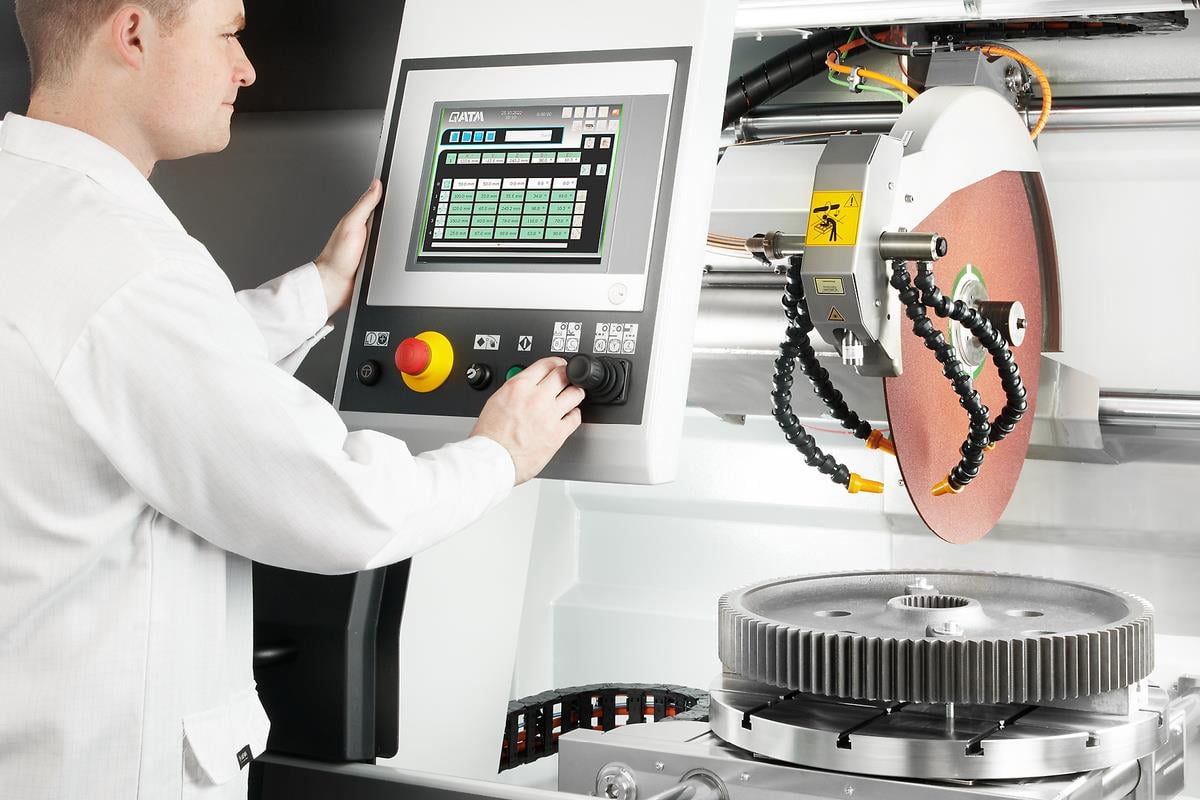

The teach-in function enables user-friendly programming of the of the cutting positions by approaching the individual positions. The multi-position process MPP allows the simultaneous positioning and automatic start-up of different components on the clamping table. This eliminates the need for timeconsuming reclamping of the components.
The dynamic cut-off wheel measurement leads to reproducible cutting results with consistent quality. By automatically monitoring the current cut-off wheel diameter, the cutting parameters are adjusted after each cut so that the cutting speed and cutting depth remain constant.
In order to optimise the cutting quality, the machine automatically detects local material singularities, such as hardened areas, and regulates the feed rate depending on the cutting force. When starting a new cut, the component is automatically detected and approached at reduced speed (soft start-up control).

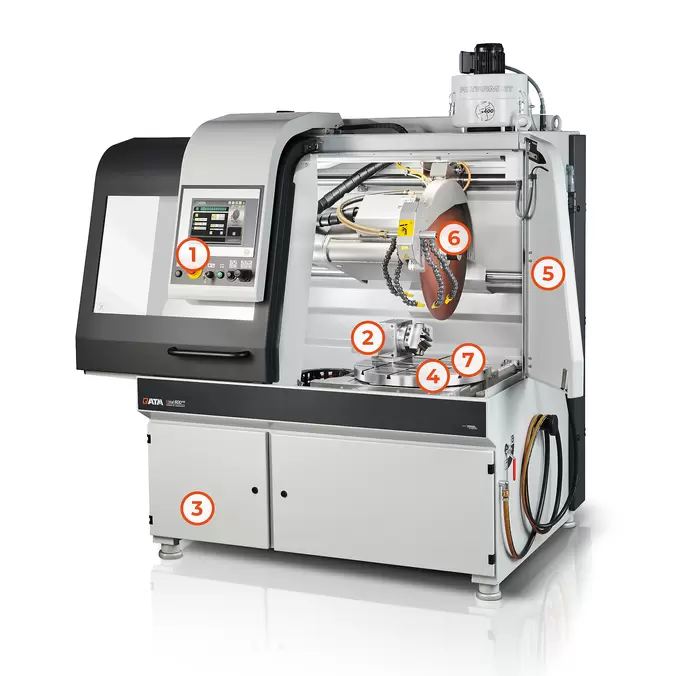

Cutting without restrictions

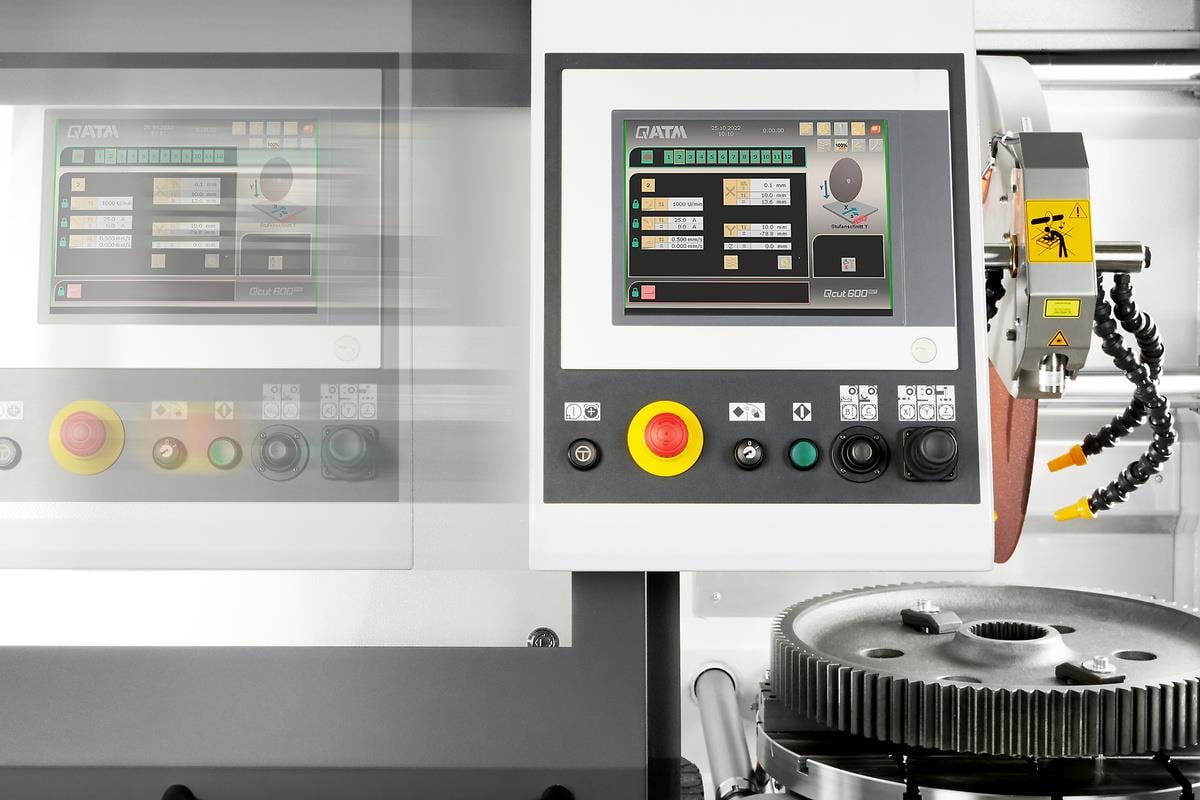

1. Ergonomic control panel

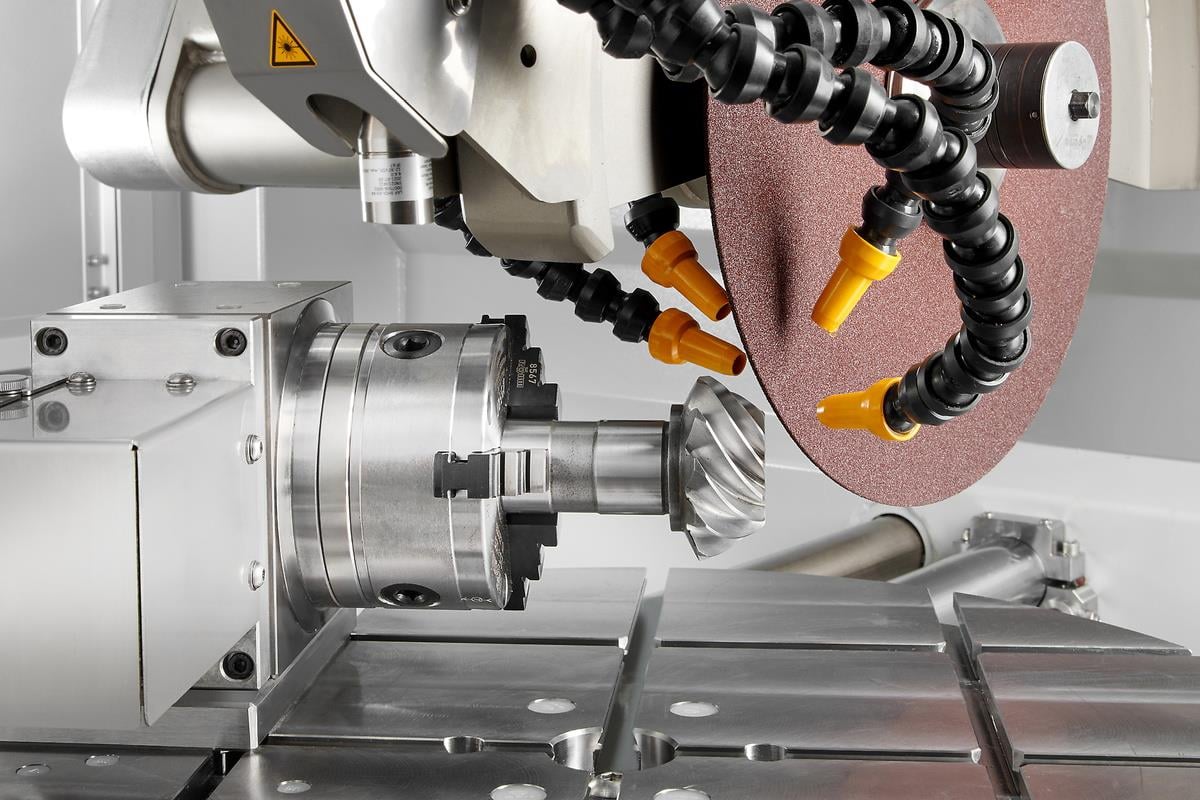

2. Optional axis of rotation C-axis
3. Robust machine body

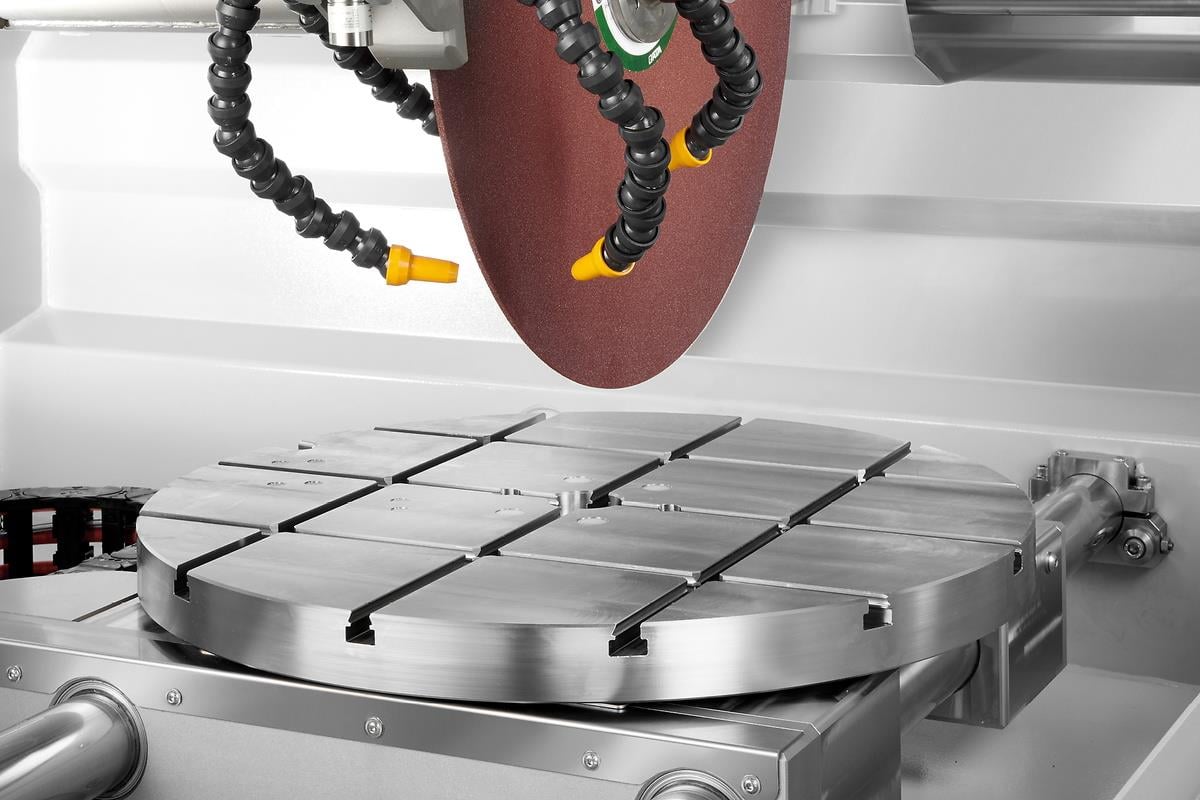

4. Large machine table
5. Side door
6. Automatic cut-off wheel measurement
7. Rotational axis B-axis

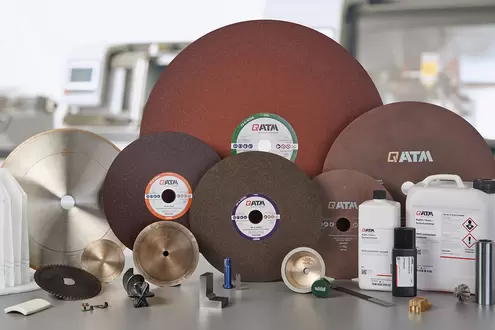

Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

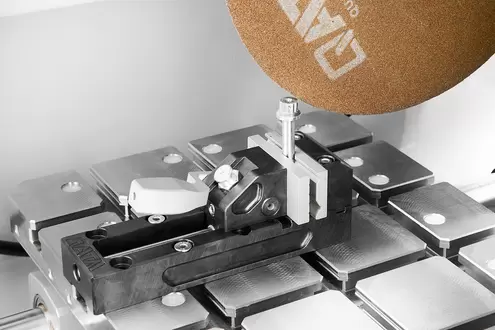

Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.
