Note: The prices shown here are retail sales prices. SPECIAL DISCOUNT MAY APPLY FOR BULK PURCHASES . Additionally, discounted prices offered to dealers may differ.
Import duties, customs charges, and value-added taxes for products originating outside of Turkey are not included in the listed prices. This is applicable to customers purchasing from within Turkey.
The prices mentioned here do not include door-to-door delivery. Buyers purchasing from other countries are responsible for customs duties and any other taxes applicable under their local commercial laws.
For orders under 13,000 Euros, if the product value is below this, the total order value must either reach 13,000 Euros or a 150 Euro customs fee will be added to your final invoice value.

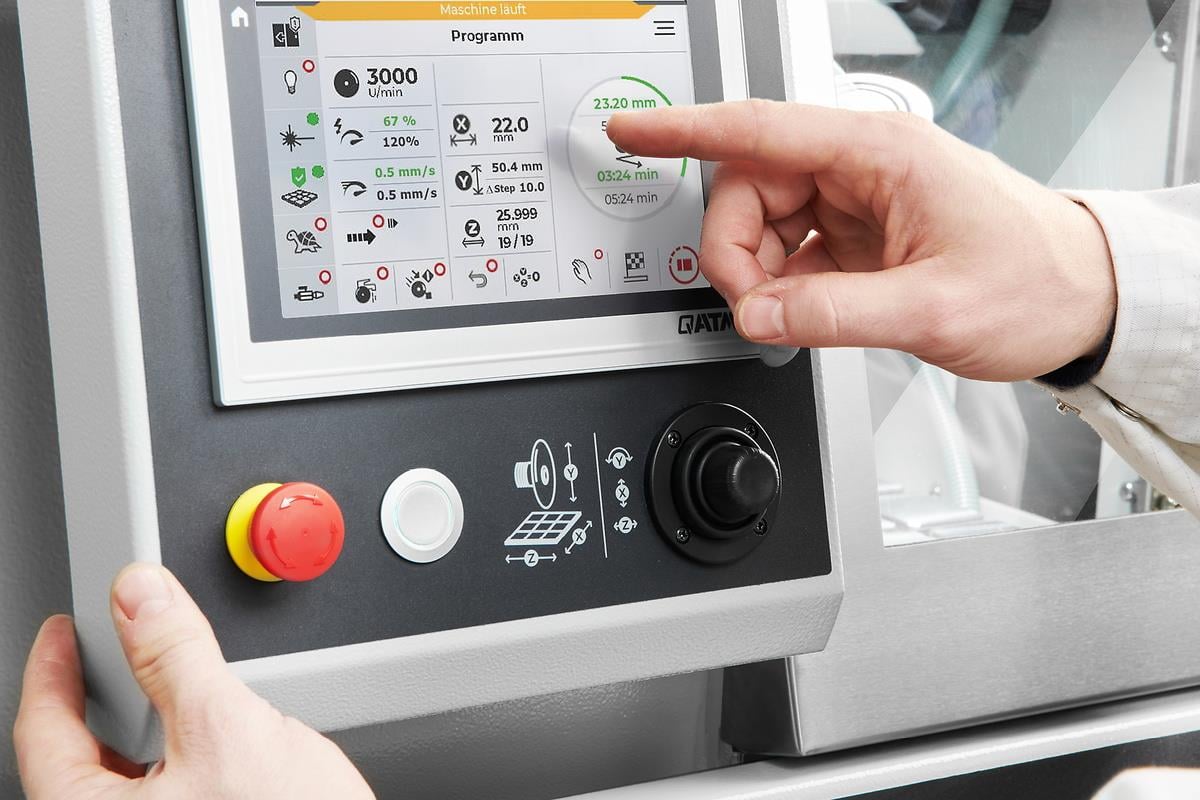

The large 7“ touch display is ergonomically arranged and easy to operate via the user-friendly software. The joystick ensures comfortable movement of the automatic axes.

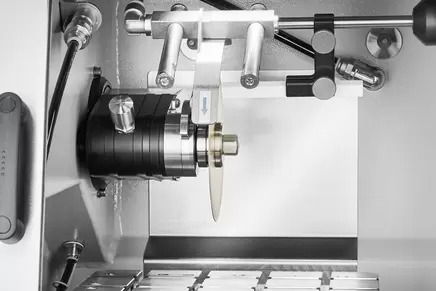

Via the optional flow monitoring, constant cooling can be ensured when cutting sensitive samples with long cutting processes. The cutting process is automatically interrupted when a critical threshold value is reached.

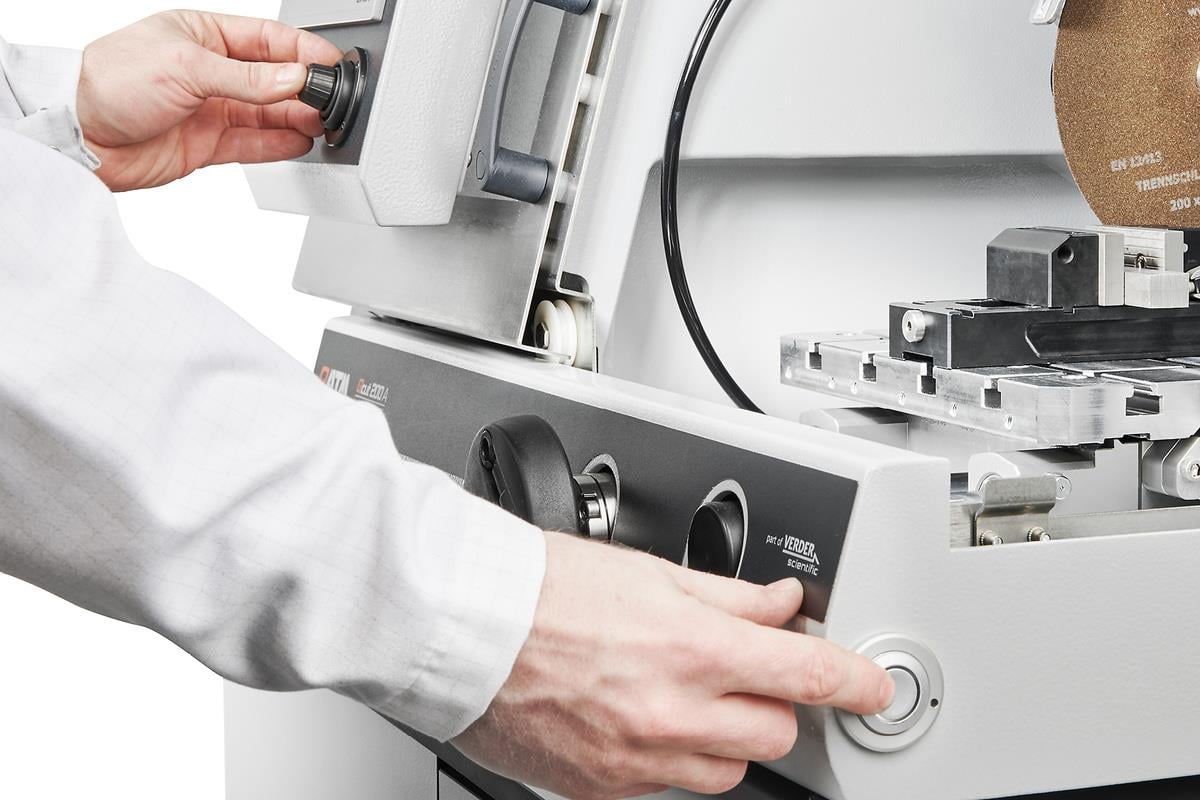

Due to the enabling switch, the machine can only be positioned via the two-hand control when the door is open. This eliminates the risk of crushing for the machine operator.

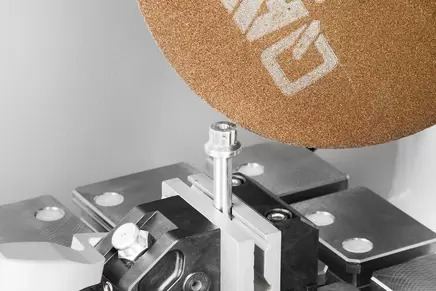

In addition to the proven automatic component detection, the machine also has a new type of exit detection (auto-stop function). Thus, the start and end points of the cutting process are automatically detected and process times are shortened.

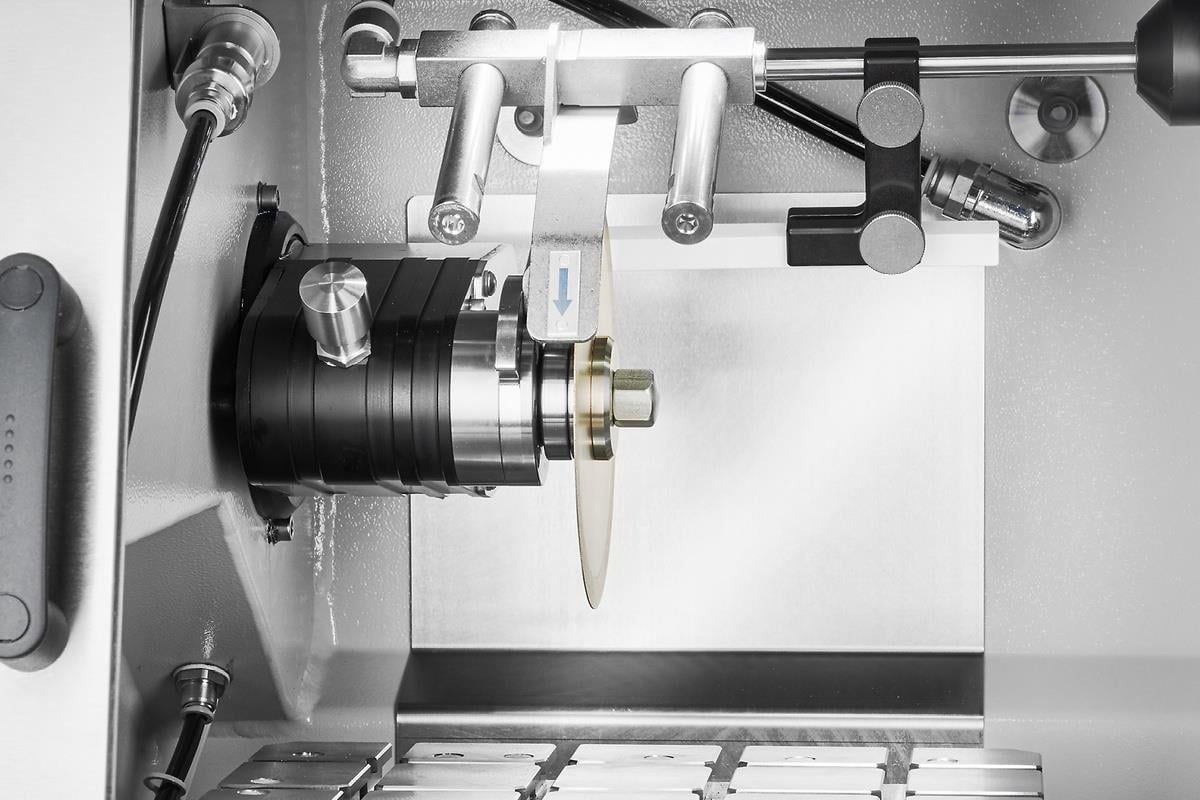

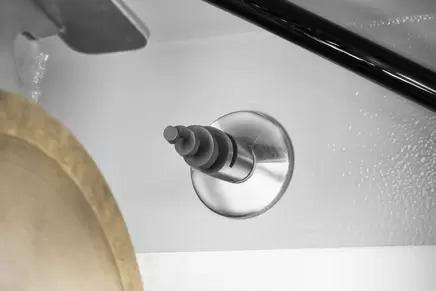

The machine is cleaned fully automatically via the spiral nozzles in the cutting chamber. Cleaning can be switched on individually and, if required, starts automatically after each cut-off. For a clear view, it can also be switched on during cut-off operation.

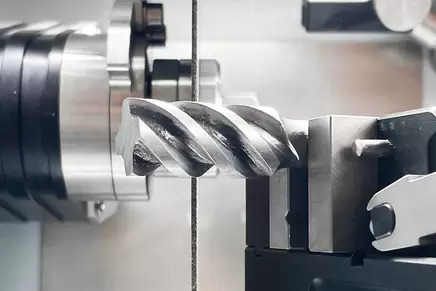

Depending on the geometry of the component, the travel or chop cut is used to minimize the contact area between the component and the cut-off wheel. The step cut functions separate the workpiece layer by layer and optimize the angle of action for a material friendly cut. They are therefore particularly suitable for solid material.

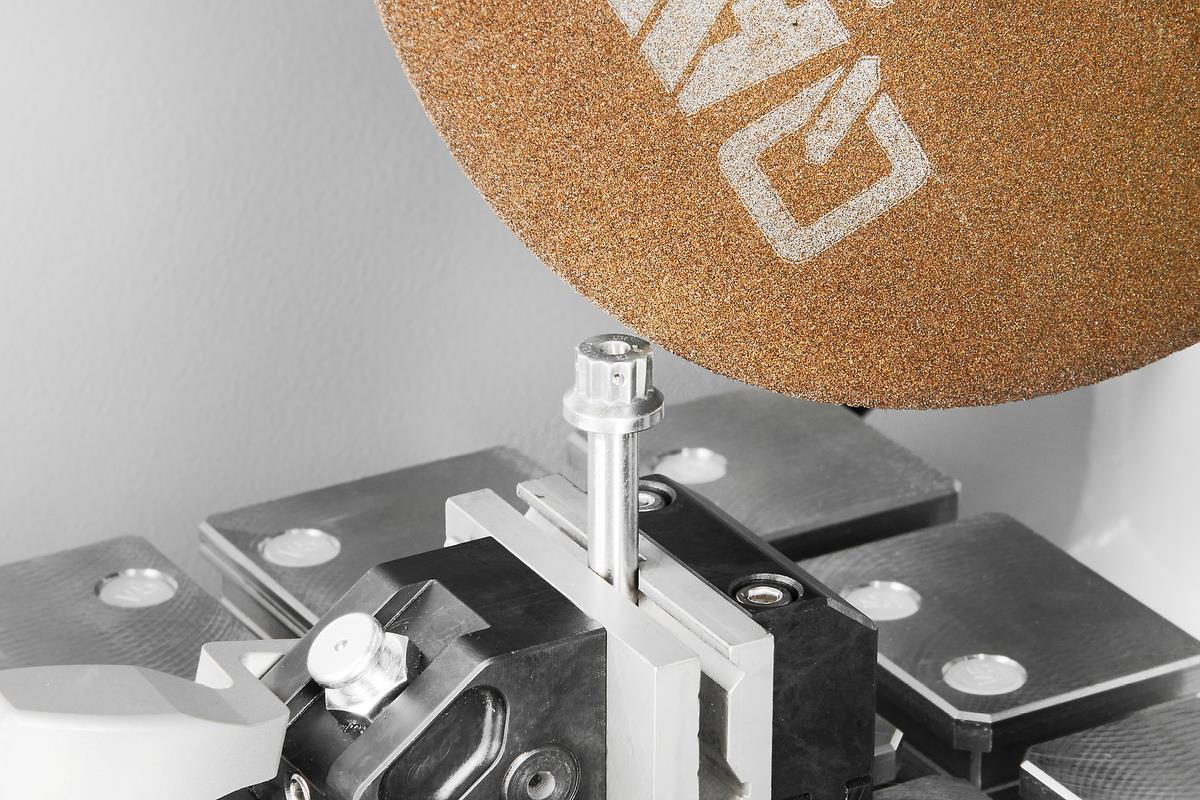

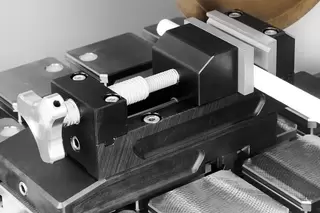

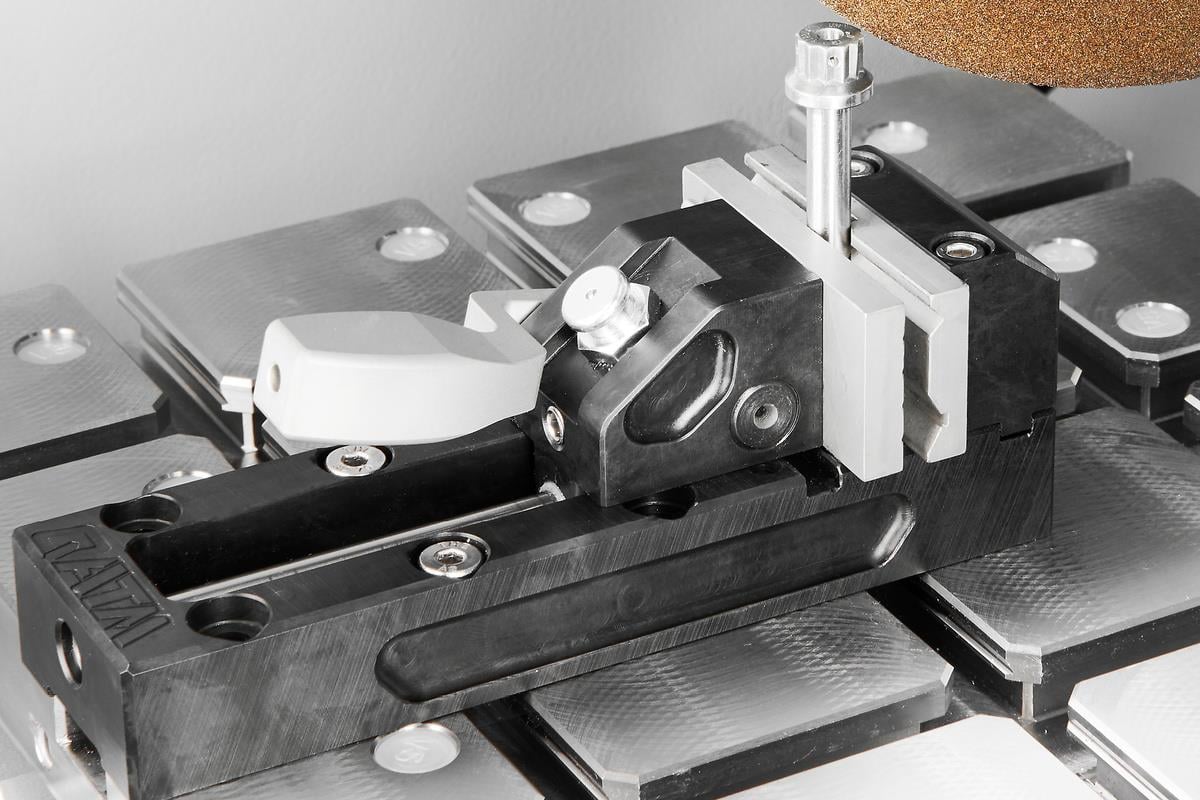

A wide range of clamping tools is available for the Qcut 200 A. Using the Easy clamping system, they can be simple and securely fastened to the table with just one screw. This makes the tedious fixing of the clamping tools in the T-slots of the table unnecessary. The Easy clamping system is an innovative addition with a great impact on everyday work.

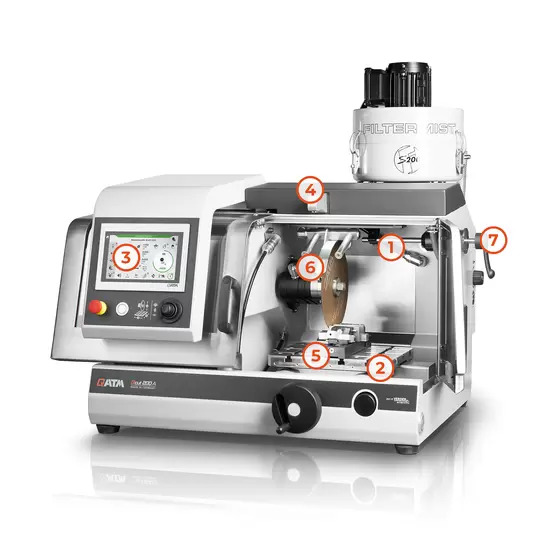

Cutting without restrictions
1. Cutting chamber flushing
2. Large machine table
3. Ergonomic control panel
4. Line laser
5. Accessories
6. Cut-off wheel lock
7. Dressing device
Cutting is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

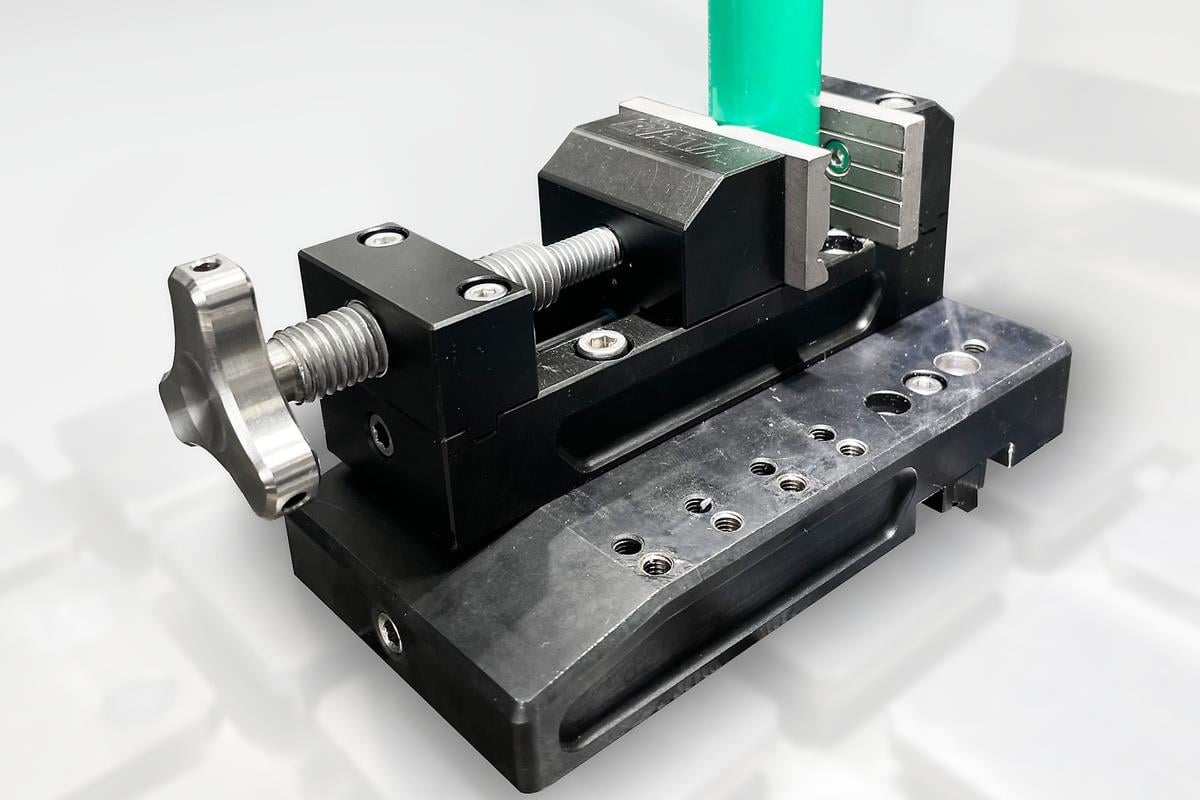

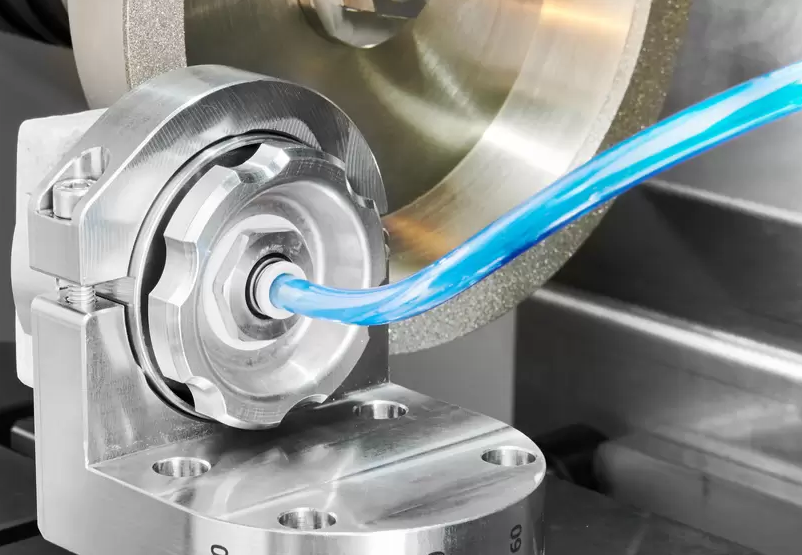

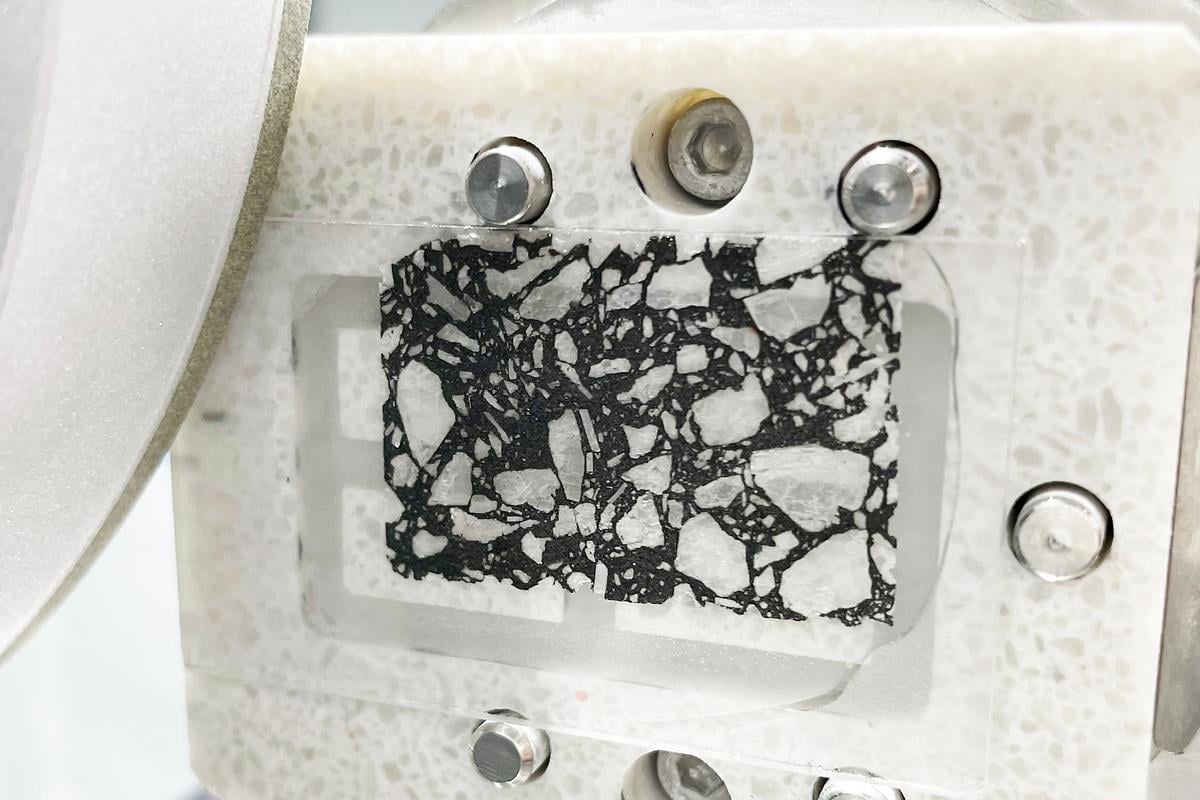

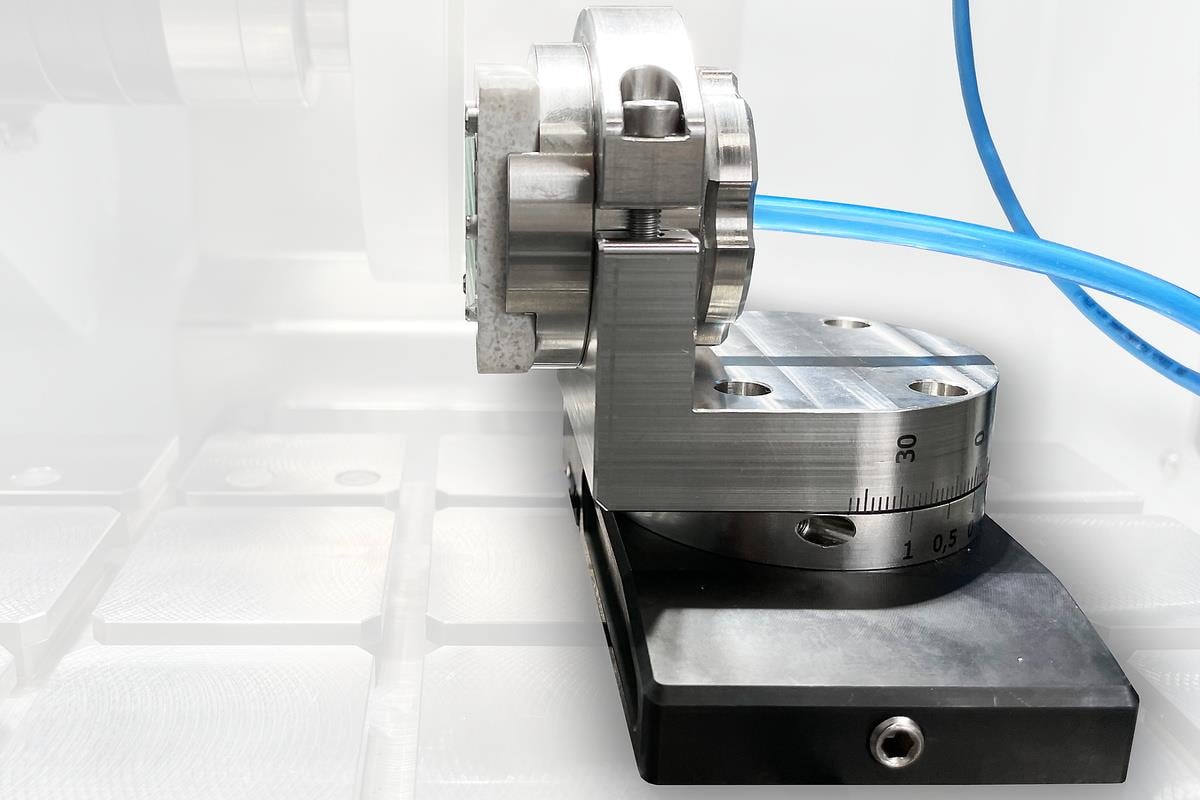

Our innovative clamping devices are used to clamp workpieces securely and precisely to ensure exact cutting and grinding processes. There is a wide range of different clamping devices that have been developed for specific applications and workpiece sizes.
