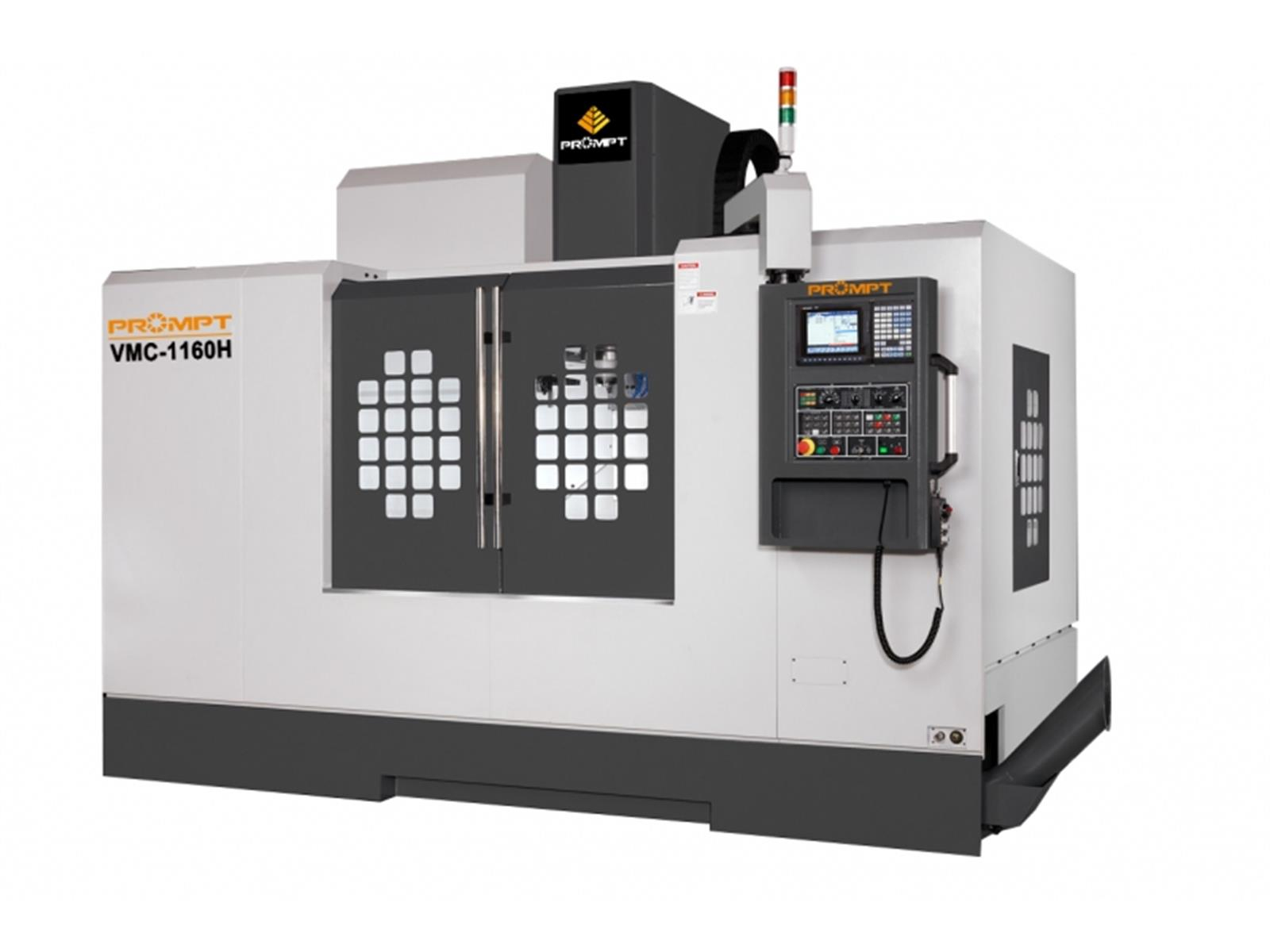

Prompt VMC-1160H Vertical Machining Center (VMC-1160H)

Brand : Prompt

Stock Amount : 0

Est. Delivery Time60-75 Days After Order

Shipment Place Turkiye

Payment Terms% 30 T/T On Order Confirmation, % 70 T/T Before Shipment

Made InChina

Min. Order Qty.1 Pcs.

Warranty1 Year

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Machining Centers

Vertical Machining Centers

X/Y/Z: BOX WAY
DESIGNED FOR ECONOMIC EFFICIENCY MACHINING

Features:
High precision and rigidity spindle
Top quality gears
Optical linear scale
4th and 5th axes rotary table
Circular inspection
Inspection by laser unit
Spindle dynamic balancing testing

Mitsubishi M70-2A controller
Coolant system
Auto lubrication system
Working & warning lamps
Spindle air blast (M code)
Toolbox and tools
Fully enclosed splash guard
RS-232 interface
Rigid tapping
Auto power off
Heat exchanger for electric box
M.P.G
leveling bolts and pads
Power transformer

4th/5th axes CNC rotary or indexing table
Chip conveyor with basket
Coolant through spindle
Tool measurement system
Workpiece measurment system
Oil skimmer
Spindle chillier
3 axes linear scales

Model	VMC-1160H
Travel:
X axis travel	1100 mm
Y axis travel	600 mm
Z axis travel	610 mm
Spindle nose to table	150~760 mm
Spindle center to column front	650 mm
Work Table :
Work table size	1200*600 mm
Max. table loading	1000 kg
T-slot pitch / width / no	100 x 18 mm x 5T
Feedrate :
X / Y / Z rapid feedrate	20 / 20 / 20 m/min
Cutting speed	10 / 10 / 10 m/min
Headstock :
Spindle motor cont. / 30min	7.5 / 11 kw
Spindle taper	BT40
Spindle speed	10,000 rpm (opt: 1,2000/15,000)
ATC :
Tool no & type	24 Arm
Max. tool diameter x length	Ø80 x 300 mm
Max. tool weight	7 kg
General information:
Air pressure	6 kg / c㎡
Coolant tank capacity	380L
Machine weight	8000 kg
Gross weight	8300 kg
Floor space (L x W x H)	300219246 cm
Packing size (L x W x H)	310228250cm
Positioning	0.005 mm/ 302 mm
Repeatability	+/-0.003mm

Manuals, quality check report and warranty note
* The above specifications subject to change without prior notice.
