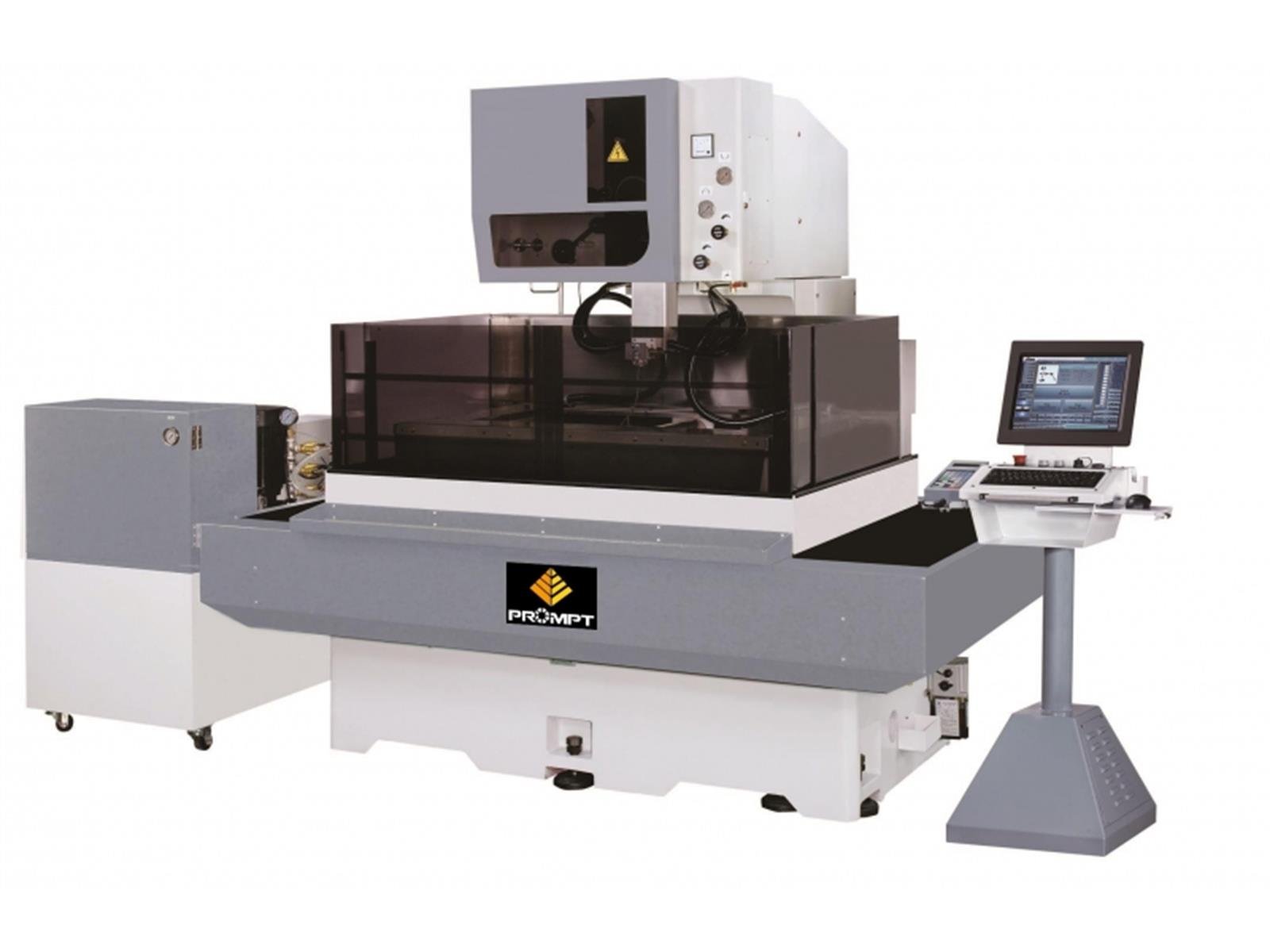

Prompt PW-400F Brass Wire Cut Edm (PW-400F)

Features:
Compensation for circular, corner and consumption of wires.
G code function
Five type corner auxiliary wire function
Our self-developed PCD micro wire professional Electric Circuit
Functional U,V,Z axis & High rigidity spindle
Wire-receiving system
High accurate linear guide way, servo & transmission system
Auto. wire-threading system (A.W.T)
User-friendly interface

Automatic vertical alignment jig *1set
Power feed contact *2pcs
Filter *2pcs
Clamping tool *1set
Wire guide (Ø0.25mm) *1set
Brass wire (Ø0.25mm) *1set
Ion exchange resin (5L) *1pc
Tol box *1set

Wire guide  (Ø0.1~0.3mm) *1set
CAD/CAM software
3R (Erowa) clamping tools
22.5° degree of water nozzle set
A.W.T (auto, wire threading) system
Parallel bar (for setting work piece)
Wuto wire cutting system
PCD professional electric circuit
Water chiller
Power regulator
Wire tension meter
Wire speed mater
Water resistance mater
X, Y axis linear scale
(PW-600S&PW-1065S
with X,Y linear scale standard)

Model	PW-400F
Maximum workpiece size	760*520*295 mm
Work table size	640*500 mm
Maximum workpiece weight	500 kgs
Drive & Servo	5 axes AC Servo
Simulations Axis	X/Y/U/V (4 axes)
X/Y axis travel	400 / 300 mm
Z axis travel	300 mm
U/V axis Trave	100 / 100 mm
Wire diameter range	Ø0.15~0.3 mm
Max. taper angle (°) workpiece thickness (mm)	±22.5 (100 mm)
Maximum axes load	10 kgs
Conductivity	Automatic
Water tank capacity	270 L
Net weight	1950 kgs
Dimension (W*D*H)	2300*2200*2150 mm
