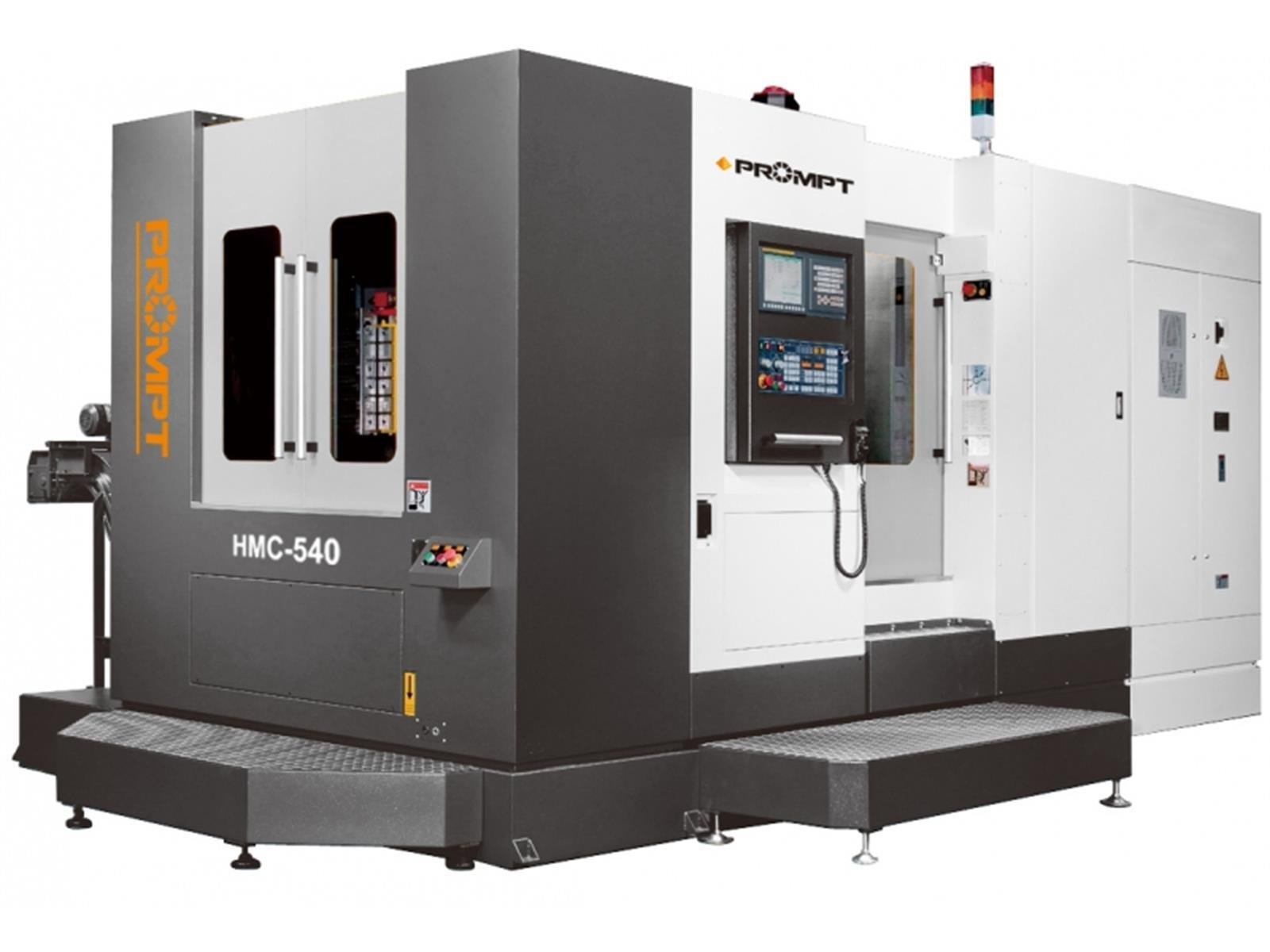

Features:
The structural parts are symmetrical construction combined with "V" shape rib reinforcement that ensures they will remain deformation-free even after a long time
The advanced finite element analysis software is applied for simulating structural stress. This assures the best possible machine rigidity, stability and dampening capacity
Extra strong column construction greatly increases column rigidity; the special structure effectively solves the rigidity displacement problem
Three axes are mounted with heavy duty roller type linear guide ways, featuring heavy load resistance and rapid traverse
Synchronized rotary table APC
Specially designed pneumatic type spindle head balancing system
30 coolant nozzles provide powerful chip flushing
Footswitch controls tool unclamping

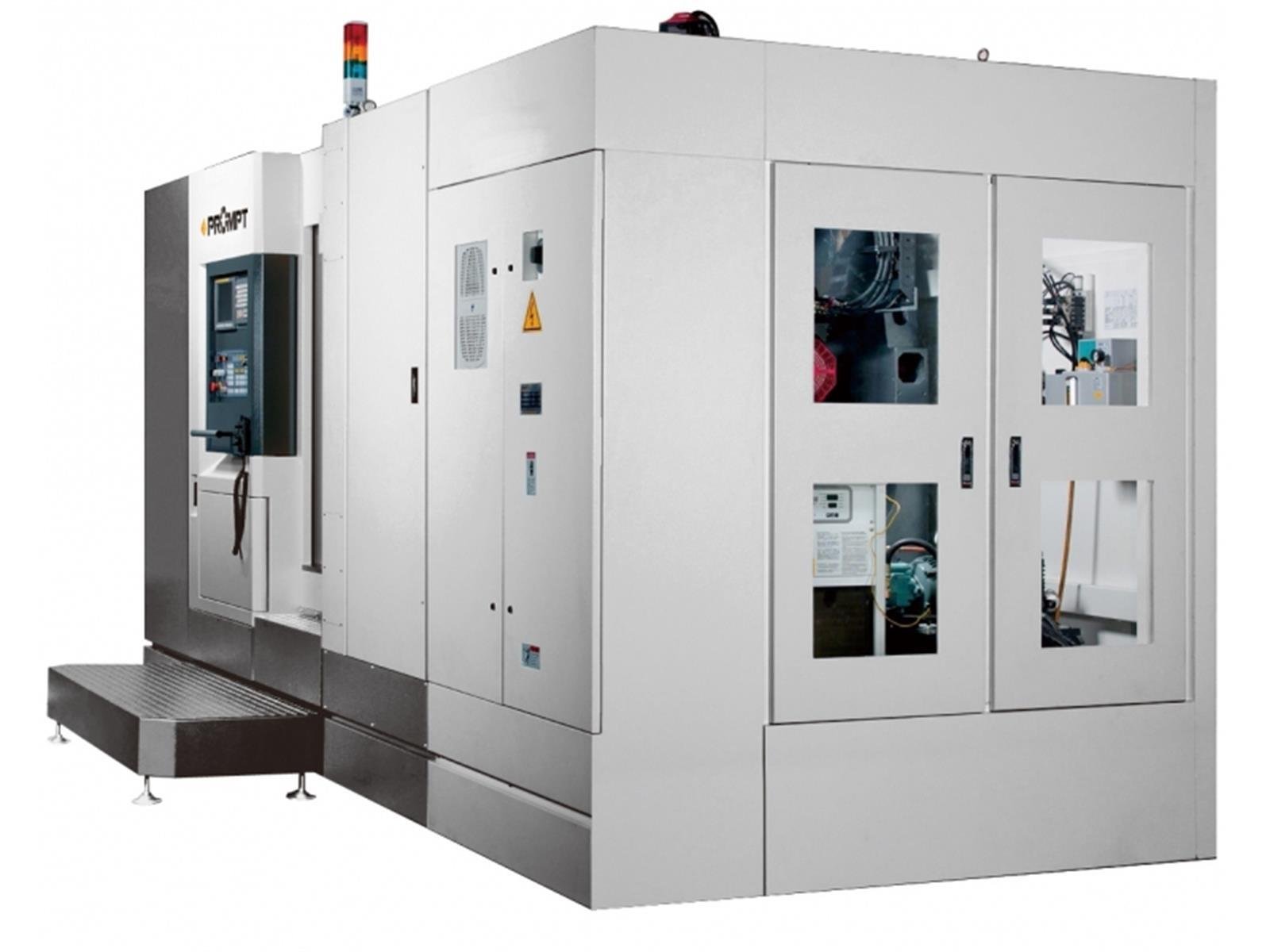

The back of the machine is designed for the convenience of maintenance
Rotary type automatic pallet changer
10 indexing rotary table

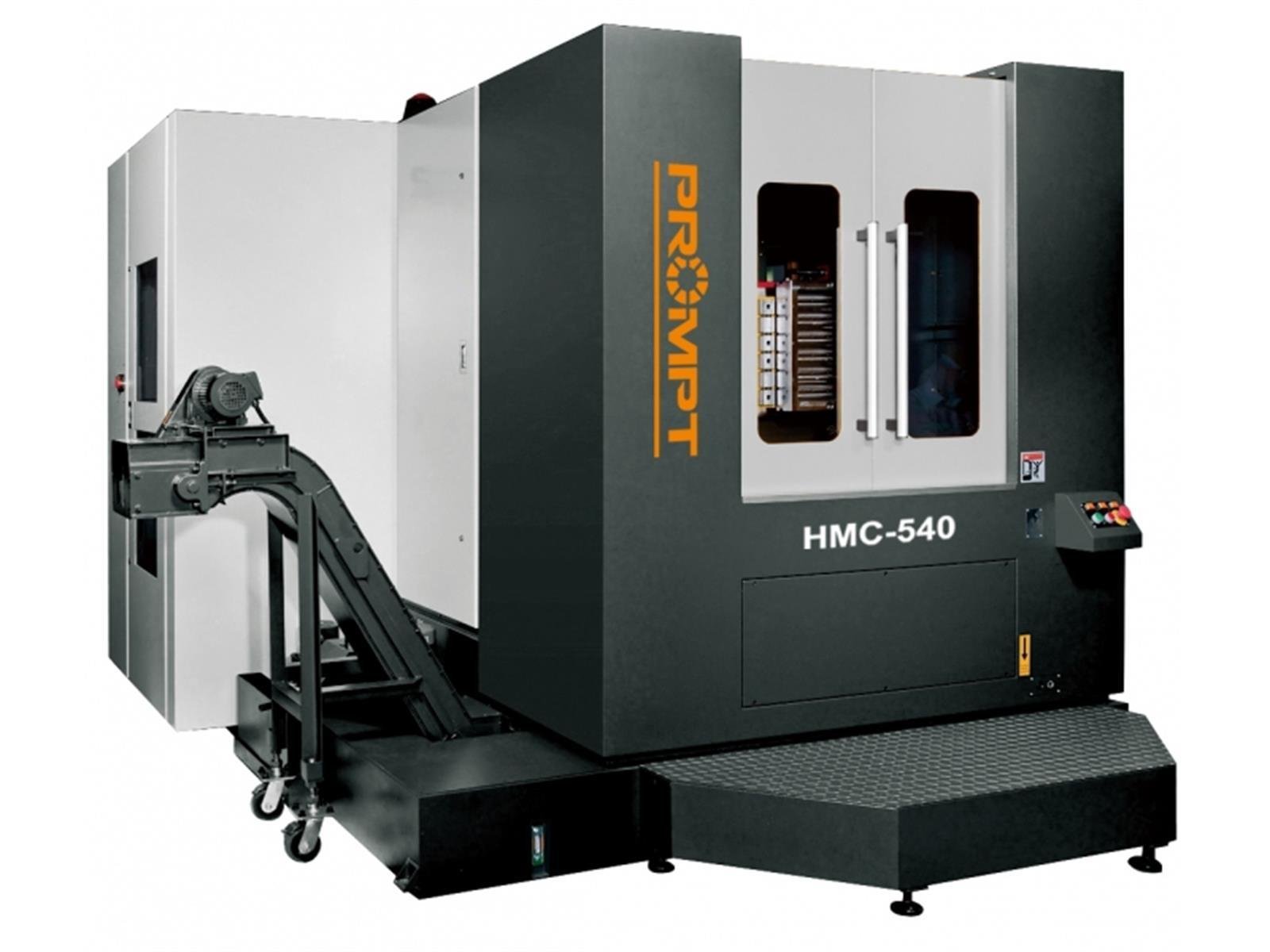

Chip conveyor with cart
40 tool chain type ATC
BT-40, 8000 rpm direct drive spindle
BT-50, 6000 rpm direct drive spindle
Coolant curtain
Spindle oil cooler
Heat exchanger for electrical cabinet
3 Areas powerful chip flushing system
Automatic lubrication system
Fully enclosed splash guard
Mitsubishi or Fanuc control
Pneumatic type spindle head balance system
Leveling bolts and pads
Tool box with tools
Transformer
0.0010/50 indexing rotary table
60, 90 or 120 tools chain type magazine
#40,10000 – 24000 rpm spindle
#50,8000 – 12000 rpm spindle
Coolant through spindle (20/50 bar)
3 Axes linear scales
Oil/ fluid separation device
Air conditioner for electrical cabinet
Automatic tool length measuring device
Automatic workpiece measuring device
Coolant through tool holder(without tool holder)
CE specifications
SIEMENS and HEIDENHAIN control
| Model |
HMC-550 |
| Work Table |
| Work table size |
500x500 mm |
| Max. loading |
800 kg |
| Screw type |
24-M16 x P2.0 |
| Min. indexing angle |
1 |
| Travel |
| X travel |
800 mm |
| Y travel |
725 mm |
| Z travel |
725 mm |
| Spindle center to table surface |
50-775 mm |
| Spindle nose to table center |
200-925 mm |
| Table surface to floor |
1100 mm |
| Spindle |
| Spindle speed |
6000 rpm |
| Spindle nose |
BT-50 |
| Diameter of spindle |
Ø100 mm |
| Spindle motor |
11/15 KW/HP |
| Feedrate |
| Rapid traverse X axis |
30000/36000(opt) mm/min |
| Rapid traverse Y axis |
30000/36000(opt) mm/min |
| Rapid traverse Z axis |
30000/36000(opt) mm/min |
| Cutting feedrate |
1-10000 mm/min |
| ATC |
| Tool capacity |
40 |
| Max. tool diameter |
Ø125 mm |
| Max. tool diameter (no adjacent tool) |
Ø220 mm |
| Max. tool length |
400 mm |
| Max tool weight |
20 kg |
| Pull stud |
P50T-1 |
| Tool change time (t-t) |
4-5 sec |
| Tool change time (c-c) |
10 sec |
| APC |
| Number of pallets |
2 |
| Method of pallet change |
Rotary |
| Pallet change time |
8 sec |
| General Information |
| Power capacity |
50 KVA |
| Air pressure capacity |
6-8 kgf/cm2 |
| Machine dimension (W x H x L) |
3835 x 4835 x 2960 mm |
| Machine weight |
16000 kg |
Operation and maintenance manual
* The above specifications subject to change without prior notice.
